Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-9-27-90-36-AC30-F4-3LED COB 2700K SQUARE Luminus Devices Inc. |
2,318 | - |
RFQ |
Ficha técnica |
Tray | CXM-9 Gen3 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1390lm (Typ) | 360mA | 85°C | 34V | 114 lm/W | 720mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia |
|
|
CXM-9-35-90-36-AC30-F4-3LED COB 3500K SQUARE Luminus Devices Inc. |
601 | - |
RFQ |
Ficha técnica |
Tray | CXM-9 Gen3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1525lm (Typ) | 360mA | 85°C | 34V | 125 lm/W | 720mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia |
|

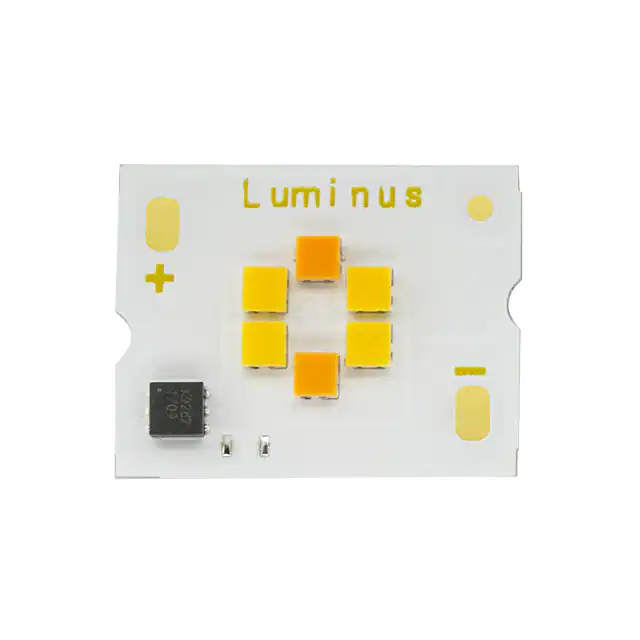

CDM-6-4027-90-18-DW01LED COB CDM6 WHITE Luminus Devices Inc. |
328 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 525lm (Typ) | 300mA | 85°C | 17.8V | 98 lm/W | 440mA | 92 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 6.80mm Dia |
|
|
CDM-6-4027-90-18-DW02LED COB CDM6 WHITE Luminus Devices Inc. |
249 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 495lm (Typ) | 300mA | 85°C | 17.8V | 93 lm/W | 440mA | 92 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 6.80mm Dia |
|
|
CDM-6-3018-90-18-DW02LED COB CDM6 WHITE Luminus Devices Inc. |
163 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 438lm (Typ) | 300mA | 85°C | 17.8V | 82 lm/W | 440mA | 90 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 6.80mm Dia |
|
CTM-9-6527-90-36-TW01LED COB CTM9 WHITE Luminus Devices Inc. |
263 | - |
RFQ |
Ficha técnica |
Tray | CTM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Rectangle | 615lm Warm White, 710lm Cool White | 200mA | 85°C | 37V | 83 lm/W Warm White, 96 lm/W Cool White | 220mA | 90 | 130° | - | 15.00mm L x 12.00mm W | 1.58mm | 9.50mm Dia |
|
CDM-9-3018-90-36-DW02LED COB CDM9 WHITE Luminus Devices Inc. |
1,648 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 870lm (Typ) | 300mA | 85°C | 35.5V | 82 lm/W | 440mA | 97 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 9.50mm Dia |
|
|
CDM-9-3018-90-36-DW01LED COB CDM9 WHITE Luminus Devices Inc. |
602 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 925lm (Typ) | 300mA | 85°C | 35.5V | 87 lm/W | 440mA | 97 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 9.50mm Dia |
|

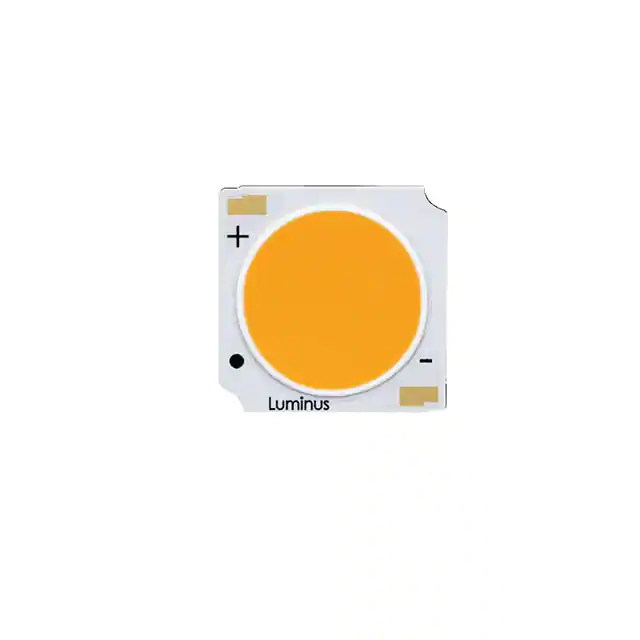

CXM-14-40-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
4,840 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4140lm (Typ) | 720mA | 85°C | 33.5V | 172 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|
|
CXM-14-35-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
2,628 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4065lm (Typ) | 720mA | 85°C | 33.5V | 169 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|

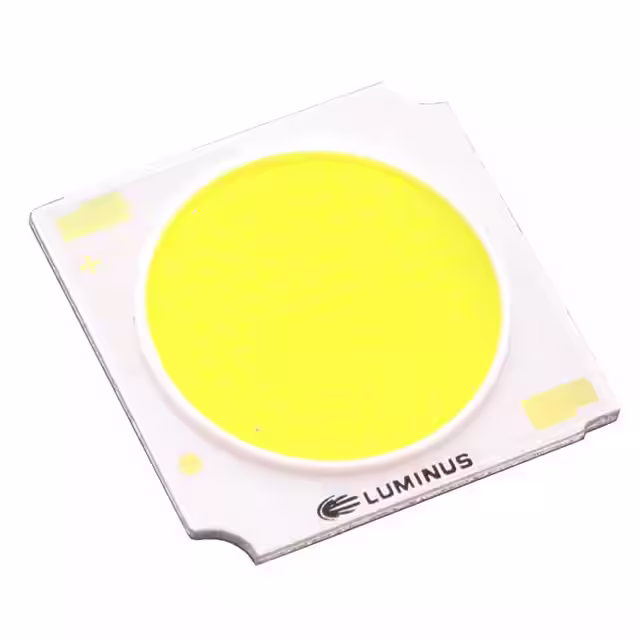

CXM-14-50-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
537 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4190lm (Typ) | 720mA | 85°C | 33.5V | 174 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|

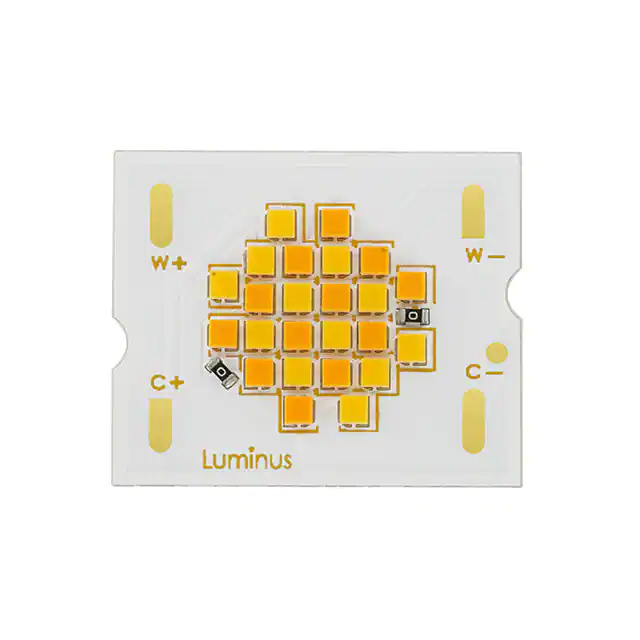

CTM-14-6527-90-36-TW01LED COB CTM14 WHITE Luminus Devices Inc. |
269 | - |
RFQ |
Ficha técnica |
Tray | CTM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Rectangle | 1255lm Warm White, 1420lm Cool White | 400mA | 85°C | 37V | 85 lm/W Warm White, 96 lm/W Cool White | 440mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 14.50mm Dia |
|

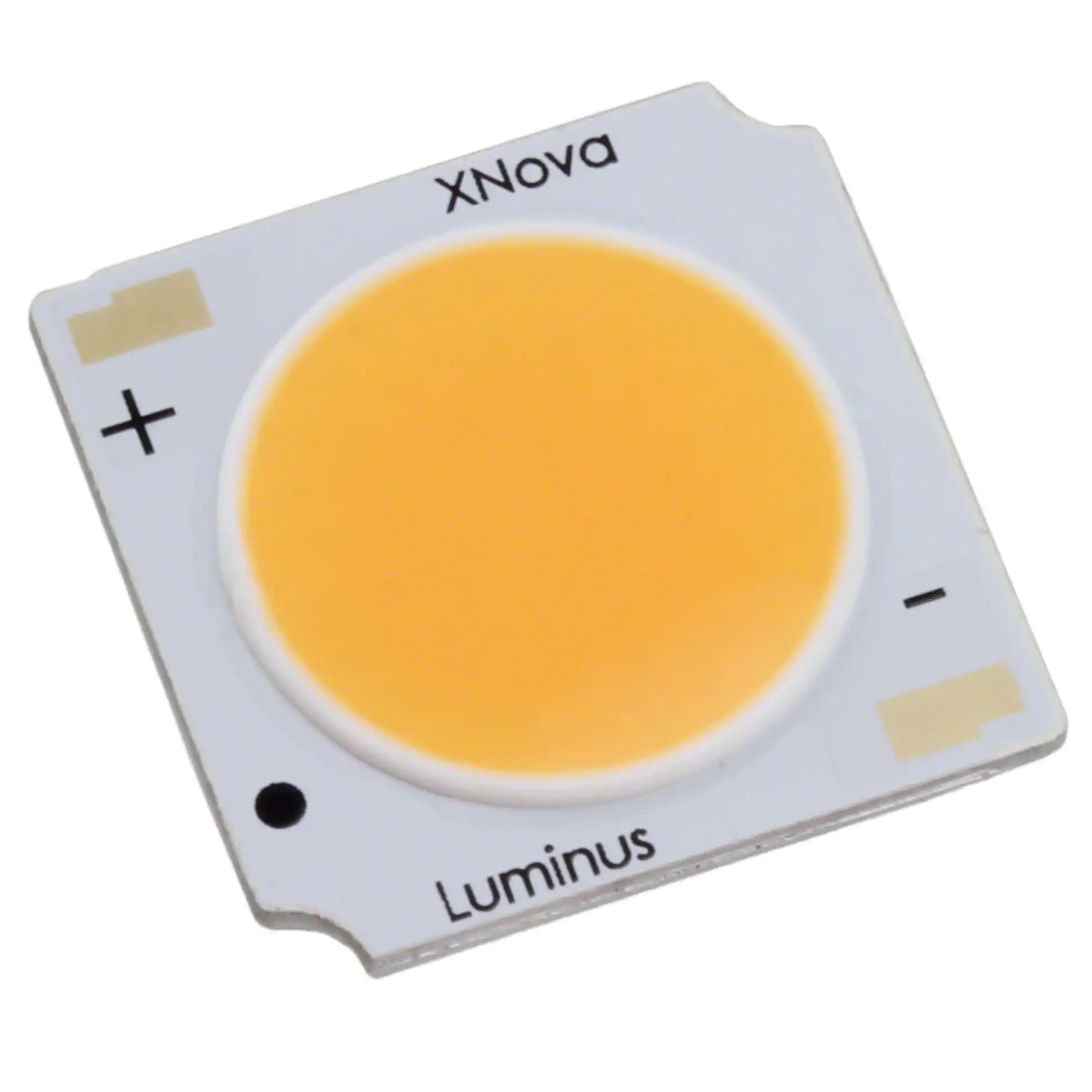

CVM-14-56-95-36-AC00-F2-2LED COB WHT 5600K 95CRI Luminus Devices Inc. |
701 | - |
RFQ |
Ficha técnica |
Tray | Studio | Not For New Designs | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 2800lm (Typ) | 1A | 100°C | 36V | 78 lm/W | 1A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia |
|

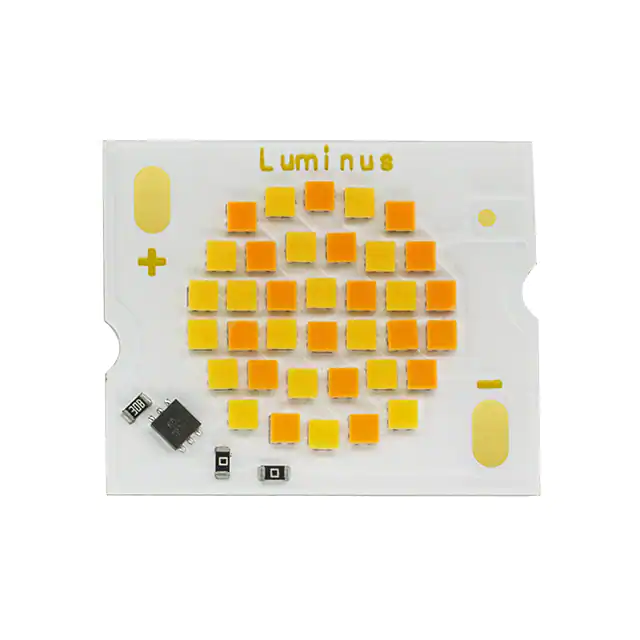

CDM-18-3018-90-36-DW01LED COB CDM18 WHITE Luminus Devices Inc. |
233 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 2875lm (Typ) | 900mA | 85°C | 35.5V | 90 lm/W | 1.08A | 97 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 16.80mm Dia |
|

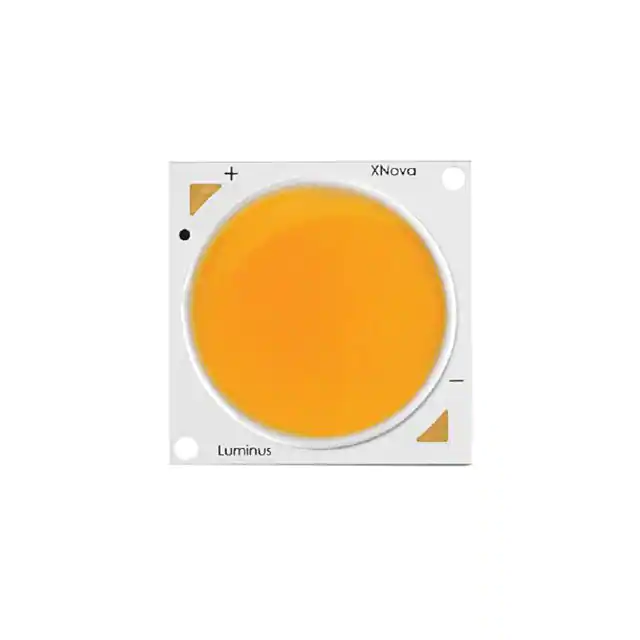

CXM-22-30-90-36-AC10-F3-3LED COB 3000K SQUARE Luminus Devices Inc. |
2,818 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen 2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5050lm (Typ) | 1.28A | 85°C | 34V | 116 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|

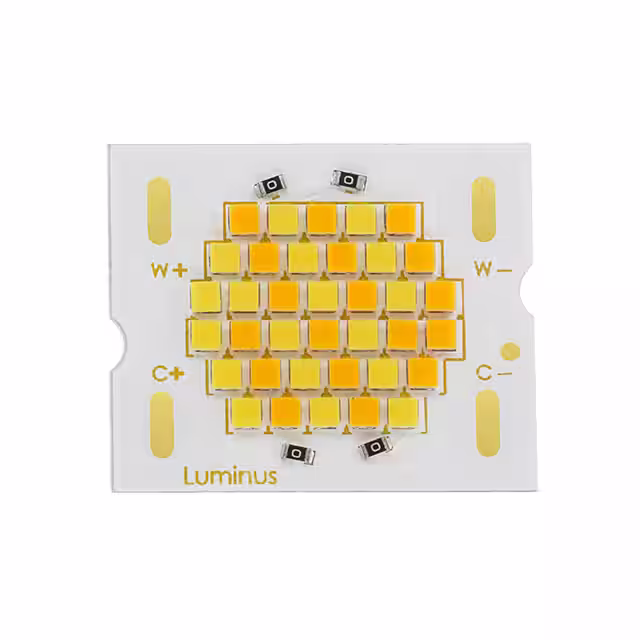

CTM-18-6527-90-36-TW01LED COB CTM18 WHITE Luminus Devices Inc. |
376 | - |
RFQ |
Ficha técnica |
Tray | CTM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Rectangle | 1785lm Warm White, 2000lm Cool White | 550mA | 85°C | 37V | 88 lm/W Warm White, 98 lm/W Cool White | 660mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 17.50mm Dia |
|

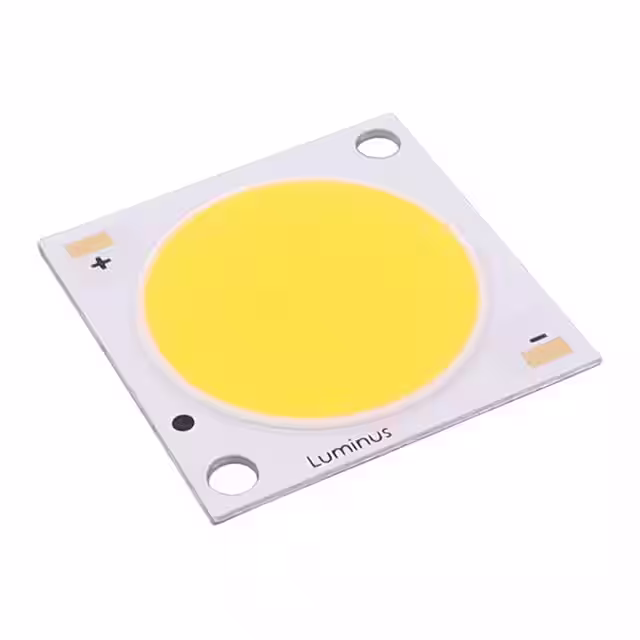

CLM-22-35-80-36-AC30-F4-3LED COB 3500K SQUARE Luminus Devices Inc. |
400 | - |
RFQ |
Ficha técnica |
Tray | CLM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5920lm (Typ) | 1.1A | 85°C | 33.8V | 159 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
CXM-22-35-80-54-AC40-F5-3LED COB CXM22 Luminus Devices Inc. |
2,582 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen4 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8995lm (Typ) | 1.05A | 85°C | 50V | 171 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CXM-22-35-90-54-AC40-F5-3LEDCOB3500KSQUARE Luminus Devices Inc. |
1,685 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen4 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7640lm (Typ) | 1.05A | 85°C | 50V | 146 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CXM-22-40-80-54-AC40-F5-3LED COB CXM22 Luminus Devices Inc. |
304 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen4 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9155lm (Typ) | 1.05A | 85°C | 50V | 174 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
