Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

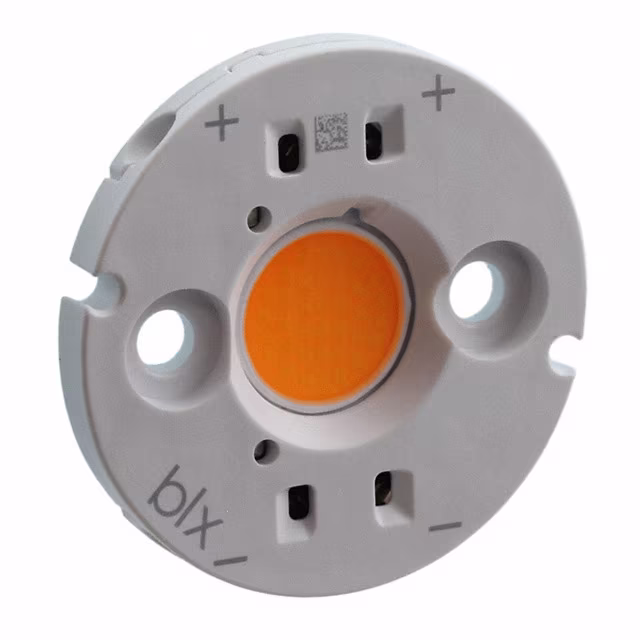

BXRC-20B1001-B-73-SELED COB VERO 10 SE 2000K ROUND Bridgelux |
3,740 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 1192lm (Typ) | 270mA | 85°C | 33.8V | 131 lm/W | 540mA | 65 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-20B1001-D-73-SELED COB VERO 10 SE 2000K ROUND Bridgelux |
2,551 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 1155lm (Typ) | 350mA | 85°C | 25.3V | 130 lm/W | 700mA | 65 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRC-30G100C-D-73-SELED COB VERO 10 SE 3000K ROUND Bridgelux |
3,532 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 950lm (Typ) | 350mA | 85°C | 25.3V | 107 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRC-27E1000-B-72-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
2,008 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 1218lm (Typ) | 270mA | 85°C | 33.8V | 133 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27E1000-D-72-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
3,444 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 1179lm (Typ) | 350mA | 85°C | 25.3V | 133 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27G1000-B-72-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
3,197 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 1015lm (Typ) | 270mA | 85°C | 33.8V | 111 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27G1000-D-72-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
3,653 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 983lm (Typ) | 350mA | 85°C | 25.3V | 111 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27H1000-B-73-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
2,674 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 879lm (Typ) | 270mA | 85°C | 33.8V | 96 lm/W | 540mA | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27H1000-C-73-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
2,409 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1173lm (Typ) | 360mA | 85°C | 33.8V | 96 lm/W | 720mA | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27H1000-D-73-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
2,025 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 852lm (Typ) | 350mA | 85°C | 25.3V | 96 lm/W | 700mA | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30A1001-B-73-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
2,898 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 956lm (Typ) | 270mA | 85°C | 33.8V | 105 lm/W | 540mA | 93 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30A1001-C-73-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
2,415 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1274lm (Typ) | 360mA | 85°C | 33.8V | 105 lm/W | 720mA | 93 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30A1001-D-73-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
3,381 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 925lm (Typ) | 350mA | 85°C | 25.3V | 105 lm/W | 700mA | 93 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30E1000-B-72-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
3,658 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 1268lm (Typ) | 270mA | 85°C | 33.8V | 139 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30E1000-D-72-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
2,148 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 1229lm (Typ) | 350mA | 85°C | 25.3V | 139 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30G1000-B-72-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
3,765 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 1057lm (Typ) | 270mA | 85°C | 33.8V | 116 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30G1000-D-72-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
2,381 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 1024lm (Typ) | 350mA | 85°C | 25.3V | 116 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30H1000-B-73-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
2,610 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 947lm (Typ) | 270mA | 85°C | 33.8V | 104 lm/W | 540mA | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30H1000-C-73-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
3,907 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1263lm (Typ) | 360mA | 85°C | 33.8V | 104 lm/W | 720mA | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-30H1000-D-73-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
3,705 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 917lm (Typ) | 350mA | 85°C | 25.3V | 104 lm/W | 700mA | 97 (Typ) | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
