Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

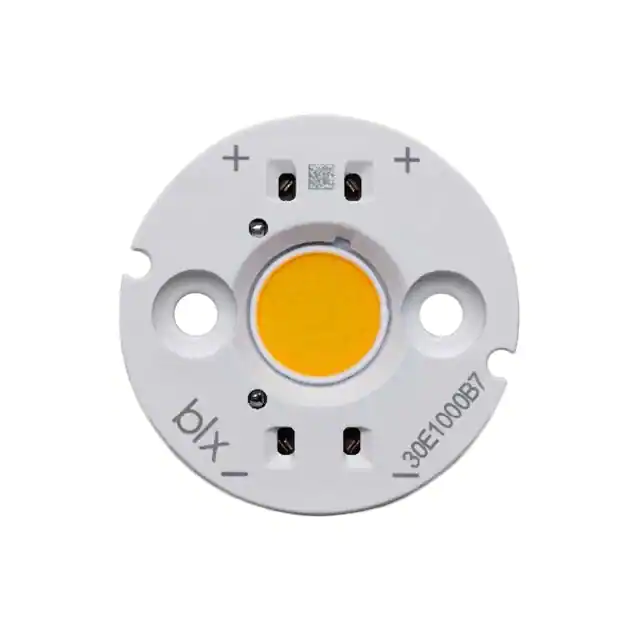

BXRC-35G1000-D-73-SEVERO SE 10D WARM WHITE LED ARRAY Bridgelux |
2,157 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1057lm (Typ) | 350mA | 85°C | 25.3V | 119 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50C1001-B-74-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
3,921 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1446lm (Typ) | 270mA | 85°C | 33.8V | 158 lm/W | 540mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50E1001-B-74-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
3,136 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1361lm (Typ) | 270mA | 85°C | 33.8V | 149 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50E1001-D-74-SEVERO SE 10D COOL WHITE LED ARRAY Bridgelux |
3,915 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1319lm (Typ) | 350mA | 85°C | 25.3V | 149 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-40G1000-B-72-SEVERO SE 10B NEUTRAL WHITE LED AR Bridgelux |
2,512 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 1133lm (Typ) | 270mA | 85°C | 33.8V | 124 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-40G1000-D-72-SEVERO SE 10D NEUTRAL WHITE LED AR Bridgelux |
2,822 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 1097lm (Typ) | 350mA | 85°C | 25.3V | 124 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50C1001-B-73-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
2,575 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 1446lm (Typ) | 270mA | 85°C | 33.8V | 158 lm/W | 540mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50C1001-D-73-SEVERO SE 10D COOL WHITE LED ARRAY Bridgelux |
2,409 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 1400lm (Typ) | 350mA | 85°C | 25.3V | 158 lm/W | 700mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRC-27E1000-B-73-SELED COB VERO SE 2700K ROUND Bridgelux |
3,167 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1218lm (Typ) | 270mA | 85°C | 33.8V | 133 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-27G1000-B-73-SELED COB VERO SE 2700K ROUND Bridgelux |
2,671 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1015lm (Typ) | 270mA | 85°C | 33.8V | 111 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-35E1000-B-73-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
3,856 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1311lm (Typ) | 270mA | 85°C | 33.8V | 143 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-35G1000-B-73-SEVERO SE 10B WARM WHITE LED ARRAY Bridgelux |
3,266 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1091lm (Typ) | 270mA | 85°C | 33.8V | 119 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50G1001-B-74-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
2,763 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1150lm (Typ) | 270mA | 85°C | 33.8V | 126 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-50G1001-D-74-SEVERO SE 10D COOL WHITE LED ARRAY Bridgelux |
2,017 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1114lm (Typ) | 350mA | 85°C | 25.3V | 126 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-57C1001-B-74-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
3,797 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1395lm (Typ) | 270mA | 85°C | 33.8V | 153 lm/W | 540mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-57C1001-D-74-SEVERO SE 10D COOL WHITE LED ARRAY Bridgelux |
2,931 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1351lm (Typ) | 350mA | 85°C | 25.3V | 153 lm/W | 700mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-57E1001-B-74-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
3,267 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1345lm (Typ) | 270mA | 85°C | 33.8V | 147 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-57E1001-D-74-SEVERO SE 10D COOL WHITE LED ARRAY Bridgelux |
3,543 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1302lm (Typ) | 350mA | 85°C | 25.3V | 147 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-65C1001-B-74-SEVERO SE 10B COOL WHITE LED ARRAY Bridgelux |
3,911 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 1421lm (Typ) | 270mA | 85°C | 33.8V | 156 lm/W | 540mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-65C1001-D-74-SEVERO SE 10D COOL WHITE LED ARRAY Bridgelux |
2,929 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 1376lm (Typ) | 350mA | 85°C | 25.3V | 155 lm/W | 700mA | 70 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
