Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30G10K0-D-73LED COB VERO 29 3000K ROUND Bridgelux |
3,342 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 10491lm (Typ) | 2.1A | 25°C | 37.6V | 133 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-27E10K0-D-73LED COB VERO 29 2700K ROUND Bridgelux |
3,030 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 10906lm (Typ) | 2.1A | 25°C | 37.6V | 153 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-30G10K0-D-83VERO 29D WARM WHITE LED ARRAY Bridgelux |
2,957 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 9290lm (Typ) | 1.7A | 25°C | 36.4V | 150 lm/W | 5.5A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
BXRH-27E1000-B-73V6 HD WARM WHITE LED ARRAY Bridgelux |
2,894 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1327lm (Typ) | 350mA | 85°C | 35.4V | 107 lm/W | 480mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia |
|
BXRC-27G1000-D-73-SELED COB VERO SE 2700K ROUND Bridgelux |
3,970 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 983lm (Typ) | 350mA | 85°C | 25.3V | 111 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRH-30E3000-D-73V9 HD WARM WHITE LED ARRAY Bridgelux |
3,966 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V9 HD Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3007lm (Typ) | 700mA | 85°C | 35.4V | 121 lm/W | 960mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 9.20mm Dia |
|
BXRC-40E1000-B-73LED COB VERO 10 4000K STARBOARD Bridgelux |
2,910 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1510lm (Typ) | 270mA | 25°C | 34.8V | 161 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-30G1000-B-73LED COB VERO 10 3000K STARBOARD Bridgelux |
2,039 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1210lm (Typ) | 270mA | 25°C | 34.8V | 129 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRH-57S1001-G-74LED COB WHITE Bridgelux |
2,009 | - |
RFQ |
Ficha técnica |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 700mA | 25°C | 18.2V | 110 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
|
BXRC-30E1000-C-73-SELED COB VERO SE 3000K ROUND Bridgelux |
2,297 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1691lm (Typ) | 360mA | 85°C | 33.8V | 139 lm/W | 720mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
BXRE-35E2000-B-73LED COB V13 3500K SQUARE Bridgelux |
3,369 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2243lm (Typ) | 450mA | 85°C | 33.9V | 147 lm/W | 900mA | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-40E2000-B-73LED COB V13 4000K SQUARE Bridgelux |
3,951 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2265lm (Typ) | 450mA | 85°C | 33.9V | 148 lm/W | 900mA | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRC-27G1000-C-73LED COB VERO 10 2700K STARBOARD Bridgelux |
2,856 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1548lm (Typ) | 360mA | 25°C | 34.8V | 124 lm/W | 720mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-30E2000-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
3,059 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2134lm (Typ) | 450mA | 85°C | 34.1V | 139 lm/W | 900mA | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|

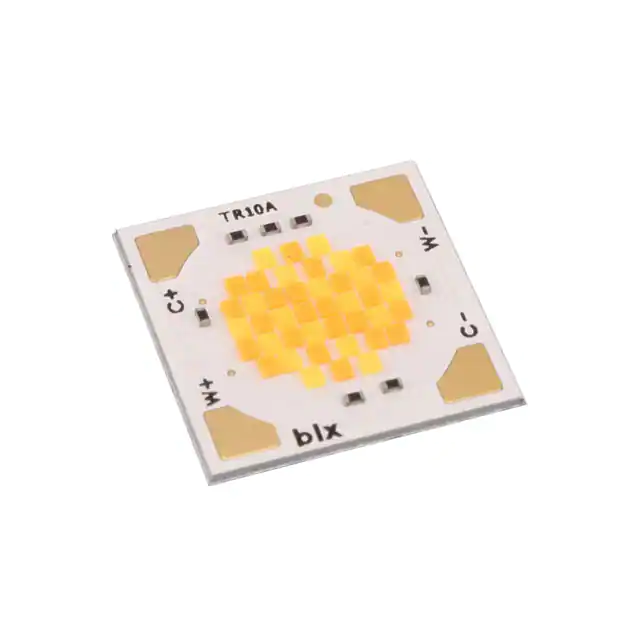

BXRV-TR-2750G-1000-A-26WHITE LED ARRAY 2700K 5 SDCM CSP Bridgelux |
2,085 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1387lm (Typ) | 700mA | 25°C | 19V | 105 lm/W | 1.05A | 90 | 130° | - | 15.85mm L x 15.85mm W | 1.42mm | 9.70mm Dia |
|
|
BXRC-50C2001-D-74-SELED COB VERO SE 5000K ROUND Bridgelux |
2,760 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2477lm (Typ) | 500mA | 85°C | 30.9V | 160 lm/W | 1A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-35E2000-D-73-SELED COB VERO SE 3500K ROUND Bridgelux |
2,000 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2238lm (Typ) | 500mA | 85°C | 30.9V | 145 lm/W | 1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
|
BXRC-40G2000-D-73-SELED COB VERO SE 4000K ROUND Bridgelux |
2,248 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1934lm (Typ) | 500mA | 85°C | 30.9V | 125 lm/W | 1A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
BXRC-35E2000-B-73LED COB VERO 13 3500K ROUND Bridgelux |
3,448 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2243lm (Typ) | 450mA | 85°C | 34.1V | 146 lm/W | 900mA | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-40G2000-B-73LED COB VERO 13 4000K ROUND Bridgelux |
3,527 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1938lm (Typ) | 450mA | 85°C | 34.1V | 126 lm/W | 900mA | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
