Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRH-40H0600-B-83V4 HD NEUTRAL WHITE LED ARRAY Bridgelux |
596 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 674lm (Typ) | 350mA | 25°C | 18.3V | 105 lm/W | 600mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-25E0600-A-83V4 HD WARM WHITE LED ARRAY Bridgelux |
595 | - |
RFQ |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2500K 3-Step MacAdam Ellipse | - | Square | - | 175mA | 25°C | 36.6V | - | 300mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | |
|
|
BXRH-40E0600-B-83V4 HD NEUTRAL WHITE LED ARRAY Bridgelux |
590 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 894lm (Typ) | 350mA | 25°C | 18.3V | 140 lm/W | 600mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-35G0600-B-83V4 HD WARM WHITE LED ARRAY Bridgelux |
590 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 730lm (Typ) | 350mA | 25°C | 18.3V | 114 lm/W | 600mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-27H0600-B-83V4 HD WARM WHITE LED ARRAY Bridgelux |
589 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 597lm (Typ) | 350mA | 25°C | 18.3V | 93 lm/W | 600mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-35G0600-A-83V4 HD WARM WHITE LED ARRAY Bridgelux |
580 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 730lm (Typ) | 175mA | 25°C | 36.6V | 114 lm/W | 300mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-30H0600-A-83V4 HD WARM WHITE LED ARRAY Bridgelux |
569 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 638lm (Typ) | 175mA | 25°C | 36.6V | 100 lm/W | 300mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-30E0600-A-83V4 HD WARM WHITE LED ARRAY Bridgelux |
561 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 868lm (Typ) | 175mA | 25°C | 36.6V | 136 lm/W | 300mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
BXRH-30G0600-B-83V4 HD WARM WHITE LED ARRAY Bridgelux |
560 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 705lm (Typ) | 350mA | 25°C | 18.3V | 110 lm/W | 600mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-30H0600-B-83V4 HD WARM WHITE LED ARRAY Bridgelux |
513 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 638lm (Typ) | 350mA | 25°C | 18.3V | 100 lm/W | 600mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-30E0600-B-83V4 HD WARM WHITE LED ARRAY Bridgelux |
474 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 868lm (Typ) | 350mA | 25°C | 18.3V | 136 lm/W | 600mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRE-35G0400-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 390lm (Typ) | 80mA | 25°C | 33.7V | 145 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-30G04H0-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 394lm (Typ) | 80mA | 25°C | 33.7V | 146 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-27E0400-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 437lm (Typ) | 80mA | 25°C | 33.7V | 162 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-30G0400-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 376lm (Typ) | 80mA | 25°C | 33.7V | 139 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-35E0400-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 475lm (Typ) | 80mA | 25°C | 33.7V | 176 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-27G04H0-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 374lm (Typ) | 80mA | 25°C | 33.7V | 139 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-27G0400-C-83V6C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 360lm (Typ) | 80mA | 25°C | 33.7V | 134 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|
|
BXRE-40G0400-C-83V6C NEUTRAL WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 398lm (Typ) | 80mA | 25°C | 33.7V | 148 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
|

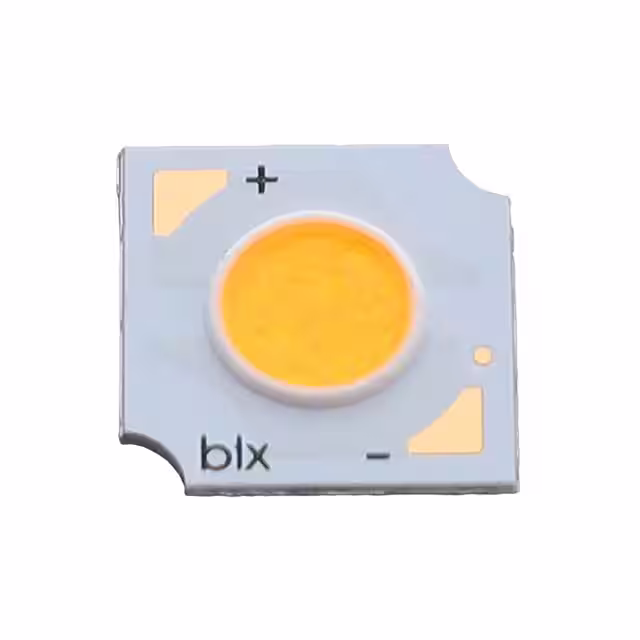

BXRE-40E0400-C-83V6C NEUTRAL WHITE LED ARRAY Bridgelux |
580 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V6 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 478lm (Typ) | 80mA | 25°C | 33.7V | 177 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia |
