Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-56C5300-H-04LED ARRAY RS 5300LM WHITE Bridgelux |
3,762 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Square | 6300lm (Typ) | 2.1A | 25°C | 23.5V | 128 lm/W | 2.8A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-50C5300-H-04LED ARRAY RS 5300LM WHITE Bridgelux |
2,295 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 6300lm (Typ) | 2.1A | 25°C | 23.5V | 128 lm/W | 2.8A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|

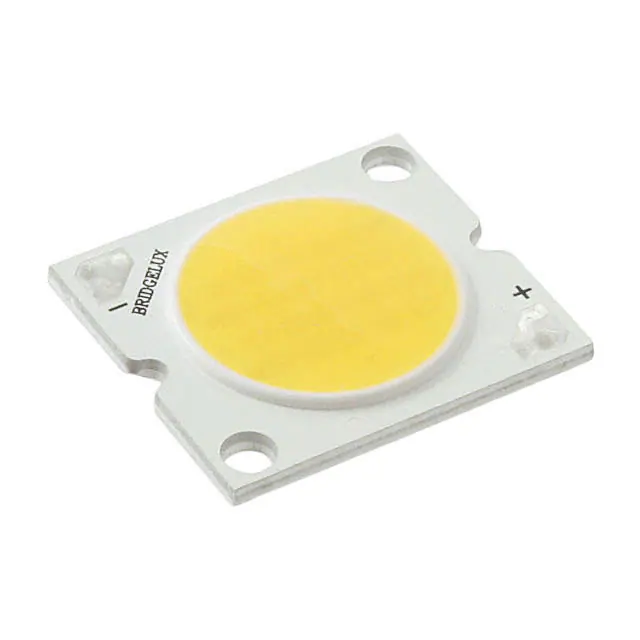

BXRA-56C2600-B-04LED ARRAY ES RECT 2600LM WHITE Bridgelux |
2,189 | - |
RFQ |
Ficha técnica |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Rectangle | 3150lm (Typ) | 700mA | 25°C | 36.2V | 124 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-50C2600-B-04LED ARRAY ES RECT 2600LM WHITE Bridgelux |
2,059 | - |
RFQ |
Ficha técnica |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Rectangle | 3100lm (Typ) | 700mA | 25°C | 37V | 120 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-56C1600-B-04LED ARRAY ES RECT 1600LM WHITE Bridgelux |
3,729 | - |
RFQ |
Ficha técnica |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Rectangle | 1930lm (Typ) | 500mA | 25°C | 29.3V | 132 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-50C1600-B-04LED ARRAY ES RECT 1600LM WHITE Bridgelux |
2,466 | - |
RFQ |
Ficha técnica |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Rectangle | 1920lm (Typ) | 500mA | 25°C | 29.6V | 130 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-56C1100-B-04LED ARRAY ES RECT 1100LM WHITE Bridgelux |
3,144 | - |
RFQ |
Ficha técnica |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Rectangle | 1340lm (Typ) | 500mA | 25°C | 20.5V | 131 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-50C1100-B-04LED ARRAY ES RECT 1100LM WHITE Bridgelux |
2,324 | - |
RFQ |
Ficha técnica |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Rectangle | 1320lm (Typ) | 500mA | 25°C | 20.7V | 128 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-50C4500-F-04LED ARRAY RS 4500LM WHITE Bridgelux |
2,186 | - |
RFQ |
Ficha técnica |
Tray | RS | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3940lm (Typ) | 1.75A | 25°C | 17.9V | 126 lm/W | 2.1A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-56C4500-F-04LED ARRAY RS 4500LM WHITE Bridgelux |
3,957 | - |
RFQ |
Ficha técnica |
Tray | RS | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Square | 3840lm (Typ) | 1.75A | 25°C | 17.9V | 123 lm/W | 2.1A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
BXRE-30G1000-B-03LED ARRAY 1000LM WARM WHITE Bridgelux |
2,262 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 945lm (Typ) | 350mA | 25°C | 26.7V | 101 lm/W | 700mA | 90 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-30E1000-B-03LED ARRAY 1000LM WARM WHITE Bridgelux |
3,632 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1100lm (Typ) | 350mA | 25°C | 26.7V | 118 lm/W | 700mA | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-40E1000-B-03LED ARRAY 1000LM NEUTRAL WHITE Bridgelux |
3,374 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1195lm (Typ) | 350mA | 25°C | 26.7V | 128 lm/W | 700mA | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-50C1000-B-04LED ARRAY 1000LM COOL WHITE Bridgelux |
3,975 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1285lm (Typ) | 350mA | 25°C | 26.7V | 138 lm/W | 700mA | 70 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-27G1000-B-03LED ARRAY 1000LM WARM WHITE Bridgelux |
3,751 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 885lm (Typ) | 350mA | 25°C | 26.7V | 95 lm/W | 700mA | 90 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-27E1000-B-03LED ARRAY 1000LM WARM WHITE Bridgelux |
2,832 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1055lm (Typ) | 350mA | 25°C | 26.7V | 113 lm/W | 700mA | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-40G1000-B-03LED ARRAY 1000LM NEUTRAL WHITE Bridgelux |
2,908 | - |
RFQ |
Ficha técnica |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 350mA | 25°C | 26.7V | - | 700mA | 90 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-50G1000-B-04LED ARRAY 1000LM COOL WHITE Bridgelux |
2,042 | - |
RFQ |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1180lm (Typ) | 350mA | 25°C | 26.7V | 126 lm/W | 700mA | 90 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia | |
|
BXRE-30E3001-D-03LED ARRAY 3000LM WARM WHITE Bridgelux |
3,485 | - |
RFQ |
Ficha técnica |
Tray | V15 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2899lm (Typ) | 700mA | 25°C | 36.4V | 113 lm/W | 1.4A | 80 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia |
|
|
BXRE-40E3001-D-03LED ARRAY 3000LM NEUTRAL WHITE Bridgelux |
3,301 | - |
RFQ |
Ficha técnica |
Tray | V15 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3074lm (Typ) | 700mA | 25°C | 36.4V | 120 lm/W | 1.4A | 80 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia |
