Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

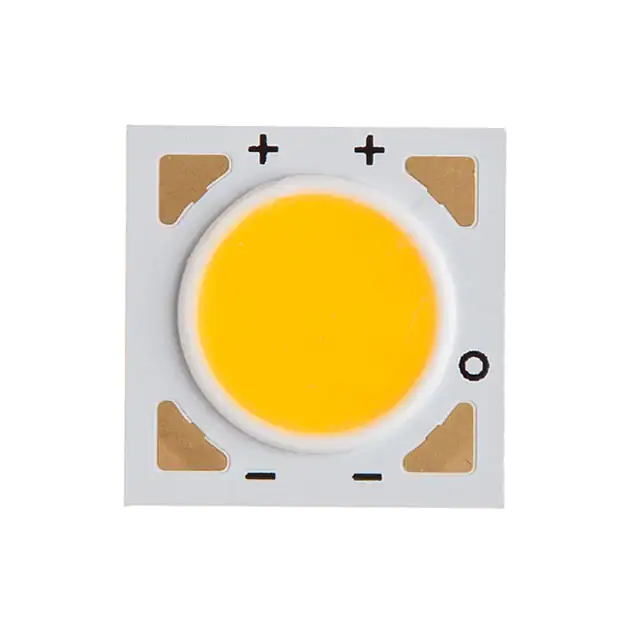

BXRE-50C0500-A-04LED ARRAY 500LM COOL WHITE Bridgelux |
2,003 | - |
RFQ |
Ficha técnica |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | - | 175mA | - | 35.6V | - | 350mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
BXRE-50C0800-A-04LED ARRAY 800LM COOL WHITE Bridgelux |
3,960 | - |
RFQ |
Ficha técnica |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 850lm (Typ) | 175mA | 25°C | 35.6V | 136 lm/W | 350mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
BXRC-40G1000-B-03LED COB VERO10 NEU WHT STARBRD Bridgelux |
3,940 | - |
RFQ |
Ficha técnica |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | - | 350mA | 25°C | 26.7V | - | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-40G2000-C-03LED COB VERO13 NEUTRAL WHITE RND Bridgelux |
3,763 | - |
RFQ |
Ficha técnica |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1810lm (Typ) | 500mA | 25°C | 32.5V | 111 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
BXRC-40G4000-F-03LED COB VERO18 NEUTRAL WHITE RND Bridgelux |
2,992 | - |
RFQ |
Ficha técnica |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3515lm (Typ) | 1.05A | 25°C | 29.5V | 113 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-50E1000-B-04LED COB VERO10 COOL WHT STARBRD Bridgelux |
3,673 | - |
RFQ |
Ficha técnica |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | - | 350mA | 25°C | 26.7V | - | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-50E4000-F-04LED COB VERO18 COOL WHITE ROUND Bridgelux |
3,388 | - |
RFQ |
Ficha técnica |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4045lm (Typ) | 1.05A | 25°C | 29.5V | 130 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-50G1000-B-04LED COB VERO10 COOL WHT STARBRD Bridgelux |
3,922 | - |
RFQ |
Ficha técnica |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | - | 350mA | 25°C | 26.7V | - | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-50G2000-C-04LED COB VERO13 COOL WHITE ROUND Bridgelux |
3,446 | - |
RFQ |
Ficha técnica |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1890lm (Typ) | 500mA | 25°C | 32.5V | 116 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-50G4000-F-04LED COB VERO18 COOL WHITE ROUND Bridgelux |
3,462 | - |
RFQ |
Ficha técnica |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 3670lm (Typ) | 1.05A | 25°C | 29.5V | 118 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-56G4000-F-04LED COB SPECIALVERO18 COOL WHT Bridgelux |
2,974 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Speciality Vero® 18 | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 3515lm (Typ) | 1.05A | 25°C | 29.5V | 113 lm/W | 2.1A | 90 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRC-40G10K0-L-03LED COB VERO29 NEUTRAL WHITE RND Bridgelux |
2,485 | - |
RFQ |
Ficha técnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 9060lm (Typ) | 2.1A | 25°C | 38.6V | 112 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-50E10K0-L-04LED COB VERO29 COOL WHITE ROUND Bridgelux |
3,503 | - |
RFQ |
Ficha técnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 10420lm (Typ) | 2.1A | 25°C | 38.6V | 128 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-50E2000-C-04LED COB VERO13 COOL WHITE ROUND Bridgelux |
2,061 | - |
RFQ |
Ficha técnica |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2090lm (Typ) | 500mA | 25°C | 32.5V | 128 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-50G10K0-L-04LED COB VERO29 COOL WHITE ROUND Bridgelux |
3,795 | - |
RFQ |
Ficha técnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 9450lm (Typ) | 2.1A | 25°C | 38.6V | 117 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-56G10K0-L-04LED COB SPECIALVERO29 COOL WHT Bridgelux |
2,793 | - |
RFQ |
Ficha técnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 9060lm (Typ) | 2.1A | 25°C | 38.6V | 112 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|

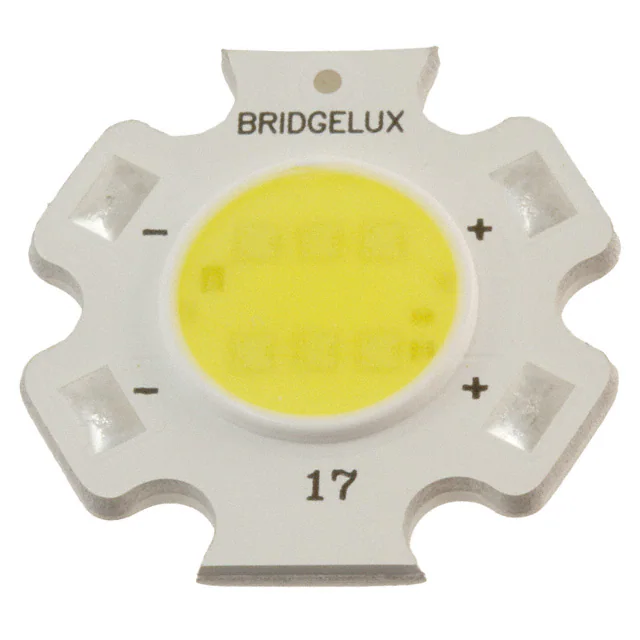

BXRA-56C1000-A-04LED ARRAY ES STAR 1000LM WHITE Bridgelux |
3,096 | - |
RFQ |
Ficha técnica |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Starboard | 1120lm (Typ) | 350mA | 25°C | 28.1V | 114 lm/W | 500mA | 70 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | 10.00mm W x 11.00mm L |
|
|
BXRA-56C0700-A-04LED ARRAY ES STAR 700LM WHITE Bridgelux |
3,664 | - |
RFQ |
Ficha técnica |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Starboard | 780lm (Typ) | 350mA | 25°C | 18.8V | 118 lm/W | 500mA | 70 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|

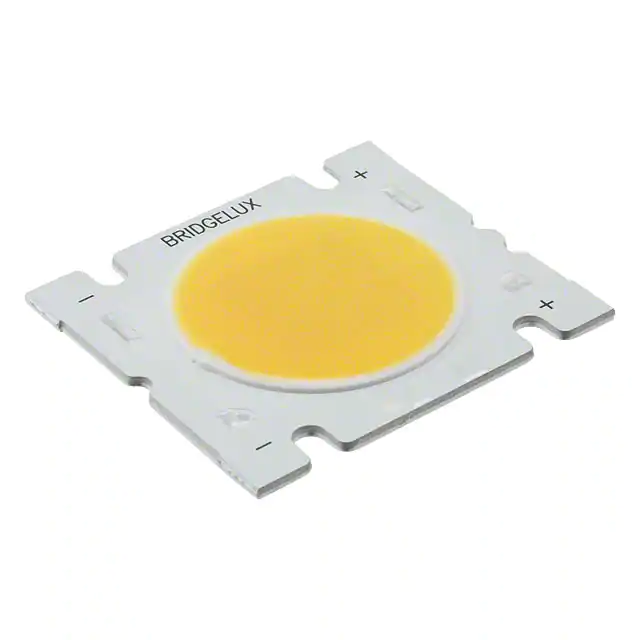

BXRA-56C9000-J-04LED ARRAY RS 9000LM WHITE Bridgelux |
3,033 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Square | 10060lm (Typ) | 2.8A | 25°C | 29.4V | 122 lm/W | 3.5A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
|
|
BXRA-50C9000-J-04LED ARRAY RS 9000LM WHITE Bridgelux |
2,172 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 10060lm (Typ) | 2.8A | 25°C | 29.4V | 122 lm/W | 3.5A | 70 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - |
