Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRV-TR-2750G-40A0-A-23VESTA TW18 GEN 2 Bridgelux |
113 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 3741lm (Typ) | 900mA | 25°C | 35.3V | 118 lm/W | 1.4A | 92 | 130° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.70mm Dia |
|
BXRC-50E4001-D-74LED COB VERO 18 5000K ROUND Bridgelux |
102 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4536lm (Typ) | 1.05A | 85°C | 28.3V | 153 lm/W | 2.1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|

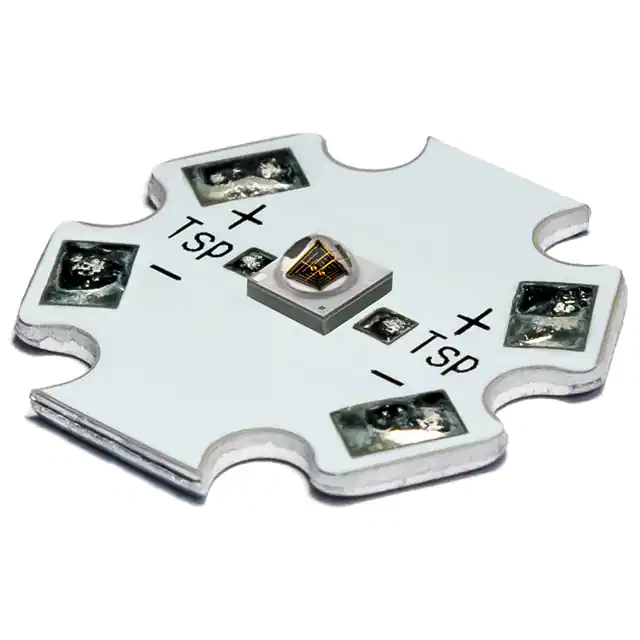

LST1-01G01-IR01-00STARBOARD, SST-10-IR, INFRARED New Energy |
122 | - |
RFQ |
Ficha técnica |
Bulk | SST-10 | Active | LED Module | - | - | 850nm | Starboard | 280mW | 350mA | 25°C | 1.5V | - | 1.5A | - | 130° | - | - | - | |
|

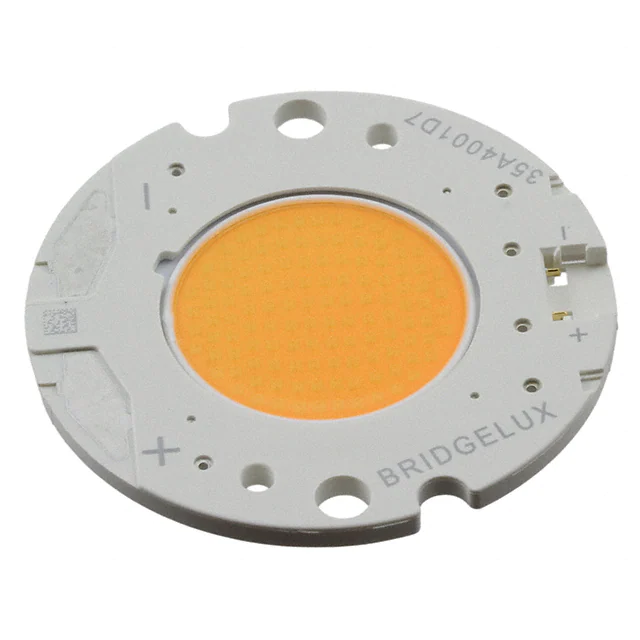

BXRC-35A4001-D-73LED COB WARM WHT 3500K ROUND Bridgelux |
2,029 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Class A Vero® 18 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3524lm (Typ) | 1.05A | 85°C | 28.1V | 119 lm/W | 2.1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXEB-TL-2750G-3000-A-133000 LM TUNABLE WHITE WHITE LINE Bridgelux |
222 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3192lm (Typ), 3352lm (Typ) | 1A | 25°C | 24.8V | 129 lm/W, 135 lm/W | 2A | 90 | 120° | - | 560.00mm L x 31.00mm W | 6.10mm | - |
|

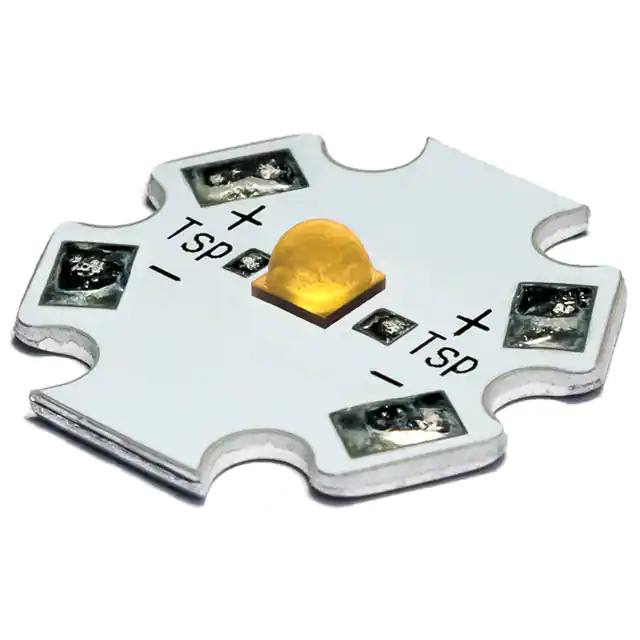

LST1-01C48-3080-01XHP35.2 STARBOARD WHITE 3000K New Energy |
250 | - |
RFQ |
Ficha técnica |
Tray | XHP35.2 | Active | LED Module | White, Warm | 3000K | - | Starboard | 510lm (Typ) | 350mA | - | 11.9V | 122 lm/W | 1.05A | 80 | - | - | 19.89mm Dia | - | - |
|

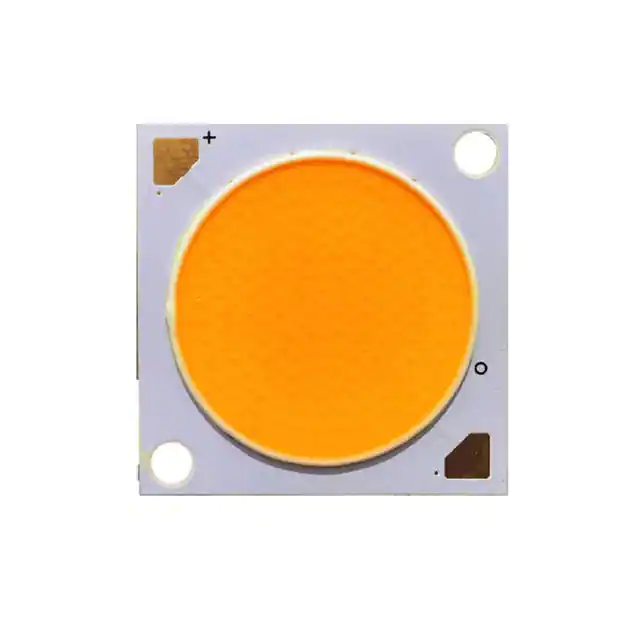

BXRE-40E6500-D-73LED COB GEN7 V22 4000K SQUARE Bridgelux |
637 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6956lm (Typ) | 1.4A | 85°C | 33.4V | 149 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-50C6501-D-74LED COB GEN7 V22 5000K SQUARE Bridgelux |
150 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 7706lm (Typ) | 1.4A | 85°C | 33.4V | 165 lm/W | 2.8A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
CXM-14-40-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
4,840 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4140lm (Typ) | 720mA | 85°C | 33.5V | 172 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|
|
CXM-14-35-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
2,628 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4065lm (Typ) | 720mA | 85°C | 33.5V | 169 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|
CXM-14-50-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
537 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4190lm (Typ) | 720mA | 85°C | 33.5V | 174 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|
CTM-14-6527-90-36-TW01LED COB CTM14 WHITE Luminus Devices Inc. |
269 | - |
RFQ |
Ficha técnica |
Tray | CTM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Rectangle | 1255lm Warm White, 1420lm Cool White | 400mA | 85°C | 37V | 85 lm/W Warm White, 96 lm/W Cool White | 440mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 14.50mm Dia |
|
BXRV-TR-1840G-20A0-A-25TW13 GEN 2 TUNABLE WHITE LED ARR Bridgelux |
333 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Neutral | 1800K, 4000K | - | Square | - | 500mA | 25°C | - | - | 700mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
CXB1310-0000-000N0UK230GLED COB XLAMP CXB1310 3000K SQ CreeLED, Inc. |
670 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1310 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 36V | 99 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia |
|

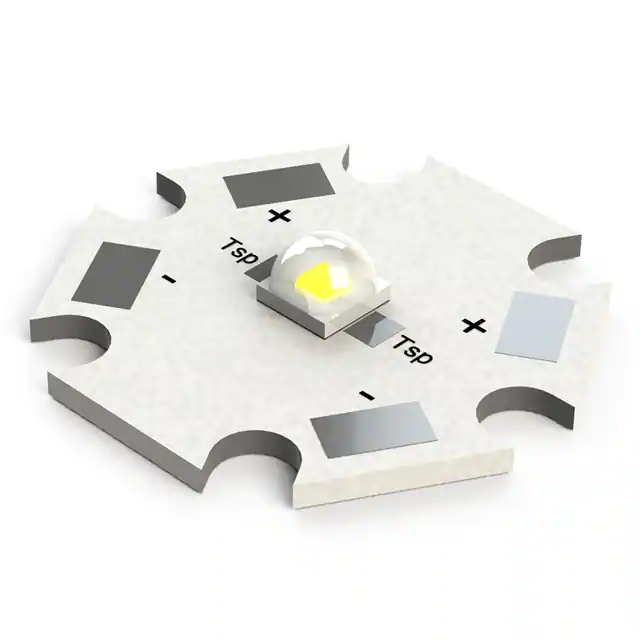

XPLAWT-00-0000-000HU60E8-SB01LED XLAMP XPL 2700K STARBOARD New Energy |
161 | - |
RFQ |
Ficha técnica |
Tray | XLamp® XP-L | Active | LED Module | White, Warm | 2700K | - | Starboard | 390lm (380lm ~ 400lm) | 1.05A | 85°C | 2.95V | 126 lm/W | 3A | 80 | 125° | - | 19.89mm Dia | - | - |
|

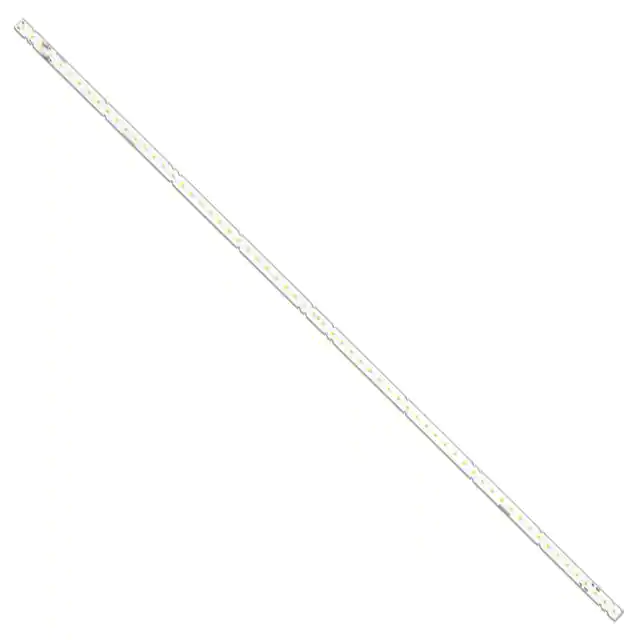

SI-B8V301B2CUSLED LT-VB22B 3000K STRIP Samsung Semiconductor, Inc. |
470 | - |
RFQ |
Ficha técnica |
Tray | LT-VB22B | Obsolete | LED Module | White, Warm | 3000K | - | Linear Light Strip | 4090lm (Typ) | 1.26A | - | 25.4V | 128 lm/W | 1.44A | 80 | 115° | - | 1120.00mm L x 18.00mm W | 5.50mm | - |
|
|
SI-B8U301B2CUSLED LT-VB22B 3500K STRIP Samsung Semiconductor, Inc. |
339 | - |
RFQ |
Ficha técnica |
Tray | LT-VB22B | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 4220lm (Typ) | 1.26A | - | 25.4V | 132 lm/W | 1.44A | 80 | 115° | - | 1120.00mm L x 18.00mm W | 5.50mm | - |
|
|
SI-B8T301B2CUSLED LT-VB22B 4000K STRIP Samsung Semiconductor, Inc. |
133 | - |
RFQ |
Ficha técnica |
Tray | LT-VB22B | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 4310lm (Typ) | 1.26A | - | 25.4V | 135 lm/W | 1.44A | 80 | 115° | - | 1120.00mm L x 18.00mm W | 5.50mm | - |
|

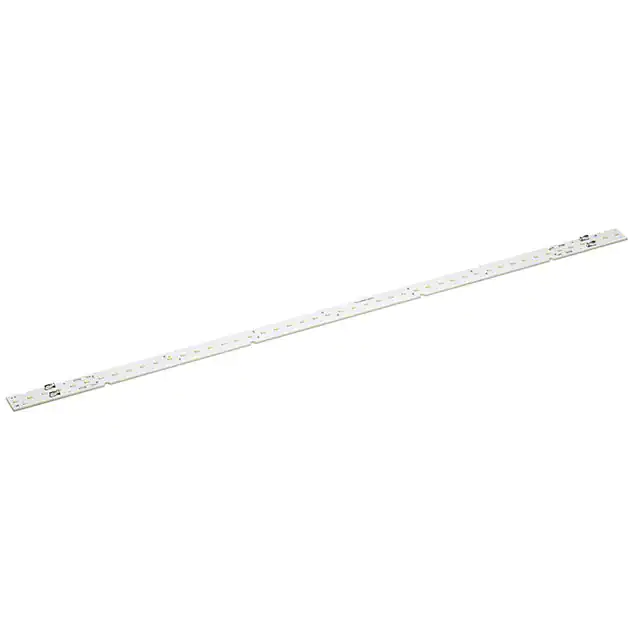

L218-4090024C3000024UP 280MMX20MM Lumileds |
938 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-3020 | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 890lm (Typ) | 200mA | 45°C | 34.8V | 128 lm/W | 480mA | 90 | - | With Connector | 279.20mm L x 20.00mm W | 3.00mm | - |
|
BXRC-30G4000-C-73LED COB VERO 18 3000K ROUND Bridgelux |
498 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4699lm (Typ) | 1.17A | 85°C | 34.1V | 118 lm/W | 2.34A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
