Más categorías de productos

Iluminación LED - COB, motores, módulos, tiras

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
CDM-9-3018-90-36-DW02 LED COB CDM9 WHITE Luminus Devices Inc.	1,648	-	RFQ	Ficha técnica	Tray	CDM, Human Centric (HCL)	Active	LED Module	White, Warm	1800K ~ 3000K	-	Rectangle	870lm (Typ)	300mA	85°C	35.5V	82 lm/W	440mA	97	130°	Dimming - Warm	15.00mm L x 12.00mm W	1.58mm	9.50mm Dia
CDM-9-3018-90-36-DW01 LED COB CDM9 WHITE Luminus Devices Inc.	602	-	RFQ	Ficha técnica	Tray	CDM, Human Centric (HCL)	Active	LED Module	White, Warm	1800K ~ 3000K	-	Rectangle	925lm (Typ)	300mA	85°C	35.5V	87 lm/W	440mA	97	130°	Dimming - Warm	15.00mm L x 12.00mm W	1.58mm	9.50mm Dia
CXA2530-0000-000N0YR227G LED COB CXA2530 2700K WHITE SMD CreeLED, Inc.	117	-	RFQ	Ficha técnica	Tray	XLamp® CXA2530	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	2510lm (2420lm ~ 2600lm)	800mA	85°C	36V	87 lm/W	1.6A	93	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
XPEBRY-L1-0000-00R01-SB01 LED XLAMP XPE2 BLUE STARBOARD New Energy	268	-	RFQ	Ficha técnica	Tray	XLamp® XP-E2	Active	LED Module	Blue	-	458nm (450nm ~ 465nm)	Starboard	-	350mA	25°C	3.1V	-	1A	-	135°	-	19.89mm Dia	-	-
BXRC-40E4000-D-73-SE LED COB VERO SE 4000K ROUND Bridgelux	738	-	RFQ	Ficha técnica	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	4345lm (Typ)	1.05A	85°C	28.3V	146 lm/W	2.1A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-35E4000-B-73-SE LED COB VERO SE 3500K ROUND Bridgelux	452	-	RFQ	Ficha técnica	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	4426lm (Typ)	900mA	85°C	34.1V	144 lm/W	1.8A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-50C4001-D-74-SE LED COB VERO SE 5000K ROUND Bridgelux	285	-	RFQ	Ficha técnica	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	4763lm (Typ)	1.05A	85°C	28.3V	160 lm/W	2.1A	70	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRC-30E4000-B-73-SE LED COB VERO SE 3000K ROUND Bridgelux	279	-	RFQ	Ficha técnica	Tray	Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	4337lm (Typ)	900mA	85°C	34.1V	141 lm/W	1.8A	80	120°	-	36.20mm Dia	3.60mm	18.40mm Dia
BXRE-40E4000-B-73 LED COB V18 4000K SQUARE Bridgelux	187	-	RFQ	Ficha técnica	Tube	Gen 7 V18 Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	4528lm (Typ)	900mA	85°C	34V	148 lm/W	1.8A	80	-	-	24.00mm L x 24.00mm W	1.70mm	19.20mm Dia
LST1-01G01-FRD1-00 STARBOARD, LUMINUS SST-10-FR-B13 New Energy	801	-	RFQ	Ficha técnica	Tray	SST-10	Active	Chip On Board (COB)	Red	-	730nm	Starboard	310mW	350mA	25°C	2.1V	-	-	-	130°	-	-	-	-
BXRE-35E2000-C-83 V13C WARM WHITE LED ARRAY Bridgelux	2,555	-	RFQ	Ficha técnica	Tube	V Series™ Gen 8	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	-	-	25°C	-	182 lm/W	-	80	-	-	-	-	13.00mm Dia
BXRE-50C3001-D-84 V15D COOL WHITE LED ARRAY Bridgelux	387	-	RFQ	Ficha técnica	Tube	V Series™ Gen 8	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Square	3214lm (Typ)	500mA	25°C	33.7V	192 lm/W	-	70	-	-	-	-	15.00mm Dia
LST1-01F06-FRD1-00 STARBOARD, OSRAM OSLON SSL 120 New Energy	737	-	RFQ	Ficha técnica	Tray	OSLON® SSL 120 Horticulture	Active	Chip On Board (COB)	Far Red	-	735nm	Starboard	282mW	350mA	25°C	1.85V	-	-	-	120°	-	-	-
XPEBPA-L1-0000-00D01-SB01 LED XLAMP XPE2 AMBER STARBOARD New Energy	280	-	RFQ	Ficha técnica	Tray	XLamp® XP-E2	Active	LED Module	Amber	-	-	Starboard	111lm (107lm ~ 114lm)	350mA	25°C	3.05V	104 lm/W	1A	-	110°	-	19.89mm Dia	-	-
XQEAWT-H0-0000-00000HBE8-SB01 LED XLAMP XQE 2700K STARBOARD New Energy	312	-	RFQ	Ficha técnica	Tray	XLamp® XQ-E	Active	LED Module	White, Warm	2700K	-	Starboard	-	350mA	85°C	2.9V	96 lm/W	1A	80	120°	-	19.89mm Dia	-	-
CXA2540-0000-000N00V40E5 LED HB XLAMP CXA2540 CreeLED, Inc.	2,920	-	RFQ	Ficha técnica	Tray	XLamp® CXA2540	Active	Chip On Board (COB)	White, Neutral	4000K	-	Square	4703lm (4545lm ~ 4860lm)	1.1A	85°C	37V	116 lm/W	2.1A	70	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
BXEB-L1120Z-50E4000-C-B3 4000 LM COOL WHITE LINEAR MODULE Bridgelux	108	-	RFQ	Ficha técnica	Bulk	EB Series™ Gen 2	Active	LED Module	White, Cool	5000K 3-Step MacAdam Ellipse	-	Linear Light Strip	4920lm (Typ)	700mA	25°C	39V	180 lm/W	1.4A	80	120°	-	1120.00mm L x 24.00mm W	6.10mm	-
LST1-01F09-IR03-00 STARBOARD, OSLON BLACK, INFRARED New Energy	101	-	RFQ	Ficha técnica	Bulk	OSLON® Black	Active	LED Module	-	-	940nm	Starboard	970mW	350mA	25°C	2.75V	-	1A	-	150°	-	-	-	-

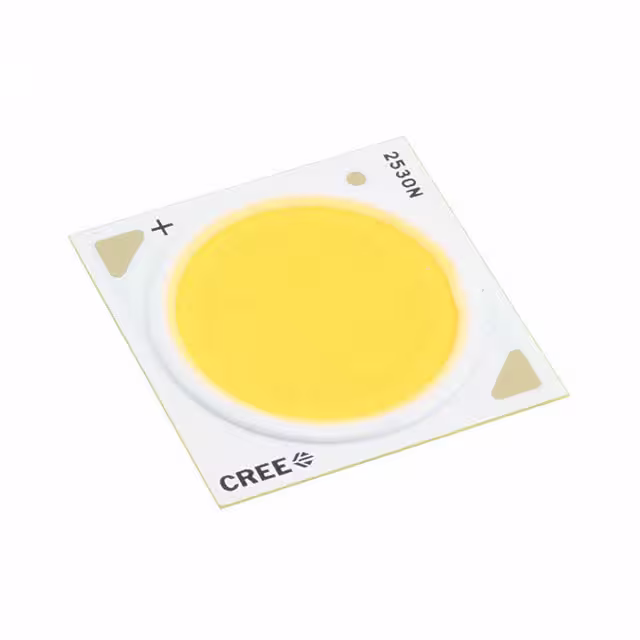

CXB2530-0000-000N0HU440G LED COB CXB2530 4000K WHT SMD CreeLED, Inc.	107	-	RFQ	Ficha técnica	Tray	Xlamp® CXB2530	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	4093lm (3955lm ~ 4230lm)	800mA	85°C	36V	142 lm/W	1.6A	80	115°	-	23.85mm L x 23.85mm W	1.70mm	19.00mm Dia
LST1-01G01-IR02-00 STARBOARD, SST-10-IR, INFRARED New Energy	111	-	RFQ	Ficha técnica	Bulk	SST-10	Active	LED Module	-	-	850nm	Starboard	280mW	350mA	25°C	1.5V	-	1.5A	-	90°	-	-	-
