Interfaz - Conmutadores analógicos, multiplexores, demultiplexores
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC203CN#PBFIC SWITCH QUAD SPST 16DIP Analog Devices Inc. |
2,497 | - |
RFQ |
Ficha técnica |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 125Ohm | 6.25Ohm | 5V | ±15V | 400ns, 300ns | - | 8pC | 5pF, 12pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | Through Hole |
|
ADG513BRZIC SWITCH QUAD SPST 16SOIC Analog Devices Inc. |
3,040 | - |
RFQ |
Ficha técnica |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 30Ohm (Typ) | - | 3V ~ 5.5V | ±4.5V ~ 5.5V | 200ns, 120ns (Typ) | - | 11pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG528FBPZIC MULTIPLEXER 8X1 20PLCC Analog Devices Inc. |
3,856 | - |
RFQ |
Ficha técnica |
20-LCC (J-Lead) | Tube | - | Active | - | 8:1 | 1 | 300Ohm (Typ) | 15Ohm | 15V | ±15V | 250ns, 250ns | - | 4pC | 5pF, 50pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG527AKPZIC MUX ANLG DUAL 8CH 28-PLCC Analog Devices Inc. |
3,924 | - |
RFQ |
Ficha técnica |
28-LCC (J-Lead) | Tube | - | Active | - | 8:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|

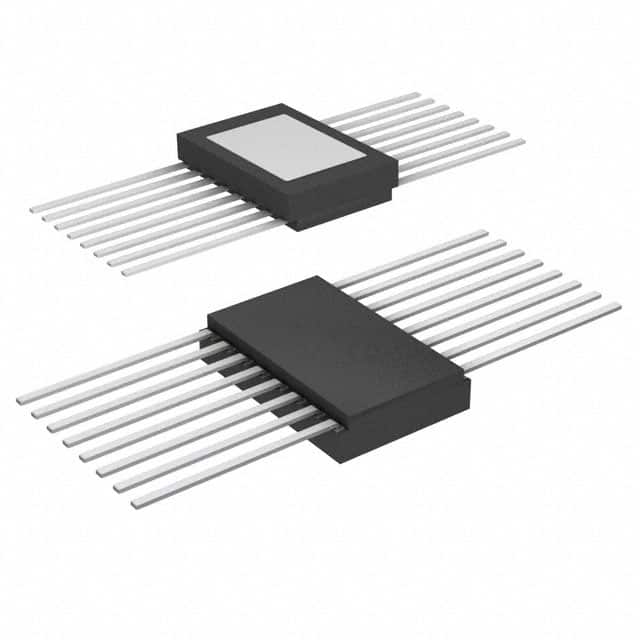

ADG798HFRZIC MUX/DEMUX 8:1 16FLATPACK Analog Devices Inc. |
3,240 | - |
RFQ |
Ficha técnica |
16-CFlatPack | Tray | - | Active | - | 8:1 | 1 | 10Ohm | 1.25Ohm | 3V ~ 5.5V | ±2.5V | 30ns, 20ns | 55MHz | 3pC | 13pF, 85pF | 180nA | -60dB @ 10MHz | -55°C ~ 210°C (TA) | Surface Mount |
|
ADG429TQDIFFERENTIAL MUX,4 CHANNEL Analog Devices Inc. |
325 | - |
RFQ |
Ficha técnica |
18-CDIP (0.300, 7.62mm) | Bulk | - | Active | SP4T | 4:1 | 2 | 100Ohm | 10Ohm | 12V, ±15V | 12V, ±15V | 150ns, 150ns | - | 4pC | 11pF, 20pF | 500pA | -85dB @ 100kHz | -55°C ~ 125°C (TA) | Through Hole |
|
ADG5243FBRUZIC MULTIPLEXER 2:1 20TSSOP Analog Devices Inc. |
2,175 | - |
RFQ |
Ficha técnica |
20-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPDT | 2:1 | 3 | 335Ohm | 3Ohm | 8V ~ 44V | ±5V ~ 22V | 215ns, 85ns | 350MHz | -1.4pC | - | 1nA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG212AKP-REELQUAD SPST SWITCH Analog Devices Inc. |
1,000 | - |
RFQ |
Ficha técnica |
20-LCC (J-Lead) | Bulk | - | Active | SPST - NC | 1:1 | 4 | 115Ohm | 5.75Ohm | 15V, ±15V | 15V, ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 5nA | -80dB @ 100kHz | -40°C ~ 85°C | Surface Mount |
|
ADG801BRM-R2SPST SWITCH Analog Devices Inc. |
784 | - |
RFQ |
Ficha técnica |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Active | SPST - NO | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG702LBRMZIC SWITCH SPST 8MSOP Analog Devices Inc. |
165 | - |
RFQ |
Ficha técnica |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | SPST - NC | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG202AKP-REELQUAD SPST SWITCH Analog Devices Inc. |
1,000 | - |
RFQ |
Ficha técnica |
20-LCC (J-Lead) | Bulk | ADG202A | Active | SPST - NC | 1:1 | 4 | 90Ohm | 4.5Ohm | ±15V | ±15V | 300ns, 250ns | - | 20pC | 5pF, 5pF | 2nA | -80dB @ 100kHz | -40°C ~ 85°C | Surface Mount |
|
SW7510FQQUAD SPST JFET SWITCH Analog Devices Inc. |
311 | - |
RFQ |
Ficha técnica |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 100Ohm | 15Ohm | 36V | 36V | 550ns, 450ns | - | - | 6.5pF, 6.5pF | 3nA | 60dB @ 100kHz | -25°C ~ 85°C | Through Hole |
|
MUX88FQ8-CH ANALOG MULTIPLEXER Analog Devices Inc. |
110 | - |
RFQ |
Ficha técnica |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SP8T | 8:1 | 1 | 520Ohm | 23.4Ohm | ±15V | ±15V | 1.2µs (Typ), 200ns (Typ) | - | - | 2.5pF, 7pF | 10nA | -98dB @ 20kHz | -25°C ~ 85°C (TA) | Through Hole |
|
AD7511DIJN/+PROTECTED ANALOG SWITCHES Analog Devices Inc. |
159 | - |
RFQ |
Ficha técnica |
16-DIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | ±15V | ±15V | 350ns (Typ), 180ns (Typ) | - | - | 8pF, 1pF | 500pA | - | -55°C ~ 125°C | Through Hole |
|
|
SW7510EQQUAD SPST JFET SWITCH Analog Devices Inc. |
512 | - |
RFQ |
Ficha técnica |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 75Ohm | 11.25Ohm | 36V | 36V | 450ns, 300ns | - | - | 6.5pF, 6.5pF | 1nA | 60dB @ 100kHz | -25°C ~ 85°C | Through Hole |
|
|
SW7510BIFQQUAD SPST JFET SWITCH Analog Devices Inc. |
998 | - |
RFQ |
Ficha técnica |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 100Ohm | 15Ohm | 36V | 36V | 550ns, 450ns | - | - | 6.5pF, 6.5pF | 3nA | 60dB @ 100kHz | -55°C ~ 125°C | Through Hole |
|
|
LTC201ACN#PBFIC SWITCH QUAD SPST 16DIP Analog Devices Inc. |
3,441 | - |
RFQ |
Ficha técnica |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NC | 1:1 | 4 | 125Ohm | 6.25Ohm | 5V | ±15V | 400ns, 300ns | - | 8pC | 5pF, 12pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | Through Hole |
|
ADV3221ARZIC MULTIPLEXER 4:1 16SOIC Analog Devices Inc. |
3,745 | - |
RFQ |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SP4T | 4:1 | 1 | - | - | - | ±4.5V ~ 5.5V | - | 1GHz | - | 1.8pF | 2µA (Typ) | -87dB @ 100MHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
|
SW06BIFQQUAD SPST JFET SWITCH Analog Devices Inc. |
465 | - |
RFQ |
Ficha técnica |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NO/NC | 1:1 | 4 | 80Ohm | 4Ohm | - | - | 500ns, 400ns | - | - | 7pF, 5.5pF | 60nA | -70dB @ 500kHz | -25°C ~ 85°C (TA) | Through Hole |
|
ADG527AKR-REELDIFFERENTIAL MUX,8 CHANNEL Analog Devices Inc. |
750 | - |
RFQ |
Ficha técnica |
28-SOIC (0.295, 7.50mm Width) | Bulk | ADG527A | Active | - | 8:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V, ±10.8V ~ 16.5V | 10.8V ~ 16.5V, ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C | Surface Mount |
