Interfaz - Conmutadores analógicos, multiplexores, demultiplexores
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG701LBRMZ-REEL7IC SWITCH SPST 8MSOP Analog Devices Inc. |
34,608 | - |
RFQ |
Ficha técnica |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG842YKSZ-500RL7IC SWITCH SPST SC70-6 Analog Devices Inc. |
423 | - |
RFQ |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 1 | 370mOhm | - | 1.65V ~ 3.6V | - | 14ns, 7.8ns | 21MHz | 200pC | 160pF, 160pF | 200pA (Typ) | - | -40°C ~ 125°C (TA) | Surface Mount | |
|
ADG794BRQZ-REEL7IC MUX/DEMUX QUAD 2X1 16QSOP Analog Devices Inc. |
625 | - |
RFQ |
Ficha técnica |
16-SSOP (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 4 | 7Ohm | 400mOhm | 3.3V, 5V | - | 7ns, 5ns (Typ) | 300MHz | 7.5pC | 8pF, 14pF | 1pA (Typ) | -70dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG633YRUZ-REEL7IC SWITCH TRIPLE SPDT 16TSSOP Analog Devices Inc. |
570 | - |
RFQ |
Ficha técnica |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 3 | 75Ohm | 800mOhm | 2V ~ 12V | ±2V ~ 6V | 95ns, 40ns | 580MHz | 2pC | 4pF, 7pF | 200pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG782BCPZ-REEL7IC SWITCH QUAD SPST 20LFCSP Analog Devices Inc. |
3,614 | - |
RFQ |
Ficha técnica |
20-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG1221BRMZ-REEL7IC SWITCH DUAL SPST 10MSOP Analog Devices Inc. |
2,232 | - |
RFQ |
Ficha técnica |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|

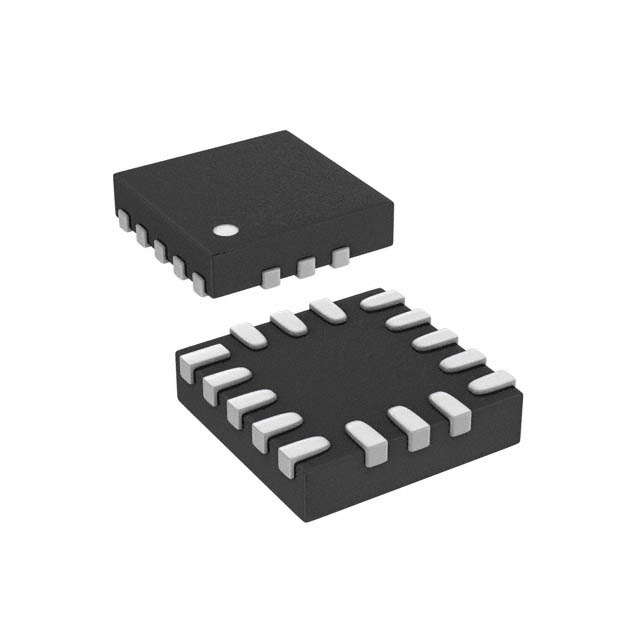

ADG888YCPZ-REEL7IC SWITCH DUAL DP4T 16LFCSP Analog Devices Inc. |
2,412 | - |
RFQ |
Ficha técnica |
16-VQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | DPDT | 2:2 | 2 | 480mOhm | 40mOhm | 1.8V ~ 5.5V | - | 30ns, 17ns | 29MHz | 70pC | 58pF | 200pA (Typ) | -99dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
ADW54010Z-0REELIC SWITCH DUAL SPDT 10MSOP Analog Devices Inc. |
2,645 | - |
RFQ |
Ficha técnica |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | Automotive | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 12ns, 5ns (Typ) | 200MHz | - | 9pF | 10pA (Typ) | -82dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG413BRZ-REELIC SWITCH QUAD SPST 16SOIC Analog Devices Inc. |
2,595 | - |
RFQ |
Ficha técnica |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG408BRZ-REELIC MULTIPLEXER 8X1 16SOIC Analog Devices Inc. |
2,498 | - |
RFQ |
Ficha técnica |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 12V | ±15V | - | - | 20pC | 11pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG506ABQIC MULTIPLEXER 16X1 28CDIP Analog Devices Inc. |
2,500 | - |
RFQ |
Ficha técnica |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | Through Hole |
|
ADG772BCPZ-REEL7IC MUX/DEMUX 2X1 10LFCSP Analog Devices Inc. |
3,798 | - |
RFQ |
Ficha técnica |
10-UFQFN, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 2 | 6.7Ohm (Typ) | 40mOhm | 2.7V ~ 3.6V | - | 12.5ns, 9.5ns | 630MHz | 0.5pC | 2.4pF, 6.9pF | 200pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG741BKSZ-REEL7IC SWITCH SPST SC70-6 Analog Devices Inc. |
2,808 | - |
RFQ |
Ficha técnica |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5.5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG719BRMZ-REEL7IC SWITCH SPDT 8MSOP Analog Devices Inc. |
2,810 | - |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 1 | 4Ohm | - | 1.8V ~ 5.5V | - | 7ns, 3ns (Typ) | 200MHz | - | 7pF | 250pA | -82dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
ADG417BRZ-REELIC SWITCH SPST 8SOIC Analog Devices Inc. |
2,114 | - |
RFQ |
Ficha técnica |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 160ns, 100ns | - | 7pC | 6pF, 6pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG858BCPZ-REEL7IC SWITCH QUAD SPDT 16LFCSP Analog Devices Inc. |
3,648 | - |
RFQ |
Ficha técnica |
16-UFQFN, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:2 | 2 | 720mOhm | 40mOhm | 1.8V ~ 5.5V | - | 27ns, 12ns | 70MHz | 45pC | 25pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG739BRUZ-REEL7IC MUX/DEMUX DUAL 4X1 16TSSOP Analog Devices Inc. |
3,612 | - |
RFQ |
Ficha técnica |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 20ns, 10ns (Typ) | 100MHz | 3pC | 13pF, 42pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG5212BCPZ-RL7IC SWITCH SPST QUAD 16LFCSP Analog Devices Inc. |
3,119 | - |
RFQ |
Ficha técnica |
16-WQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 4 | 160Ohm | 1.5Ohm | 9V ~ 40V | ±9V ~ 22V | 195ns, 165ns | 460MHz | -0.5pC | 2.8pF, 4.8pF | 100pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
ADG729BRUZ-REEL7IC MUX/DEMUX DUAL 4X1 16TSSOP Analog Devices Inc. |
2,756 | - |
RFQ |
Ficha técnica |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 100MHz | 3pC | 13pF, 42pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG728BRUZ-REEL7IC MUX/DEMUX 8X1 16TSSOP Analog Devices Inc. |
2,422 | - |
RFQ |
Ficha técnica |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
