Más categorías de productos

Transformadores de audio

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)

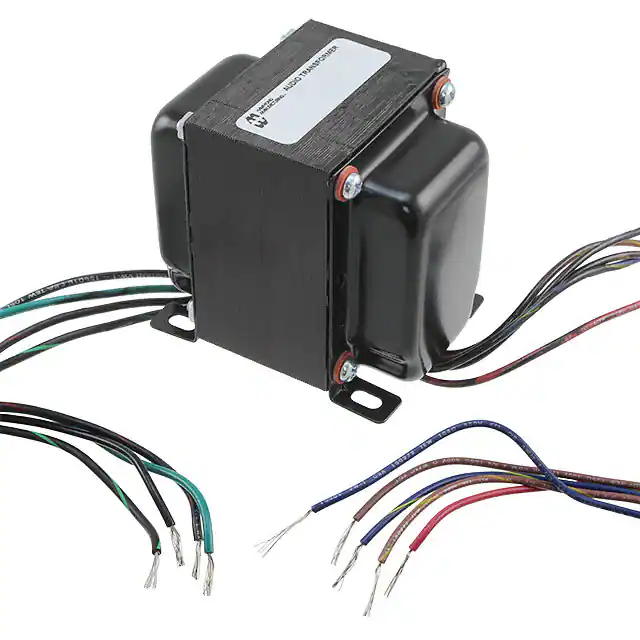

1650E AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,300	-	RFQ	Ficha técnica	Box	A	Active	-	8kCT	4, 8, 16	98.98Ohm, 101.9Ohm	154mOhm, 218mOhm, 303mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	15W	-	-	Chassis Mount	3.250 L x 2.500 W (82.55mm x 63.50mm)	3.060 (77.72mm)
1650FA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,083	-	RFQ	Ficha técnica	Box	A	Active	-	7.6kCT	4, 8, 16	92.16Ohm, 102.8Ohm	210mOhm, 239mOhm, 309mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	25W	-	-	Chassis Mount	3.500 L x 2.500 W (88.90mm x 63.50mm)	3.060 (77.72mm)
850JA TRANSFORMER AUDIO BROADCAST Hammond Manufacturing	2,868	-	RFQ	Ficha técnica	Bulk	850A	Active	-	600, 150/150	4.8k, 1.2k/1.2k	69Ohm	570Ohm	-	20Hz ~ 20kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.700 L x 1.200 W (43.18mm x 30.48mm)	1.650 (41.90mm)
1650G TRANSFORMER AUDIO 6.6KCT 35W Hammond Manufacturing	3,093	-	RFQ	Ficha técnica	Bulk	1600	Active	-	6.6kCT	3.5, 8, 16, 250, 500	56.93Ohm, 60.95Ohm	259mOhm, 364mOhm, 496mOhm, 6.727Ohm, 9.55Ohm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	35W	-	-	Chassis Mount	3.750 L x 3.130 W (95.25mm x 79.50mm)	3.810 (96.77mm)
1650HA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,768	-	RFQ	Ficha técnica	Box	A	Active	-	6.6kCT	4, 8, 16	63.69Ohm, 71.33Ohm	74mOhm, 223mOhm, 258mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	40W	-	-	Chassis Mount	4.000 L x 3.130 W (101.60mm x 79.50mm)	3.810 (96.77mm)
1645A AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2,859	-	RFQ	Ficha técnica	Box	A	Active	-	5kCT	4, 8, 16, 70V	72.11Ohm, 79.35Ohm	276mOhm, 391mOhm, 464mOhm, 9.304Ohm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	30W	-	-	Chassis Mount	3.750 L x 2.500 W (95.25mm x 63.50mm)	3.060 (77.72mm)
290RX TRANSF TUBE GUITAR AMP POWER Hammond Manufacturing	3,016	-	RFQ	Ficha técnica	Bulk	290	Active	-	-	-	510mOhm	40mOhm, 3.76Ohm, 5.865Ohm	-	-	-	120/240VAC	-	-	-	-	-	Chassis Mount	3.756 L x 5.580 W (95.40mm x 141.73mm)	4.663 (118.44mm)
1650R TRANSFORMER AUDIO 5KCT 100W Hammond Manufacturing	2,230	-	RFQ	Ficha técnica	Bulk	1600	Active	-	5kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	1650R	100W	-	-	Chassis Mount	4.250 L x 3.750 W (107.95mm x 95.25mm)	4.560 (115.82mm)
1629SEA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,736	-	RFQ	Ficha técnica	Box	1600	Active	-	6.5k	4, 8, 16	-	-	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2000Vrms	±1dB	-	30W	-	-	Chassis Mount	4.500 L x 3.750 W (114.30mm x 95.25mm)	4.560 (115.82mm)
1640SEA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2,503	-	RFQ	Ficha técnica	Box	1600	Active	-	1.2k	4, 8, 16	-	-	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	2000Vrms	±1dB	-	30W	-	-	Chassis Mount	4.950 L x 3.750 W (125.73mm x 95.20mm)	4.560 (115.82mm)
1650RA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2,037	-	RFQ	Ficha técnica	Box	A	Active	-	5kCT	4, 8, 16	47.43Ohm, 54.65Ohm	232mOhm, 333mOhm, 343mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	3535VDC @ 1 Second	-	-	100W	-	-	Chassis Mount	4.250 L x 3.750 W (107.95mm x 95.25mm)	4.560 (115.82mm)
107G TRANSFORMER AUDIO 600CT/250CT Hammond Manufacturing	2,566	-	RFQ	Ficha técnica	Bulk	107	Active	1.52:1	600CT	250CT	60Ohm	40Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
146G TRANSFORMER AUDIO 250CT/8 IMPED Hammond Manufacturing	2,876	-	RFQ	Ficha técnica	Bulk	146	Active	-	250CT	8	11Ohm	700mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
145G TRANSFORMER AUDIO 2K/200CT IMPED Hammond Manufacturing	3,481	-	RFQ	Ficha técnica	Bulk	145	Active	-	2k	200CT	140Ohm	9Ohm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	135mW	-	-	Chassis Mount	1.630 L x 0.880 W (41.40mm x 22.35mm)	0.810 (20.57mm)
148K TRANSFORM AUDIO 4K TO 500/2K IMP Hammond Manufacturing	3,073	-	RFQ	Ficha técnica	Bulk	148	Active	-	4k	2k, 500/500	540Ohm	230Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	75mW	-	-	Through Hole	0.820 L x 0.680 W (20.83mm x 17.27mm)	0.690 (17.53mm)
148Q TRANSFRM AUDIO 10K TO 500/2K IMP Hammond Manufacturing	3,485	-	RFQ	Ficha técnica	Bulk	148	Active	-	10k	2k, 500/500	1.7kOhm	238Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	75mW	-	-	Through Hole	0.820 L x 0.680 W (20.83mm x 17.27mm)	0.690 (17.53mm)
148M TRANSFORM AUDIO 6K TO 500/2K IMP Hammond Manufacturing	2,539	-	RFQ	Ficha técnica	Bulk	148	Active	-	6k	2k, 500/500	850Ohm	230Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	75mW	-	-	Through Hole	0.820 L x 0.680 W (20.83mm x 17.27mm)	0.690 (17.53mm)
126A TRANSFORMER 4W 20HZ-20KHZ Hammond Manufacturing	2,951	-	RFQ	Ficha técnica	Box	126	Active	-	5k	5k	178Ohm	178Ohm	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	400VDC	-	-	4W	-	-	Chassis Mount	3.120 L x 2.500 W (79.25mm x 63.50mm)	3.120 (79.25mm)
850CA TRANSFORMER AUDIO BROADCAST Hammond Manufacturing	2,880	-	RFQ	Ficha técnica	Bulk	850A	Active	-	48, 12/12	600, 150/150	6Ohm	70Ohm	-	20Hz ~ 20kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.700 L x 1.200 W (43.18mm x 30.48mm)	1.650 (41.90mm)
850HA TRANSFORMER AUDIO BROADCAST Hammond Manufacturing	2,292	-	RFQ	Ficha técnica	Bulk	850A	Active	-	600, 150/150	1.2k, 300/300	70Ohm	140Ohm	-	20Hz ~ 20kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.700 L x 1.200 W (43.18mm x 30.48mm)	1.650 (41.90mm)
