Transformadores de audio

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)

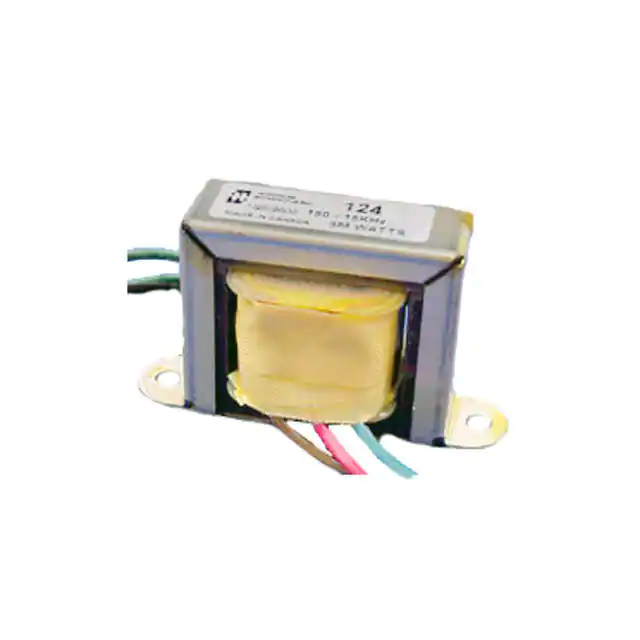

124D TRANSFRMR AUDIO 7KCT/15.8KCT IMP Hammond Manufacturing	2,210	-	RFQ	Ficha técnica	Bulk	124	Active	1:1.49	7kCT	15.8kCT	218Ohm, 236Ohm	297Ohm, 394Ohm	Tube Driver and Speaker Matching	150Hz ~ 15kHz	±1dB	500Vrms	-	-	5W	-	-	Chassis Mount	2.810 L x 1.460 W (71.37mm x 37.08mm)	1.680 (42.67mm)

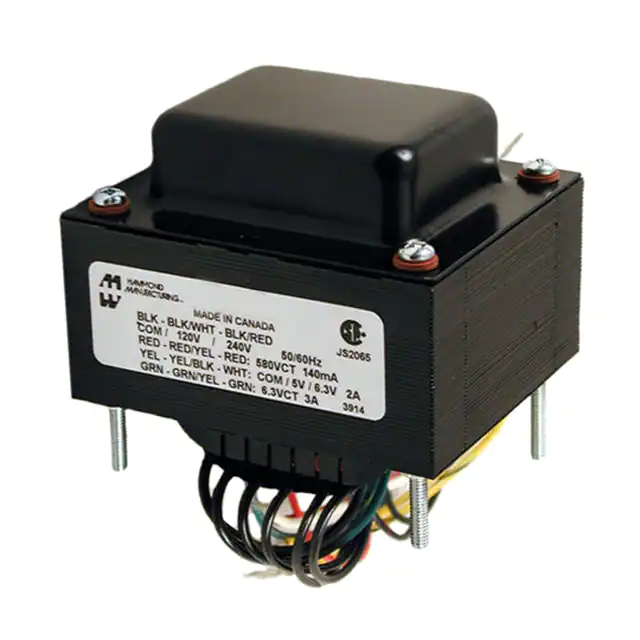

290WX TRANSF TUBE GUITAR AMP POWER Hammond Manufacturing	3,851	-	RFQ	Ficha técnica	Bulk	290	Active	-	-	-	22.5Ohm	240mOhm, 185.4Ohm	-	-	-	120/240VAC	-	-	-	-	-	Chassis Mount	3.250 L x 2.360 W (82.55mm x 59.94mm)	2.058 (52.27mm)
124B TRANSFORMER AUDIO 10/90KCT IMP Hammond Manufacturing	3,622	-	RFQ	Ficha técnica	Bulk	124	Active	1:3	10k	90kCT	405Ohm	1.525kOhm	Tube Driver and Speaker Matching	150Hz ~ 15kHz	±1dB	500Vrms	-	-	5W	-	-	Chassis Mount	2.380 L x 1.350 W (60.45mm x 34.29mm)	1.430 (36.32mm)

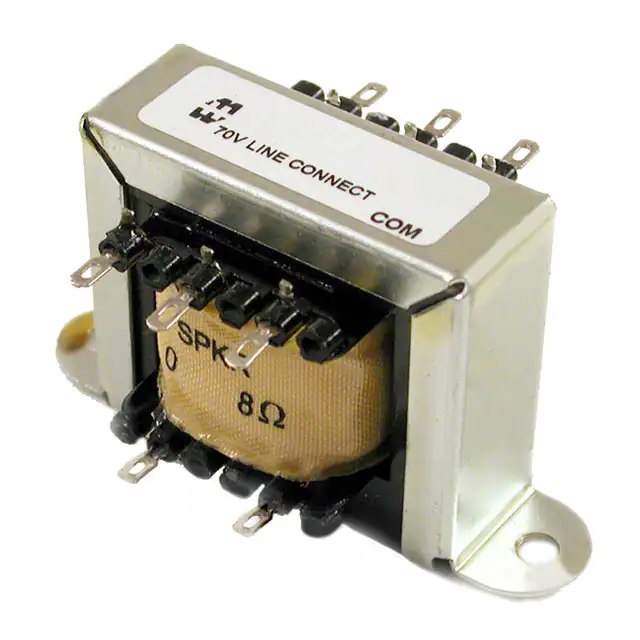

119Y60 TRANSFORMER AUDIO MATCHING 60W Hammond Manufacturing	3,110	-	RFQ	Ficha técnica	Bulk	119	Active	-	16, 8	70V, 25V	-	-	Sound Distribution	50Hz ~ 10kHz	-	25V, 70V	-	-	60W	-	-	Chassis Mount	3.250 L x 2.500 W (82.55mm x 63.50mm)	3.060 (77.72mm)
560L TRANSFR AUDIO 150/600 5K/20K IMP Hammond Manufacturing	3,904	-	RFQ	Ficha técnica	Bulk	560	Active	-	600, 150/150	20k, 5k/5k	-	-	Broadcast Quality	30Hz ~ 30kHz	±1dB	-	1dB Max	-	-	-	-	Through Hole	1.330 L x 1.640 W (33.78mm x 41.66mm)	0.850 (21.59mm)
1750K TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,502	-	RFQ	Ficha técnica	Box	1750	Active	44.67:1	4kCT	2	43.16Ohm, 46.28Ohm	180mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	50W	-	-	Chassis Mount	4.063 L x 3.125 W (103.20mm x 79.38mm)	3.516 (89.31mm)
1750M TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	2,535	-	RFQ	Ficha técnica	Box	1750	Active	22.93:1	4.2kCT	2, 4, 8	68Ohm	160mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	60W	-	-	Chassis Mount	4.050 L x 3.050 W (102.87mm x 77.47mm)	3.563 (90.50mm)
126C TRANSFORMER 4W 20HZ-20KHZ Hammond Manufacturing	2,181	-	RFQ	Ficha técnica	Box	126	Active	-	10k	10k	375Ohm	375Ohm	Single Ended Audiophile, Ultra-Linear - Tube Output	20Hz ~ 20kHz	±1dB	400VDC	-	-	4W	-	-	Chassis Mount	3.120 L x 2.500 W (79.25mm x 63.50mm)	3.120 (79.25mm)
1609 TRANSFORMER AUDIO 10KCT 10W Hammond Manufacturing	2,760	-	RFQ	Ficha técnica	Bulk	1600	Active	-	10kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	-	10W	-	-	Chassis Mount	2.750 L x 2.500 W (69.85mm x 63.50mm)	3.060 (77.72mm)
1608 TRANSFORMER AUDIO 8KCT 10W Hammond Manufacturing	2,245	-	RFQ	Ficha técnica	Bulk	1600	Active	-	8kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	-	10W	-	-	Chassis Mount	2.750 L x 2.500 W (69.85mm x 63.50mm)	3.060 (77.72mm)
1760L TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,632	-	RFQ	Ficha técnica	Box	1760	Active	31.16:1	4.2kCT	4, 8, 16	46.48Ohm, 51.04Ohm	252mOhm, 480mOhm, 714mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	60W	-	-	Chassis Mount	4.050 L x 3.150 W (102.87mm x 80.01mm)	3.193 (81.10mm)
1750N TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	2,699	-	RFQ	Ficha técnica	Box	1750	Active	14.30:1	3.2kCT	4, 8, 16	41.74Ohm, 3.14Ohm	170mOhm, 240mOhm, 360mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	50W	-	-	Chassis Mount	3.125 L x 3.350 W (79.38mm x 85.09mm)	3.800 (96.52mm)
290UX TRANSF TUBE GUITAR AMP POWER Hammond Manufacturing	3,426	-	RFQ	Ficha técnica	Bulk	290	Active	-	-	-	4.14Ohm	80mOhm, 4.8Ohm, 44.94Ohm	-	-	-	120/240VAC	-	-	-	-	-	Chassis Mount	3.125 L x 3.250 W (79.38mm x 82.55mm)	3.813 (96.85mm)
1140-MN-B MICROPHONE INPUT TRANSFORMER Hammond Manufacturing	2,235	-	RFQ	Ficha técnica	Bulk	1140	Active	1:5	150	3.8k	-	-	Impedance Matching	20Hz ~ 20kHz	±0.35dB	-	-	-	-	-	-	Chassis Mount	-	-
1760W TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	2,895	-	RFQ	Ficha técnica	Box	1760	Active	22.35:1	2kCT	4, 8, 16	11.4Ohm	100mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	100W	-	-	Chassis Mount	4.050 L x 3.465 W (102.87mm x 88.01mm)	3.563 (90.50mm)
1609A AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3,770	-	RFQ	Ficha técnica	Box	A	Active	-	10kCT	4, 8, 16	102.2Ohm, 114.3Ohm	321mOhm, 365mOhm, 476mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	10W	-	-	Chassis Mount	2.750 L x 2.500 W (69.85mm x 63.50mm)	3.060 (77.72mm)
1608A AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2,605	-	RFQ	Ficha técnica	Box	A	Active	-	8kCT	4, 8, 16	91.31Ohm, 102.3Ohm	321mOhm, 365mOhm, 476mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	10W	-	-	Chassis Mount	2.750 L x 2.500 W (69.85mm x 63.50mm)	3.060 (77.72mm)
1615A AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2,165	-	RFQ	Ficha técnica	Box	A	Active	-	5kCT	4, 8, 16	84.46Ohm, 96.25Ohm	130mOhm, 210mOhm, 270mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	15W	-	-	Chassis Mount	3.250 L x 2.500 W (82.55mm x 63.50mm)	3.060 (77.72mm)
1650F TRANSFORMER AUDIO 7.6KCT 25W Hammond Manufacturing	3,516	-	RFQ	Ficha técnica	Bulk	1600	Active	-	7.6kCT	4, 8, 16	210Ohm	220mOhm, 270mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	±1dB	-	25W	-	-	Chassis Mount	3.500 L x 2.500 W (88.90mm x 63.50mm)	3.060 (77.72mm)
1750U TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,423	-	RFQ	Ficha técnica	Box	1750	Active	10.40:1	1.7kCT	4, 8, 16	15.36Ohm, 16.56Ohm	100mOhm, 120mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	50Hz ~ 12kHz	±1dB	-	-	-	100W	-	-	Chassis Mount	3.750 L x 4.020 W (95.25mm x 102.11mm)	4.600 (116.84mm)
