Transistores - IGBT - Módulos

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APTGV100H60T3G IGBT MODULE 600V 150A 340W SP3 Microsemi Corporation	3,997	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV15H120T3G IGBT MODULE 1200V 25A 115W SP3 Microsemi Corporation	2,456	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	1200 V	25 A	115 W	2.1V @ 15V, 15A	250 µA	1.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGV25H120BG IGBT MODULE 1200V 40A 156W SP4 Microsemi Corporation	2,287	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	1200 V	40 A	156 W	2.1V @ 15V, 25A	250 µA	1.8 nF @ 25 V	Standard	No	-	Chassis Mount
APTGV25H120T3G IGBT MODULE 1200V 40A 156W SP3 Microsemi Corporation	2,068	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	1200 V	40 A	156 W	2.1V @ 15V, 25A	250 µA	1.8 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV30H60T3G IGBT MODULE 600V 50A 90W SP3 Microsemi Corporation	3,480	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGV50H120BTPG IGBT MODULE 1200V 75A 270W SP6P Microsemi Corporation	3,194	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV50H120T3G IGBT MODULE 1200V 75A 270W SP3 Microsemi Corporation	3,529	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV50H60BG IGBT MODULE 600V 80A 176W SP4 Microsemi Corporation	2,064	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	No	-	Chassis Mount
APTGV50H60T3G IGBT MODULE 600V 80A 176W SP3 Microsemi Corporation	3,735	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV75H60T3G IGBT MODULE 600V 100A 250W SP3 Microsemi Corporation	2,481	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-	Chassis Mount

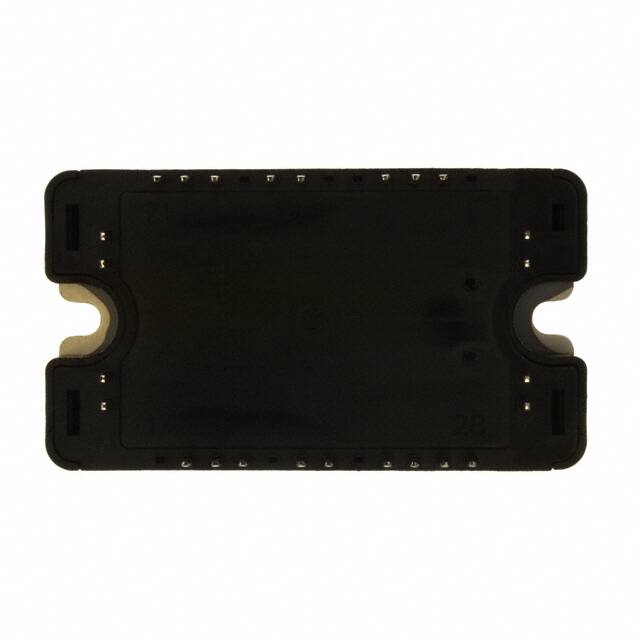

APTCV90TL12T3G IGBT MODULE 1200V 80A 280W SP3 Microsemi Corporation	2,080	-	RFQ	Ficha técnica	Bulk	-	Obsolete	Trench Field Stop	Three Level Inverter - IGBT, FET	1200 V	80 A	280 W	2.2V @ 15V, 50A	1 mA	2.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

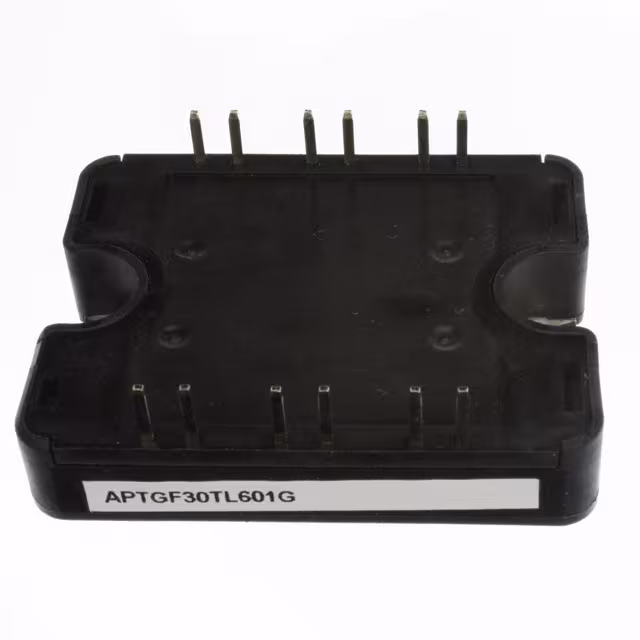

APTGF30TL601G IGBT MODULE 600V 42A 140W SP1 Microsemi Corporation	2,993	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Three Level Inverter	600 V	42 A	140 W	2.45V @ 15V, 30A	250 µA	1.35 nF @ 25 V	Standard	No	-	Chassis Mount

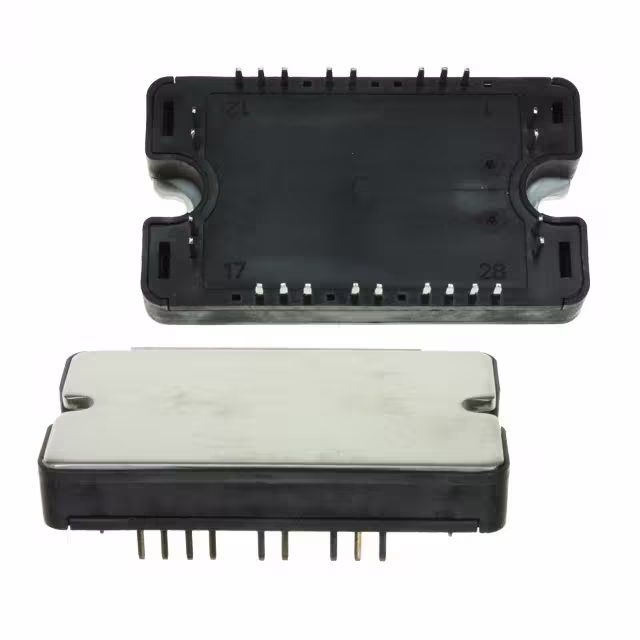

APTGF50TL60T3G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	3,692	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Three Level Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-55°C ~ 150°C (TJ)	Chassis Mount
APTGF100A120T3WG IGBT MODULE 1200V 130A 657W SP3 Microsemi Corporation	3,074	-	RFQ		Bulk	-	Obsolete	NPT	Half Bridge	1200 V	130 A	657 W	3.7V @ 15V, 100A	250 µA	6.5 nF @ 25 V	Standard	Yes	-	Chassis Mount

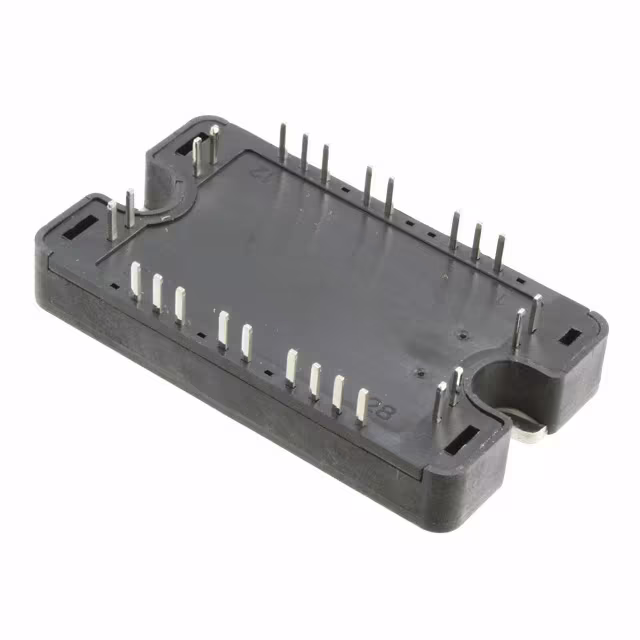

APTGF150A120T3WG IGBT MODULE 1200V 210A 961W SP3 Microsemi Corporation	2,292	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	210 A	961 W	3.7V @ 15V, 150A	250 µA	9.3 nF @ 25 V	Standard	Yes	-	Chassis Mount

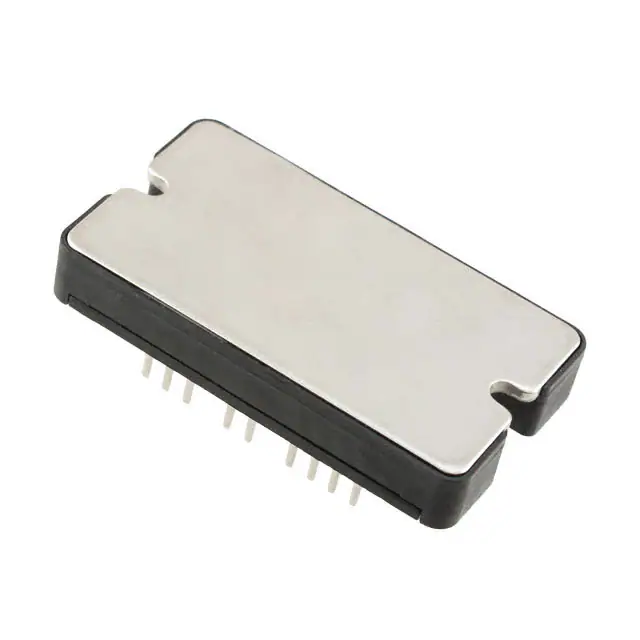

APTGF90DH60T3G IGBT MODULE 600V 110A 416W SP3 Microsemi Corporation	2,323	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	600 V	110 A	416 W	2.5V @ 15V, 100A	250 µA	4.3 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50DDA120T3G IGBT MODULE 1200V 70A 312W SP3 Microsemi Corporation	2,969	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Dual Boost Chopper	1200 V	70 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGFQ25H120T2G IGBT MODULE 1200V 40A 227W SP2 Microsemi Corporation	3,870	-	RFQ	Ficha técnica	Bulk	-	Active	NPT and Fieldstop	Full Bridge	1200 V	40 A	227 W	2.1V @ 15V, 25A	250 µA	2.02 nF @ 25 V	Standard	Yes	-	Through Hole
APTGF100A1202G IGBT MODULE 1200V 135A 568W SP2 Microsemi Corporation	3,431	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	135 A	568 W	3.7V @ 15V, 100A	250 µA	6.5 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF50H60T2G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	3,443	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
