Transistores - IGBT - Módulos

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
CM300DX-24S IGBT MOD 1200V 300A 2270W Powerex Inc.	3,542	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	300 A	2270 W	2.15V @ 15V, 300A	1 mA	30 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM450DX-24S IGBT MOD 1200V 450A 3400W Powerex Inc.	2,641	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	450 A	3400 W	2.15V @ 15V, 450A	1 mA	45 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

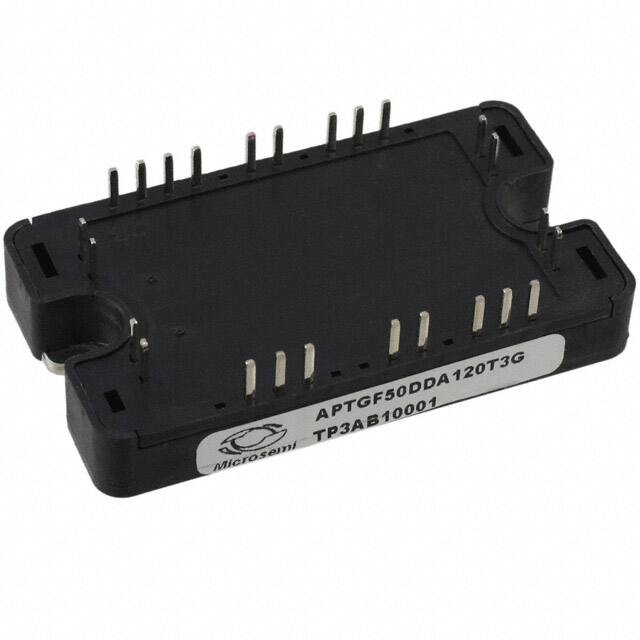

APTGF50DDA120T3G IGBT MODULE 1200V 70A 312W SP3 Microsemi Corporation	2,969	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Dual Boost Chopper	1200 V	70 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount

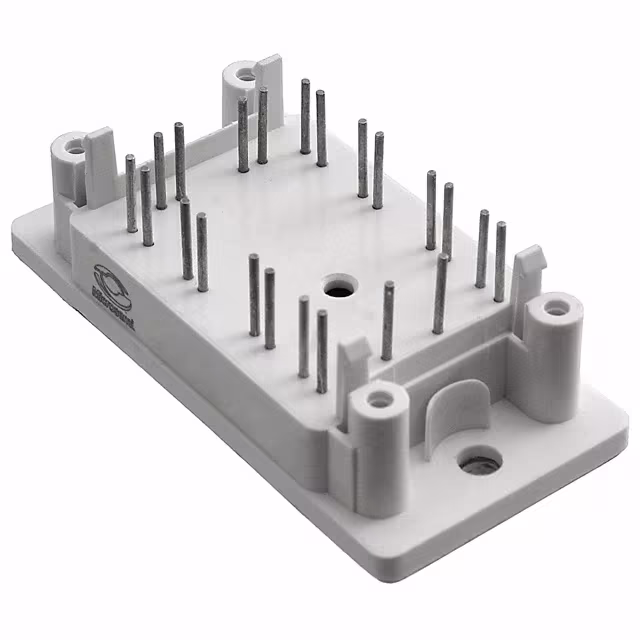

APTGFQ25H120T2G IGBT MODULE 1200V 40A 227W SP2 Microsemi Corporation	3,870	-	RFQ	Ficha técnica	Bulk	-	Active	NPT and Fieldstop	Full Bridge	1200 V	40 A	227 W	2.1V @ 15V, 25A	250 µA	2.02 nF @ 25 V	Standard	Yes	-	Through Hole

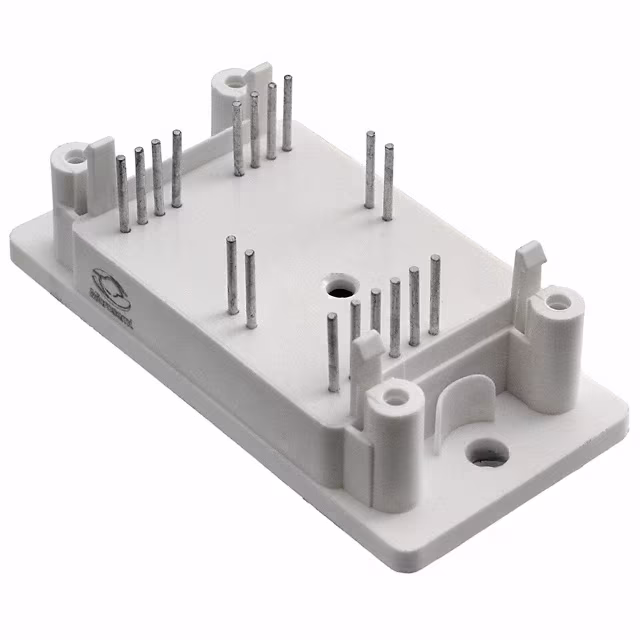

APTGF100A1202G IGBT MODULE 1200V 135A 568W SP2 Microsemi Corporation	3,431	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	135 A	568 W	3.7V @ 15V, 100A	250 µA	6.5 nF @ 25 V	Standard	No	-	Chassis Mount

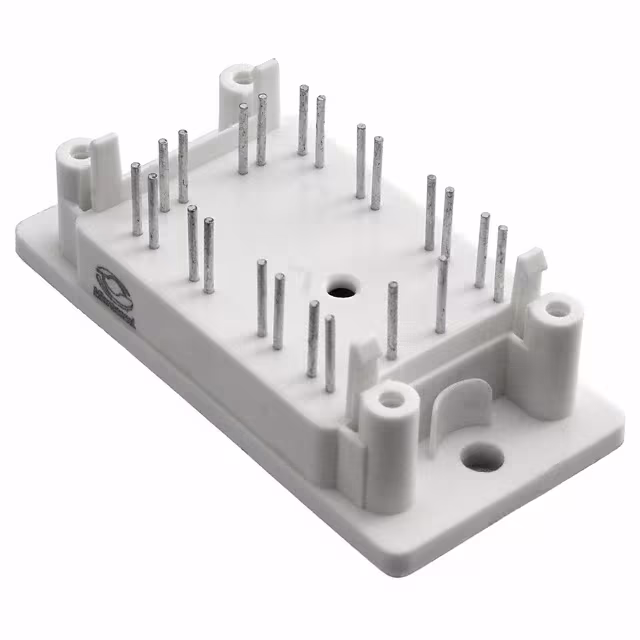

APTGF50H60T2G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	3,443	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount

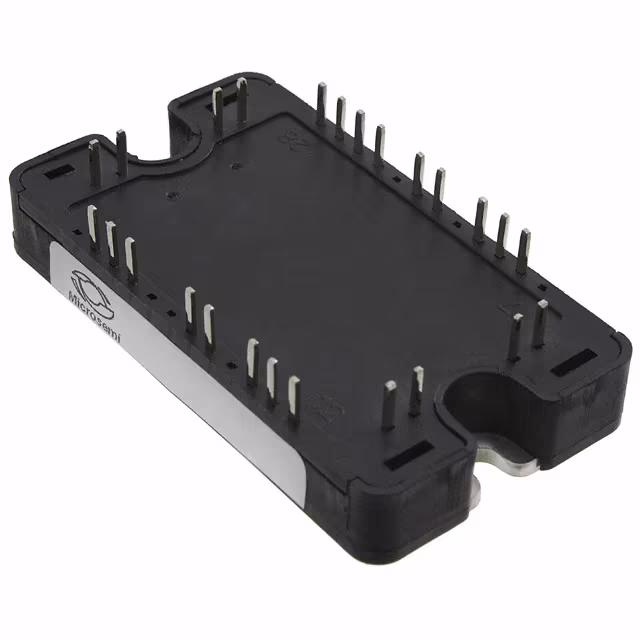

APTGF50VDA120T3G IGBT MODULE 1200V 70A 312W SP3 Microsemi Corporation	2,574	-	RFQ	Ficha técnica	Bulk	-	Obsolete	NPT	Dual Boost Chopper	1200 V	70 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount

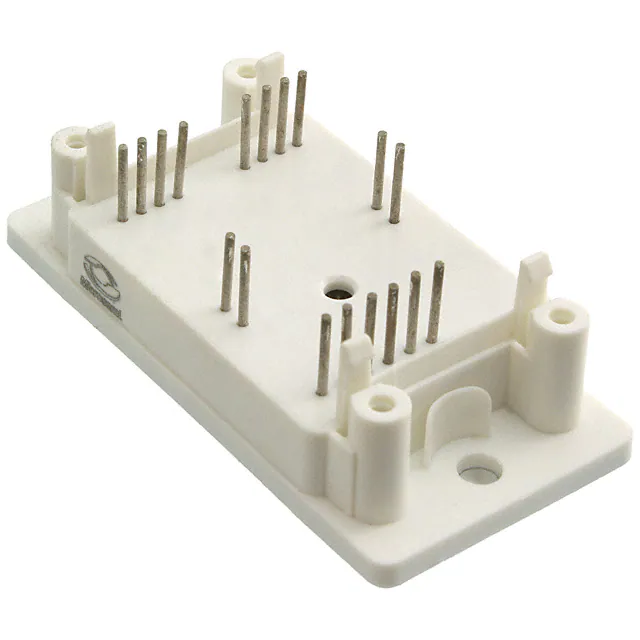

APTGT200A602G IGBT MODULE 600V 290A 625W SP2 Microsemi Corporation	3,279	-	RFQ	Ficha técnica	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	290 A	625 W	1.9V @ 15V, 200A	50 µA	12.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

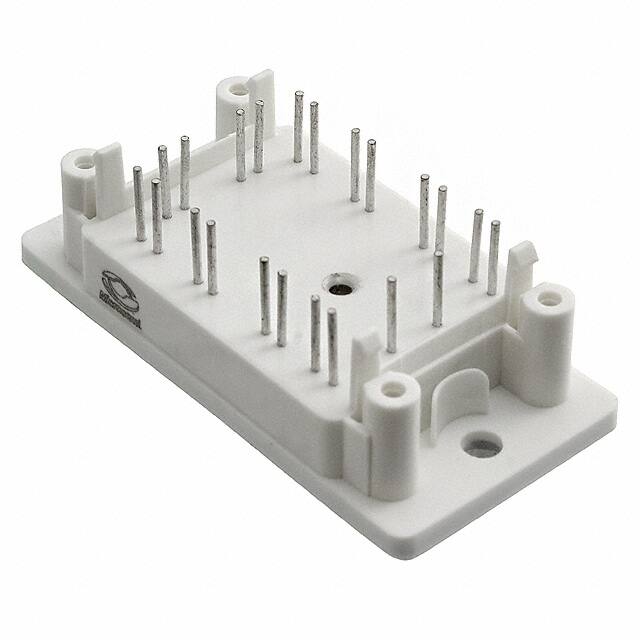

APTGT75H60T2G IGBT MODULE 600V 100A 250W SP2 Microsemi Corporation	3,455	-	RFQ	Ficha técnica	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
GB100XCP12-227 IGBT MODULE 1200V 100A SOT227 GeneSiC Semiconductor	3,438	-	RFQ	Ficha técnica	Bulk	-	Obsolete	PT	Single	1200 V	100 A	-	2V @ 15V, 100A	1 mA	8.55 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

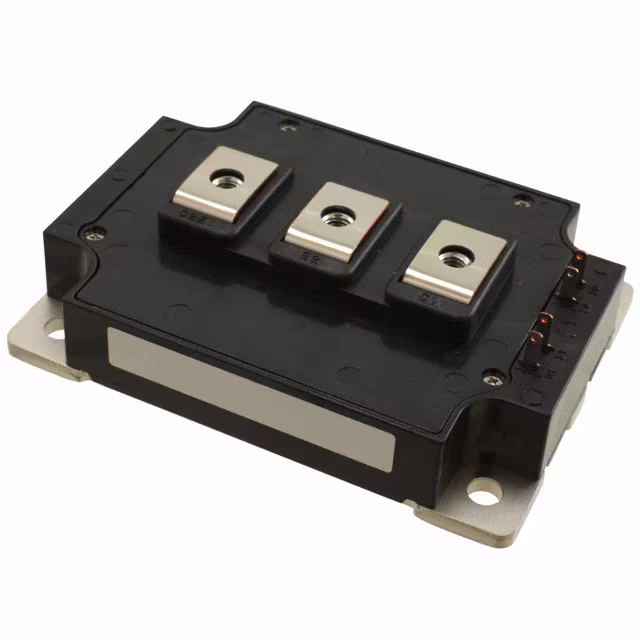

CM450DY-24S IGBT MOD 1200V 410A 3330W Powerex Inc.	2,824	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	410 A	3330 W	2.25V @ 15V, 450A	1 mA	45 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

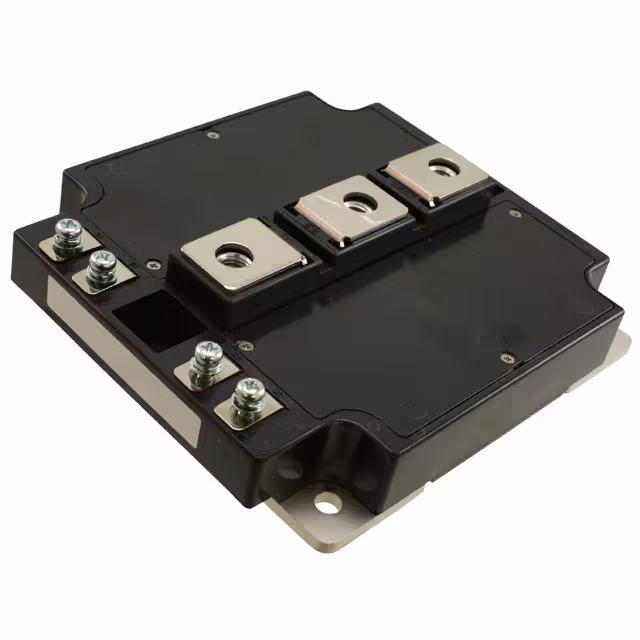

CM800DY-24S IGBT MOD 1200V 790A 5355W Powerex Inc.	3,806	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	790 A	5355 W	2.4V @ 15V, 800A	1 mA	80 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM1000DXL-24S IGBT MOD 1200V 1000A 7500W Powerex Inc.	2,558	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	1000 A	7500 W	2.3V @ 15V, 1000A	1 mA	100 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM1000E3U-34NF IGBT MOD 1700V 1000A 3900W Powerex Inc.	3,374	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Single	1700 V	1000 A	3900 W	2.8V @ 15V, 1000A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM100MXA-24S IGBT MOD 1200V 100A 750W Powerex Inc.	3,195	-	RFQ	Ficha técnica	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	100 A	750 W	2.25V @ 15V, 100A	1 mA	10 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	-
CM100TX-24S IGBT MOD 1200V 100A 750W Powerex Inc.	3,853	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	100 A	750 W	2.25V @ 15V, 100A	1 mA	10 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM1400DUC-24NF IGBT MOD 1200V 1400A 8900W Powerex Inc.	3,681	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	1400 A	8900 W	2.5V @ 15V, 1400A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM1400E3U-24NF IGBT MOD 1200V 1400A 3900W Powerex Inc.	2,846	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	1400 A	3900 W	2.5V @ 15V, 1400A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM35MXA-24S IGBT MOD 1200V 35A 355W Powerex Inc.	3,187	-	RFQ	Ficha técnica	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	35 A	355 W	2.25V @ 15V, 35A	1 mA	3.5 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
CM400DY-34A IGBT MOD 1700V 400A 3780W Powerex Inc.	3,395	-	RFQ	Ficha técnica	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1700 V	400 A	3780 W	2.8V @ 15V, 400A	1 mA	98.8 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
