Convertidores de conmutación, transformadores SMPS
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCA20EFD-U10S002INDUCTOR/XFRMR 3.4UH MULTIWIND TDK Corporation |
3,946 | - |
RFQ |
Ficha técnica |
Tray | PCA20EFD | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 3.4µH @ 10kHz, Series 122µH @ 10kHz | - | -40°C ~ 85°C | Surface Mount | 0.866 L x 0.850 W (22.00mm x 21.60mm) | 0.472 (12.00mm) | 0.866 L x 1.173 W (22.00mm x 29.80mm) |
|
|
PCA20EFD-U08S002INDUCTOR/XFRMR 4.3UH MULTIWIND TDK Corporation |
2,848 | - |
RFQ |
Ficha técnica |
Tray | PCA20EFD | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 4.3µH @ 10kHz, Series 154µH @ 10kHz | - | -40°C ~ 85°C | Surface Mount | 0.866 L x 0.850 W (22.00mm x 21.60mm) | 0.472 (12.00mm) | 0.866 L x 1.173 W (22.00mm x 29.80mm) |
|
|
PCA20EFD-U06S002INDUCTOR/XFRMR 5.3UH MULTIWIND TDK Corporation |
2,402 | - |
RFQ |
Ficha técnica |
Tray | PCA20EFD | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 5.3µH @ 10kHz, Series 191µH @ 10kHz | - | -40°C ~ 85°C | Surface Mount | 0.866 L x 0.850 W (22.00mm x 21.60mm) | 0.472 (12.00mm) | 0.866 L x 1.173 W (22.00mm x 29.80mm) |
|
|
PCA20EFD-U09S003INDUCTOR/XFRMR 7.6UH MULTIWIND TDK Corporation |
3,468 | - |
RFQ |
Ficha técnica |
Tray | PCA20EFD | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 7.6µH @ 10kHz, Series 275µH @ 10kHz | - | -40°C ~ 85°C | Surface Mount | 0.866 L x 0.850 W (22.00mm x 21.60mm) | 0.472 (12.00mm) | 0.866 L x 1.173 W (22.00mm x 29.80mm) |
|
|
PCA20EFD-U07S003INDUCTOR/XFRMR 9.6UH MULTIWIND TDK Corporation |
2,132 | - |
RFQ |
Ficha técnica |
Tray | PCA20EFD | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 9.6µH @ 10kHz, Series 347µH @ 10kHz | - | -40°C ~ 85°C | Surface Mount | 0.866 L x 0.850 W (22.00mm x 21.60mm) | 0.472 (12.00mm) | 0.866 L x 1.173 W (22.00mm x 29.80mm) |
|

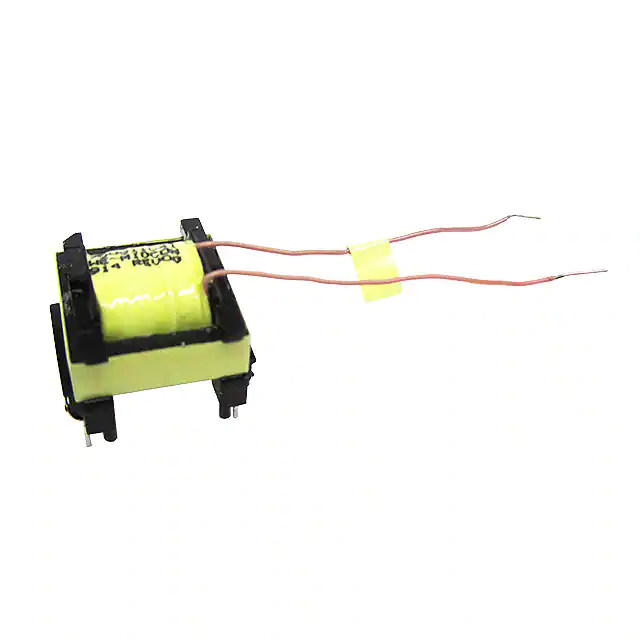

750811041TRANS FLYBACK ON NCP1014 Würth Elektronik |
2,257 | - |
RFQ |
Ficha técnica |
Tray | MID-ALIT | Obsolete | For AC/DC Converters | Flyback Converters | NCP1014 | On Semiconductor | - | - | - | 1.8mH @ 10kHz | - | - | Through Hole | - | 0.568 (14.43mm) | 0.707 L x 0.799 W (17.96mm x 20.30mm) |
|
PE-68488NLXFRMR FLYBCK 1:1:1:1 FOR LT 1171 Pulse Electronics Power |
2,888 | - |
RFQ |
Ficha técnica |
Tray | - | Active | For DC/DC Converters | Flyback Converters | LT1171 | Linear Technology | 8.1 ~ 9.9V | - | 1000Vrms | - | 100kHz | -30°C ~ 130°C | Through Hole | - | 0.510 (12.95mm) | 0.850 L x 0.900 W (22.86mm x 21.59mm) |
|
|
PE-68422XFRMR FLYBCK FOR 100KHZ SWITCHER Pulse Electronics Power |
3,668 | - |
RFQ |
Ficha técnica |
Tray | - | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | Surface Mount | 0.970 L x 1.070 W (24.64mm x 27.18mm) | 0.680 (17.27mm) | 0.970 L x 1.070 W (24.64mm x 27.18mm) |
|

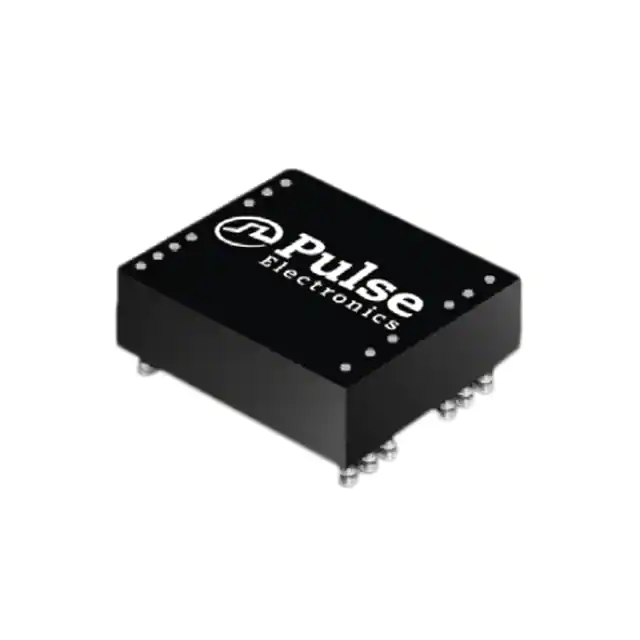

PE-68411NLXFRMR FLYBCK FOR 100KHZ SWITCHER Pulse Electronics Power |
3,675 | - |
RFQ |
Ficha técnica |
Tray | - | Obsolete | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 8 ~ 16V | - | 1500Vrms | - | - | -40°C ~ 130°C | Surface Mount | 0.920 L x 1.040 W (23.37mm x 26.42mm) | 0.480 (12.19mm) | 0.920 L x 1.040 W (23.37mm x 26.42mm) |
|
|
PE-68412NLXFRMR FLYBCK FOR 100KHZ SWITCHER Pulse Electronics Power |
3,374 | - |
RFQ |
Ficha técnica |
Tray | - | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 4 ~ 6V | - | 1500Vrms | - | - | -40°C ~ 130°C | Surface Mount | 0.920 L x 1.040 W (23.37mm x 26.42mm) | 0.480 (12.19mm) | 0.920 L x 1.040 W (23.37mm x 26.42mm) |
|
|
PA1032NLTXFRMR FLYBACK 5W 46.6UH SMD Pulse Electronics Power |
3,842 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | - | Active | For DC/DC Converters | Flyback Converters | - | - | 30 ~ 57V | 10V @ 15mA | 1500Vrms | - | 250kHz | -40°C ~ 125°C | Surface Mount | 0.450 L x 0.366 W (11.43mm x 9.30mm) | 0.260 (6.60mm) | 0.450 L x 0.500 W (11.43mm x 12.70mm) |
|
|
PA0491NLTXFRMR PLANAR 100W 8:2 140UH SMD Pulse Electronics Power |
3,089 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | Spyglass | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LT1952 | Linear Technology | 36 ~ 72V | - | 1500Vrms | - | - | -40°C ~ 125°C | Surface Mount | 0.790 L x 0.920 W (20.07mm x 23.37mm) | 0.348 (8.85mm) | 0.790 L x 0.920 W (20.07mm x 23.37mm) |
|
|
PA0491NLXFRMR PLANAR 100W 8:2 140UH SMD Pulse Electronics Power |
3,919 | - |
RFQ |
Ficha técnica |
Tray | Spyglass | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LT1952 | Linear Technology | 36 ~ 72V | - | 1500Vrms | - | - | -40°C ~ 125°C | Surface Mount | 0.790 L x 0.920 W (20.07mm x 23.37mm) | 0.348 (8.85mm) | 0.790 L x 0.920 W (20.07mm x 23.37mm) |
|
|
PA0810NLTTRANSFORMER HIGH FREQ 140W 8.6MM Pulse Electronics Power |
2,329 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA08 | Active | For DC/DC Converters | Forward, Push-Pull Converters | LTC3901, LTC3765, UCC2891, UCC2897 | Linear Technology, Texas Instruments | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.920 W (21.59mm x 23.37mm) | 0.339 (8.60mm) | - |
|
|
PE-65300NLTRANSFORMER 1:2CT 600VRMS Pulse Electronics Power |
3,886 | - |
RFQ |
Ficha técnica |
Tube | - | Active | For DC/DC Converters | Forward, Push-Pull Converters | LM1577, LM2577 | National Semiconductor | - | - | 600Vrms | - | - | -30°C ~ 130°C | Through Hole | - | 0.820 (20.82mm) | 1.050 L x 1.080 W (26.27mm x 27.43mm) |
|
|
PE-65301NLTRANSFORMER 1:1CT 600VRMS Pulse Electronics Power |
2,443 | - |
RFQ |
Ficha técnica |
Tube | - | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LM1577, LM2577 | National Semiconductor | - | - | 600Vrms | - | - | -30°C ~ 130°C | Through Hole | 1.050 L x 1.150 W (26.67mm x 29.21mm) | 0.810 (20.57mm) | 1.050 L x 1.150 W (26.27mm x 29.21mm) |
|

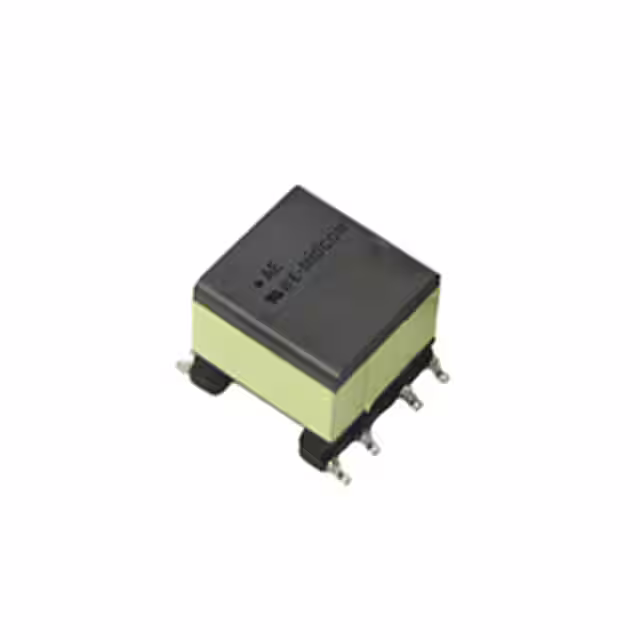

750312775TRANSFORMER FLYBACK Würth Elektronik |
2,559 | - |
RFQ |
Ficha técnica |
Tray | - | Obsolete | - | - | - | - | 12V | - | - | - | 500kHz | -40°C ~ 125°C | Surface Mount | - | 0.505 (12.83mm) | 0.550 L x 0.676 W (13.97mm x 17.17mm) |
|
|
PCA20EFD-U03S003INDUCTOR/XFRMR 22.3UH MULTIWIND TDK Corporation |
3,466 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | PCA20EFD | Obsolete | Configurable (For DC/DC) | Capacitor Charger | - | - | - | - | 500Vrms | Parallel 22.3µH @ 10kHz, Series 804µH @ 10kHz | - | -40°C ~ 85°C | Surface Mount | 0.866 L x 0.850 W (22.00mm x 21.60mm) | 0.472 (12.00mm) | 0.866 L x 1.173 W (22.00mm x 29.80mm) |
|

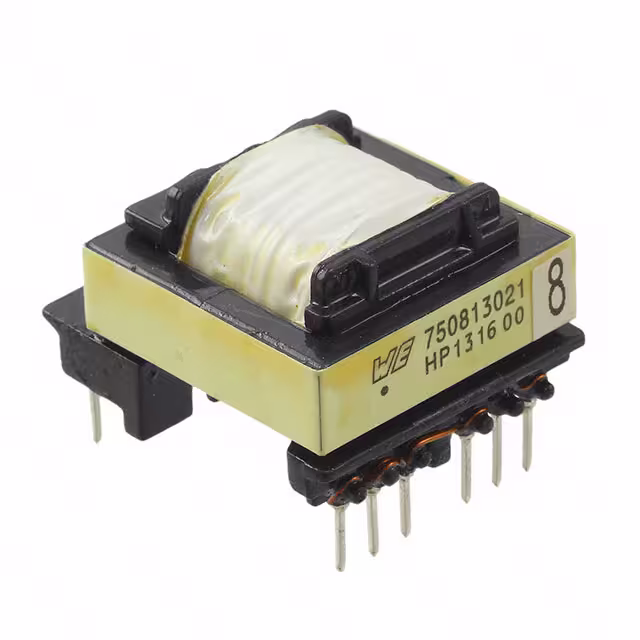

750813021OFFLINE XFRM WE-UNIT TI LM3445 Würth Elektronik |
3,652 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT | Obsolete | For DC/DC Converters | LED Drivers, AC/DC SMPS | LM3445 | Texas Instruments | 120 ~ 191V | 12V @ 20mA | 3000Vrms | 1.6mH @ 60kHz | 60kHz | -40°C ~ 125°C | Through Hole | 0.874 L x 0.984 W (22.20mm x 25.00mm) | 0.635 (16.13mm) | 0.874 L x 0.984 W (22.20mm x 25.00mm) |
|
750813049OFFLINE XFRM WE-UNIT TI LM3447 Würth Elektronik |
3,861 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT | Obsolete | For DC/DC Converters | LED Drivers, AC/DC SMPS | LM3447 | Texas Instruments | 127 ~ 191V | 15V @ 20mA | 3000Vrms | 1.3mH @ 70kHz | 70kHz | -40°C ~ 125°C | Through Hole | 0.665 L x 0.740 W (16.90mm x 18.80mm) | 0.529 (13.44mm) | 0.665 L x 0.740 W (16.90mm x 18.80mm) |
