Convertidores de conmutación, transformadores SMPS
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0803NLXFMR DC/DC CONV SMD Pulse Electronics Power |
2,565 | - |
RFQ |
Ficha técnica |
Tray | PA08XXNL | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.920 W (21.60mm x 23.37mm) | 0.348 (8.85mm) | 0.850 L x 0.920 W (21.60mm x 23.37mm) |
|
750311620TRANS FLYBACK NCL30000 1.90MH Würth Elektronik |
2,663 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT, MID-OLON | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCL30000 | On Semiconductor | 30 ~ 190V | 19V @ 5mA | 4500Vrms | 1.9mH @ 10kHz | 53 ~ 120kHz | -40°C ~ 125°C | Surface Mount | - | 0.435 (11.05mm) | 0.910 L x 1.020 W (23.11mm x 25.91mm) |
|
PH0803CNLXFMR DC/DC CONV SMD Pulse Electronics Power |
2,695 | - |
RFQ |
Ficha técnica |
Tray | PH08XXCNL | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.970 W (21.59mm x 24.65mm) | 0.368 (9.35mm) | 0.850 L x 0.970 W (21.59mm x 24.65mm) |
|
|
PH0806CNLXFMR DC/DC CONV SMD Pulse Electronics Power |
2,144 | - |
RFQ |
Ficha técnica |
Tray | PH08XXCNL | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.970 W (21.59mm x 24.65mm) | 0.368 (9.35mm) | 0.850 L x 0.970 W (21.59mm x 24.65mm) |
|
|
PH0815CNLXFMR DC/DC CONV SMD Pulse Electronics Power |
290 | - |
RFQ |
Ficha técnica |
Tray | PH08XXCNL | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 0.850 L x 0.970 W (21.59mm x 24.65mm) | 0.388 (9.85mm) | 0.850 L x 0.970 W (21.59mm x 24.65mm) |
|

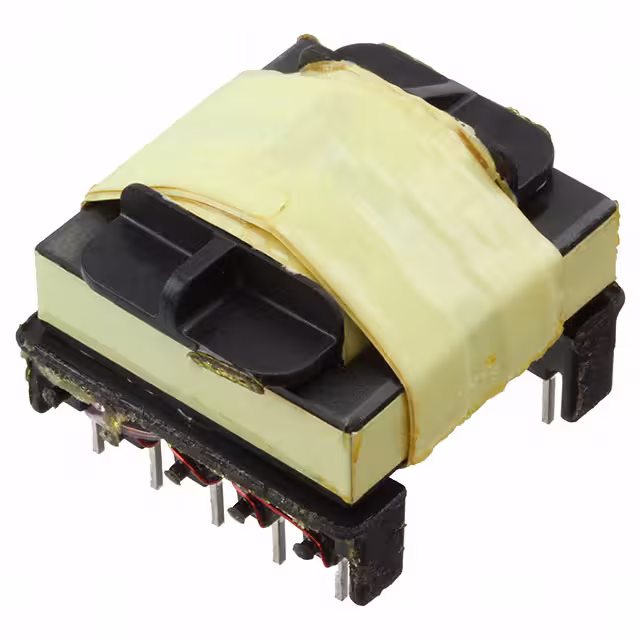

750813550OFFLINE XFRM WE-UNIT TI LM3450 Würth Elektronik |
2,728 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT, MID-OLTI | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 191V | 12.5V @ 80mA | 3000Vrms | 1.02mH @ 10kHz | 55 ~ 85kHz | - | Through Hole | 1.125 L x 1.150 W (28.58mm x 29.21mm) | 0.905 (22.99mm) | 1.125 L x 1.150 W (28.58mm x 29.21mm) |
|

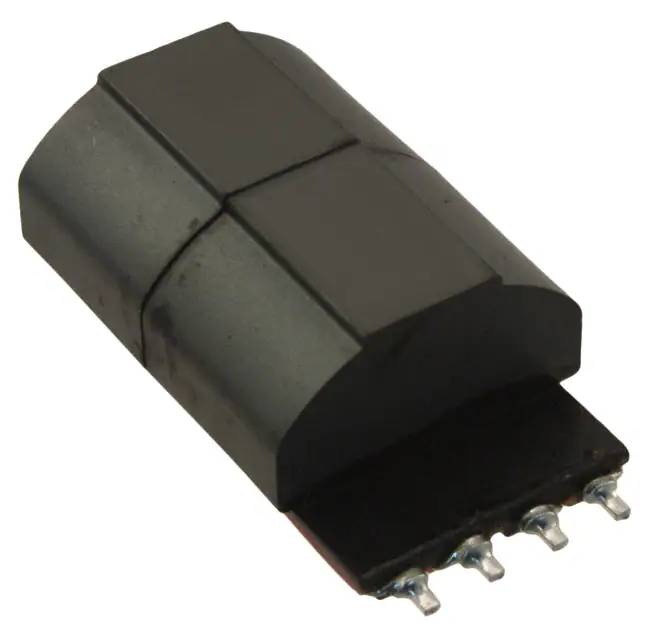

760875142TRANS 4500V SMD Würth Elektronik |
3,211 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | WE-FB, MID-OLT8 | Active | - | LED Drivers, AC/DC SMPS | - | - | 280 ~ 380V | 19V @ 20mA | 4500Vrms | 2.5mH @ 10kHz | 85kHz | -40°C ~ 125°C | Surface Mount | 0.740 L x 1.319 W (18.80mm x 33.50mm) | 0.477 (12.12mm) | 0.740 L x 1.437 W (18.80mm x 36.50mm) |
|
750811042TRANS FLYBACK ON SEMI NCP1014 Würth Elektronik |
3,869 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT, MID-OLON | Active | For AC/DC Converters | Flyback Converters | NCP1014 | On Semiconductor | 120 ~ 375V | - | 4500Vrms | 1.8mH @ 10kHz | 100kHz | -40°C ~ 125°C | Through Hole | - | 0.635 (16.13mm) | 0.800 L x 0.960 W (20.32mm x 24.38mm) |
|
750311593TRANS FLYBACK LT3748 15UH SMD Würth Elektronik |
3,715 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | WE-FB | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | 10V | 1500Vrms | 15µH @ 150kHz | 150kHz | -40°C ~ 85°C | Surface Mount | - | 0.544 (13.82mm) | 1.064 L x 1.272 W (27.03mm x 32.31mm) |
|
|
750311594TRANS FLYBACK LT3748 15UH SMD Würth Elektronik |
2,965 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FB | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | 10V | 1500Vrms | 15µH @ 150kHz | 150kHz | -40°C ~ 85°C | Surface Mount | - | 0.544 (13.82mm) | 1.064 L x 1.272 W (27.03mm x 32.31mm) |
|
750845242FLYBACK TRANSFORMER Würth Elektronik |
3,680 | - |
RFQ |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

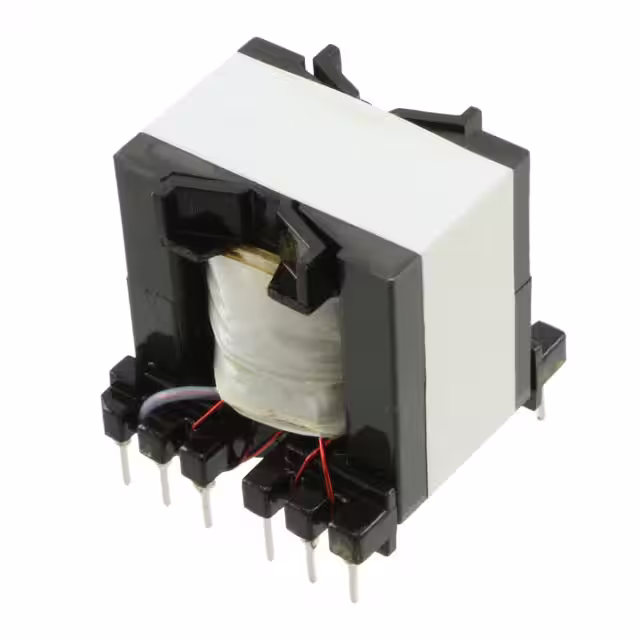

750311267TRANS FLYBACK ON SEMI NCP1652 Würth Elektronik |
3,507 | - |
RFQ |
Ficha técnica |
Tray | WE-FB, MID-OLON | Active | For AC/DC Converters | Flyback Converters | NCP1652 | On Semiconductor | - | - | 3000Vrms | 625µH @ 10kHz | - | - | Through Hole | 1.400 L x 1.470 W (35.56mm x 37.34mm) | 1.355 (34.42mm) | 1.400 L x 1.470 W (35.56mm x 37.34mm) |
|
750343004FLYBACK TRANSFORMER WE-FB Würth Elektronik |
2,495 | - |
RFQ |
Ficha técnica |
Tray | MID-OLTI | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | - | - | 3750Vrms | - | 65kHz | -40°C ~ 125°C | Through Hole | - | 1.299 (33.00mm) | - |
|
750811146TRANSFORMER FLYBACK TPS92210 Würth Elektronik |
3,953 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT, MID-OLTI | Active | For AC/DC Converters | Flyback Converters | PMP6001, TPS92210 | Texas Instruments | 88 ~ 269V | - | 3750Vrms | 430µH @ 65kHz | 130kHz | -40°C ~ 125°C | Through Hole | 0.876 L x 0.567 W (22.88mm x 14.40mm) | 0.878 (22.30mm) | 0.876 L x 0.567 W (22.25mm x 14.40mm) |
|
|
PH9278NLTTRANSFORMER 3TP:3TS:3TS NPB Pulse Electronics Power |
2,278 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | 1.055 L x 1.319 W (26.80mm x 33.50mm) | 0.730 (18.55mm) | 1.055 L x 1.319 W (26.80mm x 33.50mm) |
|

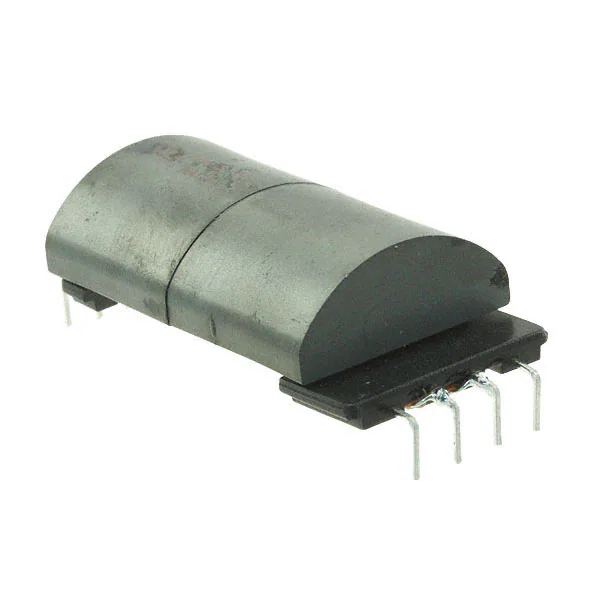

750841243TRANS 3000V RAD Würth Elektronik |
3,534 | - |
RFQ |
Ficha técnica |
Tray | WE-FB, MID-OLT8 | Active | - | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 20V @ 50mA | 3000Vrms | 270µH @ 10kHz | 85kHz | -40°C ~ 125°C | Through Hole | - | 0.477 (12.12mm) | 0.886 L x 1.850 W (22.50mm x 47.00mm) |
|

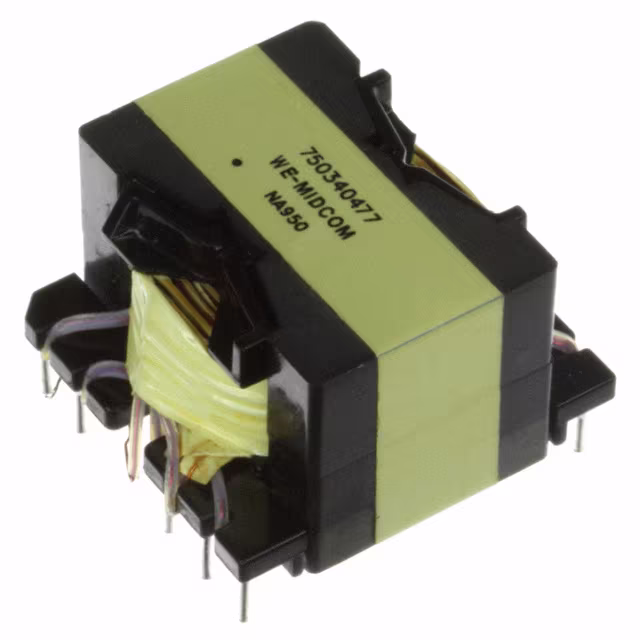

750340477TRANS FLYBACK NXPSSL1750 550UH Würth Elektronik |
2,834 | - |
RFQ |
Ficha técnica |
Tray | - | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL1750 | NXP Semiconductors | - | - | 1000Vrms | 550µH @ 60kHz | - | - | Through Hole | 1.339 L x 1.370 W (34.00mm x 34.80mm) | 0.955 (24.26mm) | 1.339 L x 1.370 W (34.00mm x 34.80mm) |
|

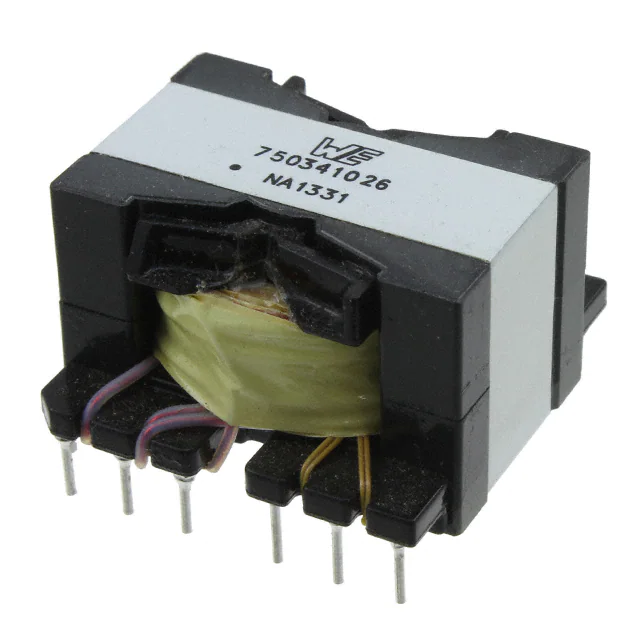

750341026FLYBACK XFRM WE-FB NXP Würth Elektronik |
3,569 | - |
RFQ |
Ficha técnica |
Tray | WE-FB | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL4101 | - | - | - | - | 710µH @ 10kHz | - | - | Through Hole | - | 0.865 (21.97mm) | 1.339 L x 1.350 W (34.00mm x 34.30mm) |
|

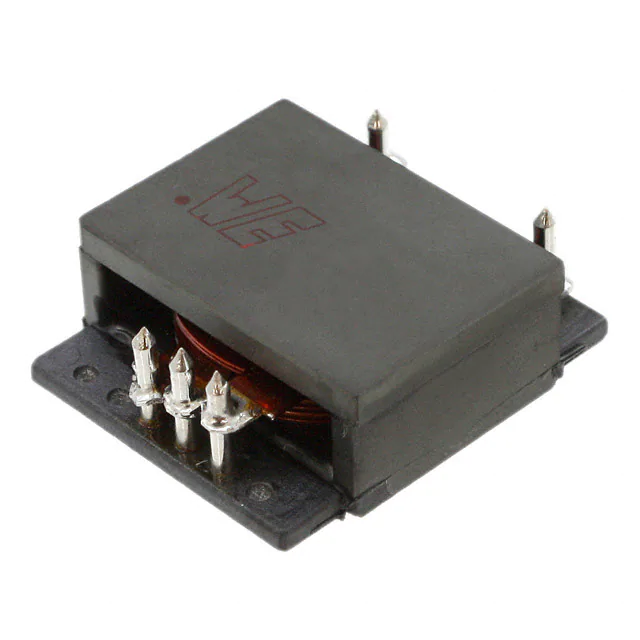

750341143TRANSFORMER PLANAR 170UH SMD Würth Elektronik |
3,343 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FW, MID-PLN | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 170µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 1.050 L x 1.154 W (26.67mm x 29.30mm) | 0.418 (10.62mm) | 1.050 L x 1.154 W (26.67mm x 29.30mm) |
|

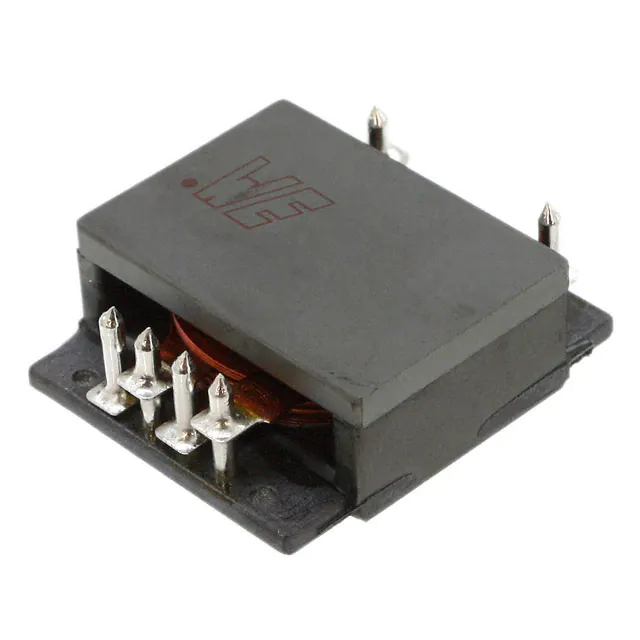

750341144TRANSFORMER PLANAR 300UH SMD Würth Elektronik |
2,009 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FW, MID-PLN | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 260µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | Surface Mount | 1.050 L x 1.154 W (26.67mm x 29.30mm) | 0.418 (10.62mm) | 1.050 L x 1.154 W (26.67mm x 29.30mm) |
