Convertidores de conmutación, transformadores SMPS
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.00xNL-Series.jpg)
|
PA3856.004NLXFMR,FORWARD,EEP13,SMT NPB Pulse Electronics Power |
840 | - |
RFQ |
Ficha técnica |
Tray | - | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.695 W (14.50mm x 17.65mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
PGT6465NLTTRANSF FLYBACK 70-820V TO 5V/13V Pulse Electronics Power |
150 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | 70 ~ 820V | - | 4000Vrms | 205µH @ 100kHz | 133kHz | -40°C ~ 130°C | Surface Mount | 0.650 L x 0.642 W (16.50mm x 16.30mm) | 0.433 (11.00mm) | 0.862 L x 0.650 W (21.90mm x 16.50mm) |
|

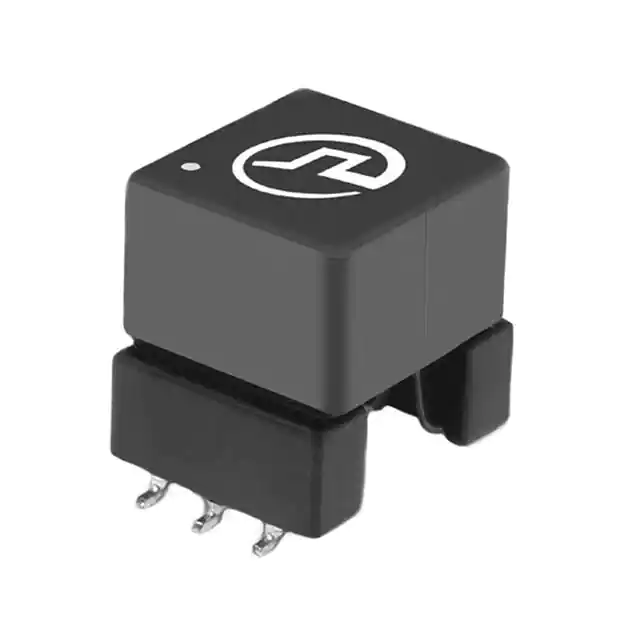

PM9595NLTTRANSFORMER FLYBACK SIC 3W Pulse Electronics Power |
585 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | PM9595.XXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 12V | - | 4300VDC | 13µH | 350kHz | -40°C ~ 125°C | Surface Mount | 0.394 L x 0.394 W (10.00mm x 10.00mm) | 0.539 (13.70mm) | 0.512 L x 0.394 W (13.01mm x 10.00mm) |
|
PA5112.003NLTTRANSF FLY 24W 48V TO 12V Pulse Electronics Power |
3,953 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | PA5112.XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 155µH @ 140kHz | 140kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|

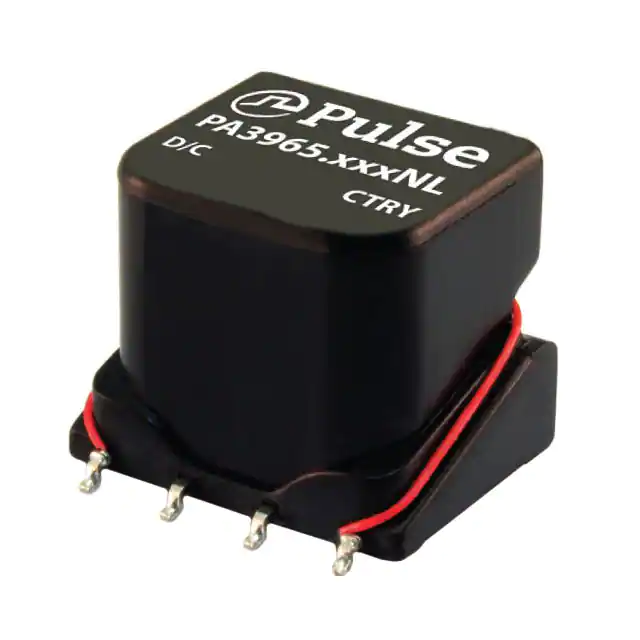

PA3965.001NLXFRMR FLYBACK 7W Pulse Electronics Power |
2,012 | - |
RFQ |
Ficha técnica |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | 0.657 L x 0.500 W (16.70mm x 12.70mm) | 0.557 (14.15mm) | 0.657 L x 0.650 W (16.70mm x 16.50mm) |
|
PA3965.002NLTXFMR FLYBACK 7W REINFORCED NPB Pulse Electronics Power |
3,526 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA3965.XXXNLT | Active | - | - | - | - | - | - | - | - | - | - | - | 0.657 L x 0.500 W (16.70mm x 12.70mm) | 0.557 (14.15mm) | 0.657 L x 0.650 W (16.70mm x 16.50mm) |
|
|
PA3964.001NLTXFMR AC FORWARD 7W REINFOR NPB Pulse Electronics Power |
2,524 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA3964.XXXNLT | Active | - | - | - | - | - | - | - | - | - | - | - | 0.614 L x 0.591 W (15.60mm x 15.00mm) | 0.291 (7.40mm) | 0.614 L x 0.650 W (15.60mm x 16.50mm) |
|
|
PA3964.002NLTXFMR PUSHPULL 7W REINFORCE NPB Pulse Electronics Power |
2,040 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA3964.XXXNLT | Active | - | - | - | - | - | - | - | - | - | - | - | 0.614 L x 0.591 W (15.60mm x 15.00mm) | 0.291 (7.40mm) | 0.614 L x 0.650 W (15.60mm x 16.50mm) |
|
PA5130.006NLTTRANSFORMER, CM FLYBACK, EP10 PL Pulse Electronics Power |
2,766 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | PA5130XXXNL | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.610 L x 0.512 W (15.50mm x 13.00mm) | 0.610 (15.50mm) | 0.610 L x 0.512 W (15.50mm x 13.00mm) |
|
PA3855.001NLTTRANSFORMER FLYBACK 54UH SMD Pulse Electronics Power |
3,683 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
|
PA1032NLXFRMR FLYBACK 5W 46.6UH SMD Pulse Electronics Power |
2,119 | - |
RFQ |
Ficha técnica |
Tray | - | Active | For DC/DC Converters | Flyback Converters | - | - | 30 ~ 57V | 10V @ 15mA | 1500Vrms | - | 250kHz | -40°C ~ 125°C | Surface Mount | 0.450 L x 0.366 W (11.43mm x 9.30mm) | 0.260 (6.60mm) | 0.450 L x 0.500 W (11.43mm x 12.70mm) |
|
|
PA3856.001NLTTRANSFORMER FORWARD 100UH SMD Pulse Electronics Power |
3,546 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
|
PA3856.006NLTTRANSFORMER FORWARD 128UH SMD Pulse Electronics Power |
3,373 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
PGT6465NLXFMR FLYBACK EFD15 SM 8 PIN NPB Pulse Electronics Power |
2,226 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | - | Active | For DC/DC Converters | Flyback Converters | - | - | 70 ~ 820V | - | 4000Vrms | 205µH | 133kHz | -40°C ~ 130°C | Surface Mount | 0.650 L x 0.642 W (16.50mm x 16.30mm) | 0.433 (11.00mm) | 0.862 L x 0.650 W (21.90mm x 16.50mm) |
|
|

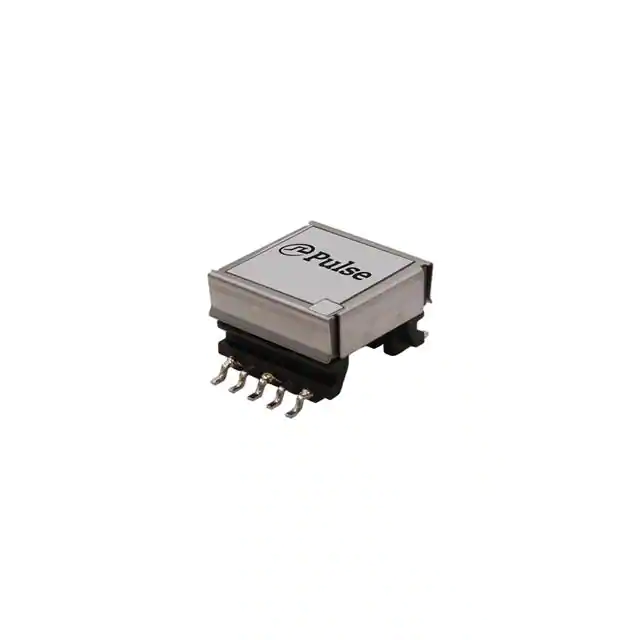

PGT6466NLXFMR FLYBACK EFD15 SM 8 PIN NPB Pulse Electronics Power |
3,012 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | - | Active | For DC/DC Converters | Flyback Converters | - | - | 6 ~ 28V | - | 4000Vrms | 1.8µH | 500kHz | -40°C ~ 130°C | Surface Mount | 0.650 L x 0.642 W (16.50mm x 16.30mm) | 0.433 (11.00mm) | 0.862 L x 0.650 W (21.90mm x 16.50mm) |
|
|
PA5100.006NLTTRANSFORMER, FORWARD, EP7 PLUS Pulse Electronics Power |
2,879 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | PA5100XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.535 L x 0.433 W (13.60mm x 11.00mm) | 0.610 (15.50mm) | |
|
PA4470.003NLTTRANSFORMER FLYBACK DM 1.8W SMT Pulse Electronics Power |
2,224 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA4470 | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | Surface Mount | - | 0.236 (6.00mm) | 0.315 L x 0.374 W (8.00mm x 9.50mm) |
|
|
PA4470.004NLTTRANSFORMER FLYBACK DM 1.8W SMT Pulse Electronics Power |
2,531 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA4470 | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | Surface Mount | - | 0.236 (6.00mm) | 0.315 L x 0.374 W (8.00mm x 9.50mm) |
|
|
PA4470.002NLTTRANSFORMER FLYBACK DM 1.8W SMT Pulse Electronics Power |
2,318 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA4470 | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | Surface Mount | - | 0.236 (6.00mm) | 0.315 L x 0.374 W (8.00mm x 9.50mm) |
|
|
PA4470.006NLTTRANSFORMER FLYBACK DM 1.8W SMT Pulse Electronics Power |
3,646 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | PA4470 | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | Surface Mount | - | 0.236 (6.00mm) | 0.315 L x 0.374 W (8.00mm x 9.50mm) |
