Convertidores de conmutación, transformadores SMPS
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

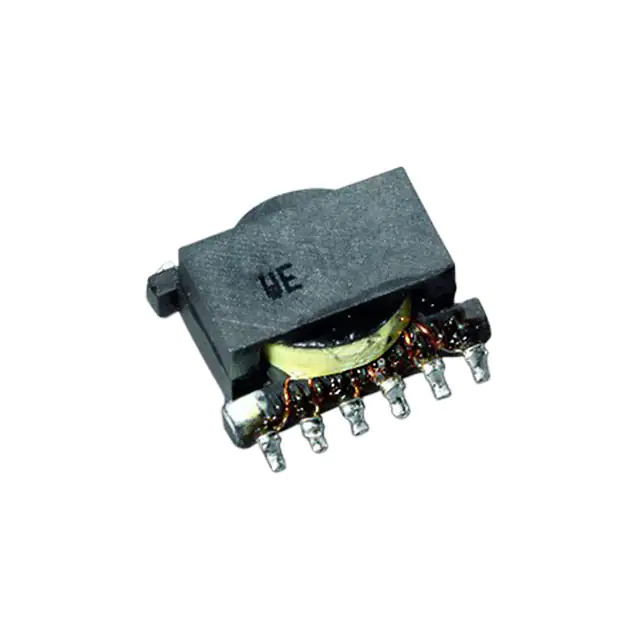

749196531TRANSFORMER 9.7UH 1.7A SMD Würth Elektronik |
120 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FLEX | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 9.7µH @ 10kHz | - | -40°C ~ 125°C | Surface Mount | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.425 (10.80mm) | 0.827 L x 1.169 W (21.00mm x 29.70mm) |
|
7491193912WE-POE POWER OVER ETHERNET TRANS Würth Elektronik |
3,706 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | WE-PoE | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | Linear Technology, Texas Instruments | 36 ~ 57V | - | 1.5kVAC | 120µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | Surface Mount | 0.689 L x 0.630 W (17.50mm x 16.00mm) | 0.327 (8.30mm) | 0.935 L x 0.689 W (23.74mm x 17.50mm) |
|
7491199501TRANS FLYBACK POE 127UH SMD Würth Elektronik |
190 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-PoE | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | Surface Mount | 0.530 L x 0.591 W (13.46mm x 15.00mm) | 0.500 (12.70mm) | 0.530 L x 0.713 W (13.46mm x 18.10mm) |
|
|
7491199332TRANS FLYBACK POE 35UH SMD Würth Elektronik |
190 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-PoE | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 14 ~ 60V | 10V @ 50mA | 1500Vrms | 35µH @ 100kHz | 250kHz | -40°C ~ 125°C | Surface Mount | 0.530 L x 0.591 W (13.46mm x 15.00mm) | 0.500 (12.70mm) | 0.530 L x 0.713 W (13.46mm x 18.10mm) |
|
749119433TRANS FLYBACK POE+ 42UH SMD Würth Elektronik |
2,758 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-PoE+ | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 11V | 1500Vrms | 42µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | Surface Mount | - | 0.455 (11.56mm) | 0.910 L x 1.145 W (23.11mm x 29.08mm) |
|

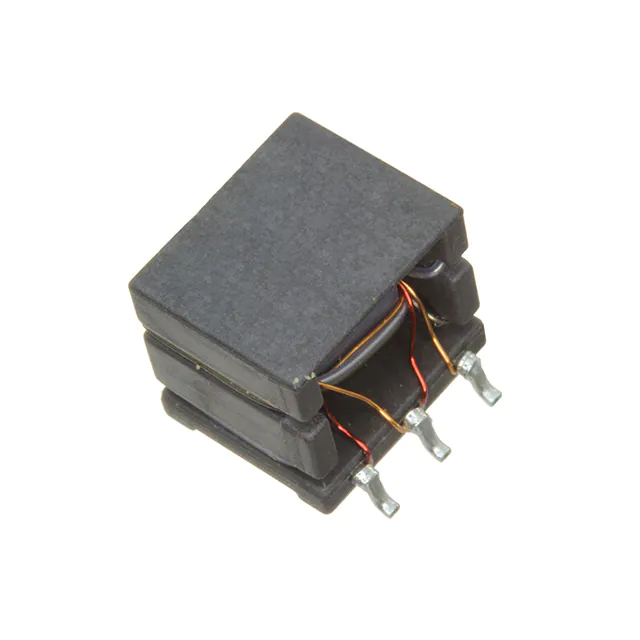

750316031PUSH-PULL TRANSFORMER WE-PP Würth Elektronik |
349 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-PP, MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 3.3V | - | - | - | 150kHz | -40°C ~ 85°C | Surface Mount | 0.485 L x 0.410 W (12.32mm x 10.41mm) | - | - |
|
750343804MID-HB POWER TRANSFORMER EPX7 SM Würth Elektronik |
299 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | WE-FW, MID-HB | Active | - | - | - | - | 15V | - | 3000VAC | - | - | -40°C ~ 125°C | Surface Mount | - | 0.485 (12.32mm) | - | |
|
VGT15SEFD-200S1A4TRANSFORMERS FOR IGBT/FET TDK Corporation |
109 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | VGT | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 10µH @ 100kHz | - | -40°C ~ 130°C | Surface Mount | 0.614 L x 0.606 W (15.60mm x 15.40mm) | 0.394 (10.00mm) | 0.764 L x 0.614 W (19.40mm x 15.60mm) |
|
750311592TRANS FLYBACK LT3748 8UH SMD Würth Elektronik |
180 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FB | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | 10V | 1500Vrms | 8µH @ 150kHz | 150kHz | -40°C ~ 85°C | Surface Mount | - | 0.544 (13.82mm) | 1.064 L x 1.272 W (27.03mm x 32.31mm) |
|
EPC3668G-LFPUSH-PULL XFM. 0.75W PCA Electronics, Inc. |
3,656 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | EPC-SMT6 | Active | For DC/DC Converters | Push-Pull Converters | SN6501, SN6505B | Texas Instruments | 5V | 5V | 2500Vrms | 1mH @ 10KHz | 300 ~ 620kHz | -40°C ~ 125°C | Surface Mount | - | 0.165 (4.19mm) | 0.276 L x 0.433 W (7.01mm x 11.00mm) |
|
EPC3410G-LFPOE FLYBACK XFM 12V, 25W PCA Electronics, Inc. |
180 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | EPC-EP13 | Active | For DC/DC Converters | Flyback Converters | LT42691 | Analog Devices | 36 ~ 57V | 12V | 1500Vrms | 37µH @ 100KHz | 250kHz | -40°C ~ 85°C | Surface Mount | - | 0.500 (12.70mm) | 0.550 L x 0.669 W (13.97mm x 17.00mm) |
|
750311269TRANSFORMER FLYBACK NCL30001 Würth Elektronik |
2,994 | - |
RFQ |
Ficha técnica |
Tray | WE-FB, MID-OLON | Active | For AC/DC Converters | Flyback Converters | NLC30001 | On Semiconductor | 85 ~ 265V | - | 3750Vrms | 600µH @ 10kHz | 70kHz | -40°C ~ 125°C | Through Hole | 1.400 L x 1.470 W (35.56mm x 37.34mm) | 1.355 (34.42mm) | 1.400 L x 1.470 W (35.56mm x 37.34mm) |
|
PA0909NLXFMER, 8TP:8TP:4TS PRISM NPB Pulse Electronics Power |
3,808 | - |
RFQ |
Ficha técnica |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160 L x 1.000 W (29.46mm x 25.40mm) | 0.402 (10.20mm) | 1.000 L x 1.160 W (25.40mm x 29.46mm) |
|

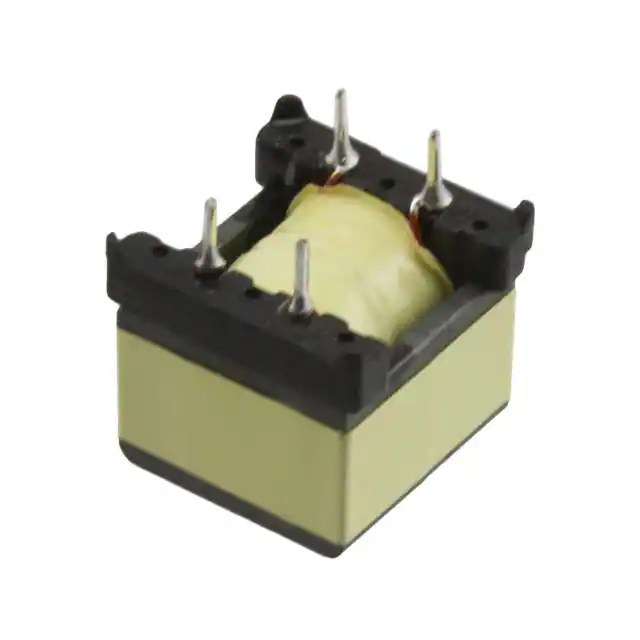

750311524TRANS BUCK SSL2101 95UH RAD Würth Elektronik |
3,870 | - |
RFQ |
Ficha técnica |
Tray | MID-LLIT | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL2101 | NXP Semiconductors | 230V | - | 1000Vrms | 180µH @ 100kHz, 95µH @ 100kHz | - | -40°C ~ 125°C | Through Hole | 0.550 L x 0.550 W (13.97mm x 13.97mm) | 0.505 (12.83mm) | 0.550 L x 0.550 W (13.97mm x 13.97mm) |
|

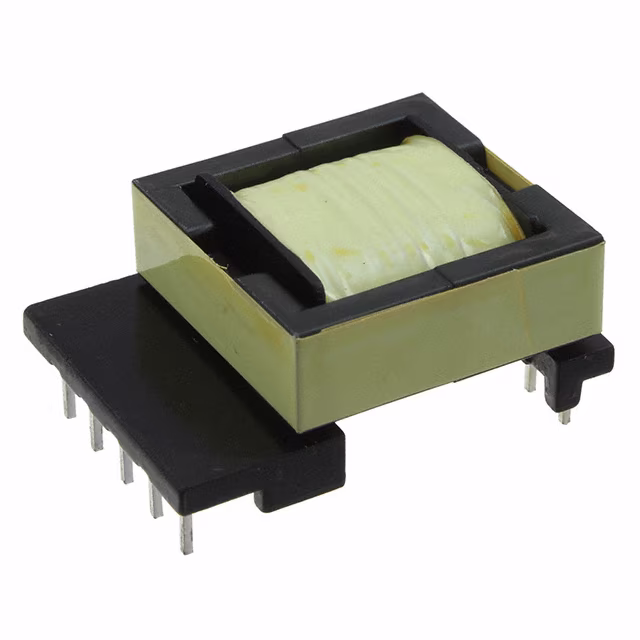

7508112330THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik |
2,045 | - |
RFQ |
Ficha técnica |
Tray | WE-UNIT, MID-OLEDF | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 130kHz | -40°C ~ 125°C | Through Hole | 0.846 L x 1.142 W (21.50mm x 29.00mm) | 0.477 (12.12mm) | 0.846 L x 1.142 W (21.50mm x 29.00mm) |
|
VPH4-0060-RPULSE XFMR 10.1UH SMD Eaton - Electronics Division |
2,193 | - |
RFQ |
Ficha técnica |
Bulk | VERSA-PAC® | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | Surface Mount | 0.709 L x 0.969 W (18.00mm x 24.60mm) | 0.394 (10.00mm) | - |
|
749196121WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik |
500 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | WE-FLEX | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VAC | 14.7µH @ 10kHz | - | -40°C ~ 125°C | Surface Mount | 0.508 L x 0.362 W (12.90mm x 9.20mm) | 0.244 (6.20mm) | 0.559 L x 0.508 W (14.20mm x 12.90mm) | |
|

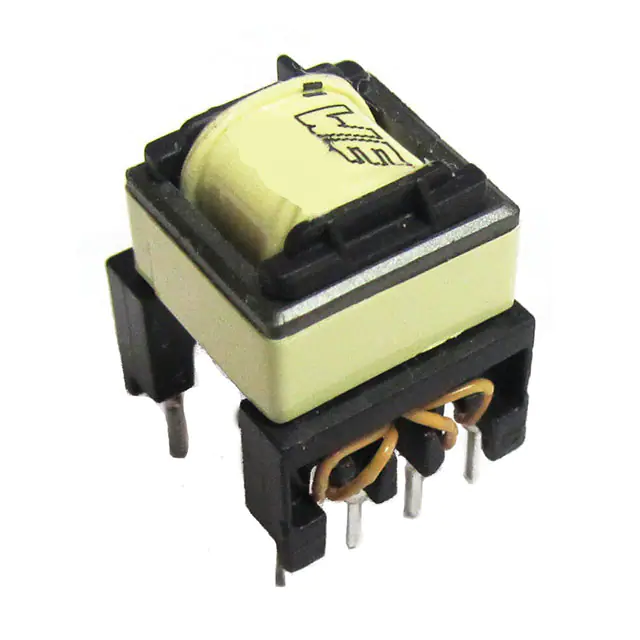

750810014OFFLINE TRANSFORMER 6W EE13/7/6 Würth Elektronik |
2,214 | - |
RFQ |
Ficha técnica |
Tray | MID-OLSTM | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375V | - | 1875Vrms | 2mH @ 10kHz | 60kHz | -40°C ~ 125°C | Through Hole | 0.620 L x 0.591 W (15.75mm x 15.00mm) | 0.728 (18.50mm) | 0.620 L x 0.591 W (15.75mm x 15.00mm) |
|
750811611SMD OFFLINE TRANSFORMER WE-UNIT Würth Elektronik |
226 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | MID-OLEFD | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 100kHz | -40°C ~ 125°C | Surface Mount | - | 0.477 (12.12mm) | 0.846 L x 1.331 W (21.50mm x 33.80mm) |
2-Series.jpg)
|
VPH2-0116-RPULSE XFMR 11.6UH SMD Eaton - Electronics Division |
2,098 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | VERSA-PAC® | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | Surface Mount | 0.642 L x 0.661 W (16.30mm x 16.80mm) | 0.307 (7.80mm) | - |
