Motor Paso a Paso Motores

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	Type	CoilType	Voltage-Rated	CurrentRating(Amps)	StepsperRevolution	StepAngle	Accuracy	Torque-Holding(oz-in/mNm)	Size/Dimension	NEMAFrameSize	Diameter-Shaft	Length-ShaftandBearing	MountingHoleSpacing	TerminationStyle	OperatingTemperature	CoilResistance
WO-4118M-06P STEPPER MOTOR Lin Engineering	184	-	RFQ	Ficha técnica	Tray	4118	Active	-	Bipolar	24VDC	1.4 A	200	1.8°	-	63 / 444.88	Square - 1.669 x 1.669 (42.40mm x 42.40mm)	17	0.197 (5.00mm)	0.945 (24.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	2.7 Ohms
WO-211-20-01-RO STEPPER MOTOR Lin Engineering	102	-	RFQ	Ficha técnica	Tray	-	Active	-	Bipolar	24VDC	670 mA	200	1.8°	-	16.6 / 117.22	Square - 1.110 x 1.110 (28.20mm x 28.20mm)	11	0.197 (5.00mm)	0.787 (20.00mm)	0.906 (23.00mm)	Wire Leads	-20°C ~ 50°C	8.6 Ohms
17PM-K053-00VS STEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation	127	-	RFQ	Ficha técnica	Bulk	17PM	Active	Hybrid	Unipolar	24VDC	850 mA	200	1.8°	±5%	24.08 / 170	Square - 1.654 x 1.654 (42.00mm x 42.00mm)	17	0.197 (5.00mm)	0.984 (25.00mm)	1.220 (31.00mm)	Wire Leads	-10°C ~ 50°C	4.2 Ohms

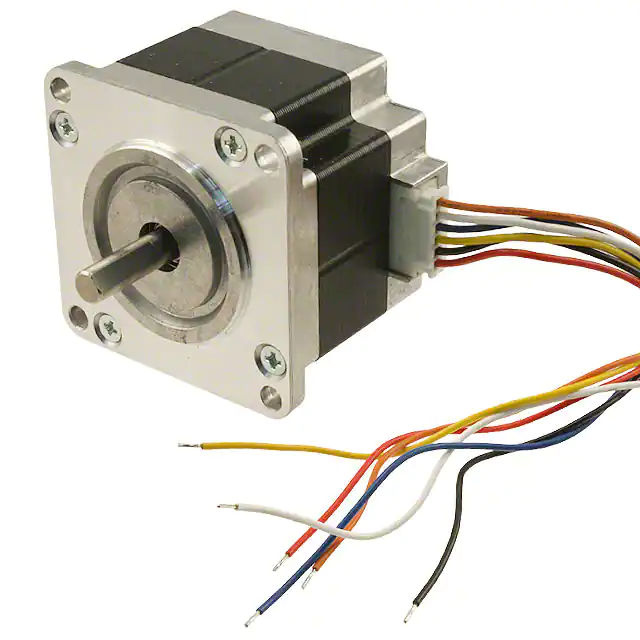

23KM-K267-00V STEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation	108	-	RFQ	Ficha técnica	Bulk	23KM	Active	Hybrid	Unipolar	24VDC	900 mA	200	1.8°	±5%	67.98 / 480	Square - 2.220 x 2.220 (56.40mm x 56.40mm)	23	0.250 (6.35mm)	0.984 (25.00mm)	1.856 (47.14mm)	Wire Leads with Connector	-10°C ~ 50°C	5.8 Ohms

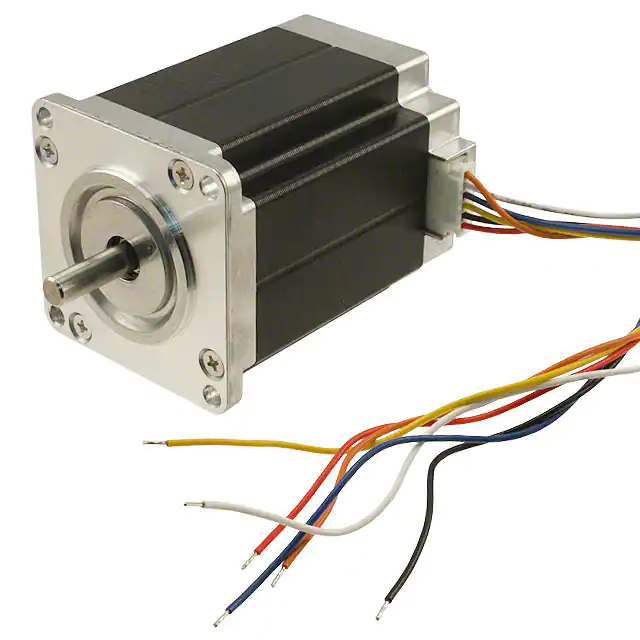

23KM-K748-00V STEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation	2,654	-	RFQ	Ficha técnica	Bulk	23KM	Active	Hybrid	Unipolar	24VDC	2 A	200	1.8°	±5%	198.28 / 1400	Square - 2.220 x 2.220 (56.40mm x 56.40mm)	23	0.250 (6.35mm)	0.984 (25.00mm)	1.856 (47.14mm)	Wire Leads with Connector	-10°C ~ 50°C	2.3 Ohms

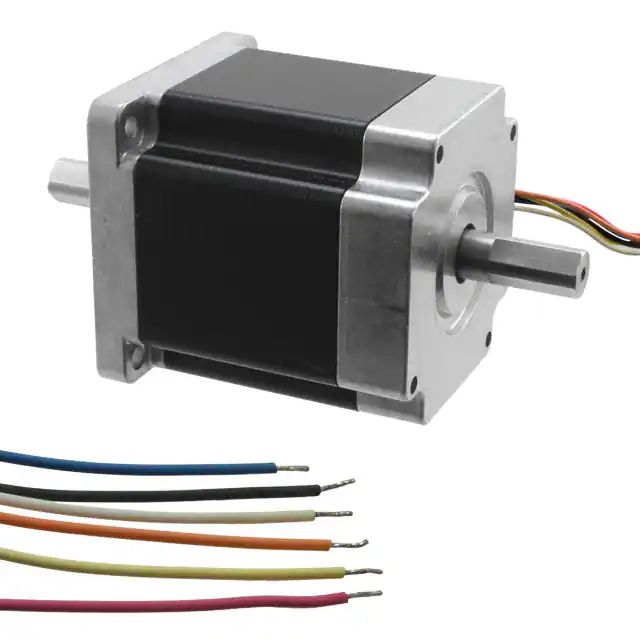

34KM-K122-99W STEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation	103	-	RFQ	Ficha técnica	Bulk	34KM	Active	Hybrid, Dual Shaft	Unipolar	24VDC	1.9 A	200	1.8°	±5%	679.82 / 4800	Square - 3.347 x 3.347 (85.00mm x 85.00mm)	34	0.551 (14.00mm)	1.457 (37.00mm)	2.740 (69.60mm)	Wire Leads	-10°C ~ 50°C	3.9 Ohms
WO-4209M-01P STEPPER MOTOR Lin Engineering	118	-	RFQ	Ficha técnica	Tray	-	Active	-	Bipolar	24VDC	1.7 A	400	0.9°	-	51 / 360	Square - 1.669 x 1.669 (42.40mm x 42.40mm)	17	0.197 (5.00mm)	0.945 (24.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	1.5 Ohms
WO-4209L-01P STEPPER MOTOR Lin Engineering	157	-	RFQ	Ficha técnica	Tray	-	Active	-	Bipolar	24VDC	1.7 A	400	0.9°	-	62 / 438	Square - 1.669 x 1.669 (42.40mm x 42.40mm)	17	0.197 (5.00mm)	0.945 (24.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	1.9 Ohms
WO-5718X-15P-RO STEPPER MOTOR Lin Engineering	247	-	RFQ	Ficha técnica	Bulk	-	Active	-	Bipolar	24VDC	4.2 A	200	1.8°	-	100 / 706	Square - 2.252 x 2.252 (57.20mm x 57.20mm)	23	0.236 (6.00mm)	0.827 (21.00mm)	1.850 (47.00mm)	Wire Leads	-20°C ~ 50°C	0.3 Ohms

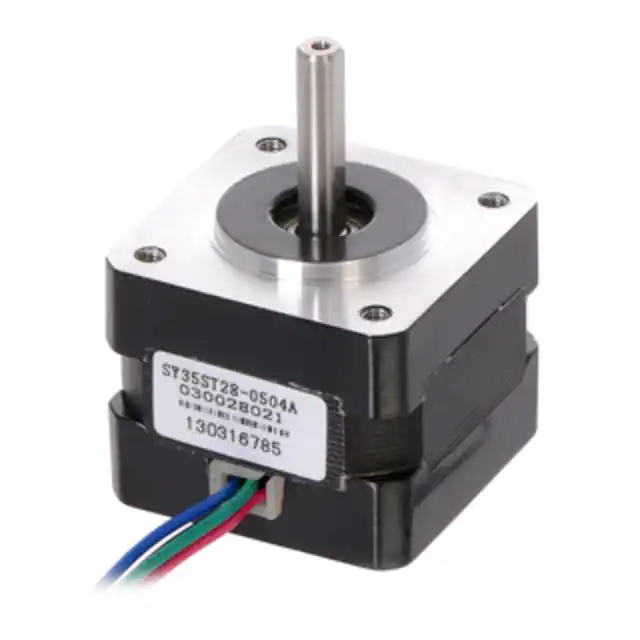

1208 STPR MTR BIPOLAR 10V 0.5A/PHASE Pololu Corporation	294	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	10VDC	500 mA	200	1.8°	-	14 / 98.86	Square - 1.386 x 1.386 (35.20mm x 35.20mm)	14	0.197 (5.00mm)	0.827 (21.00mm)	1.023 (26.00mm)	Wire Leads	-20°C ~ 50°C	20 Ohms

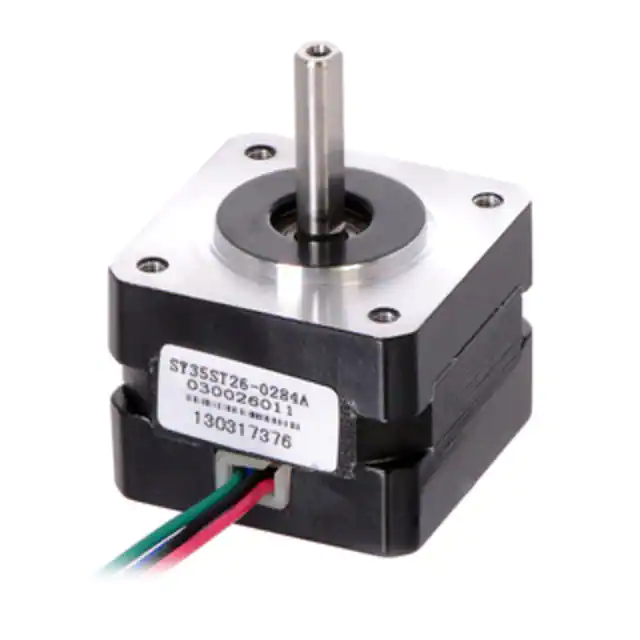

1207 STPR MTR BIPOLAR 7.4V 0.28A/PHSE Pololu Corporation	158	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	4.56VDC	280 mA	200	1.8°	-	9 / 63.55	Square - 1.386 x 1.386 (35.20mm x 35.20mm)	14	0.197 (5.00mm)	0.827 (21.00mm)	0.906 (23.00mm)	Wire Leads	-20°C ~ 50°C	26 Ohms
2267 STPR MTR BIPOLAR 2.8V 1.7A/PHASE Pololu Corporation	712	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	2.8VDC	1.7 A	200	1.8°	-	51 / 360	Square - 1.665 x 1.665 (42.30mm x 42.30mm)	17	0.197 (5.00mm)	0.945 (24.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	1.65 Ohms

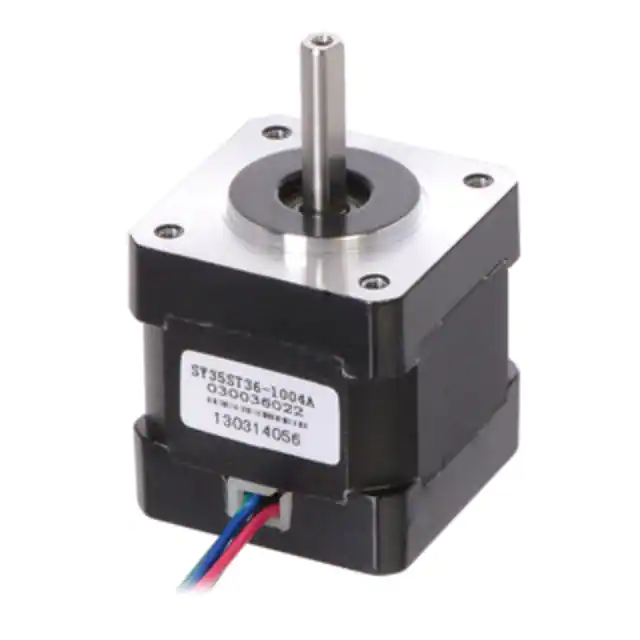

1209 STPR MTR BIPOLAR 2.7V 1A/PHASE Pololu Corporation	195	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	2.7VDC	1 A	200	1.8°	-	20 / 141.23	Square - 1.386 x 1.386 (35.20mm x 35.20mm)	14	0.197 (5.00mm)	0.827 (21.00mm)	1.023 (26.00mm)	Wire Leads	-20°C ~ 50°C	2.7 Ohms

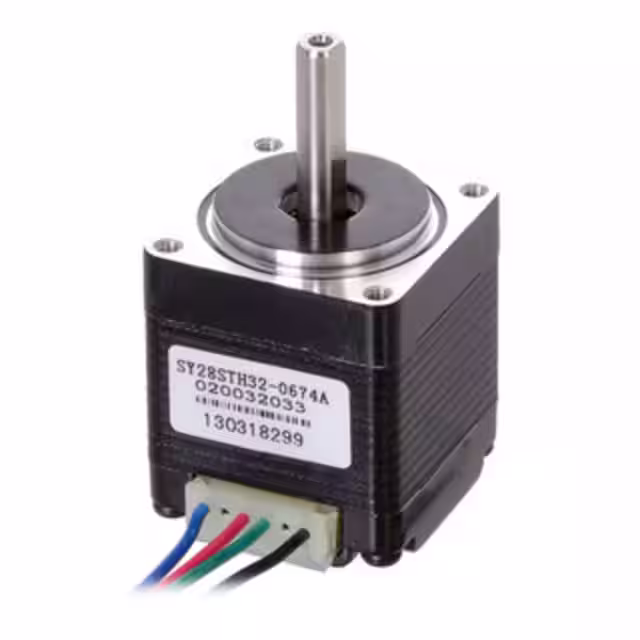

1205 STPR MTR BIPOLAR 3.8V 0.67A/PHSE Pololu Corporation	321	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	3.8VDC	670 mA	200	1.8°	-	8.33 / 58.84	Square - 1.110 x 1.110 (28.20mm x 28.20mm)	11	0.197 (5.00mm)	0.787 (20.00mm)	0.906 (23.00mm)	Wire Leads	-20°C ~ 50°C	5.6 Ohms

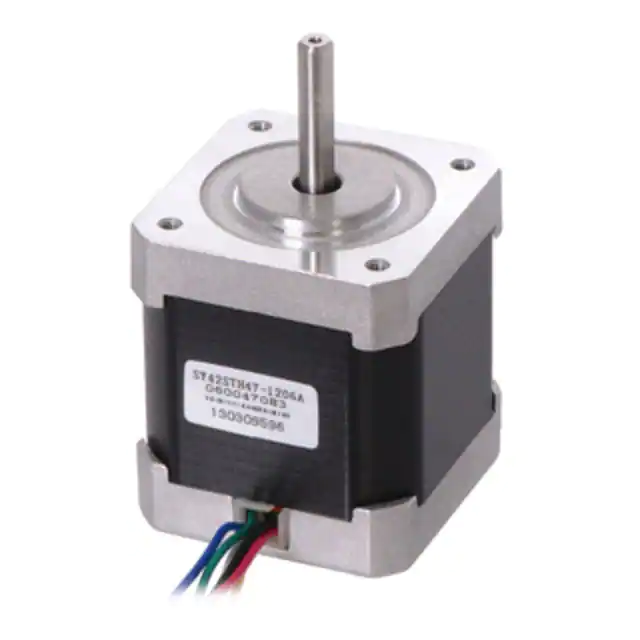

1200 STPR MTR UNI/BIPLR 4V 1.2A/PHSE Pololu Corporation	191	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Unipolar	4VDC	1.2 A	200	1.8°	-	43.9 / 310	Square - 1.665 x 1.665 (42.30mm x 42.30mm)	17	0.197 (5.00mm)	0.945 (24.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	-

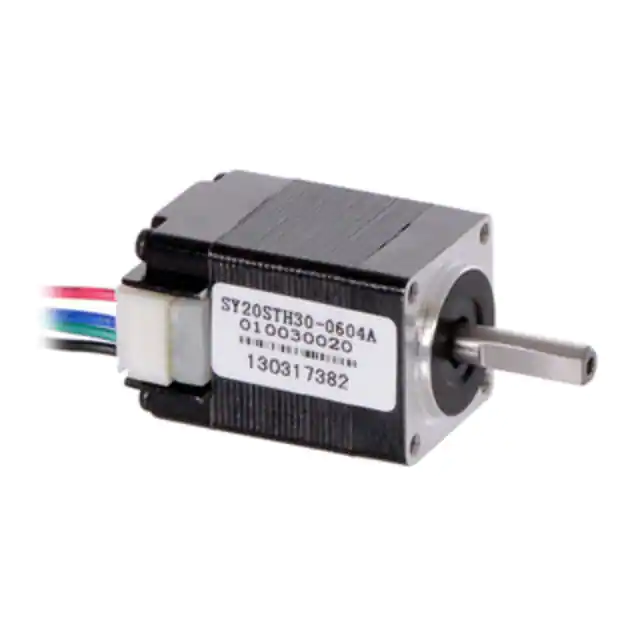

1204 STPR MTR BIPOLAR 3.9V 0.6A/PHASE Pololu Corporation	349	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	3.9VDC	600 mA	200	1.8°	-	2.5 / 17.65	Square - 0.795 x 0.795 (20.20mm x 20.20mm)	8	0.157 (4.00mm)	0.591 (15.00mm)	0.630 (16.00mm)	Wire Leads	-20°C ~ 50°C	6.5 Ohms

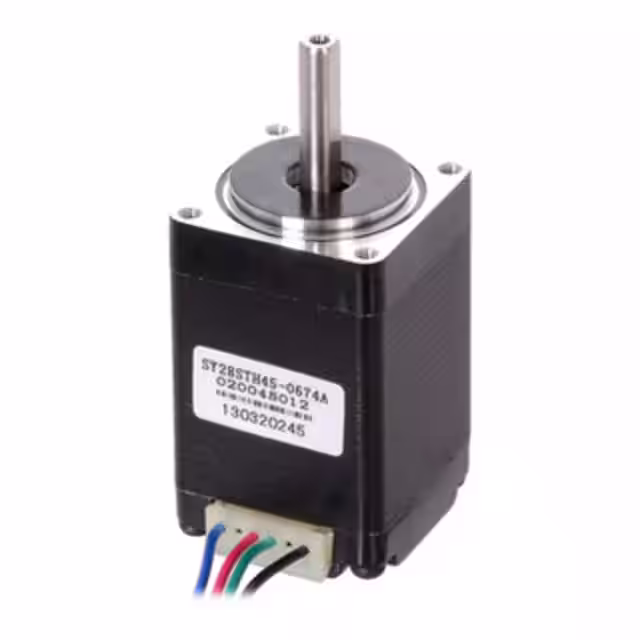

1206 STPR MTR BIPOLAR 4.5V 0.67A/PHSE Pololu Corporation	758	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	4.56VDC	670 mA	200	1.8°	-	13 / 91.8	Square - 1.110 x 1.110 (28.20mm x 28.20mm)	11	0.197 (5.00mm)	0.787 (20.00mm)	0.906 (23.00mm)	Wire Leads	-20°C ~ 50°C	6.8 Ohms

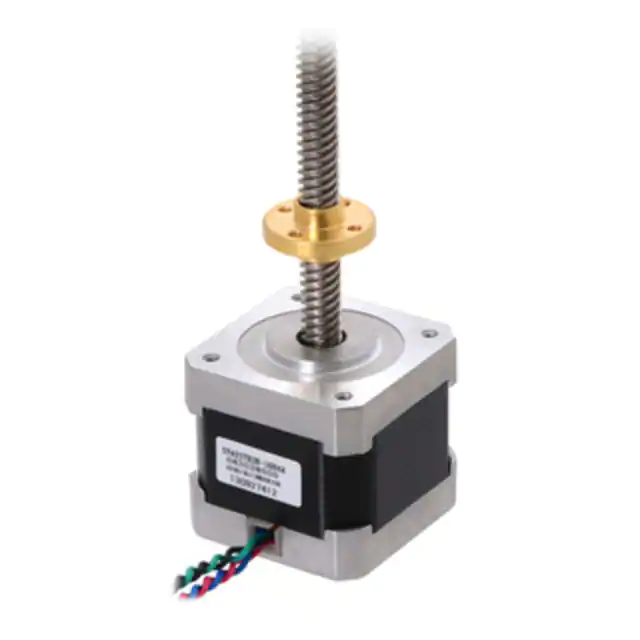

2268 STEPPER MOTOR W/28CM LEAD SCREW Pololu Corporation	2,953	-	RFQ	Ficha técnica	-	-	Active	Hybrid	Bipolar	2.8VDC	1.7 A	200	1.8°	-	51 / 360	Square - 1.665 x 1.665 (42.30mm x 42.30mm)	17	0.315 (8.00mm)	11.102 (282.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	1.65 Ohms
SY20STH42-0804A STPR MTR BIPOLAR 4.3V 0.8A/PHASE SOYO	110	-	RFQ	Ficha técnica	Bulk	SY	Active	Hybrid	Bipolar	4.32VDC	800 mA	200	1.8°	-	4.2 / 29.42	Square - 0.795 x 0.795 (20.20mm x 20.20mm)	-	0.157 (4.00mm)	0.591 (15.00mm)	0.630 (16.00mm)	Wire Leads	-20°C ~ 50°C	5.4 Ohms
SS2421-5041P STPR MTR BIPOLAR 3.5V 1A/PHASE Sanyo	3,965	-	RFQ		Bulk	SS	Active	Hybrid, Dual Shaft	Bipolar	24VDC	1 A	200	1.8°	-	11.75 / 83	Square - 1.654 x 1.654 (42.00mm x 42.00mm)	-	0.197 (5.00mm)	0.276 (7.00mm)	1.220 (31.00mm)	Wire Leads	-10°C ~ 50°C	3.5 Ohms
