Fusibles reiniciables PTC
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRE0033FF2BPTC RESET FUSE 240V 330MA RADIAL Bel Fuse Inc. |
14,970 | - |
RFQ |
Ficha técnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | 0ZRE | Active | Polymeric | 240V | 6 A | 330 mA | 740 mA | 21 s | 830 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.449 L x 0.150 W (11.40mm x 3.80mm) | 0.650 (16.50mm) | - |
|

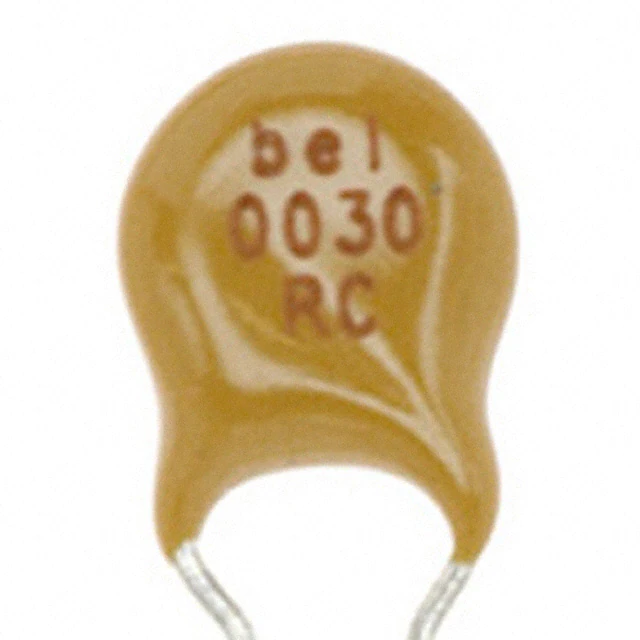

0ZRC0030FF1EPTC RESET FUSE 90V 300MA RADIAL Bel Fuse Inc. |
19,226 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 L x 0.122 W (7.40mm x 3.10mm) | 0.512 (13.00mm) | - |
|

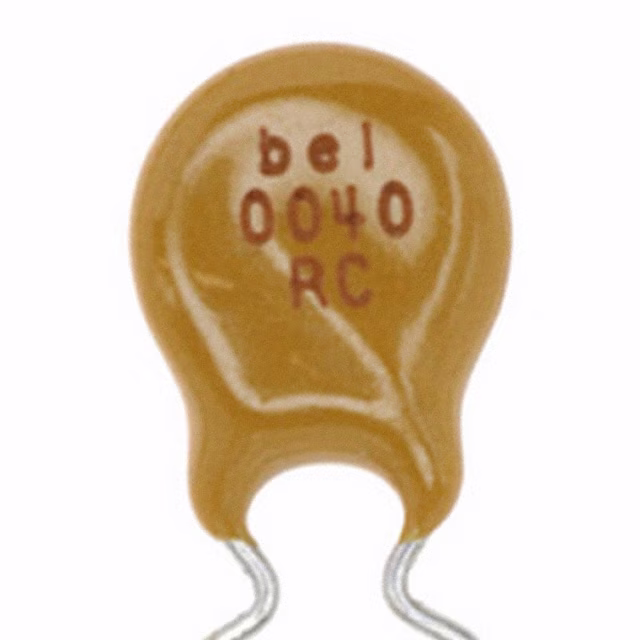

0ZRC0040FF1EPTC RESET FUSE 90V 400MA RADIAL Bel Fuse Inc. |
2,729 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.299 L x 0.122 W (7.60mm x 3.10mm) | 0.532 (13.50mm) | - |
|

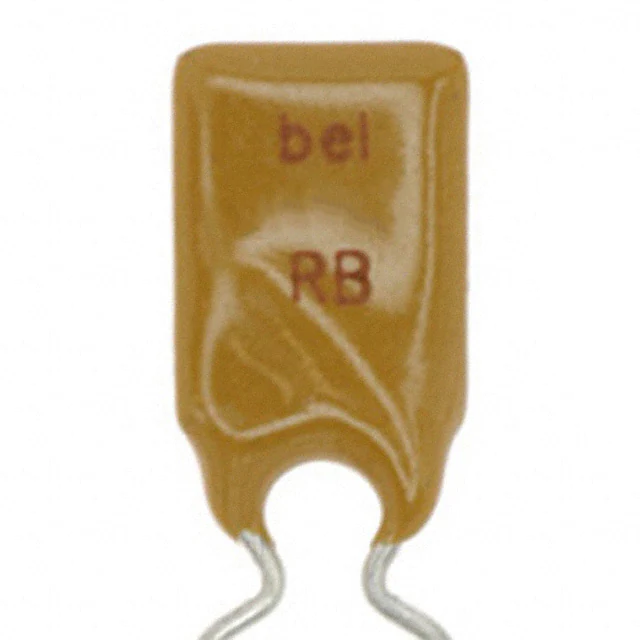

0ZRB0090FF1CPTC RESET FUSE 30V 900MA RADIAL Bel Fuse Inc. |
1,197 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRB | Active | Polymeric | 30V | 40 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|

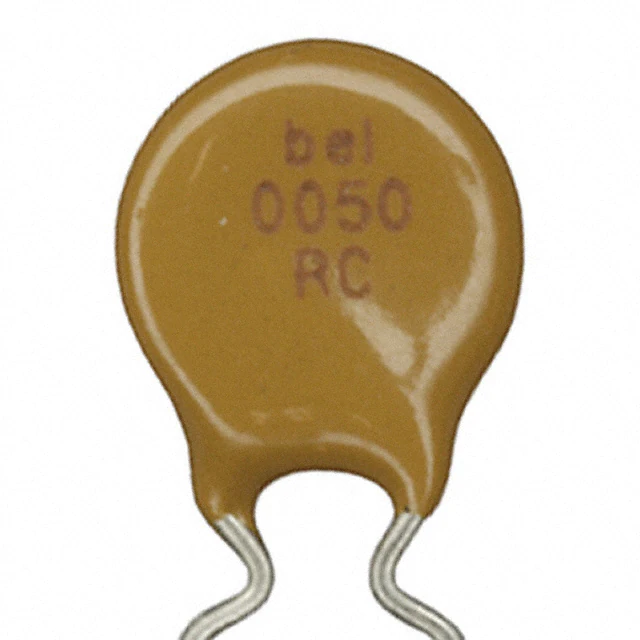

0ZRC0050FF1EPTC RESET FUSE 90V 500MA RADIAL Bel Fuse Inc. |
37,118 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.311 L x 0.122 W (7.90mm x 3.10mm) | - | - |
|

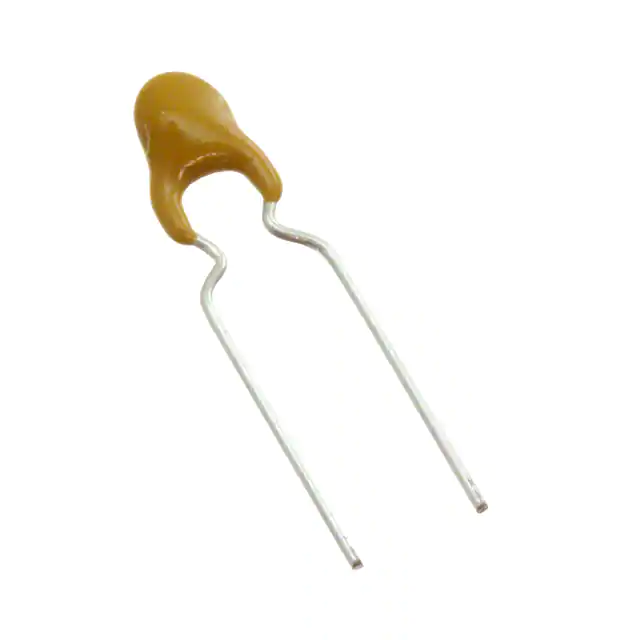

0ZRR0005FF1EPTC RESET FUSE 60V 50MA RADIAL Bel Fuse Inc. |
68,101 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRR | Active | Polymeric | 60V | 40 A | 50 mA | 100 mA | 5 s | 7.3 Ohms | 20 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
0ZRC0075FF1EPTC RESET FUSE 90V 750MA RADIAL Bel Fuse Inc. |
21,829 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.409 L x 0.122 W (10.40mm x 3.10mm) | 0.598 (15.20mm) | - |
|

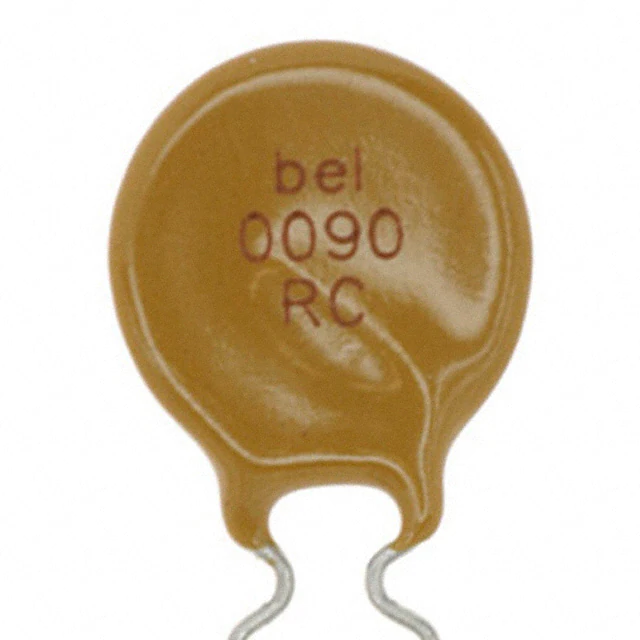

0ZRC0090FF1EPTC RESET FUSE 90V 900MA RADIAL Bel Fuse Inc. |
19,190 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.461 L x 0.122 W (11.70mm x 3.10mm) | 0.622 (15.80mm) | - |
|

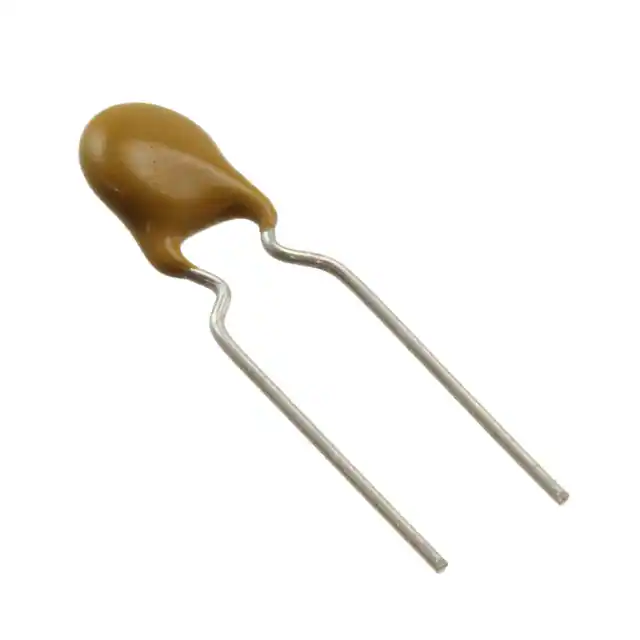

0ZRR0020FF1EPTC RESET FUSE 60V 200MA RADIAL Bel Fuse Inc. |
2,828 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRR | Active | Polymeric | 60V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
0ZRR0050FF1EPTC RESET FUSE 60V 500MA RADIAL Bel Fuse Inc. |
1,974 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRR | Active | Polymeric | 60V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.311 Dia x 0.122 T (7.90mm x 3.10mm) | 0.539 (13.70mm) | - |
|

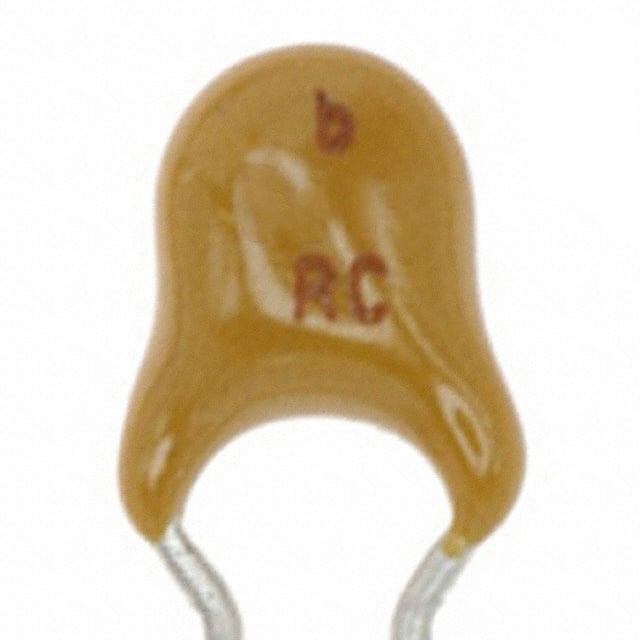

0ZRC0010FF1EPTC RESET FUSE 90V 100MA RADIAL Bel Fuse Inc. |
22,116 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 L x 0.122 W (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|

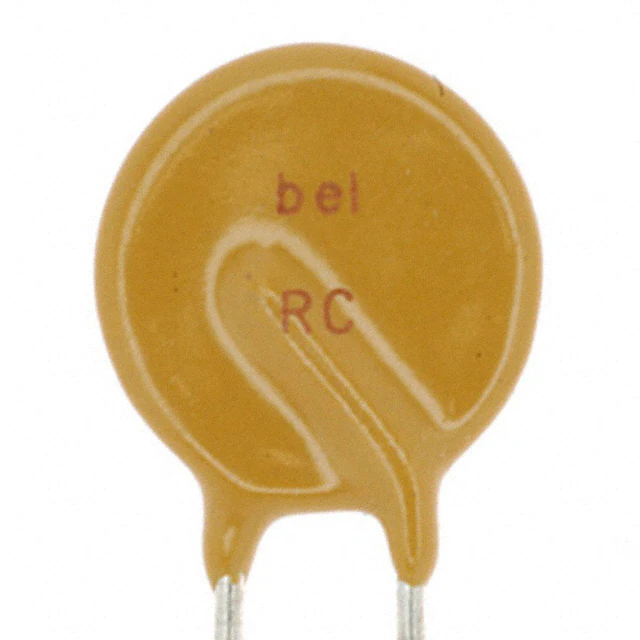

0ZRC0110FF1APTC RESET FUSE 90V 1.1A RADIAL Bel Fuse Inc. |
19,158 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.512 L x 0.122 W (13.00mm x 3.10mm) | 0.709 (18.00mm) | - |
|
0ZRE0008FF1CPTC RESET FUSE 240V 80MA RADIAL Bel Fuse Inc. |
14,394 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRE | Active | Polymeric | 240V | 1.5 A | 80 mA | 190 mA | 15 s | 7.4 Ohms | 26 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.327 L x 0.150 W (8.30mm x 3.80mm) | 0.421 (10.70mm) | - |
|

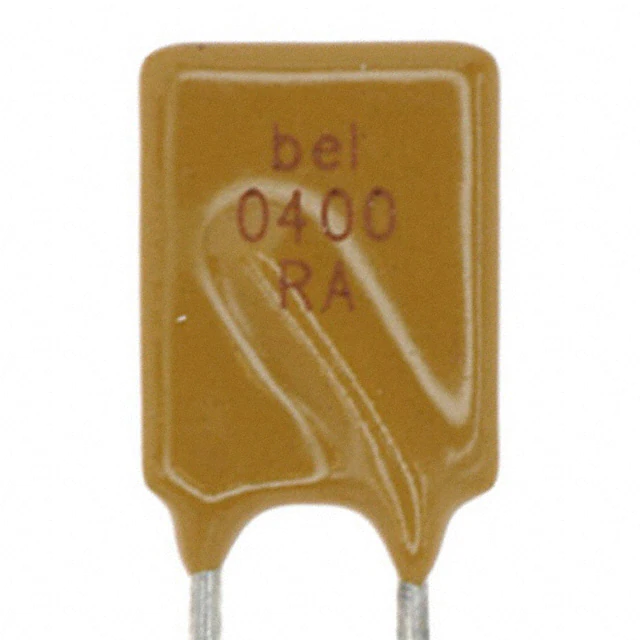

0ZRA0400FF1EPTC RESET FUSE 16V 4A RADIAL Bel Fuse Inc. |
17,822 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRA | Active | Polymeric | 16V | 100 A | 4 A | 6.8 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.280 L x 0.118 W (7.10mm x 3.00mm) | 0.504 (12.80mm) | - |
|
0ZRB0300FF1APTC RESET FUSE 30V 3A RADIAL Bel Fuse Inc. |
3,913 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRB | Active | Polymeric | 30V | 40 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.681 (17.30mm) | - |
|
0ZRG0075FF1EPTC RESET FUSE 30V 750MA RADIAL Bel Fuse Inc. |
31,381 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRG | Active | Polymeric | 30V | 40 A | 750 mA | 1.3 A | 400 ms | 80 mOhms | 230 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.272 Dia x 0.118 T (6.90mm x 3.00mm) | 0.449 (11.40mm) | - |
|
|

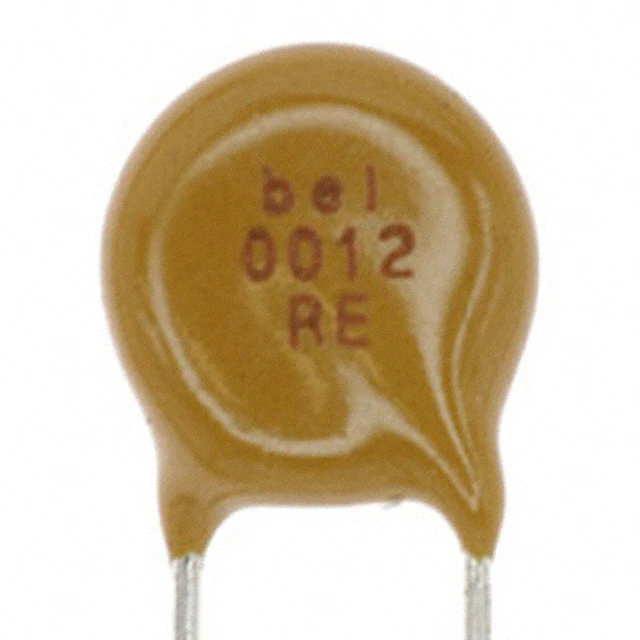

0ZRE0012FF1CPTC RESET FUSE 240V 120MA RADIAL Bel Fuse Inc. |
7,254 | - |
RFQ |
Ficha técnica |
Radial, Disc | Box | 0ZRE | Active | Polymeric | 240V | 2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.327 L x 0.150 W (8.30mm x 3.80mm) | 0.421 (10.70mm) | - |
|
0ZRG0120FF1EPTC RESET FUSE 30V 1.2A RADIAL Bel Fuse Inc. |
1,671 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRG | Active | Polymeric | 30V | 40 A | 1.2 A | 2 A | 700 ms | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.272 Dia x 0.118 T (6.90mm x 3.00mm) | 0.461 (11.70mm) | - |
|
|

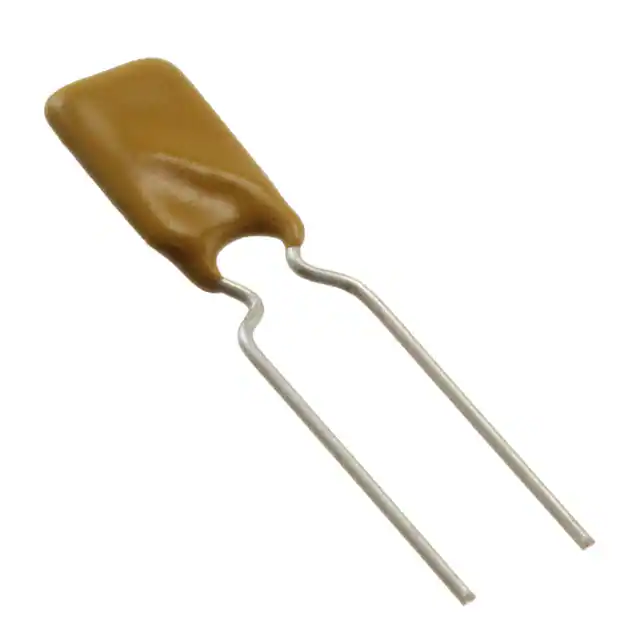

0ZRG0090FF1EPTC RESET FUSE 30V 900MA RADIAL Bel Fuse Inc. |
1,548 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRG | Active | Polymeric | 30V | 40 A | 900 mA | 1.8 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|

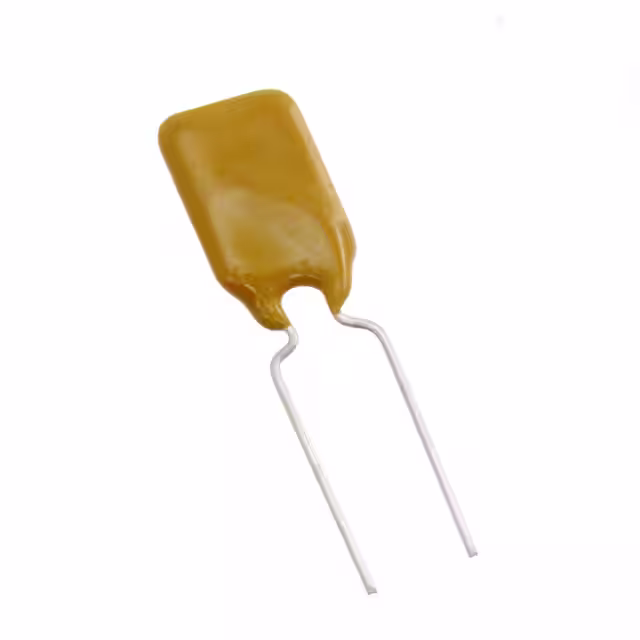

0ZRP0075FF1EPTC RESET FUSE 60V 750MA RADIAL Bel Fuse Inc. |
1,821 | - |
RFQ |
Ficha técnica |
Radial, Disc | Bulk | 0ZRP | Active | Polymeric | 60V | 40 A | 750 mA | 1.5 A | 1.5 s | 200 mOhms | 640 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.310 L x 0.142 W (7.87mm x 3.60mm) | 0.480 (12.20mm) | - |
