Transformadores de potencia
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPP36-1560PWR XFMR LAMINATED 56VA TH Triad Magnetics |
295 | - |
RFQ |
Ficha técnica |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|

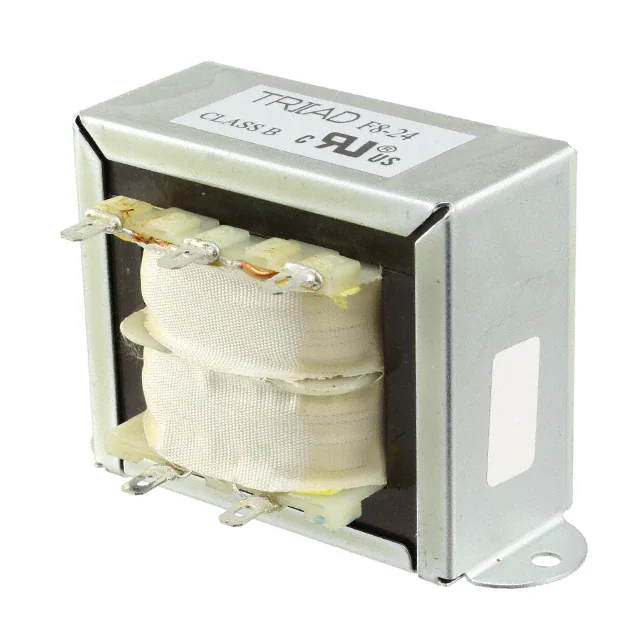

F8-24PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics |
161 | - |
RFQ |
Ficha técnica |
Box | Quick Pack | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|

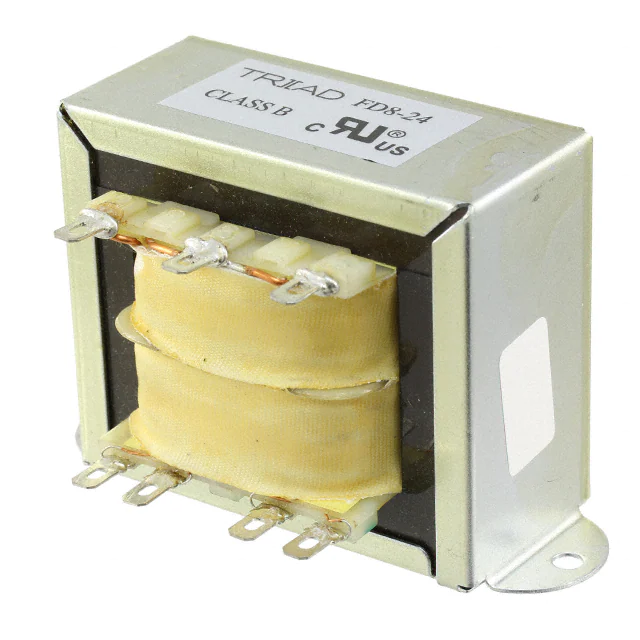

FD8-24PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics |
1,120 | - |
RFQ |
Ficha técnica |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 24V | 4A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|

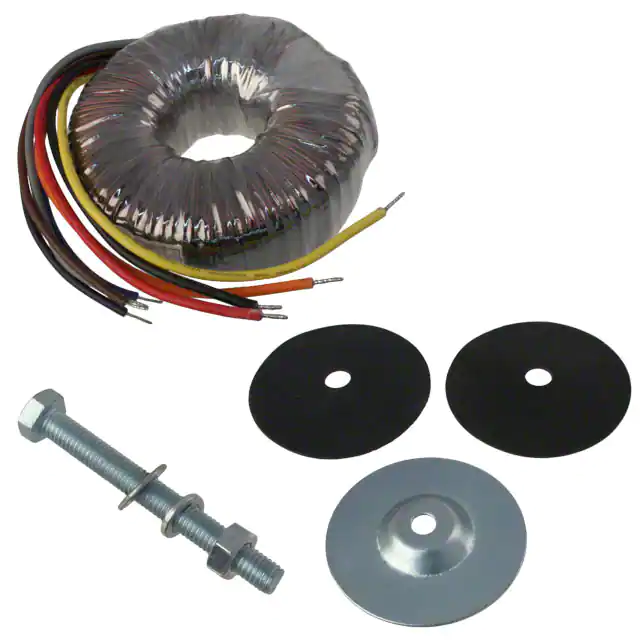

VPT24-2080PWR XFMR TORO 50VA CHAS MT Triad Magnetics |
295 | - |
RFQ |
Ficha técnica |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.16A, Series 2.08A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms |
|
VPS24-5400PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics |
132 | - |
RFQ |
Ficha técnica |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 60.45mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS36-4800PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics |
105 | - |
RFQ |
Ficha técnica |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
VPT30-5330PWR XFMR TORO 160VA CHAS MT Triad Magnetics |
3,108 | - |
RFQ |
Ficha técnica |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 10.66A, Series 5.33A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms |
|
TCT40-03E07ABPWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics |
206 | - |
RFQ |
Ficha técnica |
Box | Class 2, TCT | Active | Laminated Core | 120V | 12V | 3.34A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 59.44mm W | 56.39mm | 1500VAC |
|

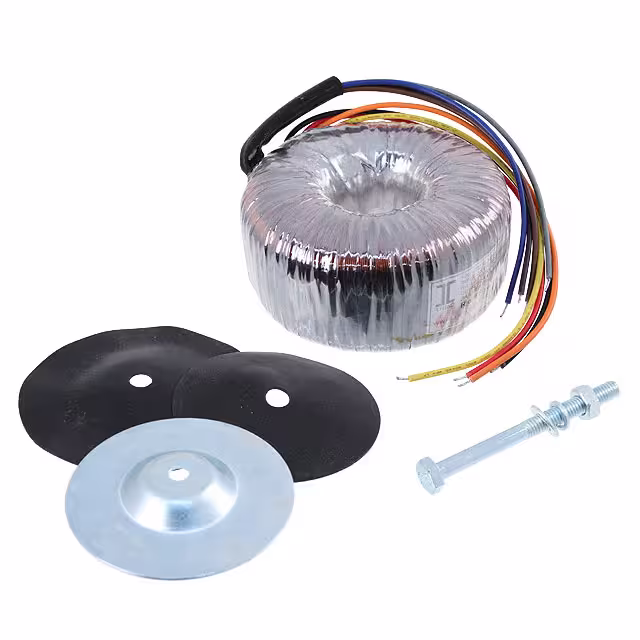

VPT230-1090PWR XFMR TORO 250VA CHAS MT Triad Magnetics |
491 | - |
RFQ |
Ficha técnica |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 2.18A, Series 1.09A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms |
|

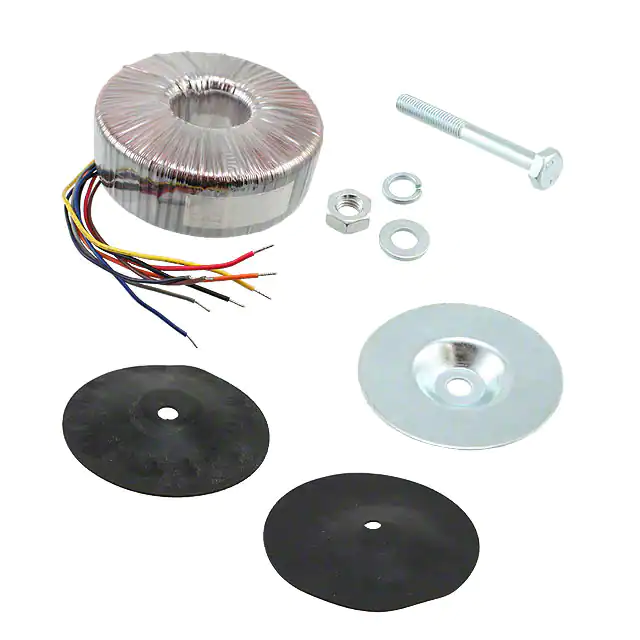

VPT230-4350PWR XFMR TORO 1000VA CHAS MT Triad Magnetics |
180 | - |
RFQ |
Ficha técnica |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 8.7A, Series 4.35A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 175.00mm Dia x 68.00mm W | 76.0mm | 4000Vrms |
|
FS16-070-C2PWR XFMR LAMINATED 1.1VA TH Triad Magnetics |
279 | - |
RFQ |
Ficha técnica |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 4200Vrms |
|
F12-090-C2PWR XFMR LAMINATED 1.1VA TH Triad Magnetics |
1,547 | - |
RFQ |
Ficha técnica |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 4200Vrms |
|
F10-250PWR XFMR LAMINATED 2.5VA TH Triad Magnetics |
188 | - |
RFQ |
Ficha técnica |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
F36-65PWR XFMR LAMINATED 2.5VA TH Triad Magnetics |
2,171 | - |
RFQ |
Ficha técnica |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
VPP20-120PWR XFMR LAMINATED 2.5VA TH Triad Magnetics |
813 | - |
RFQ |
Ficha técnica |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|
VPP28-180PWR XFMR LAMINATED 5VA TH Triad Magnetics |
3,224 | - |
RFQ |
Ficha técnica |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 360mA, Series 180mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
|
FS28-200-C2PWR XFMR LAMINATED 6VA TH Triad Magnetics |
363 | - |
RFQ |
Ficha técnica |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 4200Vrms |
|
|
FS12-500-C2PWR XFMR LAMINATED 6VA TH Triad Magnetics |
132 | - |
RFQ |
Ficha técnica |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 4200Vrms |
|
|
F20-600-C2PWR XFMR LAMINATED 12VA TH Triad Magnetics |
124 | - |
RFQ |
Ficha técnica |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FS16-400PWR XFMR LAMINATED 6VA TH Triad Magnetics |
250 | - |
RFQ |
Ficha técnica |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
