Optoaisladores - Salida lógica
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-0201#560OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited |
2,963 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
HCNW4506OPTOISO 5KV OPEN COLLECTOR 8DIP Broadcom Limited |
3,054 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Through Hole |
|
HCPL-2211OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited |
2,382 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-2212OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited |
2,747 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
ACPL-K64L-500EOPTOISO 5KV 2CH PUSH PULL 8SO Broadcom Limited |
2,589 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-772L-060EOPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited |
2,690 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Through Hole |
|
ACPL-772L-300EOPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited |
2,166 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
HCNW4506#500OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited |
2,760 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCNW4506#300OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited |
3,300 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-2211#300OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited |
2,219 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2211#060OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited |
3,197 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
ACPL-772L-320EOPTOISO 5KV PUSH PULL 8DIP GW Broadcom Limited |
3,330 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-2630#300OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited |
3,293 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0466OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited |
3,297 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|

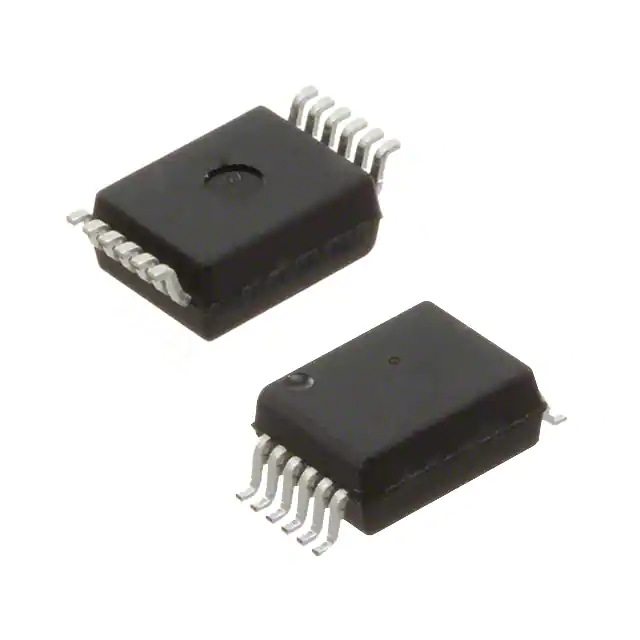

ACFL-6211U-500EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
2,607 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6212U-500EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
3,142 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCNW2201OPTOISO 5KV PUSH PULL 8DIP Broadcom Limited |
2,015 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
ACNW261L-300EOPTOISO 5KV TRI-STATE 8SMD Broadcom Limited |
2,411 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 95ns, 95ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACFL-6211U-560EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
2,008 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6212U-560EOPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited |
2,810 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
