Micrófonos
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | OutputType | Direction | FrequencyRange | Sensitivity | S/NRatio | Impedance | Voltage-Rated | VoltageRange | Current-Supply | PortLocation | Ratings | Termination | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

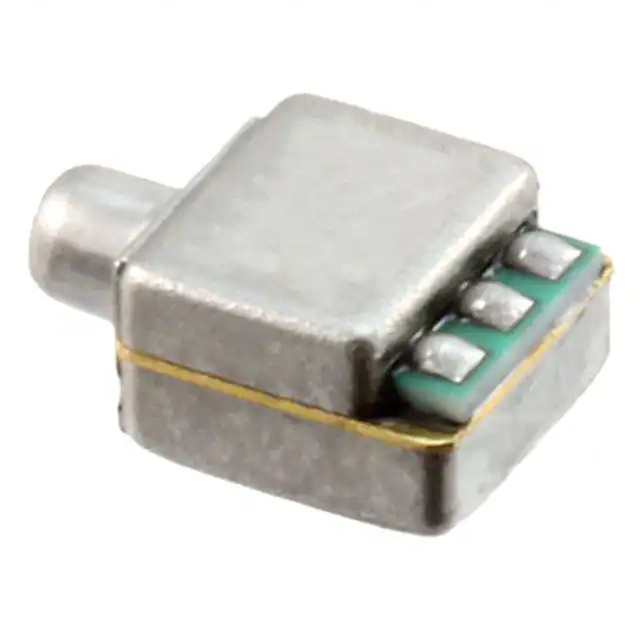

EM-23976-000MICROPHONE COND ANALOG OMNI Knowles |
3,806 | - |
RFQ |
Ficha técnica |
Tray | EM | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -54dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Top | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.090 (2.28mm) |
|
TD-24610-000MIC COND ANALOG UNI -57.5DB Knowles |
3,649 | - |
RFQ |
Ficha técnica |
Tray | TD | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 9.5 kHz | -57.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Bottom, Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.053 (1.35mm) |
|

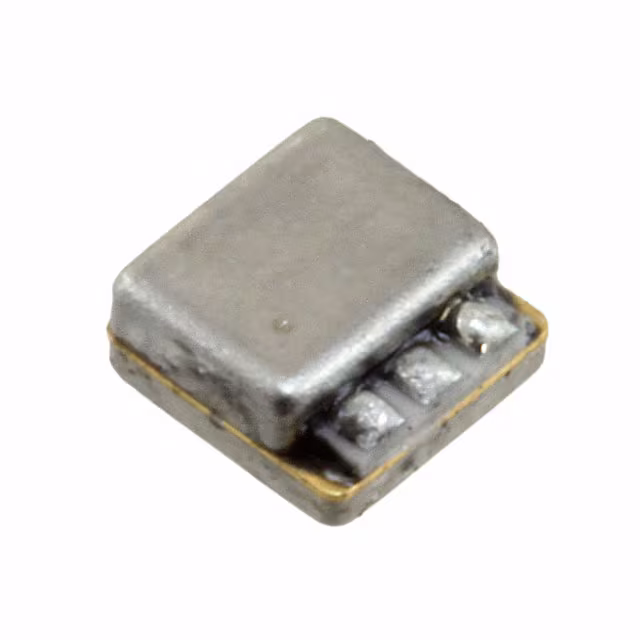

TM-26613-D20MICROPHONE COND ANALOG UNI -55DB Knowles |
2,829 | - |
RFQ |
Tray | TM | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 5.8 kHz | -55dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.068 (1.73mm) | |
|

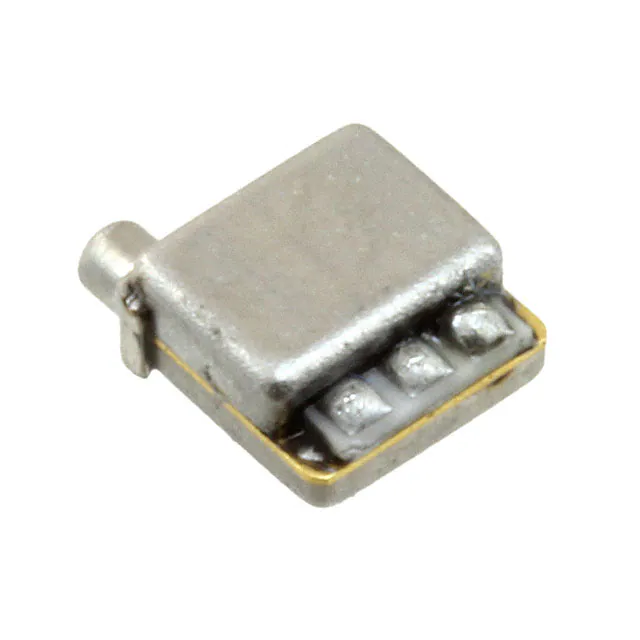

TM-26652-D25MICROPHONE COND ANALOG UNI Knowles |
3,196 | - |
RFQ |
Tray | TM | Obsolete | Electret Condenser | Analog | Unidirectional | - | - | - | - | - | - | - | - | - | - | - | - | |
|

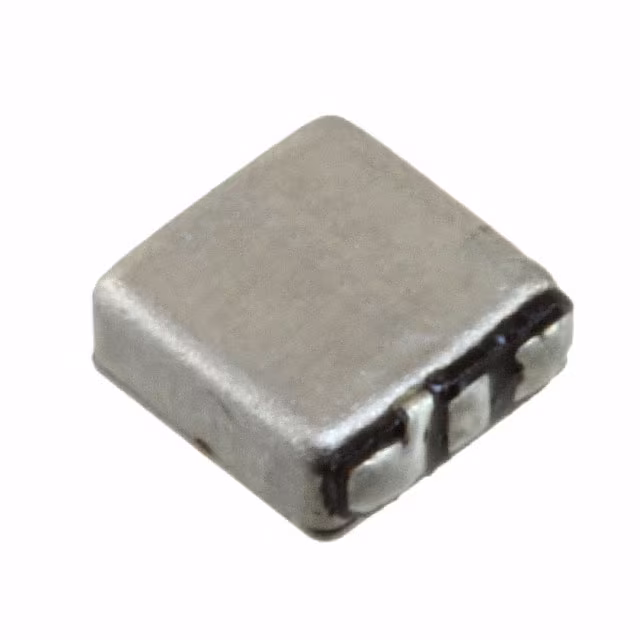

TO-24603-B63MICROPHONE COND ANALOG OMNI Knowles |
3,492 | - |
RFQ |
Ficha técnica |
Tray | TO | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 9.5 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.053 (1.35mm) |
|

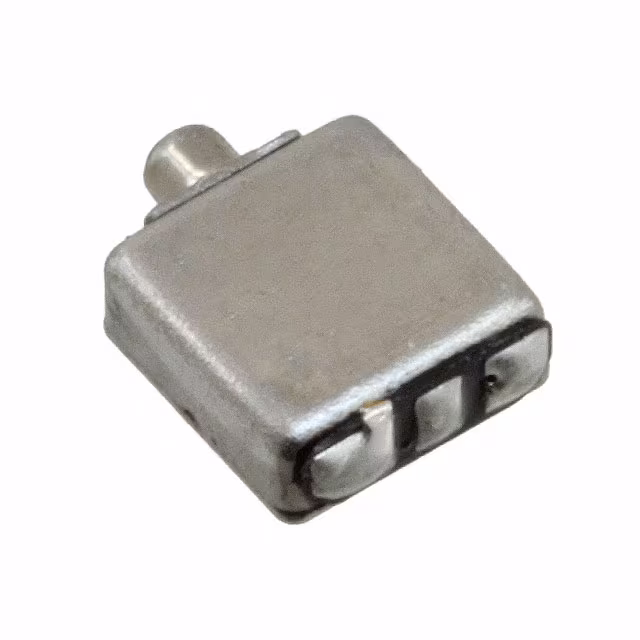

TO-30031-000MICROPHONE COND ANALOG OMNI Knowles |
3,872 | - |
RFQ |
Ficha técnica |
Tray | TO | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 7.2 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141 L x 0.141 W (3.57mm x 3.57mm) | 0.053 (1.35mm) |
|
TO38-60324-B31MIC COND ANALOG UNI Knowles |
2,884 | - |
RFQ |
Tray | TO | Obsolete | Electret Condenser | Analog | Unidirectional | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MR-28406-146MICROPHONE COND ANALOG OMNI Knowles |
2,804 | - |
RFQ |
Ficha técnica |
Tray | MR | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.7 kHz | -61dB +3dB, -4dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Top | Waterproof | Wire Leads | 0.871 Dia (22.12mm) | 0.299 (7.60mm) |
|

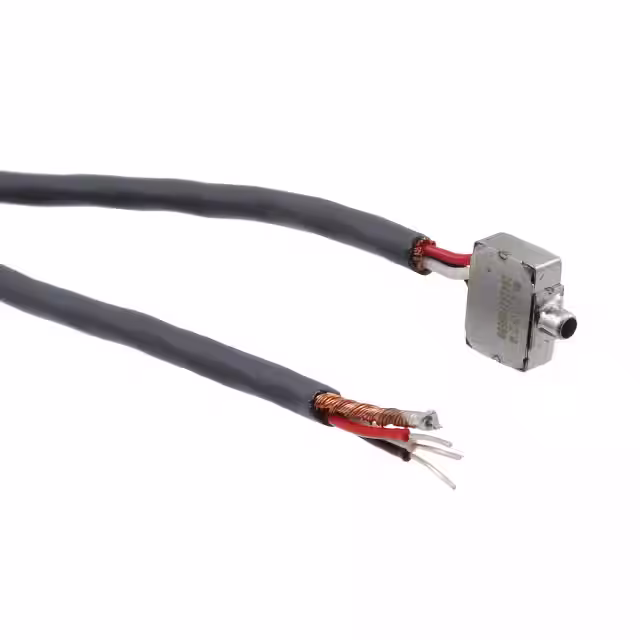

EK-23024-P54MICROPHONE COND ANALOG OMNI Knowles |
3,368 | - |
RFQ |
Ficha técnica |
Tray | EK | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -53dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Wire Leads | 0.219 L x 0.157 W (5.56mm x 3.99mm) | 0.089 (2.26mm) |
|
|
BL-21681-000MICROPHONE PIEZO ANALOG Knowles |
2,428 | - |
RFQ |
Tray | BL | Obsolete | Piezo | Analog | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BL-27242-000MICROPHONE PIEZO ANALOG Knowles |
2,036 | - |
RFQ |
Tray | BL | Obsolete | Piezo | Analog | - | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | - | - | |
|
EA-26781-000MICROPHONE COND ANALOG OMNI Knowles |
2,895 | - |
RFQ |
Ficha técnica |
Tray | EA | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -60dB ±3dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.219 L x 0.157 W (5.56mm x 3.99mm) | 0.089 (2.26mm) |
|
|
EL-23077-153MIC COND ANLG UNI 0.219LX0.157W Knowles |
2,367 | - |
RFQ |
Tray | EL | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | Solder Pads | 0.219 L x 0.157 W (5.56mm x 3.99mm) | 0.089 (2.26mm) | |
|
|
FB-DW-23794-000MICROPHONE BOOM ASSEMBLY Knowles |
3,149 | - |
RFQ |
Box | FB | Obsolete | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FB-DW-25798-000MICROPHONE BOOM ASSEMBLY Knowles |
2,647 | - |
RFQ |
Box | FB | Obsolete | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FB-DW-32198-000MICROPHONE BOOM ASSEMBLY Knowles |
3,787 | - |
RFQ |
Box | FB | Obsolete | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FG-23629-B27MICROPHONE Knowles |
2,992 | - |
RFQ |
Tray | FG | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FG-26163-D65MICROPHONE COND ANALOG OMNI Knowles |
3,600 | - |
RFQ |
Tray | FG | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Solder Pads | 0.101 Dia (2.57mm) | 0.102 (2.60mm) | |
|
|
FG-26163-P07MIC COND ANALOG OMNI 2.57MM D Knowles |
3,025 | - |
RFQ |
Tray | FG | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | Solder Pads | 0.101 Dia (2.57mm) | 0.102 (2.60mm) | |
|
|
GA38-30870-000MICROPHONE COND ANALOG UNI -53DB Knowles |
2,326 | - |
RFQ |
Tray | GA | Obsolete | Electret Condenser | Analog | Unidirectional | - | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 900 mV | 1.3 V ~ 1.6 V | 29 µA | Top | - | - | - | - |
