Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30E4000-C-73LED COB VERO 18 3000K ROUND Bridgelux |
222 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5713lm (Typ) | 1.17A | 85°C | 34.1V | 143 lm/W | 2.34A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRE-50C6501-B-74LED COB V22 5000K SQUARE Bridgelux |
145 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 9694lm (Typ) | 1.17A | 85°C | 50.7V | 163 lm/W | 2.34A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
XHP50B-00-0000-0D0BJ440E-SB01LED COB XHP50.2 4000K STARBOARD New Energy |
333 | - |
RFQ |
Ficha técnica |
Tray | XHP50.2 | Active | LED Module | White, Neutral | 4000K | - | Starboard | 1120lm (Typ) | 700mA | 85°C | 11.2V | 143 lm/W | 1.5A | 70 | - | - | 19.89mm Dia | - | - |
|
SMJD-2G16W7PO-XXAC ROUND MODULE, 3000K, 16W Seoul Semiconductor Inc. |
124 | - |
RFQ |
Ficha técnica |
Tray | NANODRIVER | Active | LED Module | White, Warm | 3000K | - | Round | 1580lm (Typ) | - | 25°C | 120V | - | - | 80 | 120° | - | 100.00mm Dia | 8.70mm | - |
|
CXB2540-0000-000N0HW240HLED COB CXB2540 4000K WHT SMD CreeLED, Inc. |
231 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB2540 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 36V | 127 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
BXEB-L1120Z-40E8000-C-D3EB GEN 3 HIGH OUTPUT LED MODULE Bridgelux |
187 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 3 | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 10440lm | 1.4A | 25°C | 38.4V | 194 lm/W | 2.8A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | |
|
BXEB-L1120Z-30S4000-C-C3EB GEN 3 LED MODULE, 1120 MM, 30 Bridgelux |
101 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 3 Thrive | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4940lm (Typ) | 960mA | 25°C | 40.6V | 127 lm/W | 1.92A | 98 (Typ) | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - |
|
LST1-01G08-UV01-01STARBOARD, XBT-3535-UV, 275-280N New Energy |
120 | - |
RFQ |
Ficha técnica |
Tray | LST1 | Active | LED Module | UltraViolet | - | 275nm ~ 280nm | Starboard | 30mW (Typ) | 350mA | 25°C | 6.5V | - | 800mA | - | 130° | - | 19.89mm Dia | 2.90mm | - |
|
BXRC-50C10K1-D-74-SELED COB VERO SE 5000K ROUND Bridgelux |
4,461 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 14371lm (Typ) | 2.1A | 25°C | 37.6V | 182 lm/W | 4.2A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
|
BXRC-35E10K0-B-73-SELED COB VERO SE 3500K ROUND Bridgelux |
370 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 15350lm (Typ) | 1.8A | 25°C | 52V | 164 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
|
BXRC-17E10K0-D-74-SEVERO SE 29D WARM WHITE LED ARRAY Bridgelux |
105 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 6948lm (Typ) | 2.1A | 25°C | 37.6V | 88 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
CXM-22-50-80-54-AC40-F5-3LED COB CXM22 Luminus Devices Inc. |
412 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen4 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9265lm (Typ) | 1.05A | 85°C | 50V | 176 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
MTG7-001I-XML00-RGBW-BCB1LED CREE BRD XML RGBW Marktech Optoelectronics |
195 | - |
RFQ |
Ficha técnica |
- | XM-L | Active | LED Module | Red, Green, Blue, White - Neutral (RGBW) | 4000K | 628nm Red, 528nm Green, 458nm Blue | Starboard | 46lm (Typ) Red, 87lm (Typ) Green, 14lm (Typ) Blue, 90lm (Typ) White | 350mA | 25°C | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 58 lm/W Red, 75 lm/W Green, 13 lm/W Royal Blue, 83 lm/W White | 1A | - | 130° | - | - | - | - |
|
|
MTG7-001I-XML00-RGBW-BC02LED CREE BRD XML RGBW Marktech Optoelectronics |
165 | - |
RFQ |
Ficha técnica |
- | XM-L | Active | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6000K | 628nm Red, 528nm Green, 458nm Blue | Starboard | 46lm (Typ) Red, 87lm (Typ) Green, 14lm (Typ) Blue, 90lm (Typ) White | 350mA | 25°C | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 58 lm/W Red, 75 lm/W Green, 13 lm/W Royal Blue, 83 lm/W White | 1A | - | 130° | - | - | - | - |
|
LST1-01G01-UV01-00STARBOARD, LUMINUS SST-10-UV-A13 New Energy |
241 | - |
RFQ |
Ficha técnica |
Tray | SST-10 | Active | Chip On Board (COB) | Violet | - | 365nm | Starboard | 875mW | 500mA | 25°C | 3.6V | - | - | - | 130° | - | - | - | - |
|

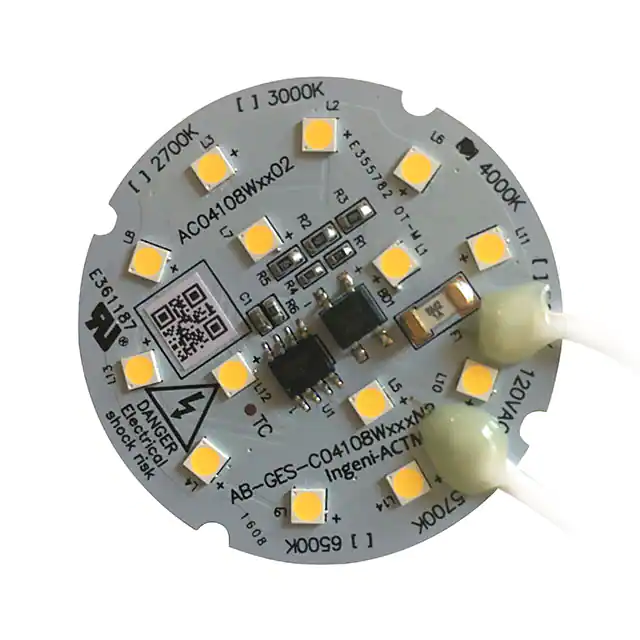

AB-GES-C04108W30BN2INGENI-AC 120VAC CIRCULAR DIA. 4 American Bright Optoelectronics Corporation |
556 | - |
RFQ |
Ficha técnica |
Bag | AB-GES | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 830lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 45.00mm Dia | - | - |
|
BXRC-27G10K0-D-73LED COB VERO 29 2700K ROUND Bridgelux |
283 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 9076lm (Typ) | 2.1A | 25°C | 37.6V | 128 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-35E10K0-C-73-SELED COB VERO SE 3500K ROUND Bridgelux |
208 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 19463lm (Typ) | 1.71A | 25°C | 69.4V | 164 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
BXRC-50C10K1-D-84VERO 29D COOL WHITE LED ARRAY Bridgelux |
195 | - |
RFQ |
Ficha técnica |
Bulk | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 12386lm (Typ) | 1.7A | 25°C | 36.4V | 200 lm/W | 5.5A | 70 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
CXB3590-0000-000N0HCD35GLED COB CXB3590 3500K WHT SMD CreeLED, Inc. |
205 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB3590 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
