Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

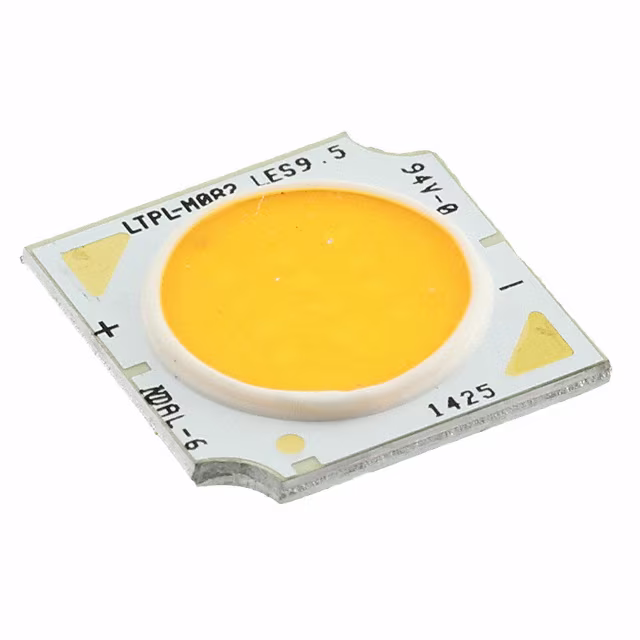

LTPL-M08210ZS50-T0LED COB CCT 5000K 80CRI 16W SMD Lite-On Inc. |
3,588 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Discontinued at Mosen | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1150lm (Typ) | 240mA | 25°C | 36.5V | 131 lm/W | 400mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
LTPL-M08210ZS57-F1LED COB CCT 5700K 80CRI 16W SMD Lite-On Inc. |
3,490 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1090lm (Typ) | 240mA | 25°C | 36.5V | 124 lm/W | 400mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08210ZS57-T0LED COB CCT 5700K 80CRI 16W SMD Lite-On Inc. |
2,313 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Discontinued at Mosen | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 1090lm (Typ) | 240mA | 25°C | 36.5V | 124 lm/W | 400mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS27-T0LED COB CCT 2700K 80CRI 24W SMD Lite-On Inc. |
2,805 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1590lm (Typ) | 360mA | 25°C | 36.5V | 121 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS30-T0LED COB CCT 3000K 80CRI 24W SMD Lite-On Inc. |
3,086 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1630lm (Typ) | 360mA | 25°C | 36.5V | 124 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS40-T0LED COB CCT 4000K 80CRI 24W SMD Lite-On Inc. |
3,014 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1650lm (Typ) | 360mA | 25°C | 36.5V | 126 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS50-F1LED COB CCT 5000K 80CRI 24W SMD Lite-On Inc. |
3,811 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 1700lm (Typ) | 360mA | 25°C | 36.5V | 129 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS50-T0LED COB CCT 5000K 80CRI 24W SMD Lite-On Inc. |
2,012 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Discontinued at Mosen | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1700lm (Typ) | 360mA | 25°C | 36.5V | 129 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS57-F1LED COB CCT 5700K 80CRI 24W SMD Lite-On Inc. |
2,629 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1640lm (Typ) | 360mA | 25°C | 36.5V | 125 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08218ZS57-T0LED COB CCT 5700K 80CRI 24W SMD Lite-On Inc. |
3,109 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Discontinued at Mosen | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 1640lm (Typ) | 360mA | 25°C | 36.5V | 125 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS27-T0LED COB CCT 2700K 80CRI SMD Lite-On Inc. |
3,035 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 555lm (Typ) | 120mA | 25°C | 36.5V | 127 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS30-T0LED COB CCT 3000K 80CRI SMD Lite-On Inc. |
3,670 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 585lm (Typ) | 120mA | 25°C | 36.5V | 134 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS40-T0LED COB CCT 4000K 80CRI SMD Lite-On Inc. |
3,243 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 620lm (Typ) | 120mA | 25°C | 36.5V | 142 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS50-T0LED COB CCT 5000K 80CRI SMD Lite-On Inc. |
3,205 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Discontinued at Mosen | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 637lm (Typ) | 120mA | 25°C | 36.5V | 145 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS50-F1LED COB CCT 5000K 80CRI SMD Lite-On Inc. |
2,296 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 637lm (Typ) | 120mA | 25°C | 36.5V | 145 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS57-T0LED COB CCT 5700K 80CRI SMD Lite-On Inc. |
3,865 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Discontinued at Mosen | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 593lm (Typ) | 120mA | 25°C | 36.5V | 135 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08206ZS57-F1LED COB CCT 5700K 80CRI SMD Lite-On Inc. |
2,438 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 593lm (Typ) | 120mA | 25°C | 36.5V | 135 lm/W | 200mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08208ZS27-T0LED COB CCT 2700K 80CRI SMD Lite-On Inc. |
2,596 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 771lm (Typ) | 180mA | 25°C | 36V | 119 lm/W | 300mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08208ZS27-S1LED COB CCT 2700K 80CRI SMD Lite-On Inc. |
3,664 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Square | 771lm (Typ) | 180mA | 25°C | 36V | 119 lm/W | 300mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
|
|
LTPL-M08208ZS30-T0LED COB CCT 3000K 80CRI SMD Lite-On Inc. |
2,533 | - |
RFQ |
Ficha técnica |
Tube | LTPL-M08 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 812lm (Typ) | 180mA | 25°C | 36V | 125 lm/W | 300mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.80mm | 9.50mm Dia |
