Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2C2-50701216E2300LED COB CORE RANGE COOL WHITE Lumileds |
3,230 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 8538lm (Typ) | 1.6A | 85°C | 35V | 152 lm/W | 3.2A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia |
|
|
L2C2-50801216E2300LED COB CORE RANGE COOL WHITE Lumileds |
3,242 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 7815lm (Typ) | 1.6A | 85°C | 35V | 140 lm/W | 3.2A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia |
|
|
L2C2-57701216E2300LED COB CORE RANGE COOL WHITE Lumileds |
2,522 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 8177lm (Typ) | 1.6A | 85°C | 35V | 146 lm/W | 3.2A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia |
|
|
L2C2-57801202E0900LED COB CORE RANGE COOL WHITE Lumileds |
2,883 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 955lm (Typ) | 200mA | 85°C | 34.5V | 138 lm/W | 400mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-57801203E0900LED COB CORE RANGE COOL WHITE Lumileds |
2,850 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 1404lm (Typ) | 300mA | 85°C | 34.5V | 136 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-57801204E1300LED COB CORE RANGE COOL WHITE Lumileds |
3,600 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 2190lm (Typ) | 450mA | 85°C | 35V | 139 lm/W | 900mA | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
|
L2C2-57801205E1300LED COB CORE RANGE COOL WHITE Lumileds |
3,451 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 2808lm (Typ) | 600mA | 85°C | 35V | 134 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
|
L2C2-57801208E1500LED COB CORE RANGE COOL WHITE Lumileds |
2,455 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 4212lm (Typ) | 900mA | 85°C | 35V | 134 lm/W | 1.8A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
|
L2C2-57801211E1900LED COB CORE RANGE COOL WHITE Lumileds |
3,923 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 5616lm (Typ) | 1.2A | 85°C | 35V | 134 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
L2C2-57801216E2300LED COB CORE RANGE COOL WHITE Lumileds |
2,250 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 7525lm (Typ) | 1.6A | 85°C | 35V | 134 lm/W | 3.2A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia |
|
L218-3580048C00000LED STRIP LUXEON XR3020 WARM WHT Lumileds |
3,478 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-3020 | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2140lm (Typ) | 400mA | 45°C | 34.8V | 154 lm/W | 600mA | 80 | - | With Connector | 558.40mm L x 20.00mm W | 3.00mm | - |
|
L2C3-2780205E06000LUXEON COB 205 2700K, 80CRI Lumileds |
2,048 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 650lm (Typ) | 150mA | 85°C | 36V | 120 lm/W | 300mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|

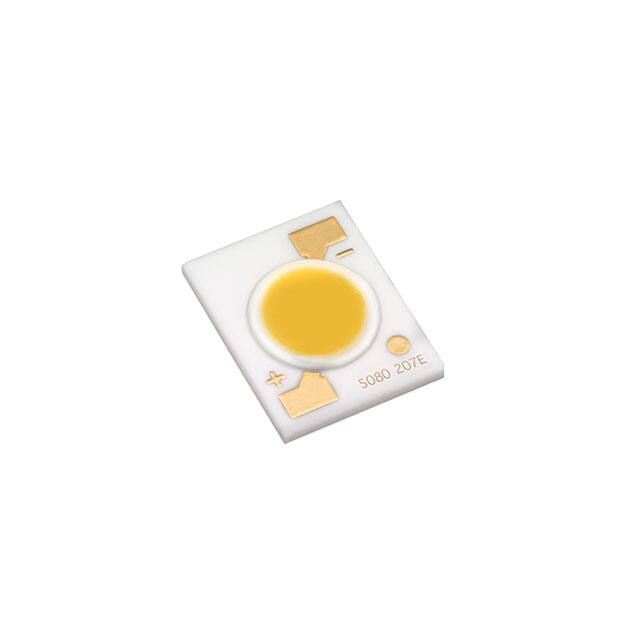

L2C3-2780207E06000LUXEON COB 207 2700K, 80CRI Lumileds |
3,199 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 787lm (Typ) | 200mA | 85°C | 35.2V | 112 lm/W | 300mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|

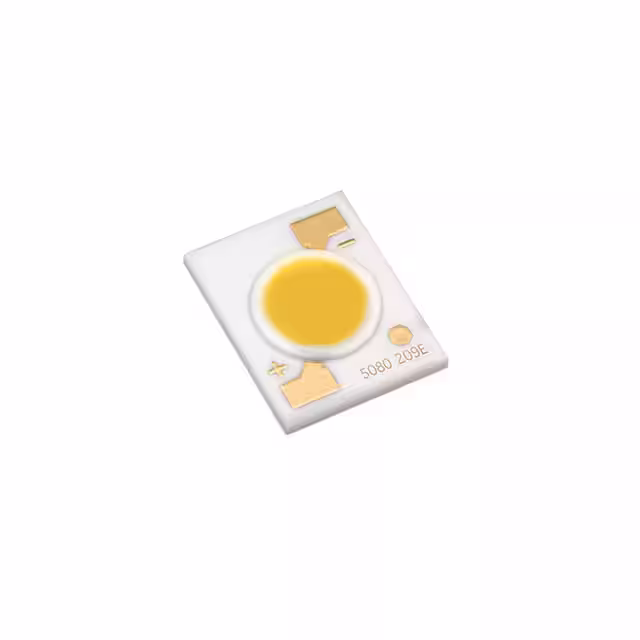

L2C3-2780209E06000LUXEON COB 209 2700K, 80CRI Lumileds |
3,854 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 1080lm (Typ) | 250mA | 85°C | 35.2V | 123 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C3-3080205E06000LUXEON COB 205 3000K, 80CRI Lumileds |
3,673 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 691lm (Typ) | 150mA | 85°C | 36V | 128 lm/W | 300mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C3-3080207E06000LUXEON COB 207 3000K, 80CRI Lumileds |
2,802 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 843lm (Typ) | 200mA | 85°C | 35.2V | 120 lm/W | 300mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C3-3080209E06000LUXEON COB 209 3000K, 80CRI Lumileds |
2,990 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1120lm (Typ) | 250mA | 85°C | 35.2V | 127 lm/W | 400mA | 80 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
|
L2C3-3090209E06000LUXEON COB 209 3000K, 90CRI Lumileds |
2,547 | - |
RFQ |
Ficha técnica |
Tube | LUXEON COB Compact Range Gen 2 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1002lm (Typ) | 250mA | 85°C | 35.2V | 114 lm/W | 400mA | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia |
|
LXK0-PR04-0012LED MOD LUXEON K BLUE ROUND Lumileds |
3,920 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | Blue | - | 450nm (448nm ~ 453nm) | Round | - | 350mA | 85°C | 31.5V | - | 1.05A | - | 116° | - | 24.20mm Dia | 3.42mm | - |
|
|
LXK0-PR04-0024LED MOD LUXEON K BLUE ROUND Lumileds |
2,213 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | Blue | - | 450nm (448nm ~ 453nm) | Round | - | 350mA | 85°C | 31.5V | - | 1.05A | - | 116° | - | 30.00mm Dia | 3.42mm | - |
