Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LHC1-3590-1202LED 3500K 90CRI WHT SMD Lumileds |
2,297 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White | 3500K (Typ) 3-Step MacAdam Ellipse | - | Rectangle | 578lm (Typ) | 200mA | 85°C | 35.5V | 81 lm/W | 400mA | 90 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia |
|
LHC1-3590-1204LED 3500K 90CRI WHT SMD Lumileds |
3,693 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3500K (Typ) 3-Step MacAdam Ellipse | - | Rectangle | 1525lm (Typ) | 450mA | 85°C | 35.5V | 95 lm/W | 900mA | 90 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia |
|
LHC1-3590-1211LED 3500K 90CRI WHT SMD Lumileds |
3,572 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 4200lm (Typ) | 1.2A | 85°C | 35.5V | 99 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
LHC1-4080-1211LED 4000K 80CRI WHT SMD Lumileds |
2,784 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5200lm (Typ) | 1.2A | 85°C | 35.5V | 122 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
LHC1-5070-1211LED 5000K 70CRI WHT SMD Lumileds |
3,202 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5600lm (Typ) | 1.2A | 85°C | 35.5V | 131 lm/W | 2.4A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
LHC1-5080-1211LED 5000K 80CRI WHT SMD Lumileds |
3,657 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5300lm (Typ) | 1.2A | 85°C | 35.5V | 124 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|

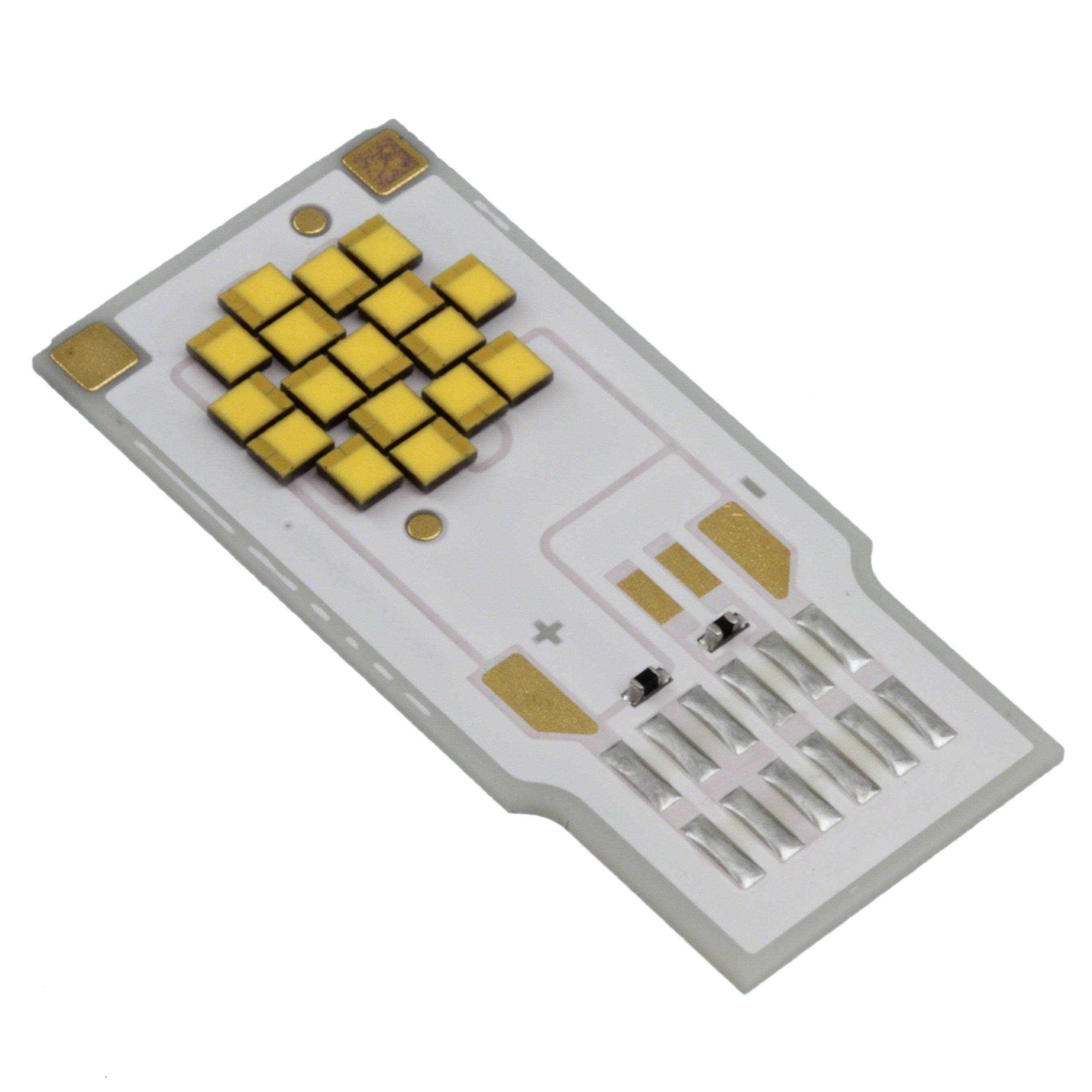

LXS8-PW50-0017LED LUXEON S2000 5000K 80CRI Lumileds |
3,766 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S2000 | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 3300lm (Typ) | 700mA | 85°C | 47V | 100 lm/W | 1.05A | 80 | 105° | - | 30.90mm L x 14.40mm W | 1.31mm | 10.50mm Dia |
|
LXS8-PW50-0017NLED LUXEON S2000 5000K 80CRI Lumileds |
2,558 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S2000 | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 3300lm (Typ) | 700mA | 85°C | 47V | 100 lm/W | 1.05A | 80 | 105° | With Connector | 30.90mm L x 14.40mm W | 5.21mm | 10.50mm Dia |
|
LXS8-PW50-0024LED LUXEON S3000 5000K 80CRI Lumileds |
3,491 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S3000 | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 4650lm (Typ) | 700mA | 85°C | 67.5V | 93 lm/W | 1.05A | 80 | 105° | - | 32.60mm L x 17.60mm W | 1.31mm | 13.50mm Dia |
|

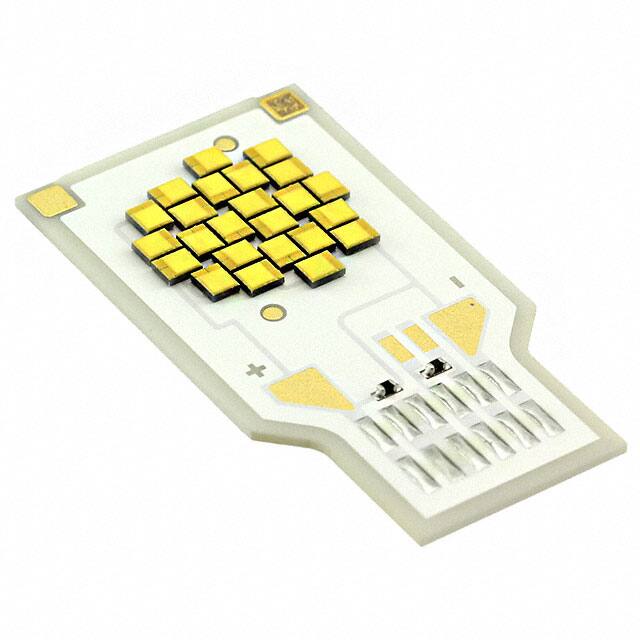

LXS8-PW50-0024NLED LUXEON S3000 5000K 80CRI Lumileds |
3,784 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S3000 | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 4650lm (Typ) | 700mA | 85°C | 67.5V | 93 lm/W | 1.05A | 80 | 105° | With Connector | 32.60mm L x 17.60mm W | 5.21mm | 13.50mm Dia |
|

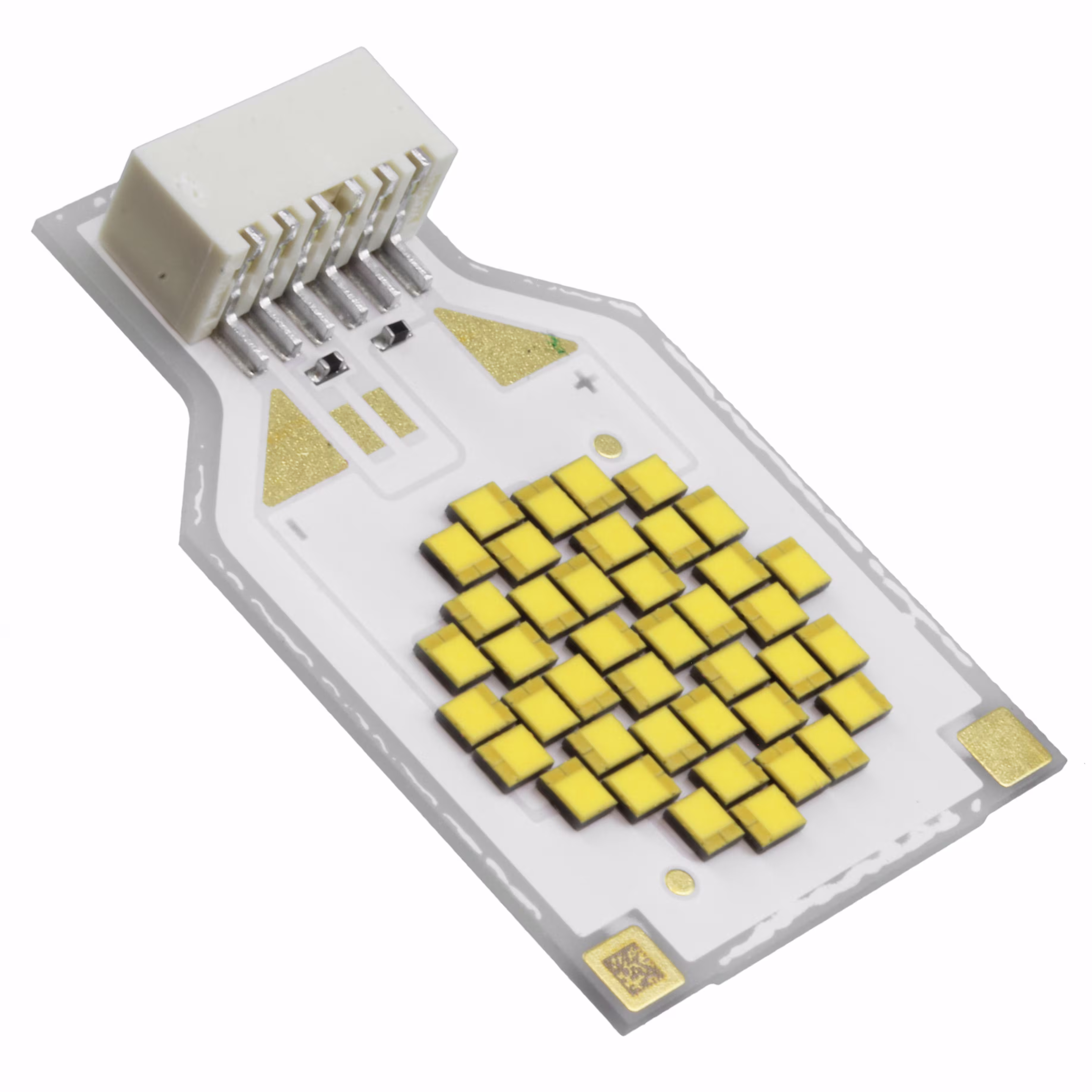

LXS8-PW50-0041LED LUXEON S3000 5000K 80CRI Lumileds |
2,445 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S3000 | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 8000lm (Typ) | 700mA | 85°C | 115V | 99 lm/W | 1.05A | 80 | 105° | - | 34.15mm L x 20.90mm W | 1.31mm | 17.00mm Dia |
|

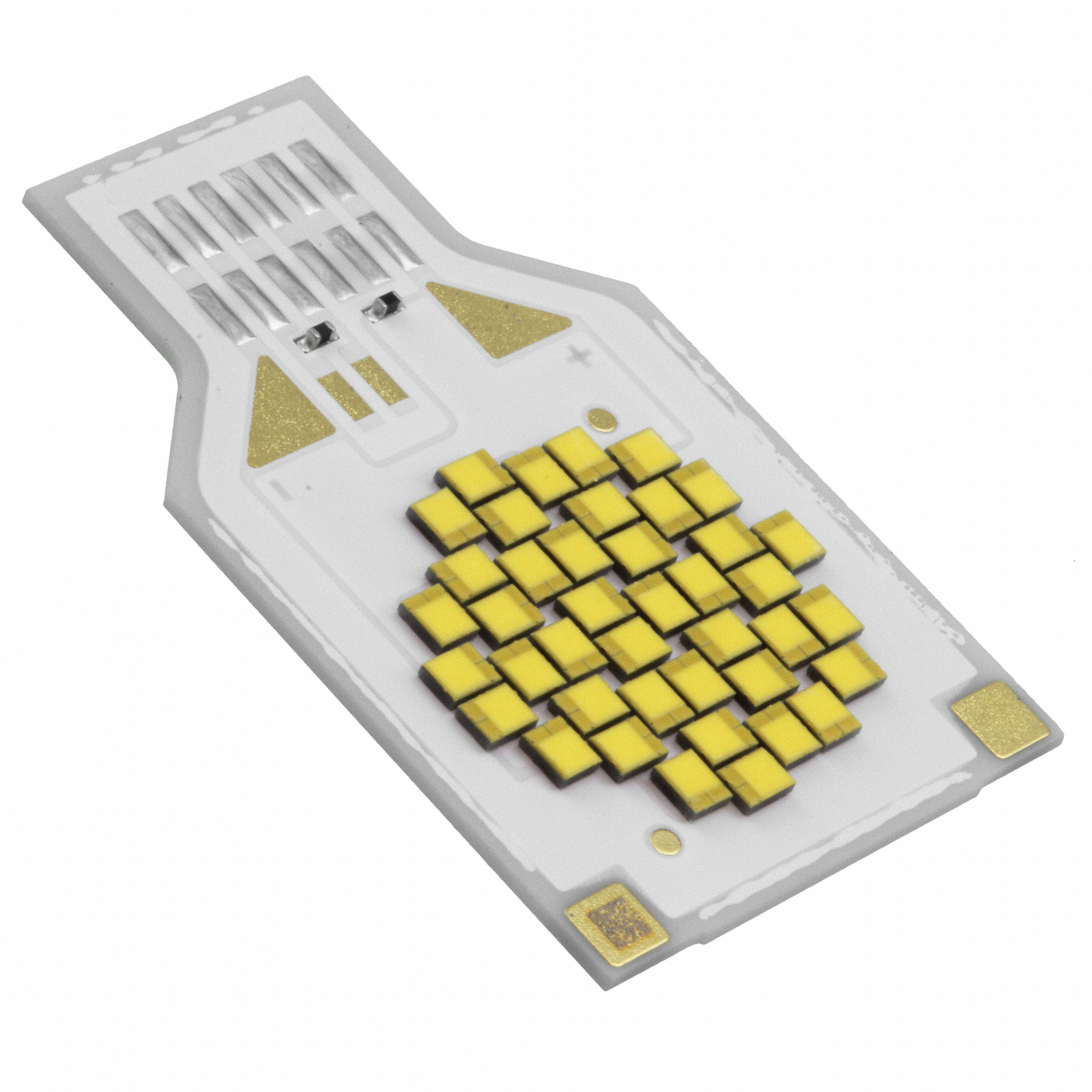

LXS8-PW50-0041NLED LUXEON S5000 5000K 80CRI Lumileds |
2,874 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S5000 | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 8000lm (Typ) | 700mA | 85°C | 115V | 99 lm/W | 1.05A | 80 | 105° | With Connector | 34.15mm L x 20.90mm W | 5.21mm | 17.00mm Dia |
|
LHC1-3090-1203CRSPLED COB CRISPWHT WARMWHT RECT Lumileds |
3,035 | - |
RFQ |
Tube | LUXEON CoB, CrispWhite | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 950lm (Typ) | 300mA | 85°C | 35.5V | 90 lm/W | 600mA | 90 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | |
|
|
LHC1-3090-1204CRSPLED COB CRISPWHT WARMWHT RECT Lumileds |
2,551 | - |
RFQ |
Tube | LUXEON CoB, CrispWhite | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1250lm (Typ) | 450mA | 85°C | 35.5V | 90 lm/W | 900mA | 90 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | |
|
LHC1-3090-1208CRSPLED COB CRISPWHT WARMWHT RECT Lumileds |
3,651 | - |
RFQ |
Tube | LUXEON CoB, CrispWhite | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2800lm (Typ) | 900mA | 85°C | 35.5V | 90 lm/W | 1.8A | 90 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 15.00mm Dia | |
|
L202-4080033C30000LED LUXEON MATRIX 4000K Lumileds |
2,651 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-3535L | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 1461lm (1419lm ~ 1502lm) | 300mA | 25°C | 33V | 152 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | - | - |
|
L235-3080AHLCBBAC0LED LUXEON MATRIX 3000K Lumileds |
3,564 | - |
RFQ |
Ficha técnica |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 1512lm (Typ) | 600mA | 25°C | 18V | 140 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W | 1.23mm | - |
|
|
L235-3580AHLCBBAC0LED LUXEON MATRIX 3500K Lumileds |
3,869 | - |
RFQ |
Ficha técnica |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip, Flexible | 1548lm (Typ) | 600mA | 25°C | 18V | 143 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W | 1.23mm | - |
|
L235-3580AHLGBAAC0LED LUXEON MATRIX 3500K Lumileds |
2,654 | - |
RFQ |
Ficha técnica |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip, Flexible | 1548lm (Typ) | 600mA | 25°C | 18V | 143 lm/W | 1.2A | 80 | - | - | 600.00mm L x 10.00mm W | 1.23mm | - |
|
L235-3580AMLF5WAD0LED LUXEON MATRIX 3500K Lumileds |
3,662 | - |
RFQ |
Ficha técnica |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip, Flexible | 2408lm (Typ) | 800mA | 25°C | 21V | 143 lm/W | 1.6A | 80 | - | - | 525.40mm L x 5.25mm W | 1.23mm | - |
