Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000R00CD0E2LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,393 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 77V | 135 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R00CD57FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,578 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 77V | 135 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R00CD65FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
3,712 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 77V | 135 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBB0E1LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,827 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 77V | 106 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBB0E2LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,998 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 77V | 106 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBB57FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,510 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 77V | 106 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBB65FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
3,555 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 77V | 106 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBD0E1LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,247 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 77V | 114 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBD0E2LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,568 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 77V | 114 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBD57FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,098 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 77V | 114 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HBD65FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,786 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 77V | 114 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HCB0E1LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
3,639 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 77V | 124 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HCB0E2LED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
3,835 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 77V | 124 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|

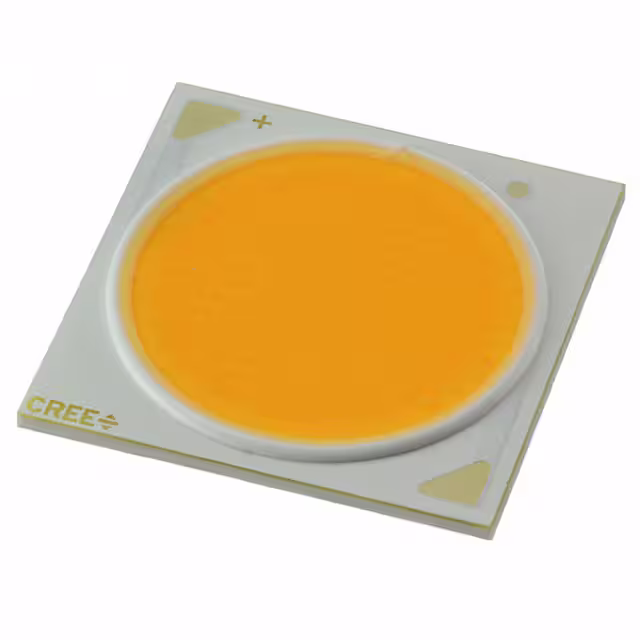

CXA3590-0000-000R0HCB57FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
2,257 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 77V | 124 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXA3590-0000-000R0HCB65FLED COB CXA3590 COOL WHT SQUARE CreeLED, Inc. |
3,780 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3590 | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 77V | 124 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
LMH02B-1250-27G9-00000TWLED MOD 1250LM 2700K FLAT LENS CreeLED, Inc. |
3,776 | - |
RFQ |
Ficha técnica |
Tray | LMH2 | Obsolete | LED Module | White, Warm | 2700K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
|
|
LMH02B-1250-30G9-00000TWLED MOD 1250LM 3000K FLAT LENS CreeLED, Inc. |
3,911 | - |
RFQ |
Ficha técnica |
Tray | LMH2 | Obsolete | LED Module | White, Warm | 3000K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
|
|
LMH02B-1250-35G9-00000TWLED MOD 1250LM 3500K FLAT LENS CreeLED, Inc. |
2,229 | - |
RFQ |
Ficha técnica |
Tray | LMH2 | Obsolete | LED Module | White, Warm | 3500K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
|
|
LMH02B-1250-40G9-00000TWLED MOD 1250LM 4000K FLAT LENS CreeLED, Inc. |
3,410 | - |
RFQ |
Ficha técnica |
Tray | LMH2 | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 1250lm (Typ) | 450mA | 55°C | 22.5V | 123 lm/W | 750mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
|
|
LMH02B-2000-27G9-00000TWLED MOD 2000LM 2700K FLAT LENS CreeLED, Inc. |
2,365 | - |
RFQ |
Ficha técnica |
Tray | LMH2 | Obsolete | LED Module | White, Warm | 2700K | - | Round | 2000lm (Typ) | 450mA | 55°C | 35V | 127 lm/W | 940mA | 90 | 82° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
