Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27G10K0-C-72LED COB VERO 29 2700K ROUND Bridgelux |
3,105 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 13641lm (Typ) | 1.71A | 25°C | 69.4V | 128 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-30A10K1-C-73LED COB VERO 29 3000K ROUND Bridgelux |
2,418 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Class A Vero® 29 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12810lm (Typ) | 1.71A | 85°C | 68.4V | 110 lm/W | 3.42A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-30E10K0-C-72LED COB VERO 29 3000K ROUND Bridgelux |
2,773 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 18946lm (Typ) | 1.71A | 25°C | 69.4V | 160 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-30G10K0-C-72LED COB VERO 29 3000K ROUND Bridgelux |
2,612 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 15768lm (Typ) | 1.71A | 25°C | 69.4V | 133 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-35A10K1-C-73LED COB VERO 29 3500K ROUND Bridgelux |
2,742 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Class A Vero® 29 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13771lm (Typ) | 1.71A | 85°C | 68.4V | 118 lm/W | 3.42A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-35E10K0-C-72LED COB VERO 29 3500K ROUND Bridgelux |
3,873 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 19557lm (Typ) | 1.71A | 25°C | 69.4V | 165 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-35G10K0-C-72LED COB VERO 29 3500K ROUND Bridgelux |
3,140 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 16257lm (Typ) | 1.71A | 25°C | 69.4V | 137 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-40A10K1-C-73LED COB VERO 29 4000K ROUND Bridgelux |
2,080 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Class A Vero® 29 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 14731lm (Typ) | 1.71A | 85°C | 68.4V | 126 lm/W | 3.42A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-40E10K0-C-72LED COB VERO 29 4000K ROUND Bridgelux |
2,981 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 19680lm (Typ) | 1.71A | 25°C | 69.4V | 166 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-40G10K0-C-72LED COB VERO 29 4000K ROUND Bridgelux |
2,665 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 16868lm (Typ) | 1.71A | 25°C | 69.4V | 142 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-56G10K1-C-74LED COB VERO 29 5600K ROUND Bridgelux |
2,383 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 17554lm (Typ) | 1.71A | 25°C | 69.4V | 148 lm/W | 3.42A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|

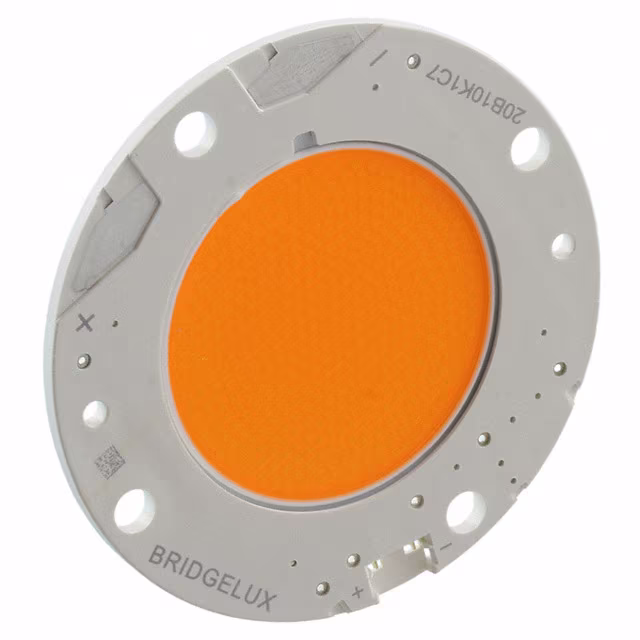

BXRC-20B10K1-C-73LED COB VERO 29 2000K ROUND Bridgelux |
3,918 | - |
RFQ |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 17724lm (Typ) | 1.71A | 25°C | 69.4V | 149 lm/W | 3.42A | 65 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | |
|
BXRC-50C10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
2,443 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 21635lm (Typ) | 1.71A | 25°C | 69.4V | 182 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-50E10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
2,459 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 20291lm (Typ) | 1.71A | 25°C | 69.4V | 171 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-50G10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
2,969 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 17235lm (Typ) | 1.71A | 25°C | 69.4V | 145 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-57C10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
3,465 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 20902lm (Typ) | 1.71A | 25°C | 69.4V | 176 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-57E10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
2,420 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 20056lm (Typ) | 1.71A | 25°C | 69.4V | 169 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-65C10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
3,706 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 21269lm (Typ) | 1.71A | 25°C | 69.4V | 179 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-65E10K1-C-73VERO 29C COOL WHITE LED ARRAY Bridgelux |
3,268 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 20412lm (Typ) | 1.71A | 25°C | 69.4V | 172 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-35E4000-F-23LED ARRAY 4000LM WARM WHITE COB Bridgelux |
3,103 | - |
RFQ |
Ficha técnica |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 4289lm (Typ) | 1.05A | 25°C | 29.5V | 138 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
