Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-30G6500-B-72V22B WARM WHITE LED ARRAY Bridgelux |
2,607 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 7058lm (Typ) | 1.17A | 85°C | 50.7V | 119 lm/W | 2.34A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-35E6500-B-72V22B WARM WHITE LED ARRAY Bridgelux |
2,791 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8759lm (Typ) | 1.17A | 85°C | 50.7V | 148 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-35G6500-B-72V22B WARM WHITE LED ARRAY Bridgelux |
2,133 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 7313lm (Typ) | 1.17A | 85°C | 50.7V | 123 lm/W | 2.34A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-40E6500-B-72V22B NEUTRAL WHITE LED ARRAY Bridgelux |
2,293 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 8844lm (Typ) | 1.17A | 85°C | 50.7V | 149 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-40G6500-B-72V22B NEUTRAL WHITE LED ARRAY Bridgelux |
3,064 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 7568lm (Typ) | 1.17A | 85°C | 50.7V | 128 lm/W | 2.34A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-50C6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
2,442 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9694lm (Typ) | 1.17A | 85°C | 50.7V | 164 lm/W | 2.34A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-50E6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
3,019 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9112lm (Typ) | 1.17A | 85°C | 50.7V | 154 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-50G6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
3,768 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 7755lm (Typ) | 1.17A | 85°C | 50.7V | 131 lm/W | 2.34A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-57C6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
3,783 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 9354lm (Typ) | 1.17A | 85°C | 50.7V | 158 lm/W | 2.34A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-57E6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
3,612 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 9269lm (Typ) | 1.17A | 85°C | 50.7V | 156 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-65C6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
2,711 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 9524lm (Typ) | 1.17A | 85°C | 50.7V | 161 lm/W | 2.34A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-65E6501-B-73V22B COOL WHITE LED ARRAY Bridgelux |
2,719 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 9439lm (Typ) | 1.17A | 85°C | 50.7V | 159 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|

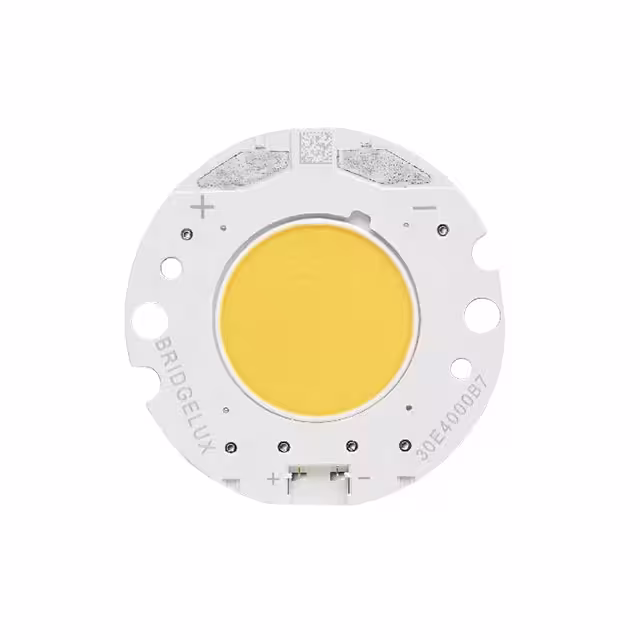

BXRC-27H4000-C-72VERO 18C WARM WHITE LED ARRAY Bridgelux |
2,419 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 4273lm (Typ) | 1.17A | 85°C | 34.3V | 107 lm/W | 2.34A | 97 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-30H4000-C-72VERO 18C WARM WHITE LED ARRAY Bridgelux |
3,262 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 4566lm (Typ) | 1.17A | 85°C | 34.3V | 114 lm/W | 2.34A | 97 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRV-TR-2750G-30A0-A-23-S2TW LED ARRAY, LES=15MM, INTEGRAT Bridgelux |
3,470 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Square | 2556lm Warm White, 2884lm Cool White | 650mA | 25°C | 34.8V Warm White, 35.5V Cool White | 113 lm/W Warm White, 125 lm/W Cool White | 950mA | 90 | 130° | - | 21.00mm L x 21.00mm W | 1.65mm | 16.30mm Dia |
|
|
BXRV-DR-1827G-4000-A-13-S2DW LED ARRAY, LES=18MM, INTEGRAT Bridgelux |
2,005 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 2700K 3-Step MacAdam Ellipse | - | Round | 4675lm (Typ) | 1.29A | 25°C | 33.8V | 107 lm/W | 1.4A | 90 | 110° | With Holder | 45.00mm Dia | 3.80mm | 18.30mm Dia |
|
|
BXRV-DR-1827H-4000-A-13-S2DW LED ARRAY, LES=18MM, INTEGRAT Bridgelux |
3,227 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 2700K 3-Step MacAdam Ellipse | - | Round | 4133lm (Typ) | 1.29A | 25°C | 33.8V | 95 lm/W | 1.4A | 95 | 110° | With Holder | 45.00mm Dia | 3.80mm | 18.30mm Dia |
|
|
BXRV-DR-1830H-4000-A-13-S2DW LED ARRAY, LES=18MM, INTEGRAT Bridgelux |
2,119 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 4386lm (Typ) | 1.29A | 25°C | 33.8V | 101 lm/W | 1.4A | 95 | 110° | With Holder | 45.00mm Dia | 3.80mm | 18.30mm Dia |
|
BXRE-50C4001-B-84V18B COOL WHITE LED ARRAY Bridgelux |
3,947 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 4632lm (Typ) | 700mA | 25°C | 33.9V | 194 lm/W | - | 70 | - | - | - | - | 18.00mm Dia |
|
BXRE-40E6500-B-73LED COB V22 4000K SQUARE Bridgelux |
3,702 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8844lm (Typ) | 1.17A | 85°C | 50.7V | 149 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
