Núcleos de ferrita

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
P22/13/I-3C91 FERRITE CORE 2PC SET Ferroxcube	376	-	RFQ	Ficha técnica	Bulk	-	Active	P (Pot Core)	P 22 x 13	3C91	0.866 (22.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.528 (13.40mm)
TX29/19/15-3C94 FERRITE CORES ROUND Ferroxcube	615	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 29 x 19 x 15	3C94	1.179 (29.95mm)	-	±25%	Ungapped	2300	-	0.98	73.2	73.9	-	5410	Epoxy	0.632 (16.05mm)
TX36/23/10-3E10-M FERRITE CORES ROUND Ferroxcube	101	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 36 x 23 x 10	-	1.463 (37.15mm)	-	±30%	Ungapped	10000	-	1.38	89.7	64.9	-	5820	Epoxy	0.430 (10.92mm)
TX25/15/13-3E12 FERRITE CORES ROUND Ferroxcube	403	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±30%	Ungapped	12000	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
ER32/6/25-3C92 FERRITE CORE Ferroxcube	640	-	RFQ	Ficha técnica	Bulk	-	Active	ER	ER 32 x 6 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.236 (6.00mm)
TX29/19/7.6-3C94 FERRITE CORES ROUND Ferroxcube	146	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 29 x 19 x 7.6	3C94	0.640 (16.25mm)	-	±25%	Ungapped	2300	-	2.06	73.2	35.5	-	2600	Epoxy	0.258 (6.55mm)

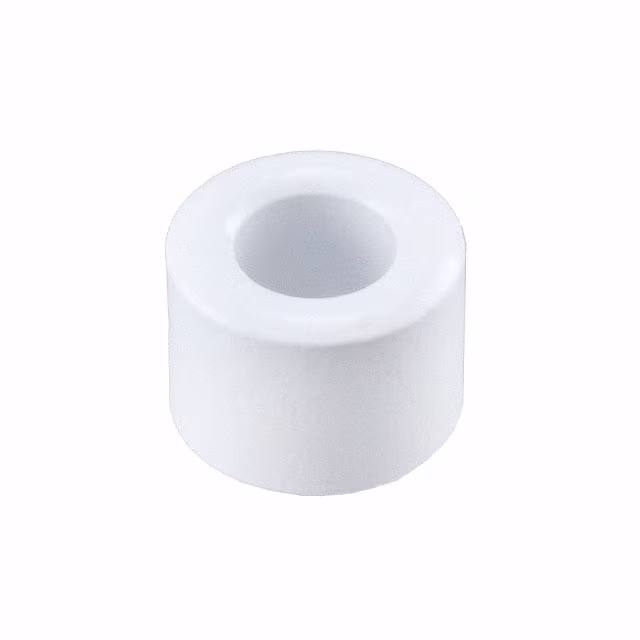

TX26/15/20-3C90 FERRITE CORES ROUND Ferroxcube	133	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 26 x 15 x 10	3C90	1.061 (26.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.827 (21.00mm)
TX29/19/15-3E65 FERRITE CORES ROUND Ferroxcube	921	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	±25%	Ungapped	5200	-	0.98	73.2	73.9	-	5410	Epoxy	0.632 (16.05mm)
TX36/23/10-3C94 FERRITE CORES ROUND Ferroxcube	547	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 36 x 23 x 10	3C94	1.463 (37.15mm)	-	±25%	Ungapped	2300	-	1.38	89.7	64.9	-	5820	Epoxy	0.430 (10.92mm)
TX29/19/15-3E6 FERRITE CORES ROUND Ferroxcube	2,974	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.632 (16.05mm)
ETD44/22/15-3C97 FERRITE CORE Ferroxcube	777	-	RFQ	Ficha técnica	Bulk	-	Active	ETD	ETD 44 x 22 x 15	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)
ETD49/25/16-3C94 FERRITE CORE Ferroxcube	970	-	RFQ	Ficha técnica	Bulk	-	Active	ETD	ETD 49 x 25 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
PLT38/25/3.8-3F36 FERRITE CORE Ferroxcube	786	-	RFQ	Ficha técnica	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
P26/16/I-3C91 FERRITE CORE 2PC SET Ferroxcube	297	-	RFQ	Ficha técnica	Bulk	-	Active	P (Pot Core)	P 26 x 16	3C91	1.004 (25.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
TX36/23/10-3E27 FERRITE CORES ROUND Ferroxcube	615	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 36 x 23 x 10	3E27	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)
EP20-3C96 FERRITE CORE 2PC SET Ferroxcube	726	-	RFQ	Ficha técnica	Bulk	-	Active	EP	EP 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.843 (21.40mm)
TX26/15/20-3E12 FERRITE CORES ROUND Ferroxcube	118	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 26 x 15 x 20	-	1.061 (26.95mm)	-	±30%	Ungapped	12000	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)

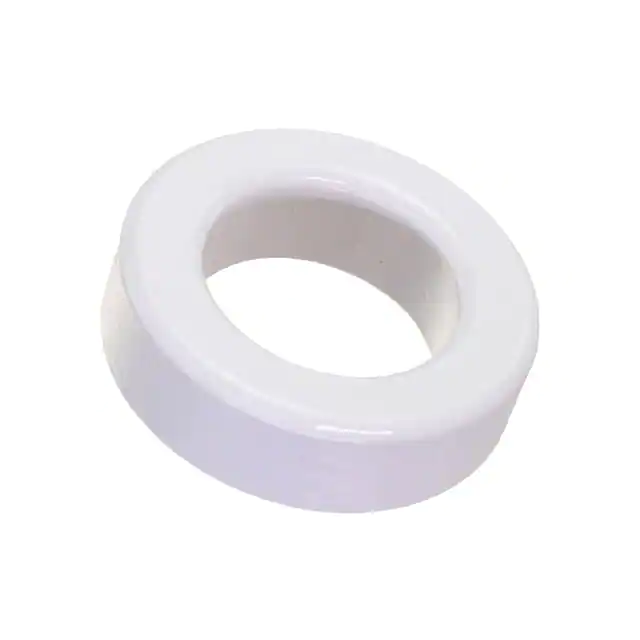

TX42/26/13-3E10-M FERRITE CORES ROUND Ferroxcube	2,795	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 42 x 26 x 13	-	1.697 (43.15mm)	-	±30%	Ungapped	10000	-	1.076	103	95.8	-	9860	Epoxy	0.531 (13.50mm)
PLT58/38/4-3F36 FERRITE CORE Ferroxcube	2,651	-	RFQ	Ficha técnica	Bulk	-	Active	PLT	PLT 58 x 38 x 4	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
TX40/24/16-3E12 FERRITE CORES ROUND Ferroxcube	2,558	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 40 x 24 x 16	-	1.640 (41.65mm)	-	±30%	Ungapped	12000	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)
