Más categorías de productos

Diodos - Rectificadores - Individuales

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
1N1193A 20 AMP SILICON RECTIFIER DO-5 Solid State Inc.	2,549	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	-	-	12A	-65°C ~ 200°C	1.2 V @ 30 A
1N1196RA 20 AMP SILICON RECTIFIER DO-5 Solid State Inc.	2,915	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	10 µA @ 400 V	400 V	40A	-65°C ~ 200°C	1.19 V @ 90 A
1N2157R DO5 40 AMP SILICON RECTFIER Solid State Inc.	2,926	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	10 µA @ 300 V	300 V	40A	-65°C ~ 200°C	1.19 V @ 90 A
MR756 RECT 600 V 6 AMPS Solid State Inc.	2,989	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	-	-	-	25 µA @ 600 V	600 V	6A	-65°C ~ 175°C	900 mV @ 6 A
1N5284 FED .24 MA DO35 Solid State Inc.	3,545	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	-	100 V	264mA (DC)	-55°C ~ 200°C	1 V @ 211.2 mA
1N5312 FED 3.9 MA DO35 Solid State Inc.	3,968	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	-	100 V	4.29A (DC)	-55°C ~ 200°C	2.6 V @ 3.432 A
1N5306 FED 2 MA DO35 Solid State Inc.	3,945	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	-	100 V	2.42A (DC)	-55°C ~ 200°C	1.95 V @ 1.936 A
1N5307 FED 2.4 MA DO35 Solid State Inc.	2,319	-	RFQ	Ficha técnica	Box	RoHS	-	Standard	Active	Through Hole	-	-	-	100 V	-	-55°C ~ 200°C	-
MR500 STANDARD RECOVERY 3 AMP RECTIFIE Solid State Inc.	2,747	-	RFQ	Ficha técnica	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	5 µA @ 50 V	50 V	3A	-65°C ~ 175°C	1.1 V @ 9.4 A

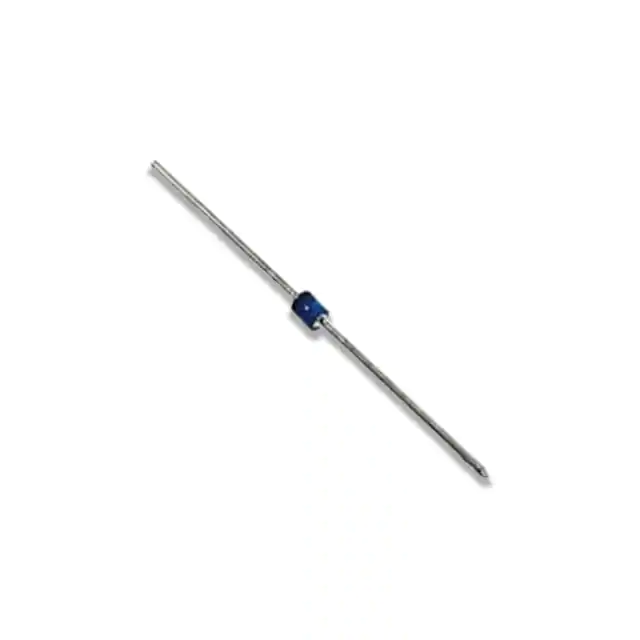

1N5551 RECT 3AMP 400V G4 Solid State Inc.	4,900	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	120pF @ 12V, 1MHz	2 µs	1 µA @ 400 V	400 V	3A	-65°C ~ 200°C	1 V @ 3 A
1N5553 RECT 3AMP 800V G4 Solid State Inc.	4,870	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	90pF @ 12V, 1MHz	4 µs	1 µA @ 800 V	800 V	3A	-65°C ~ 200°C	1.1 V @ 3 A
1N5554 RECT 3AMP 1K V G4 Solid State Inc.	4,820	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	85pF @ 12V, 1MHz	4 µs	1 µA @ 1000 V	1000 V	3A	-65°C ~ 200°C	1.1 V @ 3 A
1N5552 RECT 3AMP 600V G4 Solid State Inc.	4,690	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	100pF @ 12V, 1MHz	2 µs	1 µA @ 600 V	600 V	3A	-65°C ~ 200°C	1 V @ 3 A
1N5550 RECT 3AMP 200V G4 Solid State Inc.	4,150	-	RFQ	Ficha técnica	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	150pF @ 12V, 1MHz	2 µs	1 µA @ 200 V	200 V	3A	-65°C ~ 200°C	1 V @ 3 A

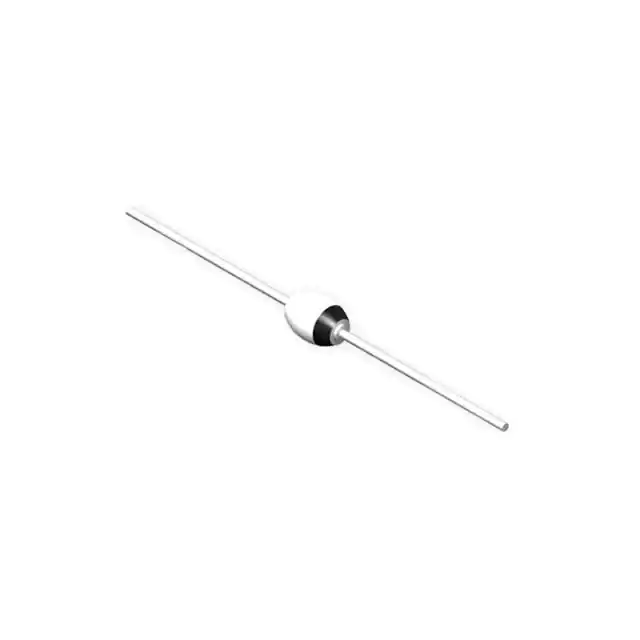

1N5804 RECT 2.5 AMP 100V DO204AP Solid State Inc.	4,910	-	RFQ	Ficha técnica	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	25 ns	1 µA @ 100 V	100 V	2.5A	-65°C ~ 175°C	875 mV @ 1 A
1N5806 DO-204AP 2.5 AMP RECTIFIER Solid State Inc.	3,240	-	RFQ	Ficha técnica	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	25 ns	1 µA @ 150 V	150 V	2.5A	-65°C ~ 175°C	875 mV @ 1 A
