Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
B82801A1304A060 EE4.2 SMD TRANSFORMER_P301767 EPCOS - TDK Electronics	583	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	295 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1743A030 CURR SENSE XFMR 1:30 SMD EPCOS - TDK Electronics	572	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	74 µH	-	1:30	-	2.5mOhm Primary, 800mOhm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1214A050 EE4.2 SMD TRANSFORMER_P301766 EPCOS - TDK Electronics	552	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	205 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1404A070 EE4.2 SMD TRANSFORMER_P301768 EPCOS - TDK Electronics	543	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	400 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
7492540020 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	166	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	MID-CST	Active	1MHz	Invasive	40 A	224 µH	49Vµs	1:20	-	0.28mOhm Primary, 33mOhm Secondary	AEC-Q200	Surface Mount	0.570 L x 0.524 W (14.48mm x 13.30mm)	0.413 (10.50mm)
B82801A1185A150 TRANSFORMER CURRENT SENSE SMD EPCOS - TDK Electronics	319	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	1.84 mH	43.2VµS	1:150	-	2.5mOhm Primary, 21Ohm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)

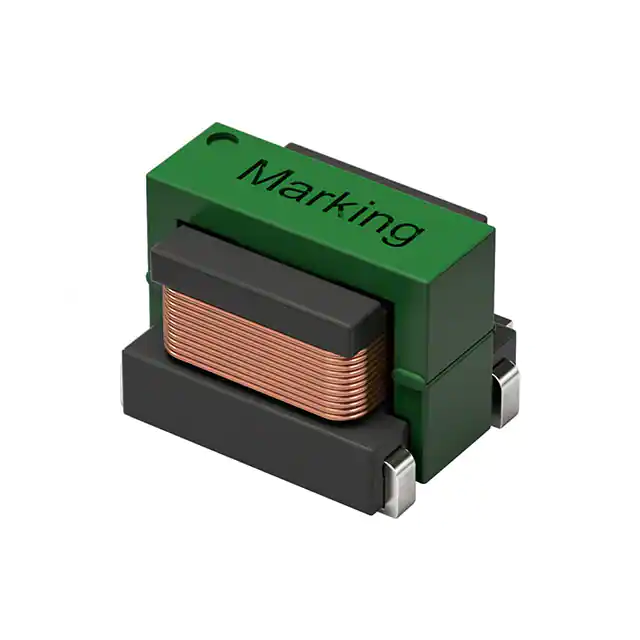

749252060 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	2,538	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	295 µH	27VµS	1:60	-	3mOhm Primary, 3.6Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252070 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	2,408	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	400 µH	31.5VµS	1:70	-	3mOhm Primary, 4.6Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252040 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	2,430	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	132 µH	18VµS	1:40	-	3mOhm Primary, 1.6Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252030 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	2,923	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	74 µH	13.5VµS	1:30	-	3mOhm Primary, 800mOhm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252125 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	3,324	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	1.28 mH	56.2VµS	1:125	-	3mOhm Primary, 13Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252050 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	3,852	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	205 µH	22.5VµS	1:50	-	3mOhm Primary, 2.5Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252020 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	3,289	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	33 µH	9VµS	1:20	-	3mOhm Primary, 350mOhm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252100 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	2,888	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	820 µH	45VµS	1:100	-	3mOhm Primary, 9.5Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)
749252150 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	2,572	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	1MHz	Invasive	7 A	1.8 mH	67.5VµS	1:150	-	3mOhm Primary, 21Ohm Secondary	-	Surface Mount	0.185 L x 0.183 W (4.70mm x 4.65mm)	0.140 (3.55mm)

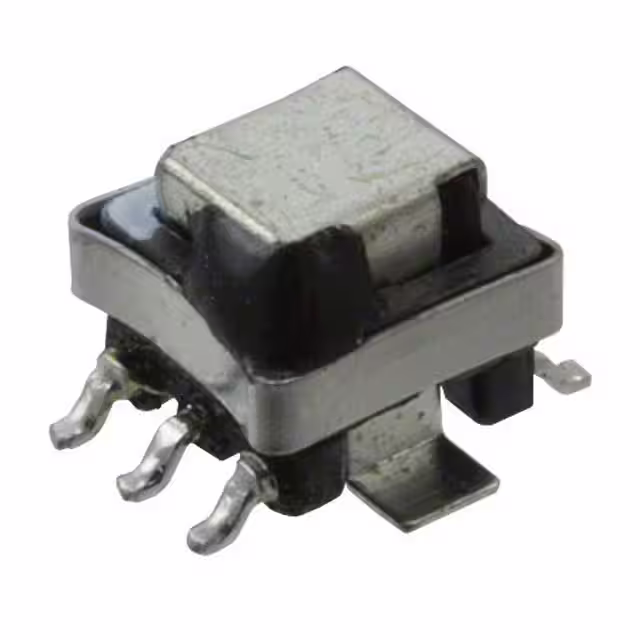

749251020 CURR SENSE XFMR 1:20 10A SMD Würth Elektronik	617	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	-	Invasive	-	80 µH	10VµS	1:20	-	6mOhm Primary, 200mOhm Secondary	-	Surface Mount	0.303 L x 0.272 W (7.70mm x 6.90mm)	0.210 (5.33mm)

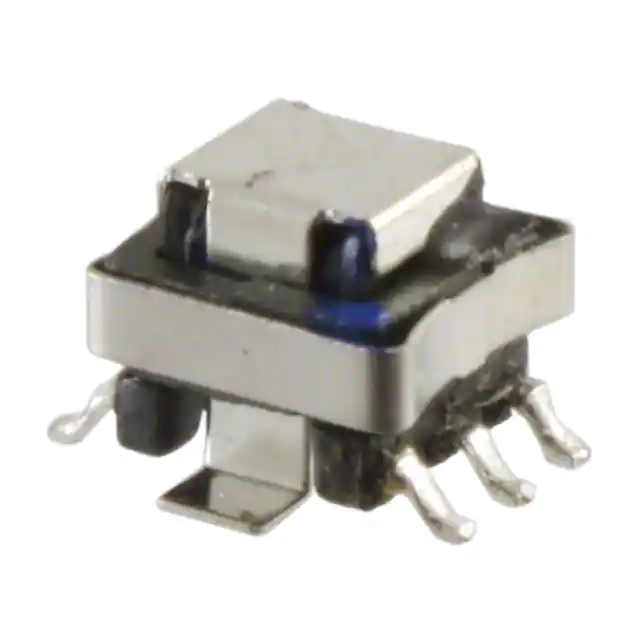

749251050 CURR SENSE XFMR 1:50 10A SMD Würth Elektronik	504	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	-	Invasive	-	500 µH	25VµS	1:50	-	6mOhm Primary, 1.4Ohm Secondary	-	Surface Mount	0.303 L x 0.272 W (7.70mm x 6.90mm)	0.210 (5.33mm)

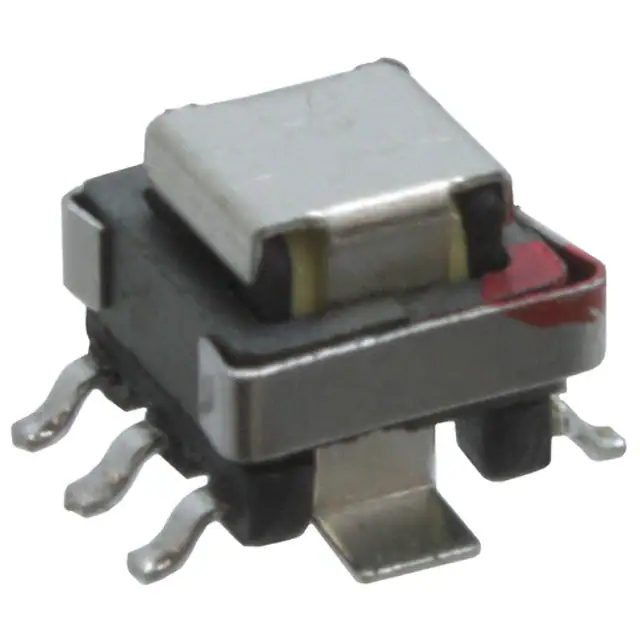

749251070 CURR SENSE XFMR 1:70 10A SMD Würth Elektronik	407	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	WE-CST	Active	-	Invasive	-	980 µH	35VµS	1:70	-	6mOhm Primary, 2.2Ohm Secondary	-	Surface Mount	0.303 L x 0.272 W (7.70mm x 6.90mm)	0.210 (5.33mm)
B78419A2290A003 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	192	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	11 mH	-	1:125	-	0.5mOhm Primary, 4Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)
B78417A2286A003 CURR SENSE XFMR 1:70 SMD EPCOS - TDK Electronics	295	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	3 mH	-	1:70	-	1.9mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
