Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
PE-68210NLT CURR SENSE XFMR 1:1:50 SMD Pulse Electronics Power	3,857	-	RFQ	Ficha técnica	Tape & Reel (TR)	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	3.8 mH	-	1:1:50	-	1.15mOhm Primary, 380mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
CST25-0500 ENCAPSULATED PCB CURRENT SENSE X Triad Magnetics	3,403	-	RFQ	Ficha técnica	Tube	CST	Active	50kHz ~ 500kHz	Invasive	25 A	470 mH	1750VµS	1:500	-	16Ohm	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)
CSE5-100301 CURR SENSE XFMR 1:30 10A SMD Triad Magnetics	3,444	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	180 µH	-	1:30	-	870mOhm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE5-101001 CURR SENSE XFMR 1:100 10A SMD Triad Magnetics	3,009	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	2 mH	-	1:100	-	5.5Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE5-101251 CURR SENSE XFMR 1:125 10A SMD Triad Magnetics	2,713	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	3 mH	-	1:125	-	8.5Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
PA1005.125QNL CURR SENSE XFMR 1:125 20A SMD Pulse Electronics Power	2,541	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	3 mH	-	1:125	-	0.75mOhm Primary, 6.5Ohm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
B82801A1743A 30 CURR SENSE XFMR 1:30 SMD EPCOS - TDK Electronics	2,562	-	RFQ		Tape & Reel (TR)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	74 µH	6VµS	-	-	2.5mOhm Primary, 800mOhm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)

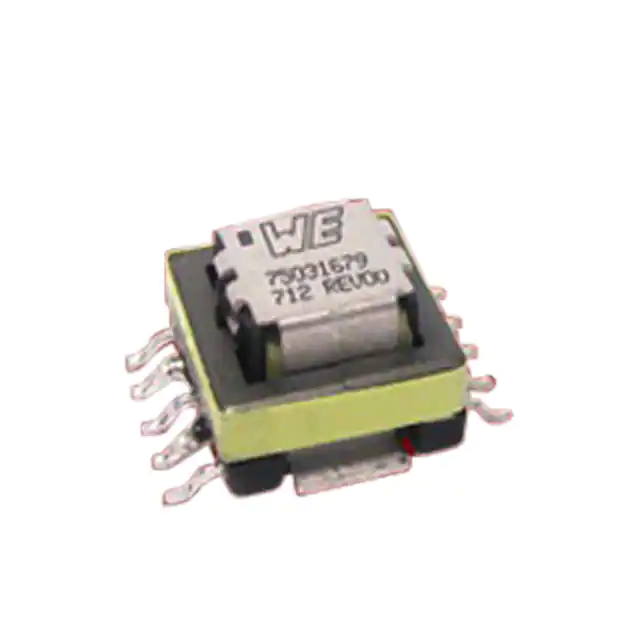

750316793 CURRENT SENSE TRANSFORMER Würth Elektronik	3,191	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	50kHz ~ 500kHz	Invasive	40 A	1.4 mH	-	1:50	-	280mOhm	-	Surface Mount	0.570 L x 0.795 W (14.48mm x 20.20mm)	0.413 (10.50mm)
750316794 CURRENT SENSE TRANSFORMER Würth Elektronik	2,266	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	50kHz ~ 500kHz	Invasive	40 A	5.6 mH	-	1:100	-	280mOhm	-	Surface Mount	0.570 L x 0.795 W (14.48mm x 20.20mm)	0.413 (10.50mm)
750316795 CURRENT SENSE TRANSFORMER Würth Elektronik	3,758	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	50kHz ~ 500kHz	Invasive	40 A	12.6 mH	-	1:150	-	280mOhm	-	Surface Mount	0.570 L x 0.795 W (14.48mm x 20.20mm)	0.413 (10.50mm)
PA1005.050NL CURR SENSE XFMR 1:50 20A SMD Pulse Electronics Power	3,076	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PA0368.070NL CURR SENSE XFMR 1:70 4A SMD Pulse Electronics Power	3,993	-	RFQ	Ficha técnica	Tube	-	Active	50kHz ~ 1MHz	Invasive	4 A	3.3 mH	-	1:70	-	4mOhm Primary, 1.2Ohm Secondary	-	Surface Mount	0.285 L x 0.352 W (7.25mm x 8.25mm)	0.124 (3.15mm)
PA0368.100NL CURR SENSE XFMR 1:100 4A SMD Pulse Electronics Power	2,692	-	RFQ	Ficha técnica	Tube	-	Active	50kHz ~ 1MHz	Invasive	4 A	6.7 mH	-	1:100	-	4mOhm Primary, 1.6Ohm Secondary	-	Surface Mount	0.285 L x 0.352 W (7.25mm x 8.25mm)	0.124 (3.15mm)
PA1005.070NL CURR SENSE XFMR 1:70 20A SMD Pulse Electronics Power	2,251	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	980 µH	-	1:70	-	0.75mOhm Primary, 4.75Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

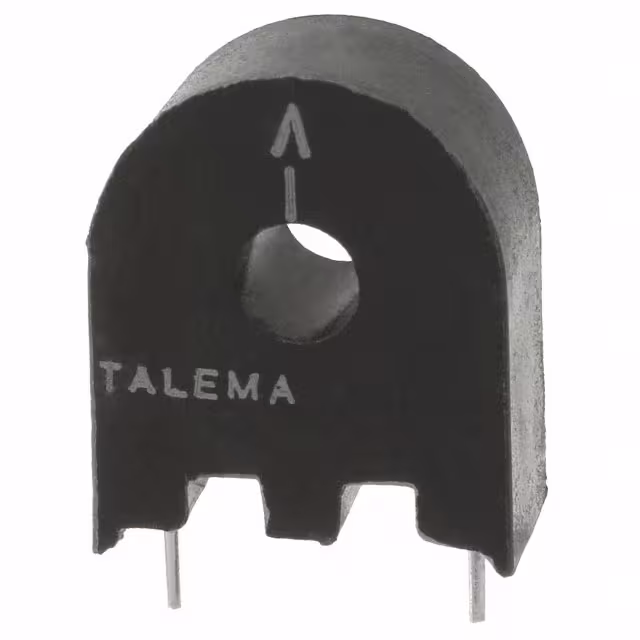

AX-0750 CURR SENSE XFMR 7.5A T/H Talema Group LLC	3,482	-	RFQ	Ficha técnica	Tray	AX	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	7.5 A	-	-	-	750:1	-	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-101 XFRMR CURR 15A 1:100 VRT Amgis, LLC	3,331	-	RFQ	Ficha técnica	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-102 XFRMR CURR 15A 1:200 VRT Amgis, LLC	2,209	-	RFQ	Ficha técnica	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
PAS6322.030NLT XFRMR CURRENT SENSE 1:30 50A Pulse Electronics Power	3,054	-	RFQ	Ficha técnica	Tape & Reel (TR)	PAS6322.XXXNLT	Active	20kHz ~ 1MHz	Invasive	50 A	400 µH	-	1:30	-	0.5mOhm Primary, 240mOhm Secondary Max	-	Surface Mount	0.122 L x 0.252 W (3.10mm x 6.40mm)	0.029 (0.73mm)
PAS6322.125NLT XFRMR CURRENT SENSE 1:125 50A Pulse Electronics Power	2,642	-	RFQ	Ficha técnica	Tape & Reel (TR)	PAS6322.XXXNLT	Active	20kHz ~ 1MHz	Invasive	50 A	7 mH	-	1:125	-	0.5mOhm Primary, 4.2Ohm Secondary Max	-	Surface Mount	0.122 L x 0.252 W (3.10mm x 6.40mm)	0.029 (0.73mm)
AS-103 CURR SENSE XFMR 1:300 T/H Amgis, LLC	2,049	-	RFQ	Ficha técnica	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	250 mH	900VµS	1:300	-	10Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
