Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CSE5-100401 CURR SENSE XFMR 1:40 10A SMD Triad Magnetics	347	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	320 µH	-	1:40	-	1.14Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE5-100601 CURR SENSE XFMR 1:60 10A SMD Triad Magnetics	338	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	720 µH	-	1:60	-	1.75Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE5-100501 CURR SENSE XFMR 1:50 10A SMD Triad Magnetics	211	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	500 µH	-	1:50	-	1.5Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)

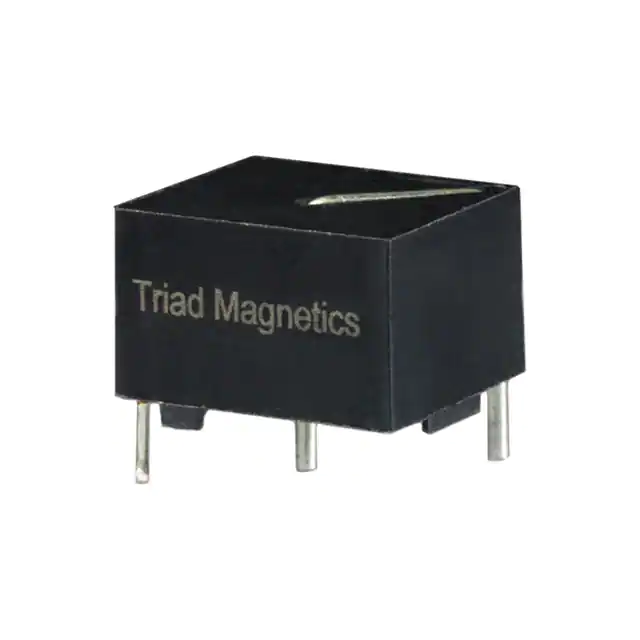

CST25-0050 ENCAPSULATED PCB CURRENT SENSE X Triad Magnetics	292	-	RFQ	Ficha técnica	Bulk	CST	Active	50kHz ~ 500kHz	Invasive	500 mA	4.7 mH	175VµS	1:50	-	500mOhm	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)
CST25-0200 ENCAPSULATED PCB CURRENT SENSE X Triad Magnetics	109	-	RFQ	Ficha técnica	Bulk	CST	Active	50kHz ~ 500kHz	Invasive	125 mA	76 mH	700VµS	1:200	-	4.5Ohm	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)
CST306-2T CURR SENSE XFMR 25A T/H Triad Magnetics	2,913	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	14 mH	1000VµS	-	100CT:1	1.55Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CSE5-100201 CURR SENSE XFMR 1:200 10A SMD Triad Magnetics	2,114	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	80 µH	-	1:200	-	550mOhm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CST25-0100 ENCAPSULATED PCB CURRENT SENSE X Triad Magnetics	624	-	RFQ	Ficha técnica	Tube	CST	Active	50kHz ~ 500kHz	Invasive	25 A	18 mH	350VµS	1:100	-	2Ohm	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)
CST206-3T CURR SENSE XFMR 70A T/H Triad Magnetics	3,837	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	70 A	130 mH	6000VµS	-	300:1	12.4Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)

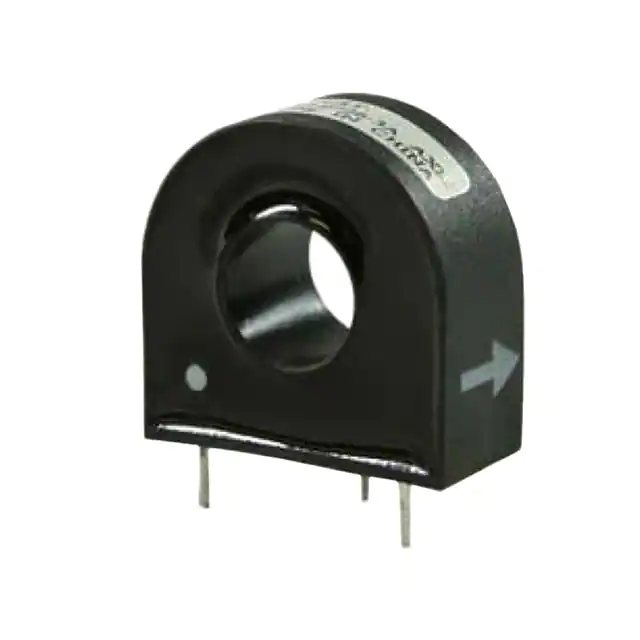

CST-1020-B CURR SENSE XFMR 20A T/H Triad Magnetics	2,545	-	RFQ	Ficha técnica	Tray	CST	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CST-1015 CURR SENSE XFMR 15A T/H Triad Magnetics	2,588	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CST206-2T CURR SENSE XFMR 80A T/H Triad Magnetics	3,764	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	80 A	56 mH	4000VµS	-	200:1	3.5Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CSE187L-B TRANSF LOW FREQ CRNT SENSE BULK Triad Magnetics	3,983	-	RFQ		-	CSE187	Active	-	-	-	-	-	1:500	-	250mOhm Max	-	Through Hole	0.875 L x 0.875 W (22.23mm x 22.23mm)	0.720 (18.29mm)
CST25-0500 ENCAPSULATED PCB CURRENT SENSE X Triad Magnetics	3,403	-	RFQ	Ficha técnica	Tube	CST	Active	50kHz ~ 500kHz	Invasive	25 A	470 mH	1750VµS	1:500	-	16Ohm	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)
CSE5-100301 CURR SENSE XFMR 1:30 10A SMD Triad Magnetics	3,444	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	180 µH	-	1:30	-	870mOhm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE5-101001 CURR SENSE XFMR 1:100 10A SMD Triad Magnetics	3,009	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	2 mH	-	1:100	-	5.5Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE5-101251 CURR SENSE XFMR 1:125 10A SMD Triad Magnetics	2,713	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	250kHz Min	Invasive	10 A	3 mH	-	1:125	-	8.5Ohm Secondary	-	Surface Mount	0.272 L x 0.303 W (6.90mm x 7.70mm)	0.210 (5.33mm)
CSE187L-P-B CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	2,764	-	RFQ	Ficha técnica	Bulk	CSE	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.875 L x 0.875 W (22.23mm x 22.23mm)	0.720 (18.29mm)

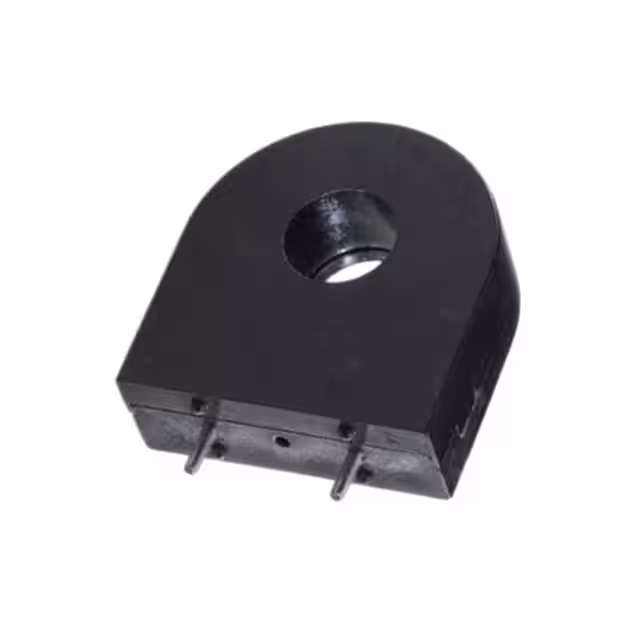

CST306-1A-B CURR SENSE XFMR 35A T/H Triad Magnetics	2,648	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50:1	340mOhm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-1T-B CURR SENSE XFMR 35A T/H Triad Magnetics	2,262	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50CT:1	340mOhm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
