Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
PE-63588NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,426	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63587NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,746	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	20 mH	-	-	100:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-67100NL CURR SENSE XFMR 37A T/H Pulse Electronics Power	3,454	-	RFQ	Ficha técnica	Tray	-	Active	10kHz ~ 200kHz	Invasive	37 A	20 mH	-	1:100	100:1	56Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.565 L x 0.750 W (14.35mm x 19.05mm)	0.750 (19.05mm)
PE-67200NL CURR SENSE XFMR 38A T/H Pulse Electronics Power	2,754	-	RFQ	Ficha técnica	Tray	-	Active	10kHz ~ 200kHz	Invasive	38 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.565 L x 0.750 W (14.35mm x 19.05mm)	0.750 (19.05mm)
PA3202NL CURR SENSE XFMR ROGOWSKI 200A Pulse Electronics Power	3,810	-	RFQ	Ficha técnica	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	200 A	1.75 mH	-	Rogowski Coil	-	54Ohm Max	-	Chassis Mount	1.669 L x 1.587 W (42.40mm x 40.30mm)	0.580 (14.73mm)
PA3209NL CURR SENSE XFMR ROGOWSKI 1000A Pulse Electronics Power	2,904	-	RFQ	Ficha técnica	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	1000 A	3 mH	-	Rogowski Coil	-	42Ohm Max	-	Chassis Mount	2.240 L x 2.098 W (56.90mm x 53.30mm)	0.580 (14.73mm)
PH9505.100NLT XFRMR CURRENT SENSE 1:100 SMD Pulse Electronics Power	3,505	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	7 mH	-	1:100	-	0.5mOhm Primary, 3.1Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
PH9505.180NLT XFRMR CURRENT SENSE 1:180 SMD Pulse Electronics Power	2,297	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	25 mH	-	1:180	-	0.5mOhm Primary, 9Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
PB0027NLT CURR SENSE XFMR 200:1 35A SMD Pulse Electronics Power	2,971	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	22.4 mH	-	200:1	-	0.42mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
PA1005.030QNL CURR SENSE XFMR 1:30 20A SMD Pulse Electronics Power	3,963	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	180 µH	-	1:30	-	0.75mOhm Primary, 870mOhm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PE-68210NL CURR SENSE XFMR 1:1:50 SMD Pulse Electronics Power	2,415	-	RFQ	Ficha técnica	Tube	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	3.8 mH	-	1:1:50	-	1.15mOhm Primary, 380mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PB0027NL CURR SENSE XFMR 200:1 35A SMD Pulse Electronics Power	2,202	-	RFQ	Ficha técnica	Tray	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	22.4 mH	-	200:1	-	0.42mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
PB0026NL CURR SENSE XFMR 100:1 35A SMD Pulse Electronics Power	844	-	RFQ	Ficha técnica	Tray	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	5.6 mH	-	100:1	-	0.42mOhm Primary, 1.4Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)

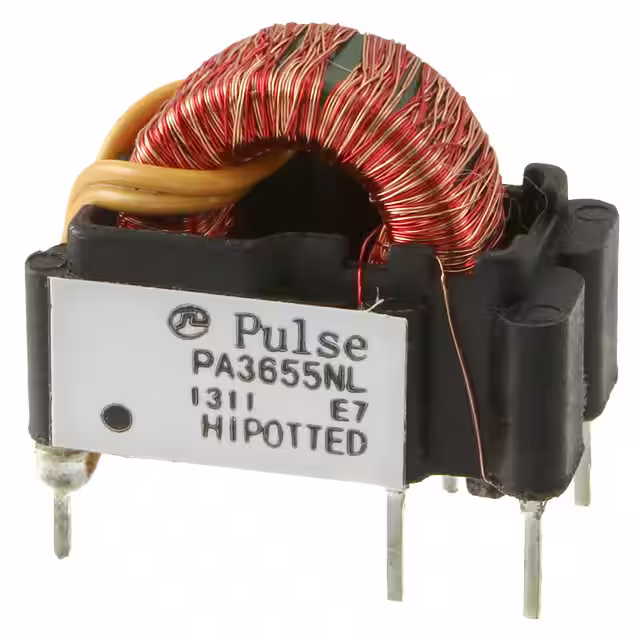

PA3655NL CURR SENSE XFMR 34A T/H Pulse Electronics Power	453	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 500kHz	Invasive	34 A	76 mH	-	-	200:200:1	15.8Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810 L x 0.580 W (20.57mm x 14.73mm)	0.750 (19.05mm)
FIS155NL CURR SENSE XFMR 1:500 25A T/H Pulse Electronics Power	674	-	RFQ	Ficha técnica	Tube	FIS 1X5	Active	500kHz Max	Invasive	-	470 mH	1750VµS	1:500	-	16Ohm Max	-	Through Hole	0.693 L x 0.591 W (17.60mm x 15.00mm)	0.492 (12.50mm)
P0581NL CURR SENSE XFMR 200:1:1 34A T/H Pulse Electronics Power	610	-	RFQ	Ficha técnica	Tray	THT	Active	50kHz ~ 500kHz	Invasive	34 A	76 mH	-	200:1:1	-	2.8Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810 L x 0.580 W (20.57mm x 14.73mm)	0.750 (19.05mm)
PE-51719NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	907	-	RFQ	Ficha técnica	Tray	-	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	80 mH	-	-	200CT:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63619NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	584	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200CT:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PA3208NL CURR SENSE XFMR ROGOWSKI 100A Pulse Electronics Power	753	-	RFQ	Ficha técnica	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	100 A	1.14 mH	-	Rogowski Coil	-	54Ohm Max	-	Chassis Mount	1.205 L x 1.189 W (30.60mm x 30.20mm)	0.580 (14.73mm)
PE-64519NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,319	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200CT:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
