Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

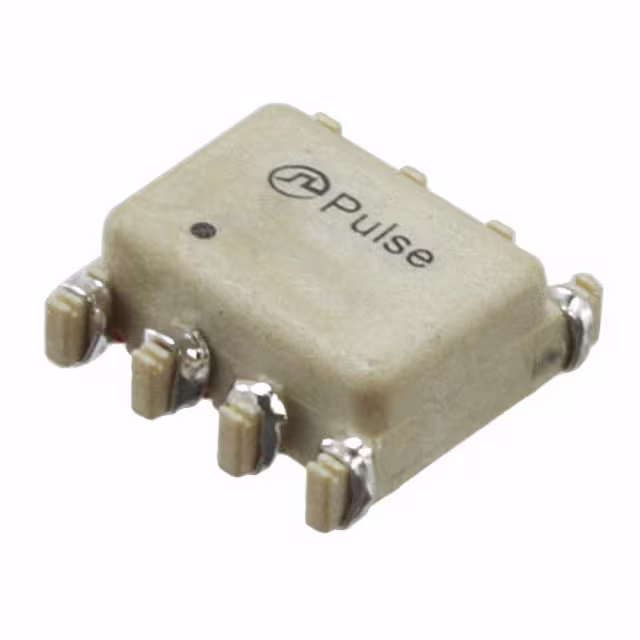

PA2741NL CMC 1.1A 2LN SMD Pulse Electronics Power	3,111	-	RFQ	Ficha técnica	Tube	-	Active	-	2	-	-	1.1A	30mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.360 L x 0.350 W (9.14mm x 8.89mm)	0.150 (3.80mm)
PA5140.105NLT COMMON MODE CHOKE 135UH 22A Pulse Electronics Power	812	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA5140.XXXNL	Active	Signal Line	2	820 Ohms @ 3.3 MHz	-	21A	2.2mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.780 L x 0.768 W (19.80mm x 19.50mm)	0.756 (19.20mm)
PA5140.305NLT COMMON MODE CHOKE 270UH 15A Pulse Electronics Power	590	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA5140.XXXNL	Active	-	2	3.85 kOhms @ 3 MHz	305 µH @ 3 MHz	17A	3.85mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.780 L x 0.768 W (19.80mm x 19.50mm)	0.756 (19.20mm)
PE-53914NL CMC 500MA 2LN SMD Pulse Electronics Power	846	-	RFQ	Ficha técnica	Tube	-	Active	Power Line	2	-	-	500mA	850mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.645 L x 0.560 W (16.38mm x 14.22mm)	0.350 (8.89mm)
PA5141.405NLT COMMON MODE CHOKE 360UH 22A Pulse Electronics Power	483	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA5141.XXXNL	Active	Signal Line	2	1.55 kOhms @ 2.1 MHz	-	22A	2.9mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.957 L x 0.925 W (24.30mm x 23.50mm)	0.894 (22.70mm)
FE2X03-4-3NL CMC 2.5A 2LN TH Pulse Electronics Power	3,052	-	RFQ	Ficha técnica	Tube	FE2X	Active	-	2	-	-	2.5A	90mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.902 L x 0.902 W (22.91mm x 22.91mm)	0.606 (15.39mm)

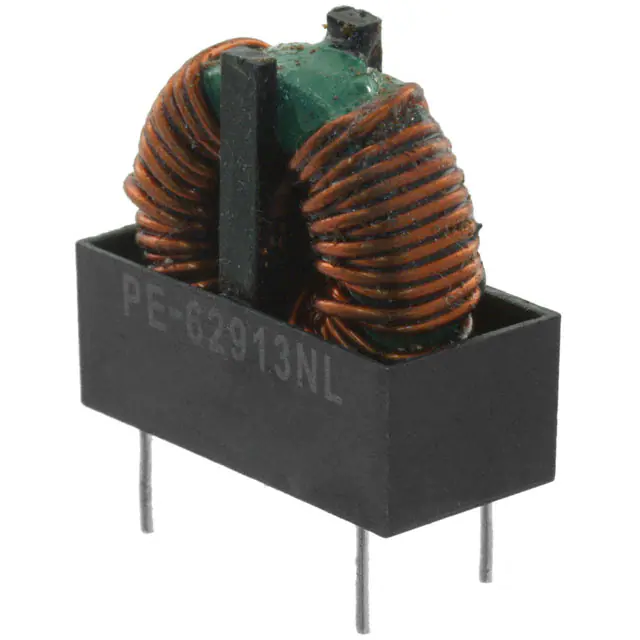

PE-62913NL CMC 1MH 6A 2LN TH Pulse Electronics Power	493	-	RFQ		Tray	-	Active	Power Line	2	-	1 mH @ 1 kHz	6A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.150 L x 0.560 W (29.21mm x 14.22mm)	1.160 (29.46mm)
PE-62893NL CMC 1MH 6A 2LN TH Pulse Electronics Power	367	-	RFQ		Tray	-	Active	-	2	-	1 mH @ 1 kHz	6A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.250 L x 1.250 W (31.75mm x 31.75mm)	0.610 (15.49mm)
PE-96186NL CMC 6.3A 2LN TH Pulse Electronics Power	366	-	RFQ	Ficha técnica	Tube	-	Active	Power Line	2	-	-	6.3A (Typ)	40mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.299 L x 0.720 W (33.00mm x 18.29mm)	1.350 (34.29mm)
PE-62897NL CMC 2MH 7.5A 2LN TH Pulse Electronics Power	425	-	RFQ		Tray	-	Active	Power Line	2	-	2 mH @ 1 kHz	7.5A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.500 L x 1.500 W (38.10mm x 38.10mm)	0.810 (20.57mm)
BWCU00201212900M02 CMC 330MA 2LN 90 OHM SMD Pulse Electronics Power	2,428	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	BWCU_02	Active	-	2	90 Ohms @ 100 MHz	-	330mA	350mOhm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
AWCU00201212361M02 CMC 280MA 2LN 360OHM SMD AECQ200 Pulse Electronics Power	3,771	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	360 Ohms @ 100 MHz	-	280mA	450mOhm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
AWCU00453226513TT2 CMC 51UH 200MA 2LN SMD AEC-Q200 Pulse Electronics Power	3,008	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	2.8 kOhms @ 10 MHz	51 µH @ 100 kHz	200mA	1Ohm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.110 (2.80mm)
AWCU00453226113TT2 CMC 11UH 250MA 2LN SMD AEC-Q200 Pulse Electronics Power	2,782	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, WCU	Active	Signal Line	2	600 Ohms @ 10 MHz	11 µH @ 100 kHz	250mA	600mOhm	50V	-	-50°C ~ 150°C	AEC-Q200	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.110 (2.80mm)
PA4339.501NLT CMC 4UH 5A 2LN 350 OHM SMD Pulse Electronics Power	3,523	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA4339	Active	-	2	350 Ohms @ 100 MHz	4 µH @ 100 kHz	5A	10mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.276 L x 0.236 W (7.00mm x 6.00mm)	0.150 (3.80mm)
PA4339.301NLT CMC 2.8UH 5A 2LN 300 OHM SMD Pulse Electronics Power	3,279	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA4339	Active	-	2	300 Ohms @ 100 MHz	2.8 µH @ 100 kHz	5A	10mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.276 L x 0.236 W (7.00mm x 6.00mm)	0.150 (3.80mm)
PAC6006.264NLT CMC 11A 2LN 1.4KOHM SMD Pulse Electronics Power	2,674	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1.4 kOhms @ 5.3 MHz	-	11A	5.5mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)

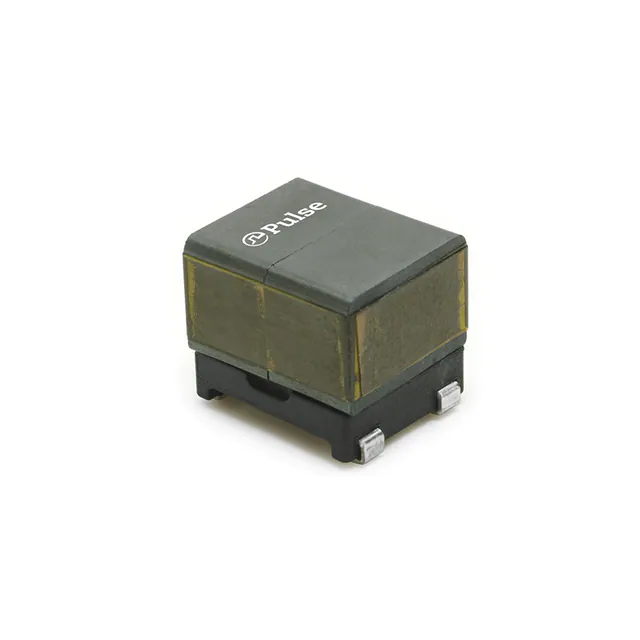

PAC6006.604NLT CMC 6.7A 2LN 2.5KOHM SMD Pulse Electronics Power	3,319	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	2.5 kOhms @ 3.9 MHz	-	6.7A	15mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6006.444NLT CMC 8.5A 2LN 1.9KOHM SMD Pulse Electronics Power	2,573	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1.9 kOhms @ 4.8 MHz	-	8.5A	10mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6034.205NLT CMC 1.1A 2LN 16.2KOHM SMD Pulse Electronics Power	150	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PAC6034.XXXNLT	Active	-	2	16.2 kOhms @ 2 MHz	-	1.1A	290mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.490 (12.45mm)
