Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

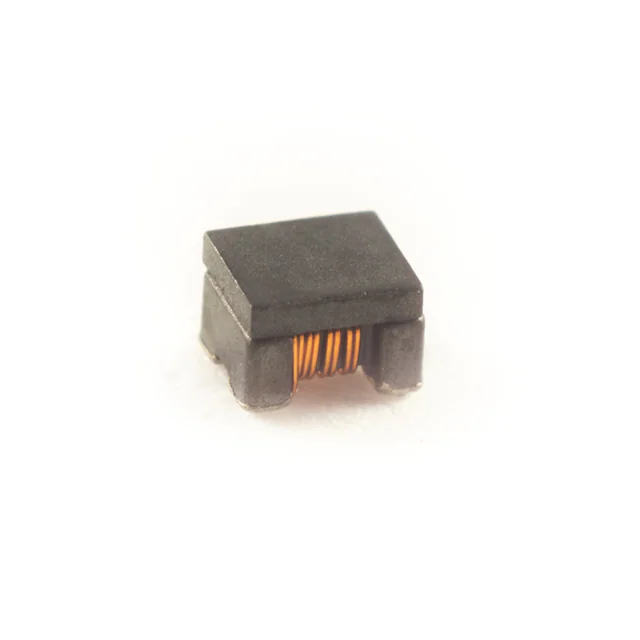

SCMHF20-900T-RC 90 OHM, COMMON MODE FILTER Allied Components International	3,919	-	RFQ	Ficha técnica	Tape & Reel (TR)	-	Active	-	2	90 Ohms @ 100 MHz	-	200mA	400mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.047 L x 0.039 W (1.20mm x 1.00mm)	0.035 (0.90mm)
SCM20-222M-RC 2200 OHMS 20% COMMON MODE Allied Components International	3,906	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	2.2 kOhms @ 100 MHz	-	200mA	1.2Ohm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.083 (2.10mm)
SCM10-181M-RC 180 OHMS 20% COMMON MODE Allied Components International	3,773	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	180 Ohms @ 100 MHz	-	330mA	350mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
SCM10-201M-RC 200 OHMS 20% COMMON MODE Allied Components International	2,172	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	200 Ohms @ 100 MHz	-	330mA	350mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)
RLF20-400Y-RC 40UH35% RAD. LEADED LINE FILTER Allied Components International	3,297	-	RFQ	Ficha técnica	Box	-	Active	-	2	1 kOhms @ 100 MHz	40 µH @ 1 kHz	750mA	20mOhm	50V	-	-20°C ~ 105°C	-	-	-	Through Hole	0.295 L x 0.252 W (7.50mm x 6.40mm)	0.354 (9.00mm)
SCM10-901M-RC 900 OHMS 20% COMMON MODE Allied Components International	2,213	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	900 Ohms @ 100 MHz	-	80mA	600mOhm	120V	-	-40°C ~ 150°C	-	-	-	Surface Mount	0.081 L x 0.049 W (2.05mm x 1.25mm)	0.055 (1.40mm)

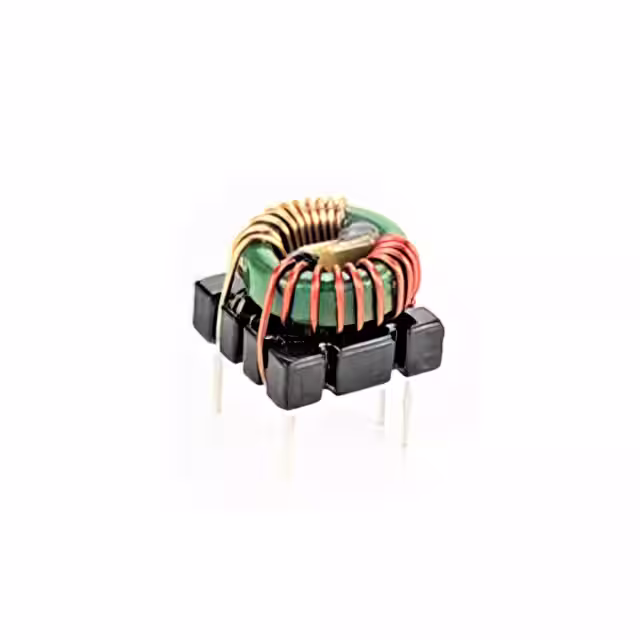

HCMB1111-200 20uh Min. Thru-Hole Toroidal CMF Allied Components International	2,770	-	RFQ	Ficha técnica	Tube	HCMB1111-200	Active	-	2	3 kOhms @ 97 MHz	20 µH @ 1 kHz	500mA	65mOhm	-	-	110°C	-	-	-	Through Hole	0.492 Dia (12.50mm)	0.551 (14.00mm)
SCM05-121M-RC 120 OHMS 20% USB 3.0 COMMON Allied Components International	2,218	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	120 Ohms @ 100 MHz	-	200mA	400mOhm	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.049 L x 0.039 W (1.25mm x 1.00mm)	0.043 (1.10mm)
SCM05-600M-RC 60 OHMS 20% USB 3.0 COMMON Allied Components International	3,495	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	60 Ohms @ 100 MHz	-	300mA	400mOhm	20V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.049 L x 0.039 W (1.25mm x 1.00mm)	0.043 (1.10mm)
SCM05-670M-RC 67 OHMS 20% USB 3.0 COMMON Allied Components International	2,821	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM	Active	Signal Line	2	67 Ohms @ 100 MHz	-	300mA	250mOhm	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.049 L x 0.039 W (1.25mm x 1.00mm)	0.043 (1.10mm)
ACP20-102 1000 oHms +/-25% SMD Common Mode Allied Components International	2,559	-	RFQ	Ficha técnica	Tape & Reel (TR)	ACP20	Active	-	2	1 kOhms @ 100 MHz	-	1.5A	100mOhm	60V	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.087 (2.20mm)
SCM20-900M-RC 90oHms +/-20% Common Mode Choke Allied Components International	3,257	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM20	Active	Signal Line	2	90 Ohms @ 100 MHz	-	370mA	300mOhm	50V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.083 (2.10mm)
SCM30S-801T-RC 800oHms +/-25% Comm. Mode Filter Allied Components International	2,274	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM30S	Active	Signal Line	2	800 Ohms @ 100 MHz	-	1A	240mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.118 (3.00mm)
SCM25-900T-RC 90oHms +/-25% Common Mode Choke Allied Components International	3,596	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM25	Active	Signal Line	2	90 Ohms @ 100 MHz	-	1A	270mOhm	60V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.094 (2.40mm)
SCM25-102T-RC 1000oHms +/-25% Comm. Mode Choke Allied Components International	3,157	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCM25	Active	Signal Line	2	1 kOhms @ 100 MHz	-	1.2A	300mOhm	60V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.094 (2.40mm)

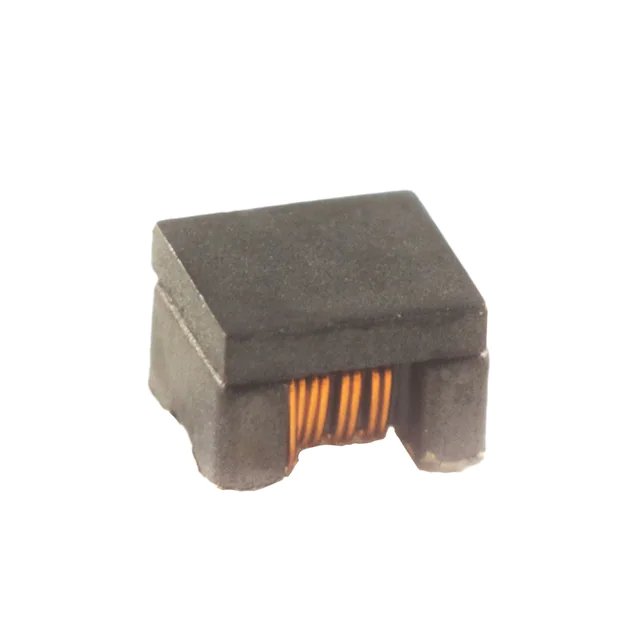

SCMHF20-500T-RC 50oHms +/-25% Comm. Mode Filter Allied Components International	2,998	-	RFQ	Ficha técnica	Tape & Reel (TR)	SCMHF20	Active	Signal Line	2	50 Ohms @ 100 MHz	-	250mA	300mOhm	50V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.047 L x 0.039 W (1.20mm x 1.00mm)	0.035 (0.90mm)
AUU98-4445 1.8MH MIN 340MA LINE FILTER Allied Components International	3,122	-	RFQ	Ficha técnica	Tray	-	Active	-	2	-	1.8 mH @ 10 kHz	-	227mOhm (Typ)	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)

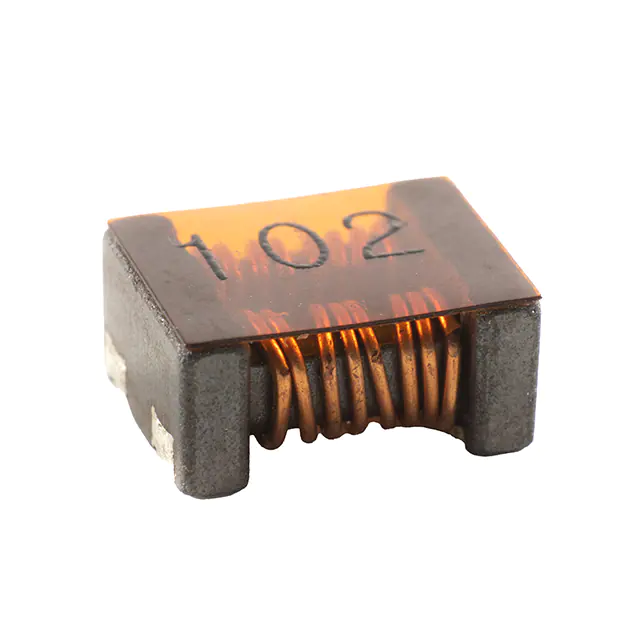

PCMF9070S-102 750 oHms SMD Common Mode Filter Allied Components International	2,773	-	RFQ	Ficha técnica	Tape & Reel (TR)	PCMF9070S	Active	Power, Signal Line	2	1 kOhms @ 100 MHz	-	4A	13mOhm	125V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.354 L x 0.276 W (9.00mm x 7.00mm)	0.189 (4.80mm)
HFWLF19-143T 14.0mH 30% Horizontal flat wire Allied Components International	3,722	-	RFQ	Ficha técnica	Tray	-	Active	-	2	-	14 mH @ 100 kHz	2A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 L x 0.846 W (23.50mm x 21.50mm)	0.551 (14.00mm)
HFWLF15-153T 15.0mH 30% Horizontal flat wire Allied Components International	3,837	-	RFQ	Ficha técnica	Tray	-	Active	-	2	-	15 mH @ 100 kHz	1A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.807 L x 0.650 W (20.50mm x 16.50mm)	0.551 (14.00mm)
