Resistencia de chip - Montaje superficial

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
NPS2T-5RF1 RES SMD 5 OHM 1% 25W TO126 Riedon	12,784	-	RFQ	Ficha técnica	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	NPS	Active	5 Ohms	±1%	25W	Thick Film	Current Sense, Moisture Resistant	±100ppm/°C	-40°C ~ 175°C	-	0.325 L x 0.320 W (8.26mm x 8.13mm)	0.161 (4.10mm)
NPS2T-500RF1 RES SMD 500 OHM 1% 25W TO126 Riedon	788	-	RFQ	Ficha técnica	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	NPS	Active	500 Ohms	±1%	25W	Thick Film	Current Sense, Moisture Resistant	±100ppm/°C	-40°C ~ 175°C	-	0.325 L x 0.320 W (8.26mm x 8.13mm)	0.161 (4.10mm)
ASC0603-100KF1 RES 100 KOHM 1% 1/10W 0603 Riedon	9,002	-	RFQ	Ficha técnica	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	ASC	Active	100 kOhms	±1%	0.1W, 1/10W	Thick Film	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.022 (0.55mm)
PCR1206-10KJ1 RES SMD 10K OHM 5% 1/3W 1206 Riedon	28,005	-	RFQ	Ficha técnica	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	PCR	Active	10 kOhms	±5%	0.333W, 1/3W	Thick Film	Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	-	0.122 L x 0.061 W (3.10mm x 1.55mm)	0.026 (0.65mm)
PCR0805-47KJ1 RES SMD 47K OHM 5% 1/4W 0805 Riedon	10,607	-	RFQ	Ficha técnica	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	PCR	Active	47 kOhms	±5%	0.25W, 1/4W	Thick Film	Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.024 (0.60mm)
PCR1206-1RJ1 RES SMD 1 OHM 5% 1/3W 1206 Riedon	13,253	-	RFQ	Ficha técnica	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	PCR	Active	1 Ohms	±5%	0.333W, 1/3W	Thick Film	Pulse Withstanding	±200ppm/°C	-55°C ~ 155°C	-	0.122 L x 0.061 W (3.10mm x 1.55mm)	0.026 (0.65mm)
ASC1206-10KF1 RES 10 KOHM 1% 1/4W 1206 Riedon	10,899	-	RFQ	Ficha técnica	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	ASC	Active	10 kOhms	±1%	0.25W, 1/4W	Thick Film	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	AEC-Q200	0.122 L x 0.061 W (3.10mm x 1.55mm)	0.026 (0.65mm)
PCR0805-1RJ1 RES SMD 1 OHM 5% 1/4W 0805 Riedon	25,071	-	RFQ	Ficha técnica	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	PCR	Active	1 Ohms	±5%	0.25W, 1/4W	Thick Film	Pulse Withstanding	±200ppm/°C	-55°C ~ 155°C	-	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.024 (0.60mm)
CSRL1-0R015F8 RES 0.015 OHM 1% 1W 1206 Riedon	199,859	-	RFQ	Ficha técnica	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRL	Active	15 mOhms	±1%	1W	Metal Element	Current Sense, Non-Inductive	±100ppm/°C	-55°C ~ 170°C	-	0.122 L x 0.063 W (3.10mm x 1.60mm)	0.028 (0.70mm)
CSRL3-0R015F8 RES 0.015 OHM 1% 3W 2512 Riedon	14,955	-	RFQ	Ficha técnica	2512 (6432 Metric)	Tape & Reel (TR),Cut Tape (CT)	CSRL	Active	15 mOhms	±1%	3W	Metal Element	Current Sense, Non-Inductive	±75ppm/°C	-55°C ~ 170°C	-	0.252 L x 0.126 W (6.40mm x 3.20mm)	0.035 (0.90mm)

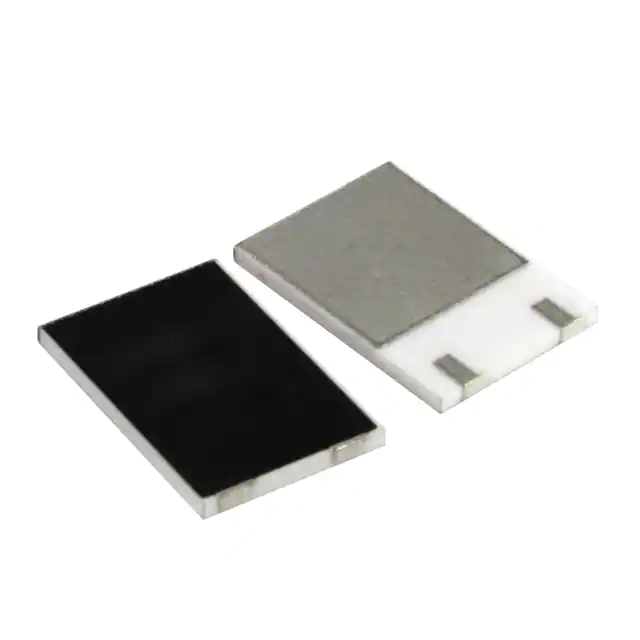

PFC10-20RF1 RES SMD 20 OHM 1% 25W PFC10 Riedon	6,411	-	RFQ	Ficha técnica	PFC10 (TO-126 SMT)	Tape & Reel (TR),Cut Tape (CT)	PFC	Active	20 Ohms	±1%	25W	Thick Film	Current Sense, Pulse Withstanding	±100ppm/°C	-55°C ~ 155°C	-	0.472 L x 0.323 W (12.00mm x 8.20mm)	0.041 (1.05mm)
S2-47RF2 RES SMD 47 OHM 1% 1W 2615 Riedon	14,140	-	RFQ	Ficha técnica	2615 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	47 Ohms	±1%	1W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	±20ppm/°C	-55°C ~ 275°C	-	0.260 L x 0.154 W (6.60mm x 3.90mm)	0.142 (3.60mm)
S2-15RF1 RES SMD 15 OHM 1% 1W 2615 Riedon	4,215	-	RFQ	Ficha técnica	2615 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	15 Ohms	±1%	1W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	±20ppm/°C	-55°C ~ 275°C	-	0.260 L x 0.154 W (6.60mm x 3.90mm)	0.142 (3.60mm)
S4-1RF1 RES SMD 1 OHM 1% 2W 4525 Riedon	3,199	-	RFQ	Ficha técnica	4525 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	1 Ohms	±1%	2W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 275°C	-	0.449 L x 0.252 W (11.40mm x 6.40mm)	0.197 (5.00mm)
S3-220RF1 RES SMD 220 OHM 1% 3W 6327 Riedon	3,546	-	RFQ	Ficha técnica	6327 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	220 Ohms	±1%	3W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	±20ppm/°C	-55°C ~ 275°C	-	0.626 L x 0.272 W (15.90mm x 6.90mm)	0.268 (6.80mm)
S5-1RF1 RES SMD 1 OHM 1% 4W 8230 Riedon	2,400	-	RFQ	Ficha técnica	8230 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	1 Ohms	±1%	4W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 275°C	-	0.819 L x 0.296 W (20.80mm x 7.50mm)	0.319 (8.10mm)
S5-22RF1 RES SMD 22 OHM 1% 4W 8230 Riedon	1,724	-	RFQ	Ficha técnica	8230 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	22 Ohms	±1%	4W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	±20ppm/°C	-55°C ~ 275°C	-	0.819 L x 0.296 W (20.80mm x 7.50mm)	0.319 (8.10mm)
S4-0R03F1 RES 0.03 OHM 1% 2W 4525 Riedon	7,229	-	RFQ	Ficha técnica	4525 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	30 mOhms	±1%	2W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	-	-55°C ~ 275°C	-	0.449 L x 0.252 W (11.40mm x 6.40mm)	0.197 (5.00mm)
S4-0R2F2 RES 0.2 OHM 1% 2W 4525 Riedon	2,685	-	RFQ	Ficha técnica	4525 J-Lead	Tape & Reel (TR),Cut Tape (CT)	S	Active	200 mOhms	±1%	2W	Wirewound	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety	-	-55°C ~ 275°C	-	0.449 L x 0.252 W (11.40mm x 6.40mm)	0.197 (5.00mm)
PFS35-1KF1 RES SMD 1K OHM 1% 35W TO263 DPAK Riedon	1,360	-	RFQ	Ficha técnica	Non-Standard D-PAK	Tape & Reel (TR),Cut Tape (CT)	PFS35	Active	1 kOhms	±1%	35W	Thin Film	Current Sense, Pulse Withstanding	±50ppm/°C	-55°C ~ 155°C	-	0.406 L x 0.398 W (10.30mm x 10.10mm)	0.185 (4.70mm)
