Transformadores de audio

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)
MET-23-T AUDIO XFMR 1.6KCT/3.2 THRU HOLE Triad Magnetics	894	-	RFQ	Ficha técnica	Bulk	MET	Active	22.4:1	1.6kCT	3.2	230Ohm	1Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	65mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-39-T TRANSFORMER 500:50 3.0MADC Triad Magnetics	3,021	-	RFQ	Ficha técnica	Bulk	MET	Active	3.16:1	500	50	55Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-32-T TRANSFORMER 600:150/150 3.0MADC Triad Magnetics	711	-	RFQ	Ficha técnica	Bulk	MET	Active	2:1:1	600	150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

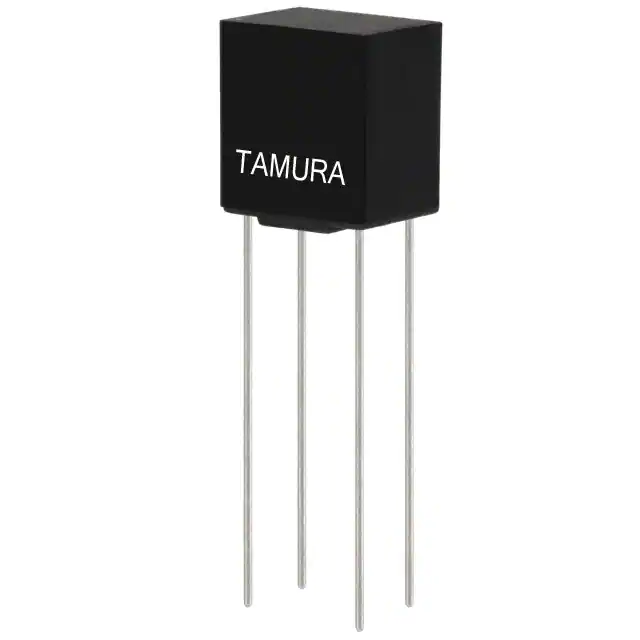

MET-42 TRANSFORMER 150:12 10.0MADC Tamura	662	-	RFQ	Ficha técnica	Tube	MET	Active	3.54:1	150	12	20Ohm	2.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-59 TRANSFORMER 600:600CT 3.0MADC Tamura	3,198	-	RFQ	Ficha técnica	Tube	MET	Active	2:1:1	600	600, 150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

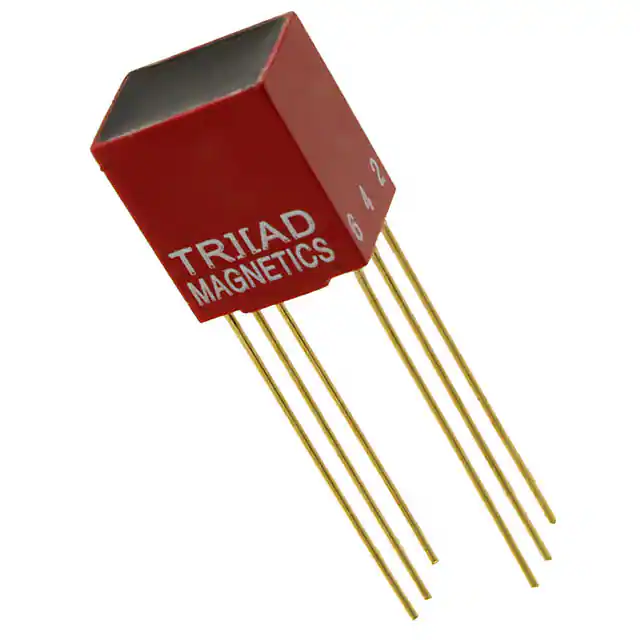

SP-13 TRANSF 25K CT 20K CT/1K 800CT AU Triad Magnetics	125	-	RFQ	Ficha técnica	Bulk	Red-Spec	Active	5:1	25kCT, 20kCT	1kCT, 800CT	1.7kOhm	115Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)

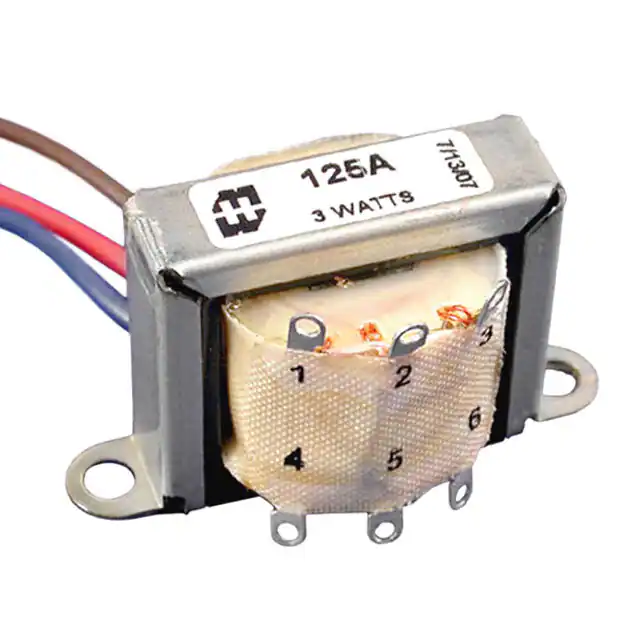

125A TRANSFORMER 3W 25MA TUBE TYPE Hammond Manufacturing	434	-	RFQ	Ficha técnica	Bulk	125	Active	-	1.2k ~ 25k	1.5 ~ 15	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	3W	-	-	Chassis Mount	2.060 L x 1.250 W (52.32mm x 31.75mm)	1.190 (30.23mm)
1620 TRANSFORMER AUDIO 6.6KCT 20W Hammond Manufacturing	3,019	-	RFQ	Ficha técnica	Bulk	1600	Active	-	6.6kCT	4, 8, 16	65.4Ohm, 74.6Ohm	310mOhm, 500mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	±1dB	-	20W	-	-	Chassis Mount	3.500 L x 2.500 W (88.90mm x 63.50mm)	3.060 (77.72mm)

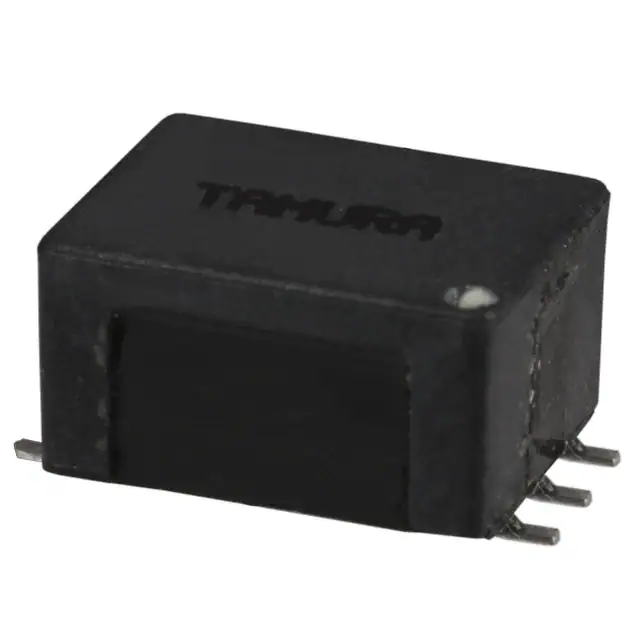

TTC-5036 TRANSFORMR MODEM 600:287 OHM SMD Tamura	2,033	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	TTC	Active	1:1	600	287	175Ohm	175Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.2dB	1875VRMS @ 1 Second	4dB Max @ 2kHz	14dB Min @ 200Hz ~ 4kHz	-	-20°C ~ 85°C	UL60950, EN60950	Surface Mount	0.378 L x 0.492 W (9.60mm x 12.50mm)	0.299 (7.60mm)

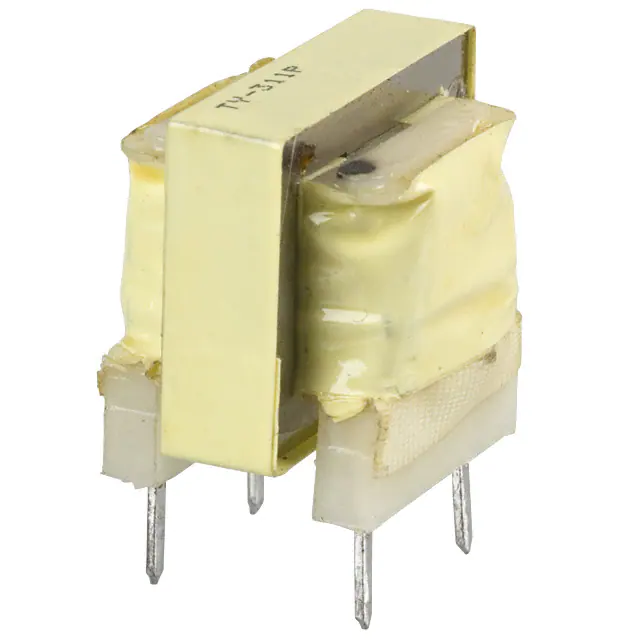

TY-311P TRANSF 600 OHM 0MA DC TEL Triad Magnetics	3,107	-	RFQ	Ficha técnica	Bulk	TY	Active	1:1.05	600	600	38Ohm	53Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812 L x 0.715 W (20.62mm x 18.16mm)	0.740 (18.80mm)

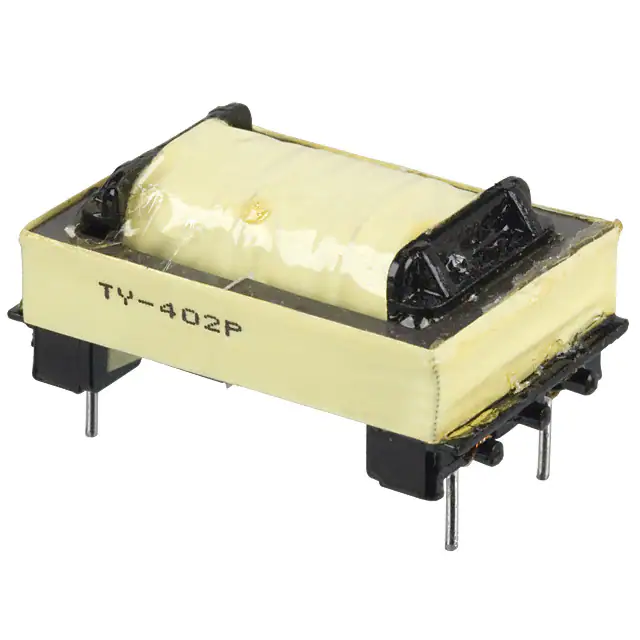

TY-402P TRANSF 600 OHM 90MA DC TEL Triad Magnetics	299	-	RFQ	Ficha técnica	Bulk	TY	Active	1:1.1	600	600	80Ohm	112Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.75dB Typ	13dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.815 L x 1.250 W (20.70mm x 31.75mm)	0.530 (13.46mm)

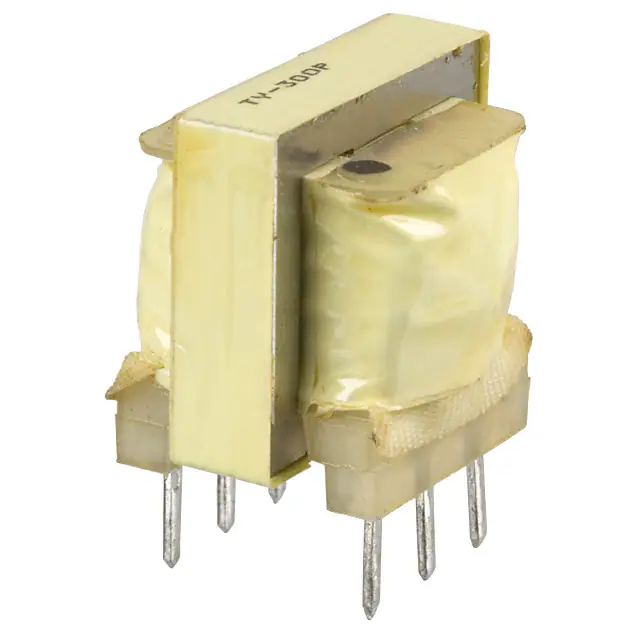

TY-300P TRANSF 600 OHM 0MA DC TEL HYBRID Triad Magnetics	304	-	RFQ	Ficha técnica	Bulk	TY	Active	1:2.48	600	600/600	172Ohm	66Ohm, 66Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	-	1500VAC	0.8dB Typ	30dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812 L x 0.700 W (20.62mm x 17.78mm)	0.740 (18.80mm)
MET-28-T AUDIO XFMR 1K/50 THRU HOLE Triad Magnetics	160	-	RFQ	Ficha técnica	Bulk	MET	Active	4.47:1	1k	50	110Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

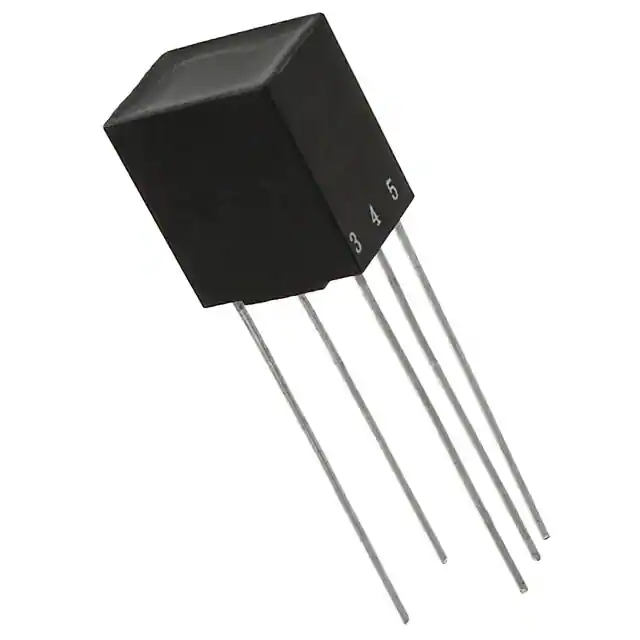

MET-60-T TRANSFORMER 135:135CT 10.0MADC Triad Magnetics	3,437	-	RFQ	Ficha técnica	Bulk	MET	Active	1:1	135	135CT	10.5Ohm	10.8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-11 TRANSFORMER 10KCT:2KCT 1.0MADC Tamura	223	-	RFQ	Ficha técnica	Tube	MET	Active	2.23:1	10kCT	2kCT	1kOhm	300Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

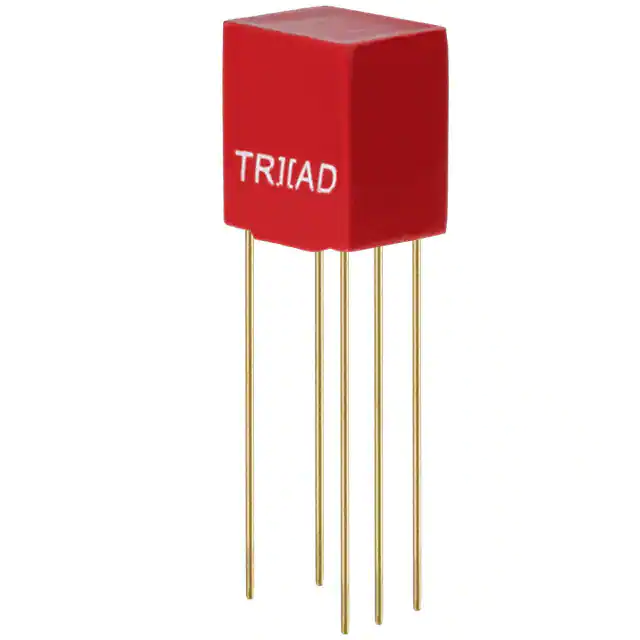

SP-42 TRANSER 150 CT/ 12 OHM AUDIO Triad Magnetics	3,864	-	RFQ	Ficha técnica	Bulk	Red-Spec	Active	3.54:1	150CT	12	18Ohm	2.7Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-21 TRANSF 10K CT/ 2K CT AUDIO Triad Magnetics	438	-	RFQ	Ficha técnica	Bulk	Red-Spec	Active	2.24:1	10kCT	2kCT	1.05kOhm	330Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-4 TRANSF 200K CT/1K CT AUDIO Triad Magnetics	2,605	-	RFQ	Ficha técnica	Bulk	Red-Spec	Active	14.1:1	200kCT	1kCT	5.3kOhm	100Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	10mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)

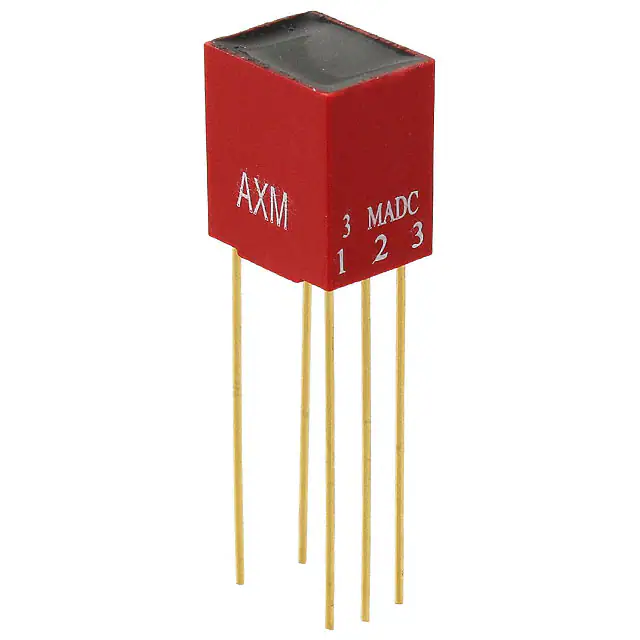

SP-52 TRANSER 1.5K CT/ 600 OHM AUDIO Triad Magnetics	3,009	-	RFQ	Ficha técnica	Bulk	Red-Spec	Active	1.58:1	1.5kCT	600	168Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)

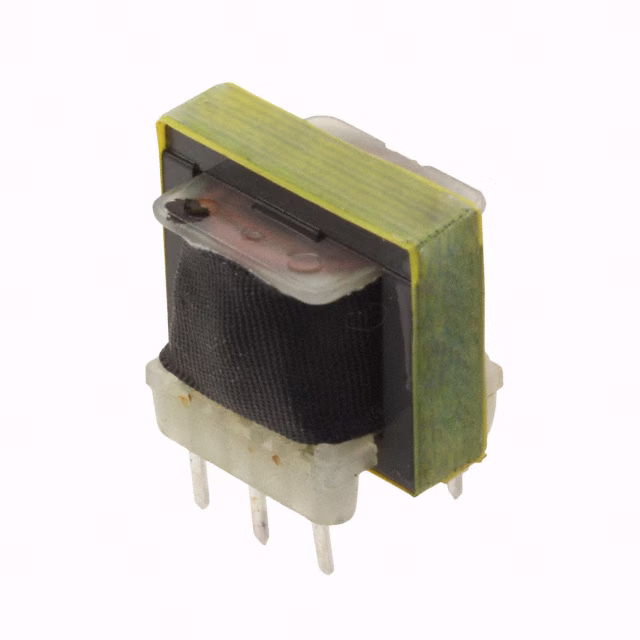

TTC-108 TRANSF TELE COUP 600CT:600CT Tamura	551	-	RFQ	Ficha técnica	Bulk	TTC	Active	1:1	600CT	600CT	44Ohm	56Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.4dB Max @ 1kHz	-	-45dB ~ 7dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.799 L x 0.689 W (20.30mm x 17.50mm)	0.752 (19.10mm)
