Transformadores de audio

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)
1650W TRANSFORMER AUDIO 1.9KCT 280W Hammond Manufacturing	2,009	-	RFQ	Ficha técnica	Bulk	1600	Active	-	1.9kCT	4, 8, 16	-	-	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	-	±1dB	-	280W	-	-	Chassis Mount	7.500 L x 4.380 W (190.50mm x 111.25mm)	5.250 (133.35mm)
1650WA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2,042	-	RFQ	Ficha técnica	Box	A	Active	-	1.9kCT	4, 8, 16	15.65Ohm, 17.19Ohm	152mOhm, 203mOhm, 217mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	3535VDC @ 1 Second	-	-	280W	-	-	Chassis Mount	7.500 L x 4.380 W (190.50mm x 111.25mm)	5.250 (133.35mm)

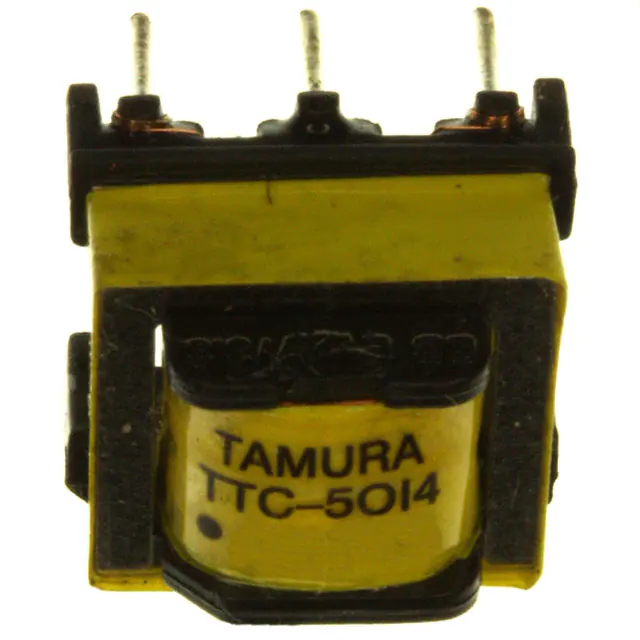

TTC-5014 TRANSFORMER TELECOMM 600:348 OHM Tamura	3,838	-	RFQ	Ficha técnica	Bulk	TTC	Active	1:1	600	348	149Ohm	139Ohm	-	200Hz ~ 4kHz	±0.25dB	1875VRMS @ 1 Second	3.25dB Max @ 1kHz	14dB Min @ 200Hz ~ 4kHz	-	-	UL60950	Through Hole	0.591 L x 0.571 W (15.00mm x 14.50mm)	0.472 (12.00mm)

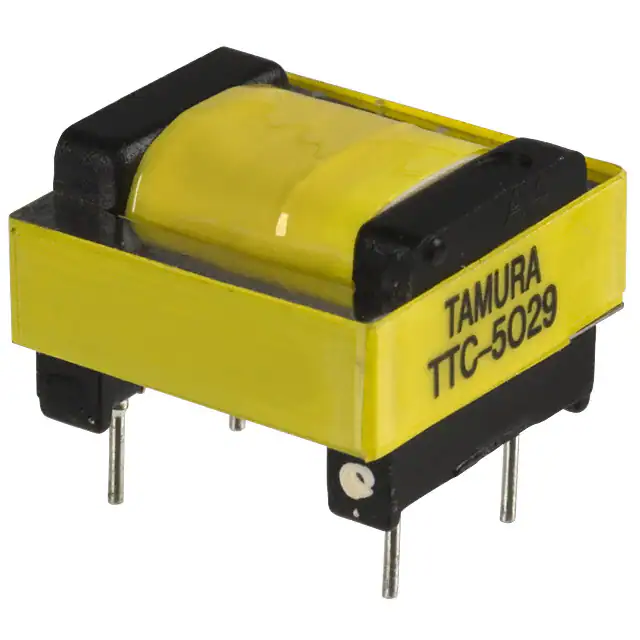

TTC-5029 TRANSFORMER TELECOMM 600:600 OHM Tamura	3,067	-	RFQ	Ficha técnica	Bulk	TTC	Active	1:1	600	600	40Ohm	40Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.2dB	1875VRMS @ 1 Second	1dB Max @ 1kHz	20dB Min @ 200Hz ~ 4kHz	-	0°C ~ 70°C	-	Through Hole	0.669 L x 0.669 W (17.00mm x 17.00mm)	0.472 (12.00mm)
125H TRANSFRMR AUDIO 10K TO 2/4/1 IMP Hammond Manufacturing	3,833	-	RFQ	Ficha técnica	Bulk	125	Active	-	10k	2, 4, 8	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	8W	-	-	Chassis Mount	2.810 L x 1.000 W (71.37mm x 25.40mm)	1.630 (41.40mm)
125C TRANSFORMER 8W 60MA TUBE TYPE Hammond Manufacturing	3,985	-	RFQ	Ficha técnica	Bulk	125	Active	-	1.2k ~ 25k	1.5 ~ 15	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	8W	-	-	Chassis Mount	2.810 L x 1.500 W (71.37mm x 38.10mm)	1.690 (42.93mm)
1750F TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,138	-	RFQ	Ficha técnica	Box	1750	Active	29.19:1	6.95kCT	8	97.36Ohm, 194.7Ohm	409mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.250 L x 1.687 W (82.55mm x 42.85mm)	2.058 (52.27mm)
125D TRANSFORMER 10W 70MA TUBE TYPE Hammond Manufacturing	2,237	-	RFQ	Ficha técnica	Bulk	125	Active	-	1.2k ~ 25k	1.5 ~ 15	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	10W	-	-	Chassis Mount	3.250 L x 1.750 W (82.55mm x 44.45mm)	2.000 (50.80mm)
1750H TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	2,189	-	RFQ	Ficha técnica	Box	1750	Active	28.72:1	6.6kCT	8	428Ohm	470mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	20W	-	-	Chassis Mount	3.710 L x 2.400 W (94.23mm x 60.96mm)	2.371 (60.22mm)
1760E TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,822	-	RFQ	Ficha técnica	Box	1760	Active	32.61:1	8.5kCT	4, 8, 16	150Ohm	300Ohm, 450mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.250 L x 2.085 W (82.55mm x 52.96mm)	2.058 (52.27mm)
125E TRANSFORMER 15W 80MA TUBE TYPE Hammond Manufacturing	3,099	-	RFQ	Ficha técnica	Bulk	125	Active	-	1.2k ~ 25k	1.5 ~ 15	-	-	General Purpose	150Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.690 L x 2.000 W (93.73mm x 50.80mm)	2.310 (58.67mm)
1760F TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,226	-	RFQ	Ficha técnica	Box	1760	Active	29.19:1	6.95kCT	4, 8, 16	120Ohm	171mOhm, 245mOhm, 476mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	15W	-	-	Chassis Mount	3.250 L x 1.687 W (82.55mm x 42.85mm)	2.058 (52.27mm)
1750NA TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,422	-	RFQ	Ficha técnica	Bulk	1750	Active	-	6kCT	8, 16	73.2Ohm, 74.41Ohm, 147.4Ohm	300mOhm, 580mOhm, 820mOhm	-	50Hz ~ 12kHz	±1dB	2500V @ 1 Second	-	-	30W	-	-	Chassis Mount	3.000 L x 2.465 W (76.20mm x 62.61mm)	2.525 (64.14mm)
125ASE TRANSFORMER 3W 25MA TUBE SNGL Hammond Manufacturing	3,507	-	RFQ	Ficha técnica	Bulk	125SE	Active	-	2.5k ~ 10k	4 ~ 32	241.7 Ohm	229mOhm, 323mOhm, 463mOhm, 670mOhm	General Purpose	100Hz ~ 15kHz	±1dB	1500V @ 1 Second	-	-	3W	-	-	Chassis Mount	2.810 L x 1.350 W (71.37mm x 34.29mm)	1.690 (42.93mm)
124E TRANS AUDIO 15KCT/33.8K/135K IMP Hammond Manufacturing	3,433	-	RFQ	Ficha técnica	Bulk	124	Active	1:2.97, 1:5.94	7kCT, 15k	135k, 33.8k/33.8k	373Ohm, 355Ohm	1.63kOhm, 2.25kOhm	Tube Driver and Speaker Matching	150Hz ~ 15kHz	±1dB	500Vrms	-	-	5W	-	-	Chassis Mount	2.880 L x 1.740 W (73.15mm x 44.20mm)	2.370 (60.20mm)
118944 TRANSFORMER RADIOLA REPLACEMENT Hammond Manufacturing	3,906	-	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
125BSE TRANSFORMER 5W 45MA TUBE SNGL Hammond Manufacturing	3,103	-	RFQ	Ficha técnica	Bulk	125SE	Active	-	2.5k ~ 10k	4 ~ 32	-	-	General Purpose	100Hz ~ 15kHz	±1dB	-	-	-	5W	-	-	Chassis Mount	3.250 L x 1.630 W (82.55mm x 41.40mm)	2.000 (50.80mm)
125CSE TRANSFORMER 8W 60MA TUBE SNGL Hammond Manufacturing	2,898	-	RFQ	Ficha técnica	Bulk	125SE	Active	-	2.5k ~ 10k	4 ~ 32	-	-	General Purpose	100Hz ~ 15kHz	±1dB	-	-	-	8W	-	-	Chassis Mount	3.690 L x 1.860 W (93.73mm x 47.24mm)	2.310 (58.67mm)
1750J TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3,533	-	RFQ	Ficha técnica	Box	1750	Active	31.11:1	4kCT	4	185Ohm	400mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	35W	-	-	Chassis Mount	4.076 L x 3.170 W (103.53mm x 80.52mm)	2.630 (66.80mm)
1760H TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	2,190	-	RFQ	Ficha técnica	Box	1760	Active	40.62:1, 28.72:1, 20.31:1	6.6kCT	4, 8, 16	347.8Ohm	686mOhm, 803mOhm, 1.157Ohm	Push-Pull Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	20W	-	-	Chassis Mount	3.710 L x 2.400 W (94.23mm x 60.96mm)	2.371 (60.22mm)
