Condensadores electrolíticos de aluminio
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL211890514E3CAP ALUM 100UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components |
2,412 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 118 AHT | Active | 100 µF | ±20% | 63 V | 1.1Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 315.9 mA @ 10 kHz | 700 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL211890509E3CAP ALUM 470UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components |
1,868 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 118 AHT | Active | 470 µF | ±20% | 25 V | 610mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 392.4 mA @ 10 kHz | 570 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL211890512E3CAP ALUM 220UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components |
3,320 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 118 AHT | Active | 220 µF | ±20% | 40 V | 800mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 373.1 mA @ 10 kHz | 680 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
MAL214630471E3CAP ALUM 470UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components |
5,599 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 146 RTI | Active | 470 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.25 A @ 100 kHz | 60 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

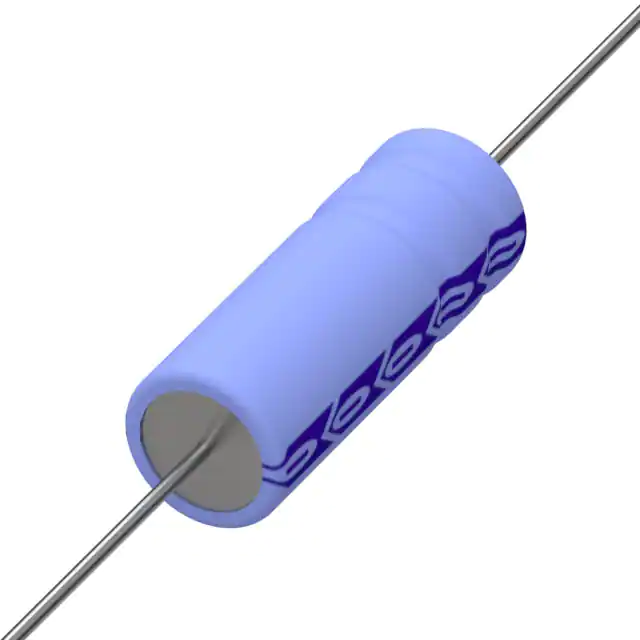

MAL203137479E3CAP ALUM 47UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components |
4,674 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 47 µF | -10%, +50% | 40 V | 3.73Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 150 mA @ 100 Hz | - | 1.5 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
|
|
MAL203136101E3CAP ALUM 100UF 25V AXIAL Vishay Beyschlag/Draloric/BC Components |
3,664 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 100 µF | -10%, +50% | 25 V | 2.23Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 160 mA @ 100 Hz | - | 900 mOhms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
|

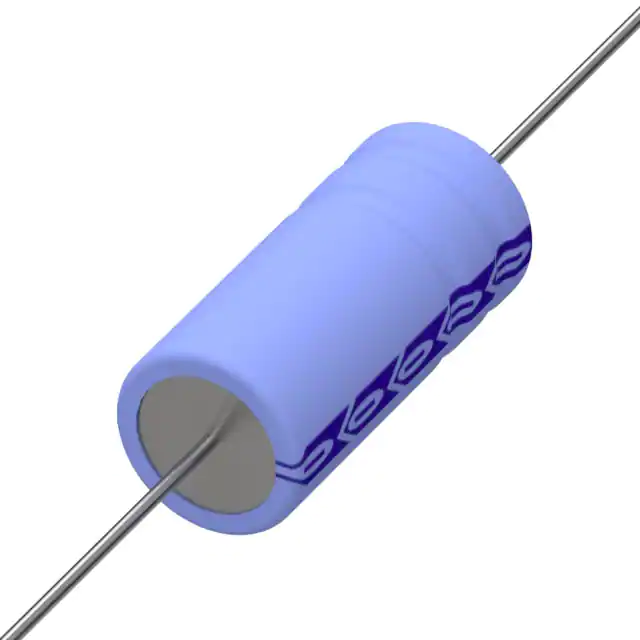

MAL203137101E3CAP ALUM 100UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components |
2,419 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 100 µF | -10%, +50% | 40 V | 1.75Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 220 mA @ 100 Hz | - | 700 mOhms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
|
MAL203135221E3CAP ALUM 220UF 16V AXIAL Vishay Beyschlag/Draloric/BC Components |
1,544 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 220 µF | -10%, +50% | 16 V | 1.16Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 100 Hz | - | 550 mOhms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
MAL215097412E3CAP ALUM 470UF 20% 10V SMD Vishay Beyschlag/Draloric/BC Components |
5,117 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 470 µF | ±20% | 10 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 304.5 mA @ 100 Hz | - | 250 mOhms | - | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | 0.315 L x 0.315 W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL215097612E3CAP ALUM 220UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
3,178 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 220 µF | ±20% | 25 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 294 mA @ 100 Hz | - | 280 mOhms | - | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | 0.315 L x 0.315 W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL215097811E3CAP ALUM 47UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components |
2,106 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 47 µF | ±20% | 63 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 162 mA @ 100 Hz | - | 650 mOhms | - | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | 0.315 L x 0.315 W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL215097111E3CAP ALUM 68UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components |
1,817 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 68 µF | ±20% | 50 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 199.8 mA @ 100 Hz | - | 480 mOhms | - | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | 0.315 L x 0.315 W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL215097512E3CAP ALUM 330UF 20% 16V SMD Vishay Beyschlag/Draloric/BC Components |
1,500 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 330 µF | ±20% | 16 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 304.5 mA @ 100 Hz | - | 250 mOhms | - | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | 0.315 L x 0.315 W (8.00mm x 8.00mm) | Surface Mount |
|
|
MAL203127101E3CAP ALUM 100UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components |
1,856 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 100 µF | -10%, +50% | 40 V | 1.75Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 220 mA @ 100 Hz | - | 700 mOhms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
MAL203658109E3CAP ALUM 10UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components |
5,844 | - |
RFQ |
Ficha técnica |
Bulk | 036 RSP | Active | 10 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | Automotive | 70 mA @ 100 Hz | - | 4 Ohms | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
MAL215097601E3CAP ALUM 330UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
4,990 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 330 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 448 mA @ 100 Hz | - | 140 mOhms | - | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | 0.394 L x 0.394 W (10.00mm x 10.00mm) | Surface Mount |
|

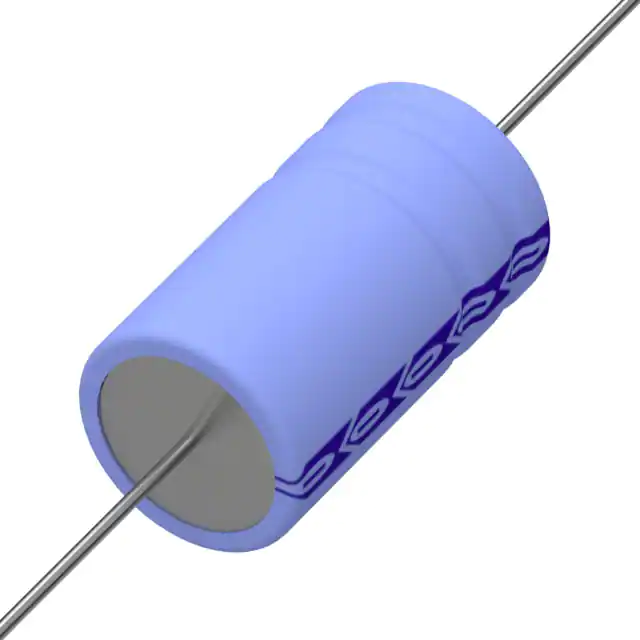

MAL203136221E3CAP ALUM 220UF 25V AXIAL Vishay Beyschlag/Draloric/BC Components |
1,767 | - |
RFQ |
Ficha técnica |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 220 µF | -10%, +50% | 25 V | 1.02Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 100 Hz | - | 410 mOhms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
MAL214097103E3CAP ALUM 47UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components |
4,789 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 140 CRH | Active | 47 µF | ±20% | 50 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 87 mA @ 100 Hz | - | 700 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.335 L x 0.335 W (8.50mm x 8.50mm) | Surface Mount |
|
|
MAL214097602E3CAP ALUM 100UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components |
3,500 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 140 CRH | Active | 100 µF | ±20% | 25 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 126 mA @ 100 Hz | - | 400 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.335 L x 0.335 W (8.50mm x 8.50mm) | Surface Mount |
|
|
MAL214097803E3CAP ALUM 22UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components |
3,486 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | 140 CRH | Active | 22 µF | ±20% | 63 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 79.75 mA @ 100 Hz | - | 700 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.335 L x 0.335 W (8.50mm x 8.50mm) | Surface Mount |
