Adaptadores CA/CC de escritorio y de pared
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GEM18I05-P1JAC/DC WALL MOUNT ADAPTER 5V 15W MEAN WELL USA Inc. |
2,696 | - |
RFQ |
Ficha técnica |
Box | GEM18I (18W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | Multi-Blade (Sold Separately) | - | 2.97 L x 1.54 W x 2.21 H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cRUus, TUV |
|
GST40A07-P1JAC/DC DESKTOP ADAPTER 7.5V 40W MEAN WELL USA Inc. |
3,508 | - |
RFQ |
Ficha técnica |
Box | GST40A (40W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 5.34A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C14 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GSM18U05-P1JAC/DC WALL MOUNT ADAPTER 5V 15W MEAN WELL USA Inc. |
3,555 | - |
RFQ |
Ficha técnica |
Box | GSM18U (18W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2 (1.20m) | NEMA 1-15P | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV |
|
|
GSM18U09-P1JAC/DC WALL MOUNT ADAPTER 9V 18W MEAN WELL USA Inc. |
2,384 | - |
RFQ |
Ficha técnica |
Box | GSM18U (18W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | Medical | Level V | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2 (1.20m) | NEMA 1-15P | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV |
|

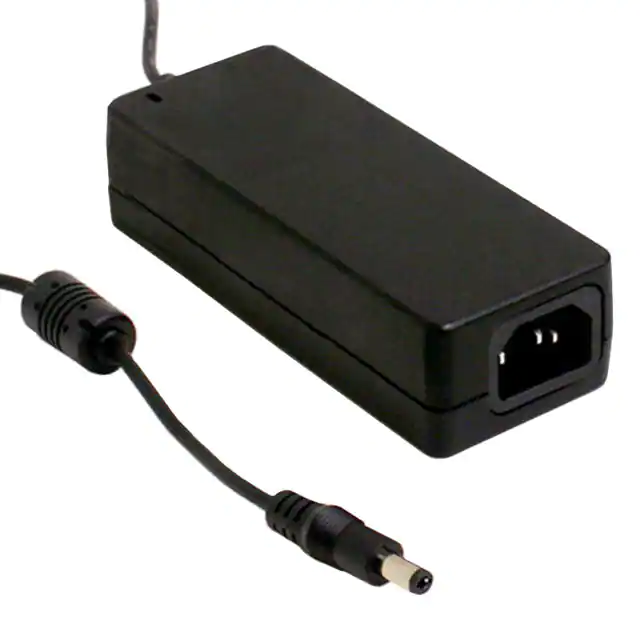

GST60A24-P1MRAC/DC DESKTOP ADAPTER 24V 60W MEAN WELL USA Inc. |
2,622 | - |
RFQ |
Ficha técnica |
Box | GST60A (60W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | IEC 320-C14 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

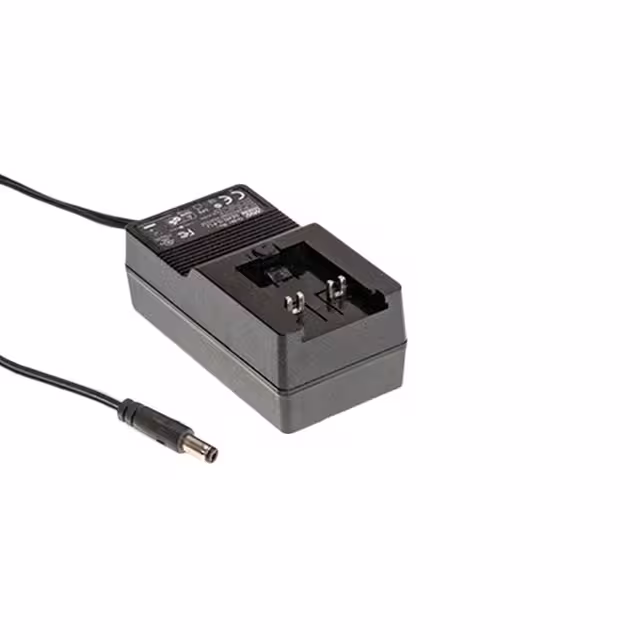

GE40I05-P1JAC/DC WALL MOUNT ADAPTER 5V 20W MEAN WELL USA Inc. |
3,088 | - |
RFQ |
Ficha técnica |
Box | GE40 (40W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | Multi-Blade | - | 3.70 L x 1.91 W x 1.57 H (94.0mm x 48.4mm x 40.0mm) | CCC, CE, cULus, EAC, FCC, GS, RCM, TUV |
|
GSM60A18-P1JAC/DC DESKTOP ADAPTER 18V 60W MEAN WELL USA Inc. |
2,405 | - |
RFQ |
Ficha técnica |
Box | GSM60A (60W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 18V | 3.33A | 60 W | 100mW (Max) | Positive Center | Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59 (1.50m) | IEC 320-C14 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | CB, CE, cRUus, TUV |
|
SGA60U09-P1JAC/DC WALL MOUNT ADAPTER 9V 50W MEAN WELL USA Inc. |
2,201 | - |
RFQ |
Ficha técnica |
Box | SGA60U (60W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 5.5A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | NEMA 1-15P | - | 3.68 L x 1.38 W x 2.03 H (93.5mm x 35.0mm x 51.5mm) | CB, cULus |
|
|
SGA60U07-P1JAC/DC WALL MNT ADAPTER 7.5V 45W MEAN WELL USA Inc. |
3,404 | - |
RFQ |
Ficha técnica |
Box | SGA60U (60W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 6A | 45 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | NEMA 1-15P | - | 3.68 L x 1.38 W x 2.03 H (93.5mm x 35.0mm x 51.5mm) | CB, cULus |
|
OWA-60U-48AC/DC DESKTOP ADAPTER 48V 60W MEAN WELL USA Inc. |
3,747 | - |
RFQ |
Ficha técnica |
Box | OWA-60U (60W) | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 1.25A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -35°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 11.8 (300.00mm) | NEMA 1-15P | - | 5.12 L x 2.09 W x 1.38 H (130.0mm x 53.0mm x 35.0mm) | cULus, UL |
|
GEM60I12-P1JAC/DC WALL MOUNT ADAPTER 12V 54W MEAN WELL USA Inc. |
2,687 | - |
RFQ |
Ficha técnica |
Box | GEM60I (60W) | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 4.5A | 54 W | - | Positive Center | Medical | 88% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | Multi-Blade (Sold Separately) | - | 2.97 L x 1.54 W x 2.21 H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cURus, FCC, TUV |
|
GST120A20-R7BAC/DC DESKTOP ADAPTER 20V 120W MEAN WELL USA Inc. |
3,345 | - |
RFQ |
Ficha técnica |
Box | GST120A (120W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 6.57 L x 2.64 W x 1.38 H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GSM120A15-R7BAC/DC DESKTOP ADAPTER 15V 105W MEAN WELL USA Inc. |
2,573 | - |
RFQ |
Ficha técnica |
Box | GSM120A (120W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 7A | 105 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 6.57 L x 2.64 W x 1.38 H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV |
|
|
GSM18U18-P1JAC/DC WALL MOUNT ADAPTER 18V 18W MEAN WELL USA Inc. |
3,878 | - |
RFQ |
Ficha técnica |
Box | GSM18U (18W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | NEMA 1-15P | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV |
|
GEM06I12-P1JAC/DC WALL MOUNT ADAPTER 12V 6W MEAN WELL USA Inc. |
3,624 | - |
RFQ |
Ficha técnica |
Box | GEM06I (6W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 500mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | Multi-Blade (Sold Separately) | - | 2.91 L x 1.54 W x 1.91 H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|

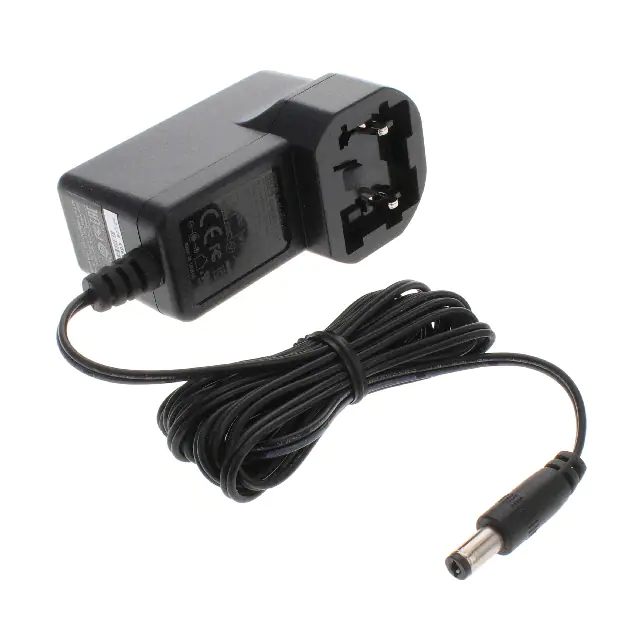

GEM06I24-P1JAC/DC WALL MOUNT ADAPTER 24V 6W MEAN WELL USA Inc. |
3,960 | - |
RFQ |
Ficha técnica |
Box | GEM06I (6W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 24V | 250mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | Multi-Blade (Sold Separately) | - | 2.91 L x 1.54 W x 1.91 H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I09-P1JAC/DC WALL MOUNT ADAPTER 9V 5.9W MEAN WELL USA Inc. |
3,861 | - |
RFQ |
Ficha técnica |
Box | GEM06I (6W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 9V | 660mA | 5.9 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2 (1.20m) | Multi-Blade (Sold Separately) | - | 2.91 L x 1.54 W x 1.91 H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I05-P1JAC/DC WALL MOUNT ADAPTER 5V 6W MEAN WELL USA Inc. |
3,563 | - |
RFQ |
Ficha técnica |
Box | GEM06I (6W) | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 1.2A | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2 (1.20m) | Multi-Blade (Sold Separately) | - | 2.91 L x 1.54 W x 1.91 H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
SGAS15B09-P1JAC/DC DESKTOP ADAPTER 9V 15W MEAN WELL USA Inc. |
2,474 | - |
RFQ |
Ficha técnica |
Box | SGAS15B (15W) | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW | Positive Center | ITE (Commercial) | 84% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47 (1.20m) | IEC 320-C8 | - | 3.15 L x 1.54 W x 1.09 H (80.0mm x 39.0mm x 27.7mm) | CB, CE, cULus, EAC, FCC, GS, TUV, UKCA |
|
|
SGAS15A05-P1JAC/DC DESKTOP ADAPTER 5V 12W MEAN WELL USA Inc. |
2,800 | - |
RFQ |
Ficha técnica |
Box | SGAS15A (15W) | Active | International | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW | Positive Center | ITE (Commercial) | 79% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47 (1.20m) | IEC 320-C14 | - | 3.37 L x 2.00 W x 1.33 H (85.7mm x 50.9mm x 33.8mm) | CB, CE, cULus, EAC, FCC, GS, TUV, UKCA |
