0Sensores de presión, transductores
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

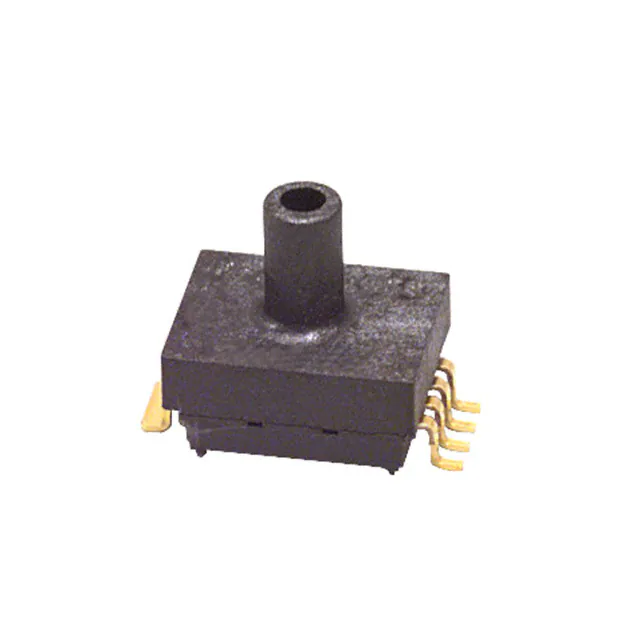

MPXM2010GST1SENS PRESSURE 1.45 PSI MAX 5MPAK NXP USA Inc. |
8,684 | - |
RFQ |
Ficha técnica |
5-SMD Module, Top Port | Tape & Reel (TR),Cut Tape (CT) | MPX2010 | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.12 (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
MPXHZ6115A6T1SENSOR PRESSURE ABSOLUTE 8-SSOP NXP USA Inc. |
1,301 | - |
RFQ |
Ficha técnica |
8-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | MPXHZ6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXH6400AC6T1SENSOR ABS PRESS 58PSI MAX NXP USA Inc. |
10,161 | - |
RFQ |
Ficha técnica |
8-SOIC (0.335, 8.50mm Width), Top Port | Tape & Reel (TR),Cut Tape (CT) | MPXH6400A | Active | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.64V ~ 5.36V | Male - 0.13 (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 232.06PSI (1600kPa) | -40°C ~ 125°C |
|

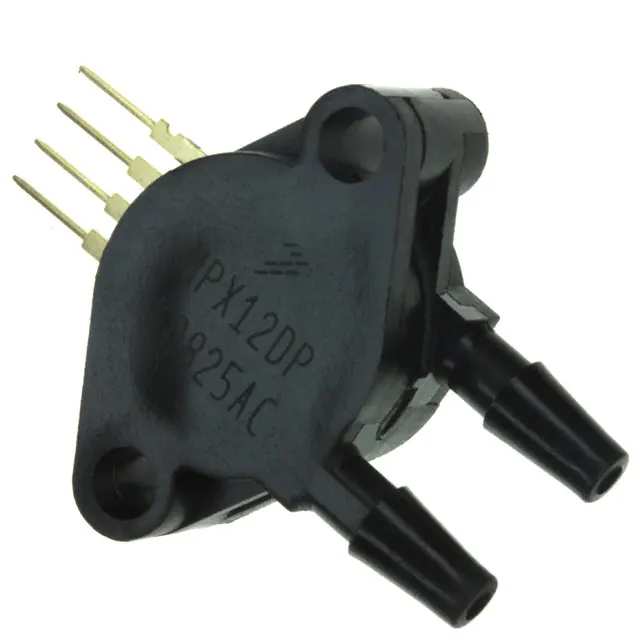

MPX10DPSENSOR DIFF PRESS 1.45 PSI MAX NXP USA Inc. |
3,700 | - |
RFQ |
Ficha técnica |
4-SIP Module | Tray | MPX10 | Active | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (3V) | ±1% | 3V ~ 6V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
|

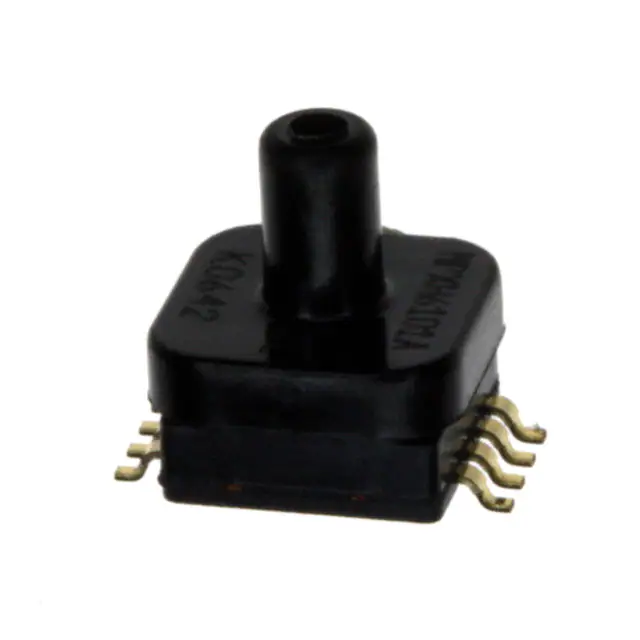

MPXH6115AC6USENSOR ABS PRESS 16.7PSI MAX NXP USA Inc. |
2,397 | - |
RFQ |
Ficha técnica |
8-SOIC (0.335, 8.50mm Width), Top Port | Tube | MPXH6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPXH6400AC6UPRESSURE SENSOR ABS AXIAL 8-SSOP NXP USA Inc. |
2,885 | - |
RFQ |
Ficha técnica |
8-SOIC (0.335, 8.50mm Width), Top Port | Tube | MPXH6400A | Active | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.64V ~ 5.36V | Male - 0.13 (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 232.06PSI (1600kPa) | -40°C ~ 125°C |
|
MPX5010DPSENSOR DIFF PRESS 1.45 PSI MAX NXP USA Inc. |
2,606 | - |
RFQ |
Ficha técnica |
6-SIP Module | Tray | MPX5010 | Active | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|

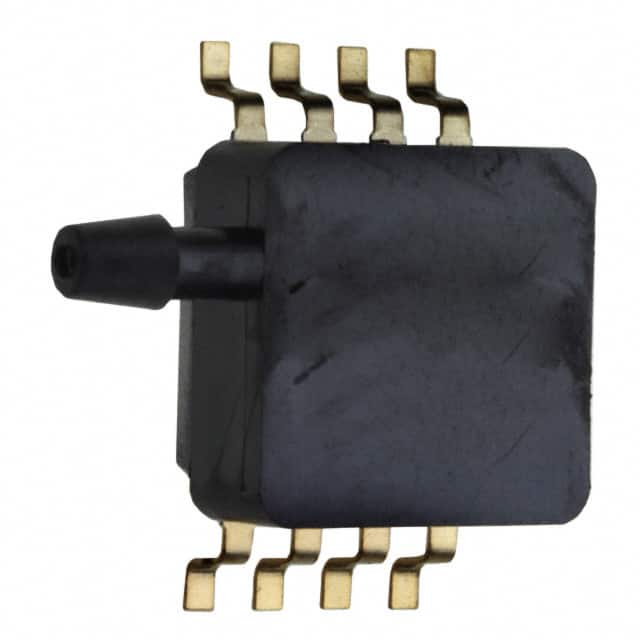

MPXV7007GPPRESSURE SENSOR SIDE PORT 8-SOP NXP USA Inc. |
997 | - |
RFQ |
Ficha técnica |
8-SMD, Gull Wing, Side Port | Tray | MPXV7007 | Active | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C |
|
|
MPXV5010GPSENSOR GAUGE PRESS 1.45PSI MAX NXP USA Inc. |
3,233 | - |
RFQ |
Ficha técnica |
8-SMD, Gull Wing, Side Port | Tray | MPXV5010 | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 5.8PSI (40kPa) | -40°C ~ 125°C |
|

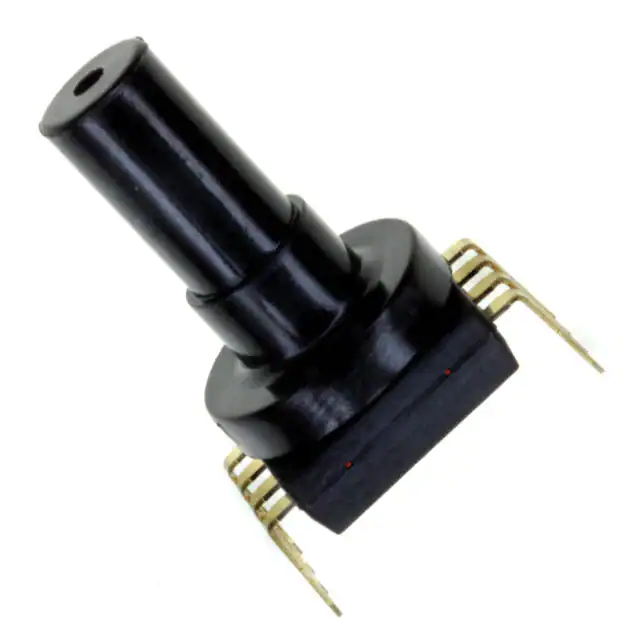

MPVZ5010GW7UPRESSURE SENSOR VERT 8-DIP NXP USA Inc. |
3,513 | - |
RFQ |
Ficha técnica |
8-DIP Module | Tube | MPVZ5010G | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | Male - 0.22 (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
MPX4250APSENSOR ABS PRESS 36.3 PSI MAX NXP USA Inc. |
3,441 | - |
RFQ |
Ficha técnica |
6-SIP Module | Tray | MPX4250A | Active | Board Mount | Absolute | 2.9 ~ 36.26PSI (20 ~ 250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.85V ~ 5.35V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -40°C ~ 125°C |
|

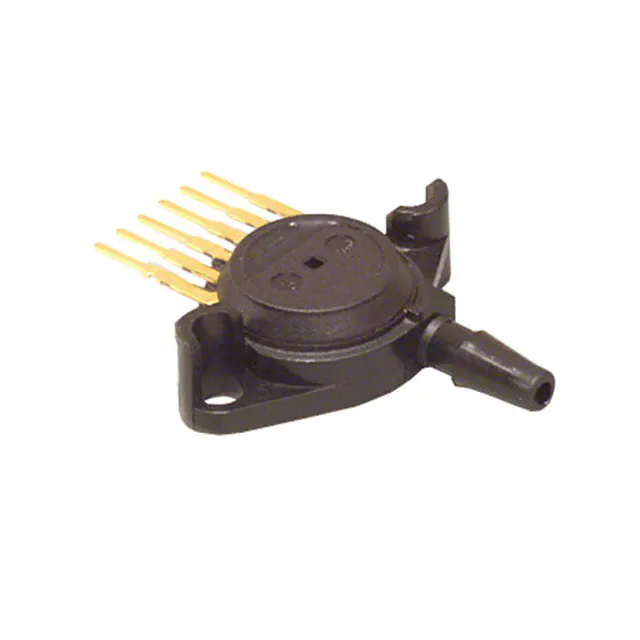

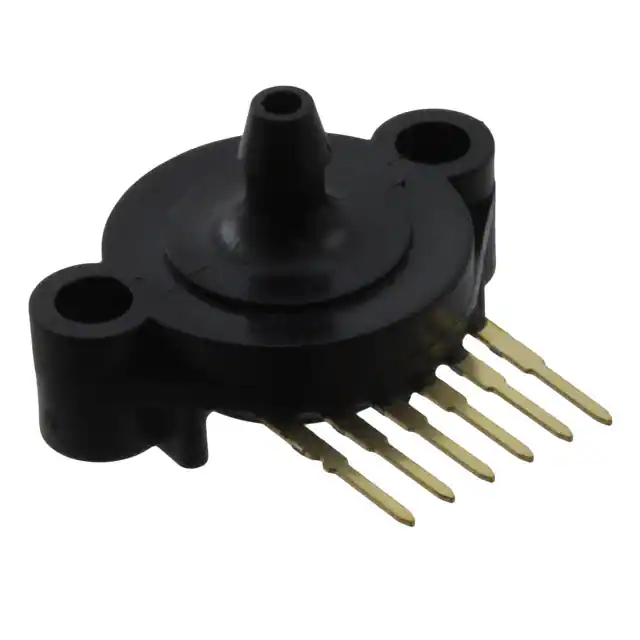

MPX5700ASXPRESSURE SENSOR ABS AXIAL 6-SIP NXP USA Inc. |
5,208 | - |
RFQ |
Ficha técnica |
6-SIP Module | Tray | MPX5700 | Active | Board Mount | Absolute | 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C |
|
|
MPX5050DPSENSOR DIFF PRESS 7.25 PSI MAX NXP USA Inc. |
5,149 | - |
RFQ |
Ficha técnica |
6-SIP Module | Tray | MPX5050 | Active | Board Mount | Differential | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
|
MPX5700APIC PRESSURE SENSOR ABS 6-SIP NXP USA Inc. |
2,442 | - |
RFQ |
Ficha técnica |
6-SIP Module | Tray | MPX5700 | Active | Board Mount | Absolute | 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C |
|

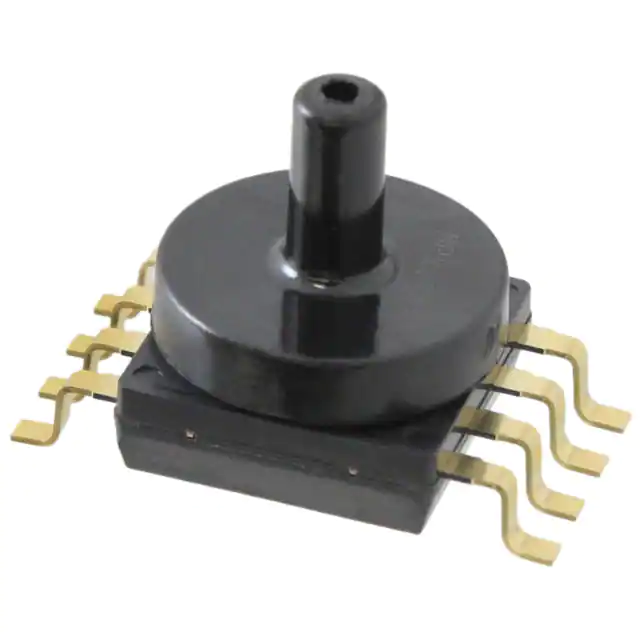

MPXV7025GC6UPRESSURE SENSOR AXIAL PORT 8-SOP NXP USA Inc. |
10,903 | - |
RFQ |
Ficha técnica |
8-SMD, Gull Wing, Top Port | Tube | MPXV7025 | Active | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C |
|
|
MPXV7007GC6UPRESSURE SENSOR AXIAL PORT 8-SOP NXP USA Inc. |
8,472 | - |
RFQ |
Ficha técnica |
8-SMD, Gull Wing, Top Port | Tube | MPXV7007 | Active | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C |
|
|
MP3V5004GPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
6,110 | - |
RFQ |
Ficha técnica |
8-SMD, Gull Wing, Side Port | Tray | MP3V5004 | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 0.6 V ~ 3 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13 (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C |
|
|
MP3V5050VC6UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
5,745 | - |
RFQ |
Ficha técnica |
8-SMD, Gull Wing, Top Port | Tube | MP3V5050 | Active | Board Mount | Vacuum | -7.25PSI (-50kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±2.5% | 2.7V ~ 3.3V | Male - 0.13 (3.17mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | -29.01PSI (-200kPa) | -40°C ~ 125°C |
|
MPXM2202ASENS PRESSURE 29 PSI MAX MPAK NXP USA Inc. |
5,332 | - |
RFQ |
Ficha técnica |
5-SMD Module | Tube | MPX2202 | Active | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX53DPSENSOR DIFF PRESS 7.25PSI MAX NXP USA Inc. |
764 | - |
RFQ |
Ficha técnica |
4-SIP Module | Tube | MPX53 | Active | Board Mount | Differential | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | -0.6% ~ 0.4% | 3V ~ 6V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | - | PC Pin | 25.38PSI (175kPa) | -40°C ~ 125°C |
