Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
56100C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	935	-	RFQ	Ficha técnica	Tube	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	100:1	-	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.16mm)
54200C CURR SENSE XFMR 1:1:200 15A SMD Murata Power Solutions Inc.	2,362	-	RFQ	Ficha técnica	Tape & Reel (TR)	5400	Active	50kHz ~ 500kHz	Invasive	-	60 mH	-	1:1:200	-	7mOhm Primary, 6.6Ohm Secondary	-	Surface Mount	0.354 L x 0.425 W (9.00mm x 10.80mm)	0.323 (8.20mm)
56300C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	406	-	RFQ	Ficha técnica	Box	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	300:1	5.73mOhm Primary, 8.59mOhm Secondary	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.19mm)
56T100C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	142	-	RFQ	Ficha técnica	Box	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	100CT:1	-	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.16mm)
53100C CURR SENSE XFMR 1:100 10A SMD Murata Power Solutions Inc.	2,036	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	5300	Active	50kHz ~ 500kHz	Invasive	-	2 mH	-	1:100	-	7mOhm Primary, 5.6Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
56200C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	2,504	-	RFQ	Ficha técnica	Tube	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	72 mH	-	-	200:1	1.87mOhm Primary, 2.81mOhm Secondary	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.19mm)
53020C CURR SENSE XFMR 1:20 10A SMD Murata Power Solutions Inc.	2,201	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	5300	Active	50kHz ~ 500kHz	Invasive	-	80 µH	-	1:20	-	7mOhm Primary, 550mOhm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53050C CURR SENSE XFMR 1:50 10A SMD Murata Power Solutions Inc.	3,458	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	5300	Active	50kHz ~ 500kHz	Invasive	-	500 µH	-	1:50	-	7mOhm Primary, 1.75Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
56050C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	2,689	-	RFQ	Ficha técnica	Tube	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	50:1	-	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.16mm)
53200C CURR SENSE XFMR 1:200 10A SMD Murata Power Solutions Inc.	2,304	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	5300	Active	50kHz ~ 500kHz	Invasive	-	8 mH	-	1:200	-	7mOhm Primary, 34Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
56T300C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	3,350	-	RFQ	Ficha técnica	Box	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	300CT:1	5.73Ohm Primary, 8.59Ohm Secondary	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.19mm)
53030C CURR SENSE XFMR 1:30 10A SMD Murata Power Solutions Inc.	2,670	-	RFQ	Ficha técnica	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	180 µH	-	1:30	-	7mOhm Primary, 850mOhm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53040C CURR SENSE XFMR 1:40 10A SMD Murata Power Solutions Inc.	3,380	-	RFQ	Ficha técnica	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	320 µH	-	1:40	-	7mOhm Primary, 1.1Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53060C CURR SENSE XFMR 1:60 10A SMD Murata Power Solutions Inc.	2,891	-	RFQ	Ficha técnica	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	720 µH	-	1:60	-	7mOhm Primary, 2.2Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53070C CURR SENSE XFMR 1:70 10A SMD Murata Power Solutions Inc.	2,315	-	RFQ	Ficha técnica	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	980 µH	-	1:70	-	7mOhm Primary, 4.5Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53125C CURR SENSE XFMR 1:125 10A SMD Murata Power Solutions Inc.	2,902	-	RFQ	Ficha técnica	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	3 mH	-	1:125	-	7mOhm Primary, 7.5Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)
53150C CURR SENSE XFMR 1:150 10A SMD Murata Power Solutions Inc.	3,566	-	RFQ	Ficha técnica	Tape & Reel (TR)	5300	Active	50kHz ~ 500kHz	Invasive	-	4.5 mH	-	1:150	-	7mOhm Primary, 17.5Ohm Secondary	-	Surface Mount	0.283 L x 0.327 W (7.20mm x 8.30mm)	0.213 (5.40mm)

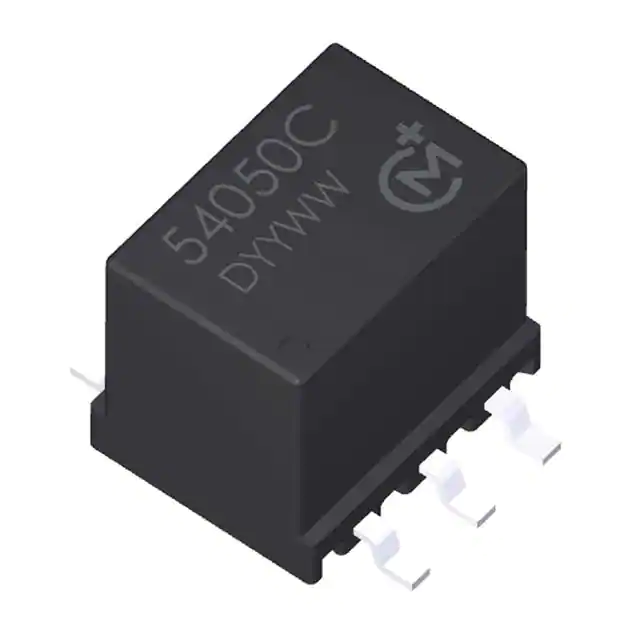

54050C CURR SENSE XFMR 1:1:50 15A SMD Murata Power Solutions Inc.	2,224	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	5400	Active	50kHz ~ 500kHz	Invasive	-	3.8 mH	-	1:1:50	-	7mOhm Primary, 500mOhm Secondary	-	Surface Mount	0.354 L x 0.425 W (9.00mm x 10.80mm)	0.323 (8.20mm)
54100C CURR SENSE XFMR 1:1:100 15A SMD Murata Power Solutions Inc.	3,091	-	RFQ	Ficha técnica	Tape & Reel (TR)	5400	Active	50kHz ~ 500kHz	Invasive	-	14.8 mH	-	1:1:100	-	7mOhm Primary, 3.2Ohm Secondary	-	Surface Mount	0.354 L x 0.425 W (9.00mm x 10.80mm)	0.323 (8.20mm)
56T200C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	2,205	-	RFQ	Ficha técnica	Box	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	200CT:1	1.87mOhm Primary, 2.81mOhm Secondary	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.19mm)
