Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

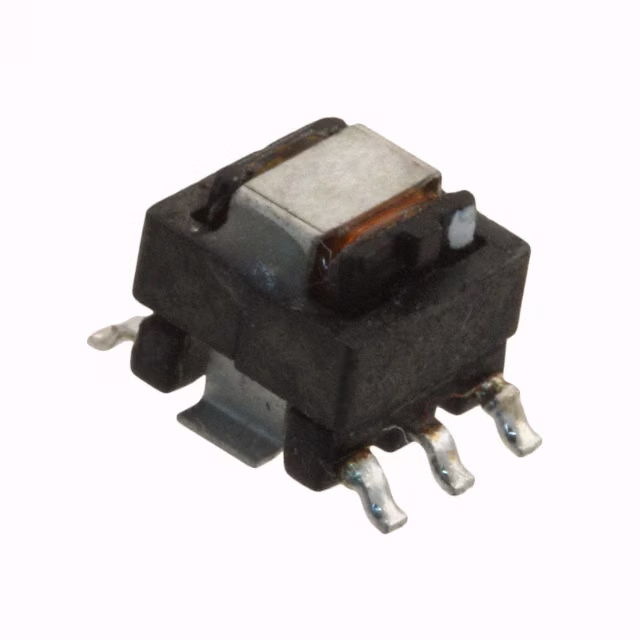

B82801B0504A050 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	2,637	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	500 µH	-	1:50	-	0.8mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801B0305A125 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	2,488	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	3 mH	-	1:125	-	0.8mOhm Primary, 6.5Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801B0925A200 CURR SENSE XFMR 1:200 20A SMD EPCOS - TDK Electronics	2,903	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	20 A	8 mH	100VµS	1:200	-	0.6mOhm Primary, 33.24Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)

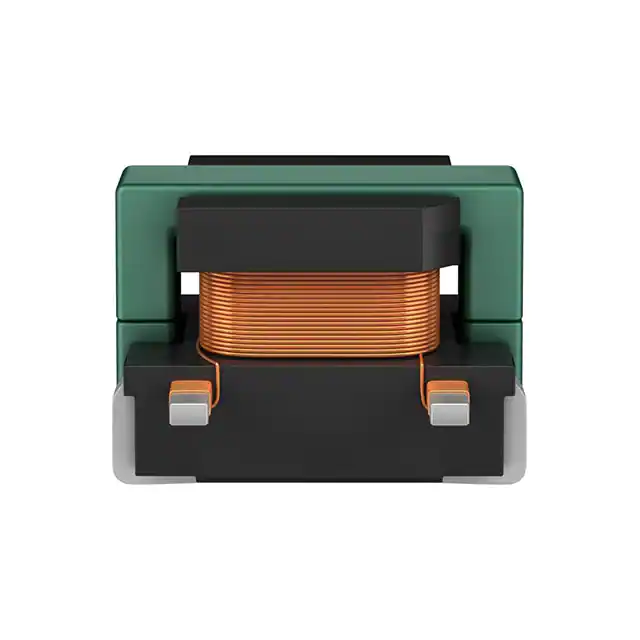

B82801A1824A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,991	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	820 µH	-	-	-	2.5mOhm Primary, 8.7Ohm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)

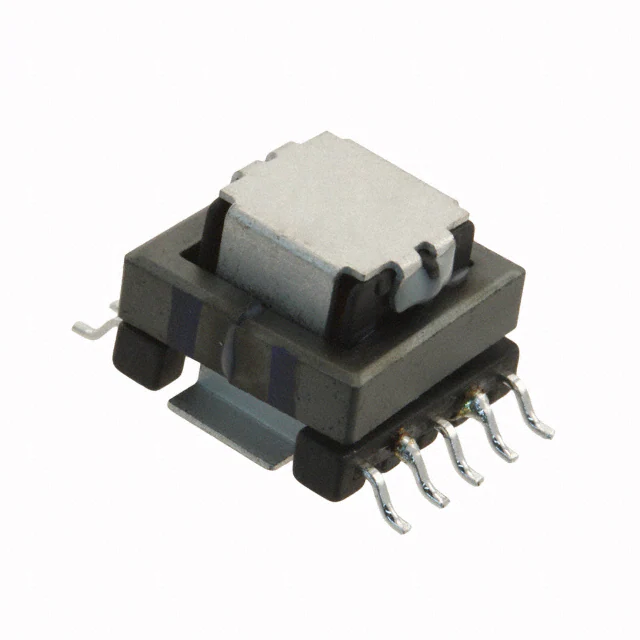

B82801C0565A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,006	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801C	Active	50kHz ~ 500kHz	Invasive	-	5.6 mH	-	1:100	-	0.28mOhm Primary, 1Ohm Secondary	-	Surface Mount	0.560 L x 0.530 W (14.22mm x 13.46mm)	0.394 (10.00mm)
B82801A1135A125 EE4.2 SMD TRANSFORMER_P301769 EPCOS - TDK Electronics	2,903	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	1.28 mH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801C0145A050 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	329	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801C	Active	50kHz ~ 500kHz	Invasive	-	1.4 mH	-	1:50	-	0.28mOhm Primary, 400mOhm Secondary	-	Surface Mount	0.560 L x 0.530 W (14.22mm x 13.46mm)	0.394 (10.00mm)
B78417A2285A003 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	2,218	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	1.7 mH	-	1:50	-	1.9mOhm Primary, 2.1Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
B78417A2287A003 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	320	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	11 mH	-	1:125	-	1.9mOhm Primary, 5.3Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
B78419A2251A003 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,795	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	7 mH	-	1:100	-	0.5mOhm Primary, 3.1Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)
B82801A1333A020 CURR SENSE XFMR 1:20 SMD EPCOS - TDK Electronics	2,106	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	33 µH	-	1:20	-	2.5mOhm Primary, 320mOhm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801B0803A020 CURR SENSE XFMR 1:20 SMD EPCOS - TDK Electronics	601	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	80 µH	-	1:20	-	0.8mOhm Primary, 400mOhm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801A1134A040 EE4.2 SMD TRANSFORMER_P301765 EPCOS - TDK Electronics	593	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	132 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1304A060 EE4.2 SMD TRANSFORMER_P301767 EPCOS - TDK Electronics	583	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	295 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1743A030 CURR SENSE XFMR 1:30 SMD EPCOS - TDK Electronics	572	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	74 µH	-	1:30	-	2.5mOhm Primary, 800mOhm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1214A050 EE4.2 SMD TRANSFORMER_P301766 EPCOS - TDK Electronics	552	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	205 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1404A070 EE4.2 SMD TRANSFORMER_P301768 EPCOS - TDK Electronics	543	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	400 µH	-	-	-	-	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A1185A150 TRANSFORMER CURRENT SENSE SMD EPCOS - TDK Electronics	319	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	1.84 mH	43.2VµS	1:150	-	2.5mOhm Primary, 21Ohm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B78419A2290A003 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	192	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	11 mH	-	1:125	-	0.5mOhm Primary, 4Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)
B78417A2286A003 CURR SENSE XFMR 1:70 SMD EPCOS - TDK Electronics	295	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	3 mH	-	1:70	-	1.9mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
